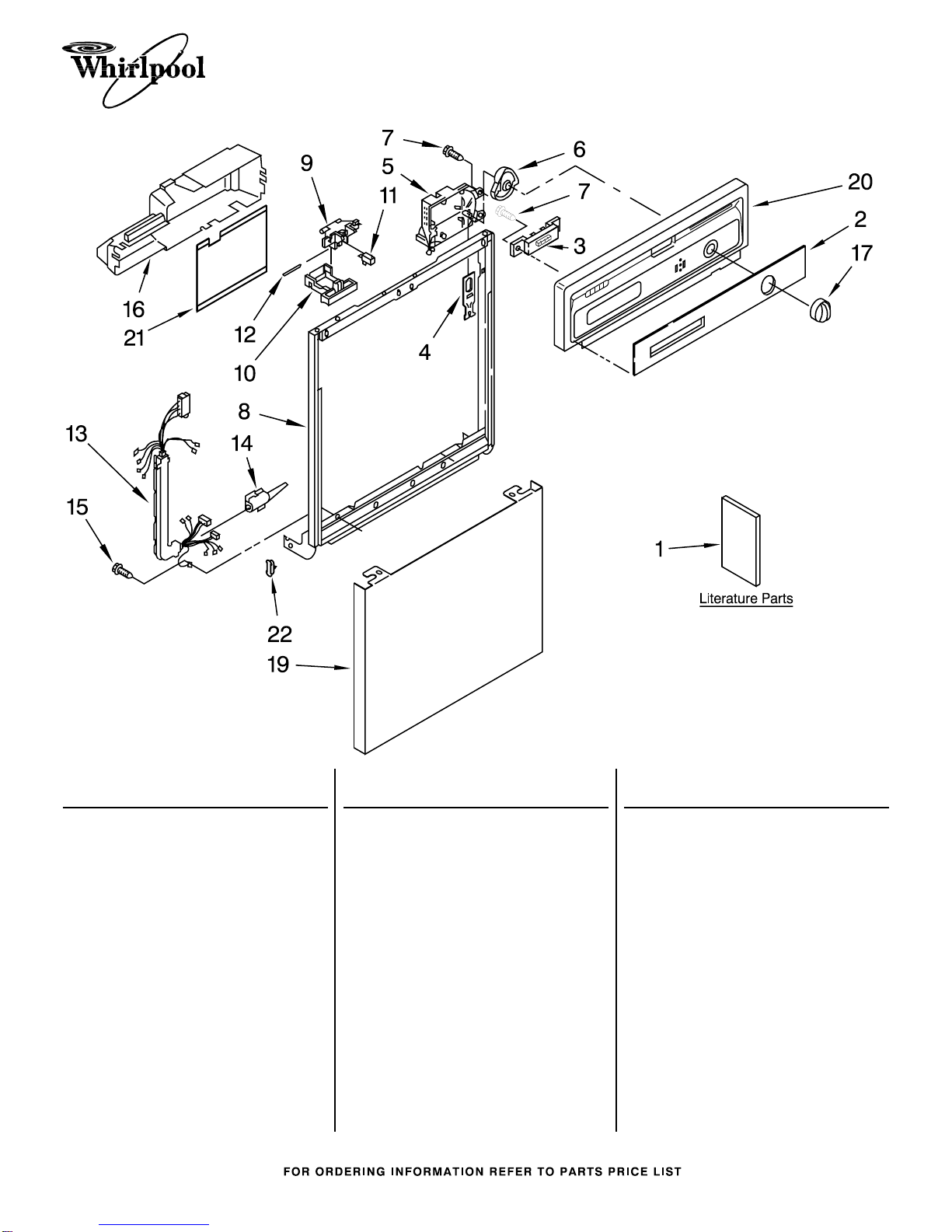

FRAME AND CONSOLE PARTS

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

7−06 Litho In U.S.A. (ebk) Part No. 8194501

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8535436 Instructions,

Installation

3367007 Instructions,

Installation

(Supplement)

(Locating Your

Water Supply)

W10039850

Guide, Energy

W10039800

Guide, Use & Care

677967 Do−It Yourself

Manual

2 Insert, Console

W10039600

Black

W10039610

White

W10039620

Biscuit

3 8269366 Switch, 5 Button

4 3369529 Follower, Cam

W10039480

Timer

6 8271510 Cam

7 304231 Screw,

8−18 x 1/2 (5)

8 Door Frame

9743028 Black

9 3380854 Bolt, Latch

10 Lever, Latch

3369457 Black

3372231 White

3375062 Biscuit

11 3369325 Switch, (2)

12 3368955 Pin, Switch (2)

13 8573183 Harness and

Protector

14 3376405 Elbow, Harness

15 3400892 Screw,

16 8269526 Cover, Control

17 Knob, Timer

8275308 Black

8275309 White

8275310 Biscuit

19 Panel, Front

3379375 Black

3379376 White

8054178 Biscuit

9743581 Stainless

20 Console

(Includes Item 2)

W10072690

Black

W10072700

White

W10072710

Biscuit

21 3379671 Shield, Control

Cover

22 3373234 Bearing,

Spring (2)

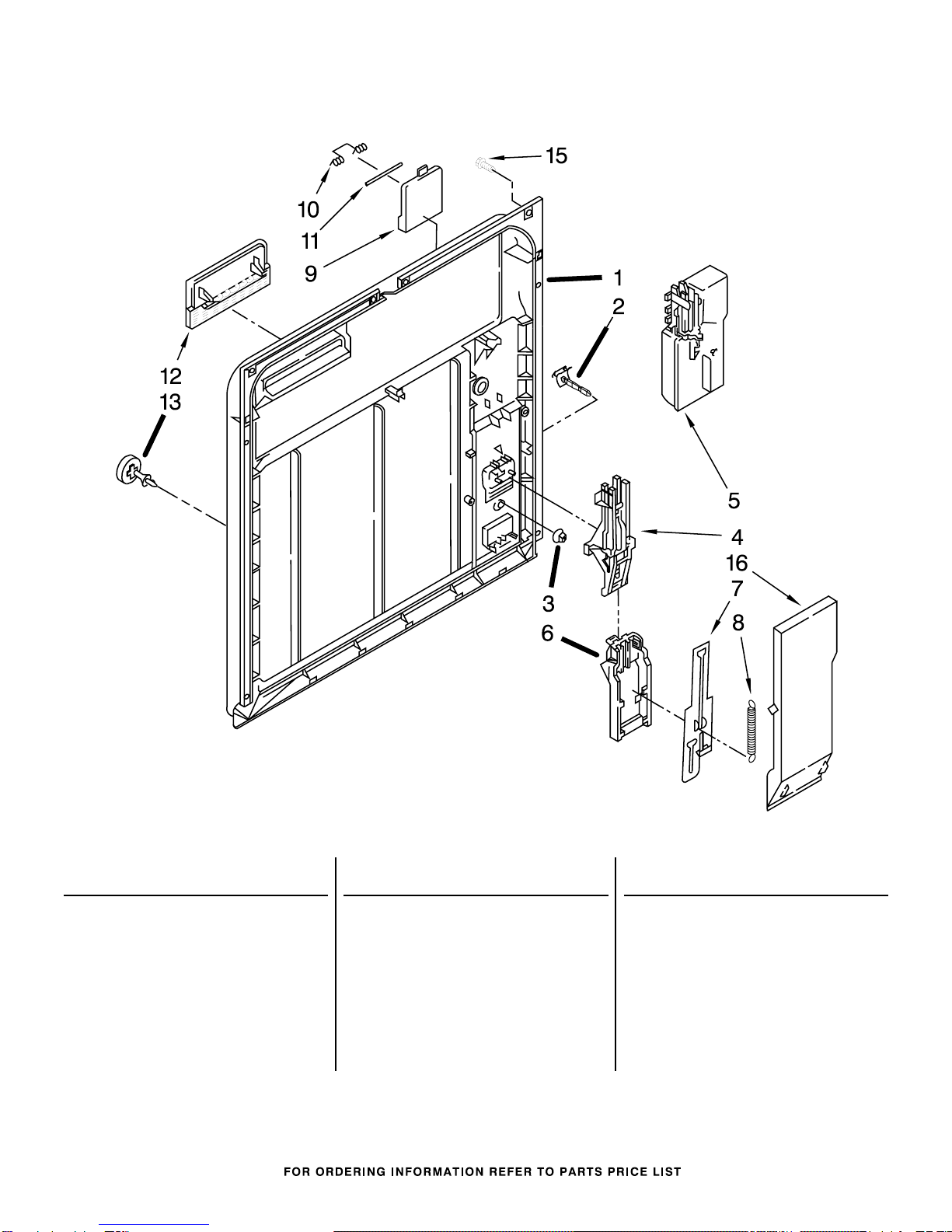

INNER DOOR PARTS

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

8194501

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8528310 Inner Door

(Includes Items

2 & 3)

2 3376066 Latch, Detergent

Dispenser

(Includes Item 3)

3 3369061 Snap, Detergent

Dispenser

(Includes Item 2)

4 8519606 Actuator Assembly

5 8052027 Wet Agent,

Dispenser

6 3369000 Draw Bar (Upper

Dispenser)

7 8066017 Draw Bar (Lower

Dispenser)

8 3368999 Spring (Draw

Bar)

9 3378138 Lid Assembly

10 8066018 Spring, Lid

11 3372028 Pin (Lid Hinge)

12 3371710 Screen, Vent

13 3378134 Cap, Wet Agent

15 3400815 Screw (8)

16 3371569 Cover, Drip

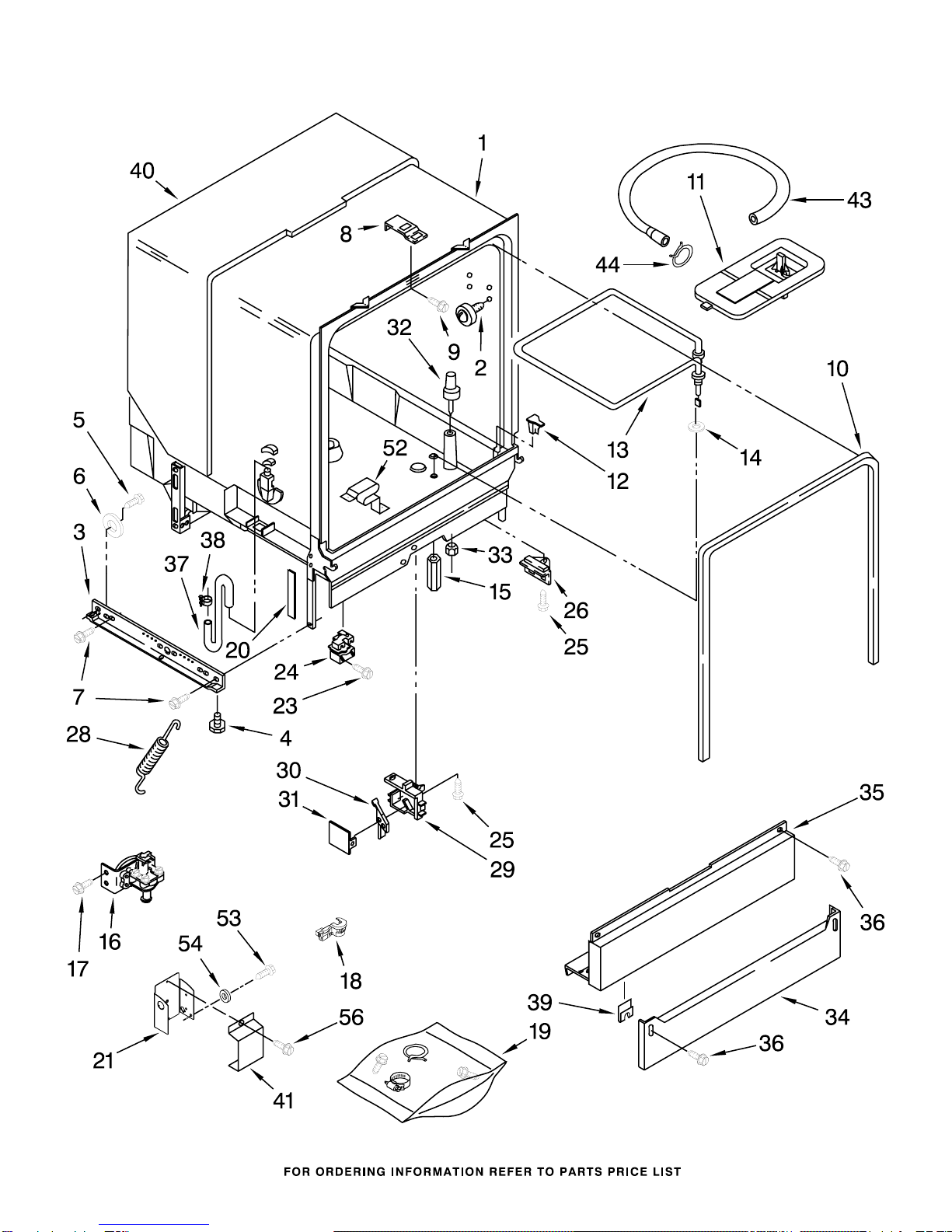

TUB ASSEMBLY PARTS

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

8194501

TUB ASSEMBLY PARTS

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

8194501

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8533815 Tub and Support

Assembly

2 8528831 Tub, Wheel

Assembly (8)

3 3368933 Runner (2)

4 3374849 Leveler (2)

5 3370389 Screw,

Shoulder (2)

6 302819 Wheel (2)

7 343641 Screw,

10−16 x 1/2 (4)

8 3378149 Plate, Latch

9 3374720 Screw

10 3376927 Gasket

11 3369322 Grate

12 8528862 Deflector (2)

13 8519827 Heater

14 717273 Washer, Rubber (2)

15 8268548 Nut (2)

(Heater Terminal)

16 8283345 Water Valve

17 304392 Screw, 8−18 x 1/2

18 8573061 Strain Relief

19 3369816 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

20 8052018 Pad, Friction

21 8573951 Terminal Box

23 3370225 Screw

24 3369063 Relay

25 304231 Screw

26 3368928 Fuse, Thermal

28 3379383 Spring, Door (2)

29 8318218 Housing, Float

Switch

30 3369067 Switch, Float

31 8318219 Cover, Switch

Housing

32 8519552 Float

33 717488 Nut

34 Panel, Toe

3368942 Black

9742861 White

8054181 Biscuit

35 Panel, Access

(Includes Item 39)

3379917 Black

3379918 White

8054179 Biscuit

9744517 Stainless

36 302868 Screw,

8−18 x 1/2 (4)

37 3369414 Hose, Inlet

38 301958 Clamp

39 3378123 Clip, Grounding

40 8573243 Sound Shield

41 300068 Cover Assembly,

Terminal Box

43 3374077 Drain Hose

44 356138 Hose Clamp

52 3379740 Support, Heater (3)

53 3400014 Screw

54 3378128 Washer

56 3369138 Screw, 8−18

PUMP AND SPRAY ARM PARTS

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

8194501

Illus. Part

No. No. DESCRIPTION

1 3369037 Grommet, Pump

Seal

2 3369015 Pump & Motor

Assembly

For Breakdown Of Pump

Parts, Refer To Pump And

Motor Parts Page.

3 3369035 Hose, Pump

Inlet

4 3400959 Clamp (2)

5 8531963 Support, Motor

6 3369032 Grommet, Motor

Support

7 3370856 Pushnut, Motor

Support

8 3369038 Washer, Grommet

9 8268870 Spray Arm,

Assembly Lower

10 8268883 Nut, Pump Outlet

11 3371745 Support & Bearing

Assembly

(Includes Items:

13, 14 & 15)

12 3369045 Seal, Split Ring

13 3369044 Washer

14 3371746 Bearing

15 3371744 Shoulder Screw

16 8520839 Collector Assembly

w/Check Valve

17 8520841 Funnel

18 8520843 Seal

19 3369177 Seal

20 3369178 Ball, Check−Valve

21 371499 Clamp, Hose

22 8520842 Hose, Collector

23 3371634 Washer, Curved

24 8534039 Screw 10−16,

Hi−Lo (4)

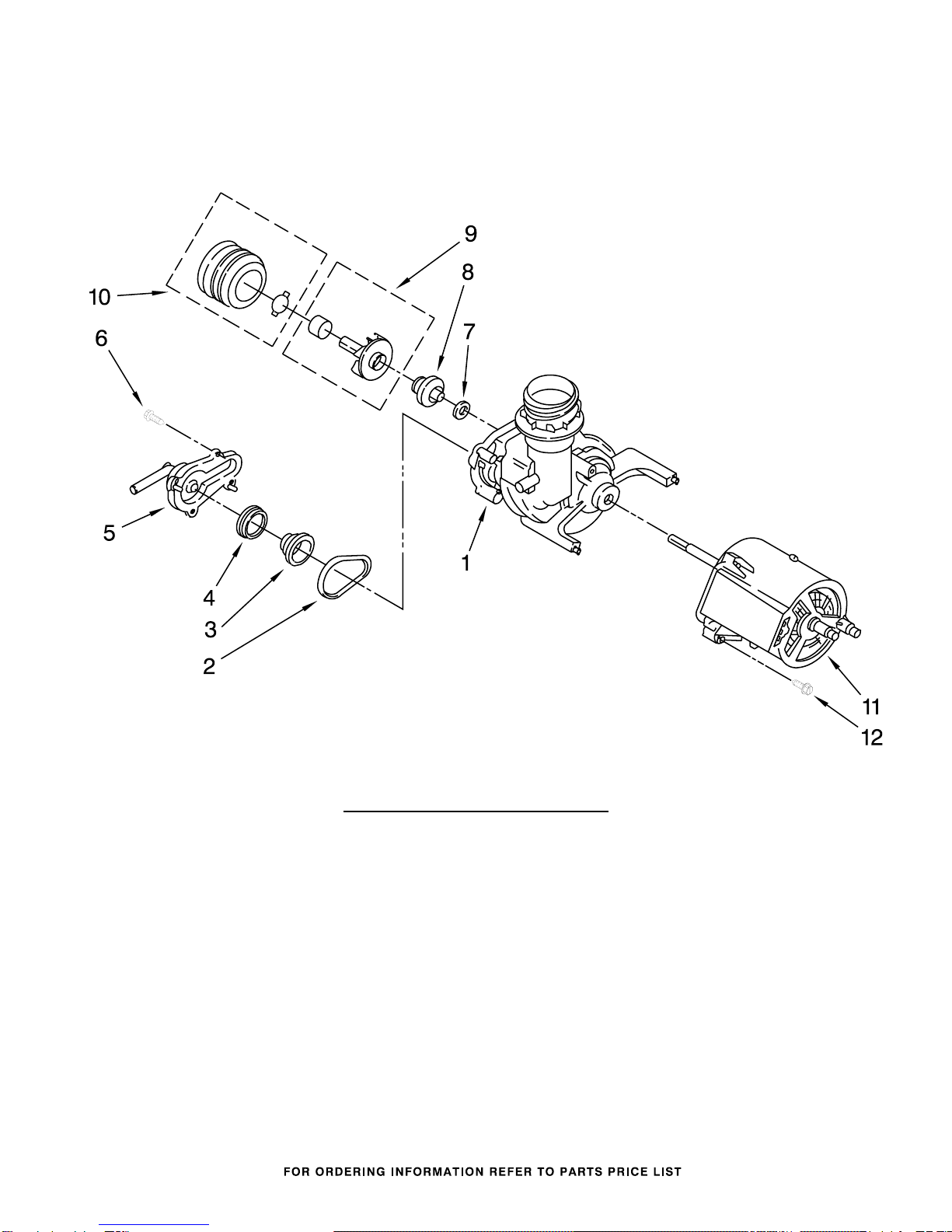

PUMP AND MOTOR PARTS

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

8194501

Illus. Part

No. No. DESCRIPTION

1 3369011 Housing Assembly

2 3369031 Seal, Drain Cover

3 3369028 Diaphragm

4 3369029 Ring, Diaphragm

5 3369030 Cover, Drain Valve

6 3368921 Screw (4)

7 3369020 Seal Seat

8 3385557 Seal Head

9 3369013 Impeller &

Bearing Assembly

10 3369012 Disk & Mount

Assembly

11 8283457 Motor

12 3368922 Screw (3)

DISHRACK PARTS

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

8194501

Illus. Part

No. No. DESCRIPTION

1 8539225 Dishrack, Lower

2 8268825 Tower,

Protector

3 3385142 Bumper,

Dishrack (2)

4 8268645 Wheel & Transport

Assembly (4)

5 8268866 Basket,

Silverware

6 3385089 Track,

Dishrack (2)

7 8565920 Stop, Track (4)

8 8539222 Dishrack, Upper

9 8268852 Wheel & Axle

Assembly (4)

11 8519550 Diffuser, Water

OPTIONAL PARTS (NOT INCLUDED)

For Models: DU850SWPB3, DU850SWPQ3, DU850SWPT3, DU850SWPS3

(Black) (White) (Biscuit) (Stainless)

8194501

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

ACCESSORIES

Side Panel Kits

4378867 White

4378868 Black

675788 Biscuit

4378869 Almond

Custom Trim & Panel Kits

675775 Black

675776 White

675809 Biscuit

Moisture Barrier Kit

4396277 Kit

Drain Hose

3385556 12 Ft.

Heavy Duty Spring Kit

4318050 Spring

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

285006 Superior Black

4392901 Biscuit

PAINT, TOUCH−UP (1 qt.)

799344 White (Uncut)

4392900 Biscuit

POWER CORD KIT

4317824 Power Cord Kit

(Includes Power

Cord & Misc.

Hardware)

ANTI−TIP KIT

4378968 Floor Mounting Kit

DISHRACK REPAIR

Tip Tine Repair Kit

(Enough for Two

Complete Dishracks)

4396838 White

4396840 Grey

4396854 Silver Atlantis

Vinyl Touch−Up (4 oz.)

676453 White

676455 Grey

4396853 Silver Atlantis
