CONVECTION OVEN PARTS

CONVECTION MICROWAVE OVEN

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

11−05 Litho In U.S.A.(dmm) Part No. 8206318

CONVECTION OVEN PARTS

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

8206318

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8205981 U & C Guide

8205787 Tech Sheet

Cooking Guide

8172205 English

8172219 Instructions,

Installation

8172220 Template, B/I Kit

2 8171878 Sensor

3 4358450 Screw

5 8183575 Bracket, Center

6 8183574 Bracket, Left

7 8183576 Bracket, Lower

9 8183580 Insulator

10 8183593 Thermostat

11 8183583 Thermistor

12 8183582 Fan

13 4358460 Bushing

14 8183581 Convection Element

15 8183577 Clip, Conv Element

16 8183567 Duct, Magnetron

17 4358464 Insulation

18 8183566 Shield, Back Insul

19 4358466 Fan Blade

20 4358467 Bracket,

Convection Motor

21 8183565 Convection Motor

22 4358192 Screw

23 4358477 Washer

24 4358478 Washer

25 4358362 Screw

26 8183572 Screw

27 4358380 Screw

28 4358476 Nut

29 8183564 Screw

31 8183591 Harness, Wire

ACCESSORY PARTS

Trim Kits

MK1157XJB

27" Black

MK1157XJQ

27" White

MK1157XJT

27" Biscuit

MK1157XJS

27" Stainless

MK1150XJB

30" Black

MK1150XJQ

30" White

MK1150XJT

30" Biscuit

MK1150XJS

30" Stainless

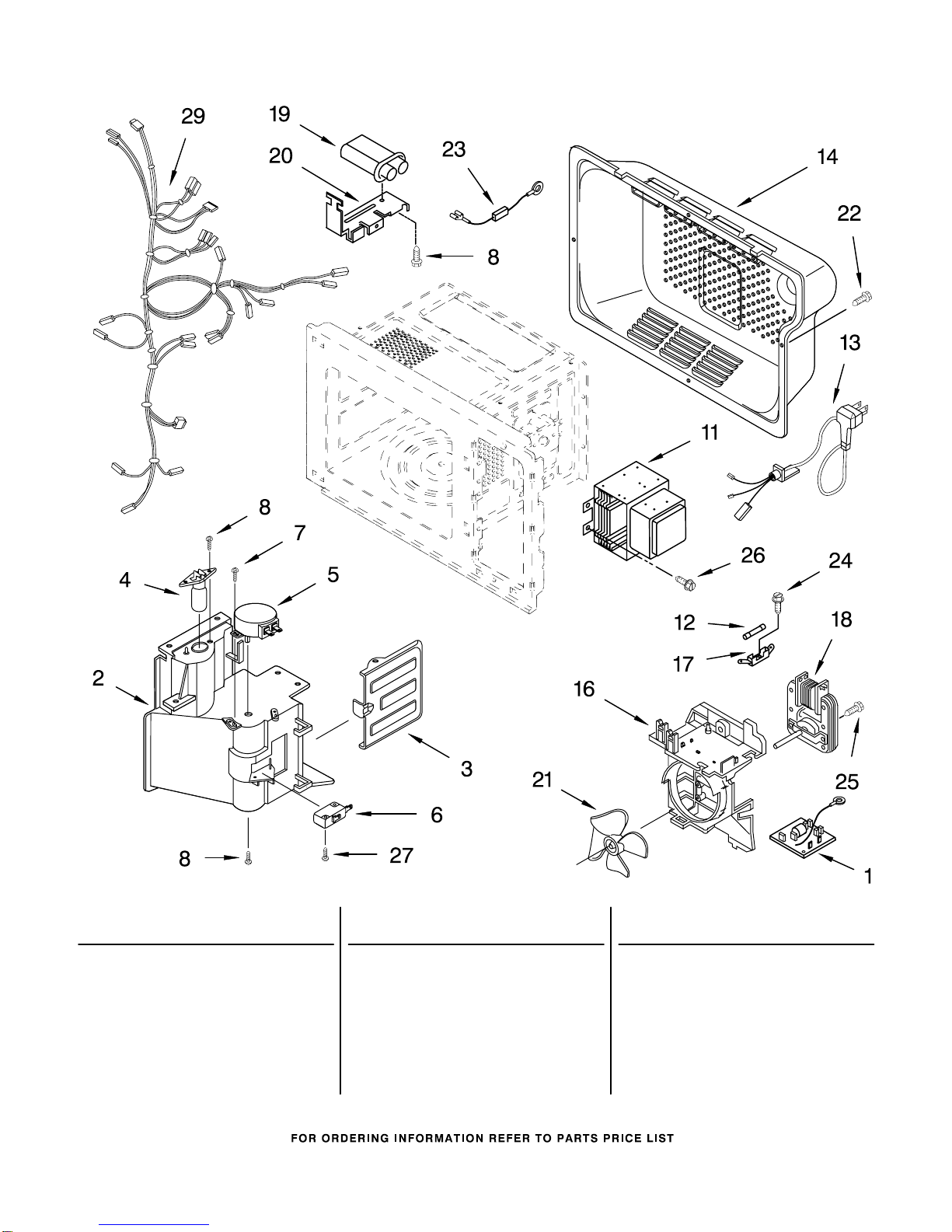

OVEN INTERIOR PARTS

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

8206318

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183771 Filter, Noise

2 8183563 Air Duct

3 8183573 Bracket, Damper

4 8183592 Lamp

5 8183586 Motor, Stirrer

6 8183561 Switch, Micro

7 4358188 Screw

8 4358381 Screw

11 8172000 Magnetron

12 8183507 Fuse

13 8183584 Power Cord

14 8183569 Cover, Back

16 8183579 Guide, Suction

17 8183578 Holder, Fuse

18 8183585 Motor, Fan

19 8183536 Capacitor, H.V.

20 4359161 Bracket, H.V.C.

21 4358379 Fan

22 4358192 Screw

23 8171879 Cable, Diode

24 4358451 Screw

25 4358190 Screw

26 4358489 Screw

27 4358357 Screw

29 8206266 Harness, Main

OVEN CAVITY PARTS

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

8206318

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Outer Case

8183555 Black

8183556 White

8183695 Biscuit

2 8183557 Canopy

3 8183554 Motor, Turntable

4 8183559 Glass, Lamp

6 8171863 Shaft, Turntable

7 8183560 Ring Assembly

8 8172138 Tray

9 8172251 Rack

10 4358192 Screw

12 Screw

4358829 Black

4358362 WH/BT

13 4358188 Screw

15 4358045 Screw

16 8172250 Pan, Drip

BASE PLATE PARTS

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

8206318

Illus. Part

No. No. DESCRIPTION

1 8183568 Plate, Base

2 8172082 Transformer

3 8171902 Cap

5 4358192 Screw

7 4358489 Screw

LATCH BOARD PARTS

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

8206318

Illus. Part

No. No. DESCRIPTION

1 Assembly, Latch

(Non−Serviceable)

2 8183558 Latch Board

3 8183561 Micro Switch

4 8183562 Micro Switch

5 4358795 Lever, Switch

7 4358271 Screw

CONTROL PANEL PARTS

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

8206318

Illus. Part

No. No. DESCRIPTION

3 Control Panel

8183570 Black

8183571 White

8183676 Biscuit

4 Membrane

8183587 Black

8183588 White

8183810 Biscuit

8 8183589 Microcomputer

10 4358451 Screw

OVEN DOOR PARTS

For Models: GM8155XJB2, GM8155XJQ2, GM8155XJT2

(Black) (White) (Biscuit)

8206318

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door Assembly

8183537 Black

8183538 White

8183793 Biscuit

2 Panel, Door

8183539 Black

8183540 White

8183811 Biscuit

3 Glass

8183541 Black

8183542 White

8183689 Biscuit

4 8183543 Frame, Door

5 8183544 Choke Cover

6 8171918 Spring

7 8171850 Latch

8 8171798 Cap

9 Handle

8183545 Black

8183546 White

8183812 Biscuit

10 4358188 Screw
