UseAndCare

A Note to You ........................ 2

Air Conditioner Safety .......... 3

Parts and Features ................ 4

Operatlng Your Air

Conditioner ............................ 5

Starting your air

conditioner ........................... 5

Using the energy saver

settings ................................ 5

Using the exhaust vent

control .................................. 6

Changing air direction .......... 6

Caring for Your Air

Conditioner ............................ 7

Cleaning the front panel ...... 7

Cleaning the slide-out

air filter ................................. 8

Peg annual

maintenance ........................ 8

Saving energy ...................... 9

Troubleshooting .................. 10

Requesting Assistance

or Service ............................. 11

Index ..................................... 15

Warranty .............................. 16

l-800-253-1301

Call our Conoumer Aosistance Center

with question8 or commente.

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpcol Air Conditioners are easy

to use, save time, and help you manage your home better. To ensure you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable informa-

tion about how to operate and maintain your appliance properly and safely. Please read it

carefully. Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on Model Number

your appliance, you need to know your

complete model number and serial number. Serial Number

You can find this information on the model Purchase Date

and serial number label (see diagram on

page 4 for location of label). Dealer Name

Please also record the purchase date of

your appliance and your dealer’s name, Dealer Address

address, and telephone number. Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

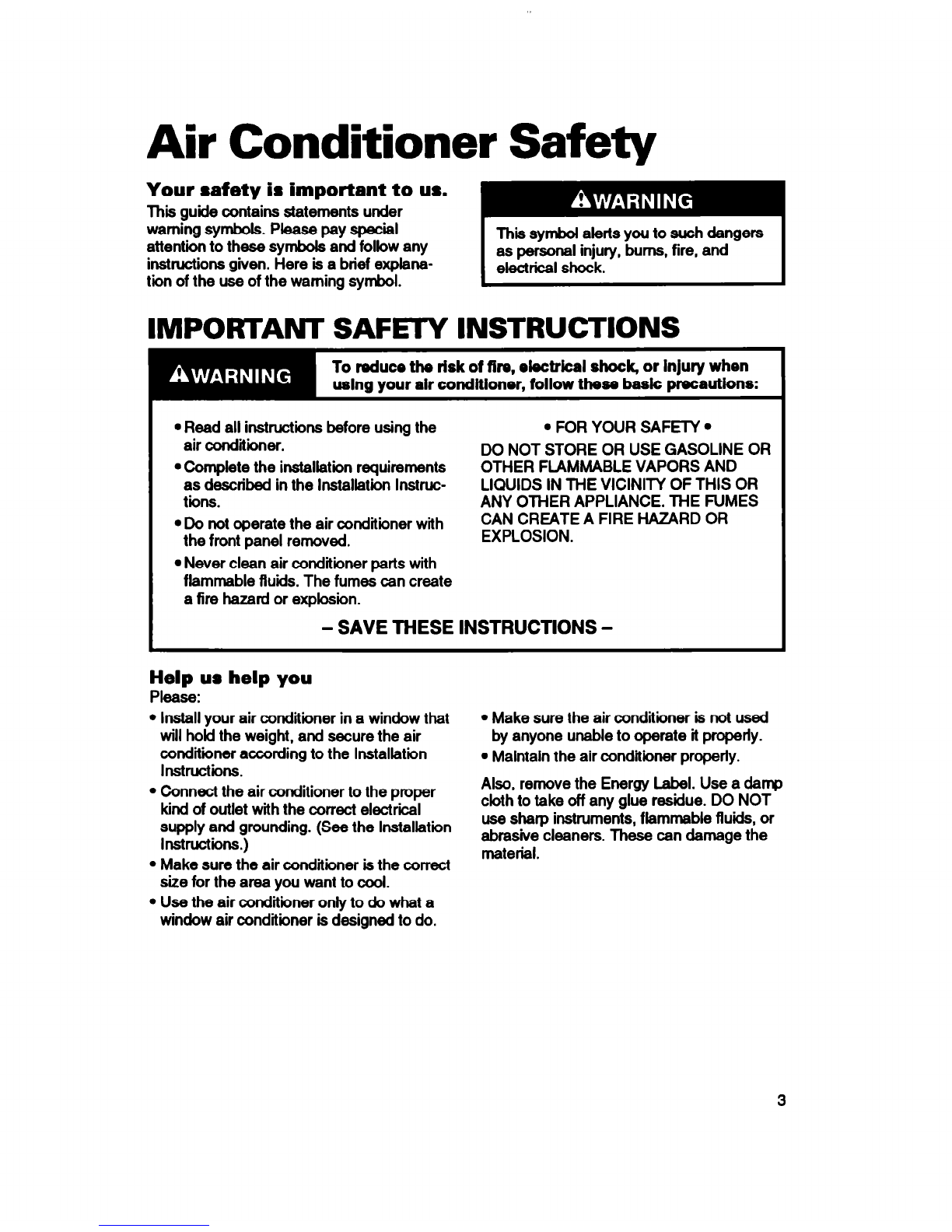

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under

warning symbols. Please pay special

attention to these symbols

and

follow any

instructions given. Here is

brief explana-

tion of the use of the warning symbol.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, elect&al shock, or injury when

using your air conditioner, follow these bask precautions:

Read

all

instructions before using the

FOR YOUR SAFETY

air conditioner. DO NOT STORE OR USE GASOLINE OR

Complete the installation requirements OTHER FLAMMABLE VAPORS AND

as described in the Installation Instruc- LIQUIDS IN THE VICINITY OF THIS OR

tions. ANY OTHER APPLIANCE. THE FUMES

Do not operate the air conditioner with CAN CREATE A FIRE HAZARD OR

the front panel removed. EXPLOSION.

Never clean air conditioner parts with

flammable fluids. The fumes can create

a fire hazard or explosion.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install your air conditioner in a window that

will hold the weight, and secure the air

conditiiner according to the Installation

. . _.

InstnJctlons.

Connect the air conditioner to the proper

kind of outlet with the correct electriil

supply and grounding. (See the Installation

IMWJCtbllS.)

Make sure the air conditioner is the correct

Make sure the air conditioner is not used

by anyone unable to operate it properly.

Maintain the air conditioner properly.

Also, remove the Energy Label. Use a dampwe the Energy Label. Use a damp

cloth to take off any glue residue. DO NOT.I-- -= any glue residue. DO NOT

use sharp instruments, flammable fluids, orments, flammable fluids, or

abrasive cleaners. These can damage thecleaners. These can damage the

material.

size for the area you want to cool.

Use the air condiiioner only to do what a

window air conditioner is designed to do.

Parts and Features

This section contains captioned ibtrations of your appliance. Use them to become familiar

with where all parts and features are bcated and what they look like. To help you find infor-

mation on specific parts or features quickly, page references are included.

Control panel

(PP. 56) I

Slideout

air filter

(P. 8) I

Adjustable air

direction cartridges

(P. 6)

Model and serial number label

(behind front panel)

Operating Your Air Conditioner

To obtain the best possible results from your air conditioner, it is important that you operate it

properly. This section tells you how to set the controls and how to direct the cooled air.

Starting your air conditioner

1. Set Exhaust Control to CLOSED for

maximum cooling performance. (See

“Using the exhaust vent control” on

page 6.1

2. Set the Selector Control to the desired

setting.

COOL - for cooling the room air

HEAT - for heating the room air

FAN ONLY -for circulating room air

without cooling or heating it

3. Set the Fan Control to the desired

setting. You can use either the ENERGY

SAVER or NORMAL FAN settings. (See

“Using the energy saver settings” below.)

LOW - for sleeping comfort

MED - for normal cooling

QUICK COMFORT - for fastest cooling

4. Turn the Thermostat Control to a

mid-setting. You can adjust the air

conditioner’s cooling performance by

turning the Thermostat Control toward

COOLER for more cooling or toward

WARMER for less cooling. You will need

to experiment to find the setting which

suits you best.

IMPORTANT: If you turn the air conditioner

off, or if the compressor turns off when you

lower the Thermostat Control, wait at least

3 minutes before turning the air conditioner

back on. If you don’t wait, you may blow a

fuse or trip a circuit breaker.

Electrical Shock Hazard

l Plug unit only into grounded electrical

outlet.

l Do not use an extension cord.

l Do not operate unit with the front

panel removed.

Failure to follow the above precautions

could result in electrical shock or

personal injury.

Using the energy saver settings

Using the exhaust vent control

The Exhaust Vent Control draws stale or

smoky air from the room or circulates

existing room air.

To exhaust room air:

Set Exhaust Vent Control to OPEN.

2. Set Selector Control to desired setting

(COOL, HEAT, or FAN ONLY).

3. Set Fan Control to desired setting

(ENERGY SAVER or NORMAL FAN).

4. Set Thermostat Control to desired setting.

To circulate room alr:

Set Exhaust Vent Control to CLOSED.

2. Set Selector Control to desired setting

(COOL, HEAT, or FAN ONLY).

3. Set Fan Control to desired setting

(ENERGY SAVER or NORMAL FAN).

4. Set Thermostat Control to desired setting.

NOTE: For maximum performance, the

Exhaust Vent Control must be in the

CLOSED position when cooling or room air

circulation is desired.

Changing air direction

The air direction cartridges on both sides of

the unit control the direction of the cooled

air. The air direction cartridge rotates to

direct the air straight ahead or to the sides of

the unit. The louvers in each air direction

cartridge are operated by a tab. Use the tab

to direct the air up, down, or straight ahead.

Caring for Your Air

Conditioner

Proper care of your air conditioner helps

ensure longer life of the unit and lower

operating costs. Follow these instructions

carefully.

Electrical Shock Hazard

*Unplug the power cord from the recep-

tacle before cleaning the unit.

Do not use cleaning fluids, solvents,

abrasive cleaners, or strong detergents

on the air conditioner.

Failure to follow the above precautions

could result in electrical shock, personal

injury, or product damage.

Cleaning the front panel

1. Disconnect power cord from receptacle.

2. Remove the front panel for cleaning.

Remove the two screws from the bottom

edge of the front panel.

3. Lii front panel up and toward you.

4. Remove the slide-out air filter and clean

separately. (See “Cleaning the slide-out

air filler” on page 8.)

NOTE: The front panel does not have to

be removed to clean fitter.

5. Clean front panel with warm water, mild

soap or detergent, and a soft cloth. Rinse

and dry thoroughly.

6. Wipe control panel clean with a soft, dry

cloth.

7. Replace the front panel.

8. Plug in the power cord.

Cleaning the slide-out air filter

The filter is cleanable. A clean filter helps

remove dust, lint, and other particles from

the air. Check every two weeks to see if filter

needs cleaning.

1. Remove filter by sliding it up and out the

top of the front panel.

2. Clean filter using a vacuum cleaner.

If very dirty, wash filter with warn---water

and mild detergent. Air dry thoroughly

before replacing.

3. Replace filter by sliding it back down into

opening at top of front panel.

Performing annual maintenance

Your air conditioner needs annual mainte-

nanoe to ensure steady, top performance

throughout the year. CaU the service com-

pany recommended by your dealer to:

Inspect and clean the coils and conden-

sate water passages.

Check fan and fan motor.

The compressor and fan motor are sealed

and need no oiling. The expense of an

annual inspection is the consumer’s respon-

sibifii.

Electrical Shock Hazard

Unplug power cord from receptacle

before performing any maintenance.

Be sure no liquid gets into the motor,

electrical control box, or compressor

electrical terminals

.Do not lift, push, or pull any white or

gray beaded foam (expanded potysty-

rene) parts.

If you

are

familiar with electrical appliances,

you can do the inspection and maintenance

yourself. If you choose to do so, follow these

steps:

Because your air conditioner weighs

from 80 to 200 pounds, it is recom-

mended that you have someone help

you when you remove or reinstall

your unit and that you both use proper

lifting techniques.

1. Disconnect power cord from receptacle.

2. Remove the front panel. (See “Cleaning

the front panel” on page 7.)

3. Slide unit out of cabinet using the handles

on the base flange.

4. Be careful not to break off or remove

white or gray beaded foam parts. Some

are marked ‘Do not remove.”

Handle the air conditioner with care.

Watch out for the sharp metal fins on

the front and rear coils.

Do not use the collected water for

drinking purposes. It is not sanitary.

Failure to follow the above precautions

could resuft in electrical shock, personal

injury, or product damage.

Wrap the motor, electrical control box,

and the compressor terminal box in

plastic film to make sure no water or

other liquid gets inside. Water or other

liquids could damage the insulation and

cause serious mechanical problems.

Clean and hose out the base, coils, and

condensate pans. Clean at least once a

year, or more often if the condenser coils

and pans collect dirt, sand, leaves,

insects, or algae. Also, clean if you detect

an odor coming from the air conditioner.

Remove plastic film from motor and

electrical parts.

7. Replace unit in the cabinet.

8. Replace the front panel.

9. Plug in the power cord.

NOTE: It is a good idea to wait 24 hours

before starting the unit again. This allows

time for all areas to dry thoroughly. The

water from rainfall or from normal opera-

tion does not harm the components.

Han-die

(some mod&

have 2 handlee)

Saving energy

Improve your home’s insulation. Seal all

doors and windows. Close the fireplace

flue.

Close blinds or drapes on the sunny side

of the house. Add window awnings.

Keep the air filter clean.

Do not block the airflow from the air

conditioner with drapes or furniture.

Ventilate the attic. High temperatures in

the attic add to the cooling load.

Try not to use heat-producing appliances

during the hottest part of the day.

Turn lights and appliances off when not

needed.

Keep heat registers and cool-air returns

Closed.

Use exhaust venting fans while cooking,

doing laundry, or bathing.

Troubleshooting

Listed in the chart below are the most common problems consumers run into with their air

conditioners. Please read through this chart before calling for service. It coukf save you the

cost of a service call.

PROBLEM CHECK THE FOLLOWING

Alr condltloner

won’t run

Is the unit plugged into a live circuit with proper voltage?

Has the time-delay fuse blown or circuit breaker tripped?

Is the Fan Control set to OFF?

Is the Thermostat Control set correctly?

Has the local power failed?

Unlt blows

fuses or trips

circuit breaker

Are time-delay fuses being used?

Is an extension cord being used? DO NOT use an extension

cord with this or any other appliance.

Are you waiting 3 minutes before trying to restart the unit?

Unlt turns on

Is the air filter clean?

and off

OR does not

cool/heat the

Are the inside evaporator coils and the outside condenser

coils clean?

room

Is there excessive moisture or heat in the room (open vessel

cooking, showers, etc.)?

Is the Fan Control set too low?

Is the Thermostat Control set properly?

Normal operating sounds

When your air conditioner operates nor-

mally, you will hear sounds such as:

PINGING or CLICKING as water droplets

hit the condenser. Water droplets help cool

the condenser.

AIR MOVEMENT from the fan, especially

on QUICK COMFORT setting.

CLICKS from the cooling cycle.

Sounds may also be caused by house

construction - such

vibration of the unit

due to wall construction or an unsteady

window mounting area.

Tabla de contenidos

Otros manuales de Acondicionador de aire de Whirlpool

Whirlpool

Whirlpool 8816058507119 Instrucciones de montaje

Whirlpool

Whirlpool 1187680 Manual de usuario

Whirlpool

Whirlpool SPIW409A2WF Manual de usuario

Whirlpool

Whirlpool ACE082XP1 Manual de usuario

Whirlpool

Whirlpool ACP102PR0 Manual de usuario

Whirlpool

Whirlpool AMD 081/1 Manual de usuario

Whirlpool

Whirlpool AMD 091/1 Manual de usuario

Whirlpool

Whirlpool ATE0743SPP Guía de inicio rápido

Whirlpool

Whirlpool ACC108PS Instrucciones de montaje

Whirlpool

Whirlpool ACM184XE1 Manual de usuario

Whirlpool

Whirlpool BHAC0600BS0 Manual de operación

Whirlpool

Whirlpool ACC082XR0 Manual de usuario

Whirlpool

Whirlpool ACP102PS2 Manual de usuario

Whirlpool

Whirlpool PACF29COW Manual de usuario

Whirlpool

Whirlpool ACU109PR Instrucciones de montaje

Whirlpool

Whirlpool 1159801 Manual de usuario

Whirlpool

Whirlpool 819052203 Instrucciones de montaje

Whirlpool

Whirlpool ACE184XR0 Manual de usuario

Whirlpool

Whirlpool ACE082XR0 Manual de usuario

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manual de usuario

Whirlpool

Whirlpool AMD 064 Manual de usuario

Whirlpool

Whirlpool Cool Impression room air conditioners Manual de usuario

Whirlpool

Whirlpool ACQ189XR1 Manual de usuario

Whirlpool

Whirlpool AWV07000R Guía de instalación

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
