Whirlpool ACM062 Manual de usuario

UseAndCare

PART NO. 1167499 Rev. A

A Note to You ......................... 2

Air Conditioner Safety ........... 3

Parts and Features ................. 4

Operating Your Air

Conditioner .............................

Starting your air

conditioner .......................... 5

Changing air direction ......... 6

Caring for Your Air

Conditioner ............................. 7

Cleaning the front panel .....7

Cleaning the slide-out

air filter.. .............................. 8

Performing annual

maintenance ....................... 8

Saving energy.. .................

Troubleshooting ................... 11

Requesting Assistance

or Service.. ............................ 12

Index.. .................................... 15

Warranty ............................... 16

1-800-253-I 301

Call our Consumer Assistance Center

with questions or comments.

AIR CONDITIONERS

MODELS: ACM052 ACM062 ACM072

“45

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL Air Conditioners are

easy to use, save time, and help you manage your home better. To ensure you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully. Also, please complete and mail the Ownership Registration Card provided

with your appliance. This card helps us notify you about any new information on your

appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label (see diagram on

Dealer Name

page 4 for location of label).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-l 301 1

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

This symbol alerts you to such dan-

gers as fire, electrical shock, burns,

and personal injury.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, or

injury when using your air conditioner, follow

these basic precautions:

Read all instructions before using the

air conditioner.

.Complete the installation requirements

as described in the Installation

Instructions.

Do not operate the air conditioner with

the front panel removed.

*Never clean air conditioner parts with

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

flammable fluids. The fumes can create

an explosion or fire hazard.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install your air conditioner in a window that

will hold the weight, and secure the air

conditioner according to the Installation

Instructions.

Connect the air conditioner to the proper

kind of outlet with the correct electrical

supply and grounding. (See the Installation

Instructions.)

Make sure the air conditioner is the correct

size for the area you want to cool.

Use the air conditioner only to do what a

window air conditioner is designed to do.

Make sure the air conditioner is not used

by anyone unable to operate it properly.

Maintain the air conditioner properly.

Also, remove the Energy Label. Use a damp

cloth to take off any glue residue. DO NOT

use sharp instruments, flammable fluids, or

abrasive cleaners. These can damage

the material.

Air direction

louvers andiab

(P. 6)

Slide-out

air flltsr

(P.8)

Model and

serial

Mht3r

label

Control

Panel

(P.51

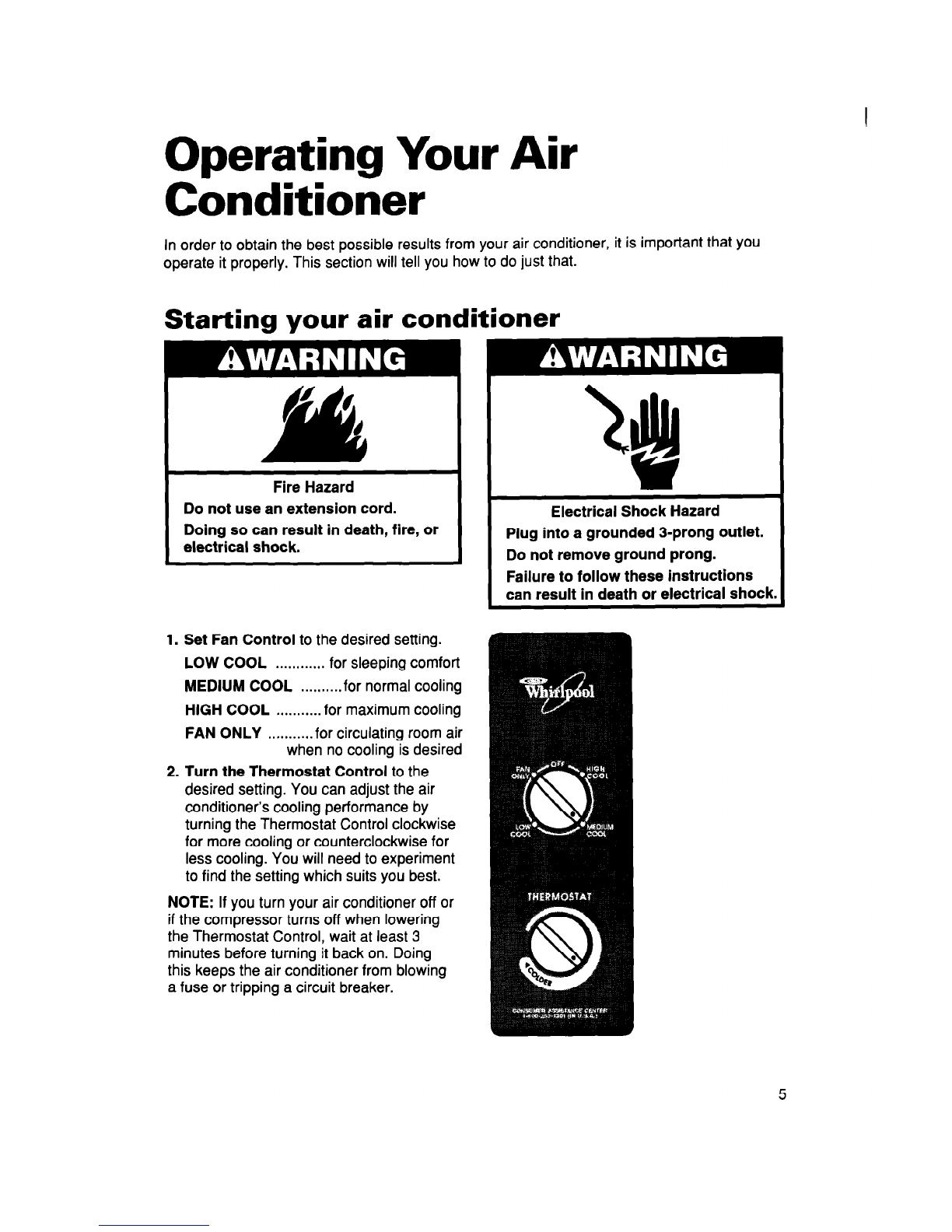

Operating Your Air

Conditioner

In order to obtain the best possible results from your air conditioner, it is important that you

operate it properly. This section will tell you how to do just that.

Starting your air conditioner

Fire Hazard

Do not use an extension cord.

Doing so can result in death, fire, or

electrical shock.

1. Set Fan Control

to the desired setting.

LOW COOL

............ for sleeping comfort

MEDIUM COOL

..........for normal cooling

HIGH COOL

...........for maximum cooling

FAN ONLY

...........for circulating room air

when no cooling is desired

2. Turn the Thermostat Control

to the

desired setting. You can adjust the air

conditioner’s cooling performance by

turning the Thermostat Control clockwise

for more cooling or counterclockwise for

less cooling. You will need to experiment

to find the setting which suits you best.

NOTE:

If you turn your air conditioner off or

if the compressor turns off when lowering

the Thermostat Control, wait at least 3

minutes before turning it back on. Doing

this keeps the air conditioner from blowing

a fuse or tripping a circuit breaker.

Electrical Shock Hazard

Plug into a grounded 3-prong outlet.

Do not remove ground prong.

Failure to follow these instructions

can result in death or electrical shock,

Changing air direction

The louvers, in the top grille area of the air

conditioner, control the direction of the

cooled air. Move the tab, at the top left of the

louvered area, in the direction you want the

air to go (right, left, or straight ahead).

Caring for Your Air

Conditioner

Proper maintenance of your air conditioner will help ensure longer life and lower operating

costs. This section will tell you how to clean your air conditioner and perform annual mainte-

nance. You can always call your authorized Whirlpool service dealer for an annual checkup.

Cleaning the front panel

EXplOSiGn Hazard

Unplug power cord from outlet before

cleaning air conditioner.

Use only nonflammable cleaners.

Failure to follow these instructions

can result in death, explosion, fire, or

electrical shock.

Unplug the power cord.

2. Remove the front panel from unit for

cleaning. Press down at top of front

panel to release it from the top of

the cabinet.

3. Pull top of front panel toward you.

4. Lift front panel up and away from the

bottom spring clips.

5. Remove the slide-out air filter and clean

separately. (See “Cleaning the slide-out

air filter” on page 6.)

NOTE:

The front panel does not

have to be removed to clean filter.

6. Clean front panel with warm water, mild

soap, or detergent and a soft cloth.

Rinse and dry thoroughly.

7. Wipe control panel clean with a soft,

dry cloth.

6. Replace the front panel. Locate bottom

of panel on the spring clips. Press down

on top edge of front panel and push it

toward the unit to secure the upper tabs.

9. Replace slide-out air filter.

10.

Plug in the power cord.

Tabs

Cleaning the slide-out air filter

The filter is cleanable. A clean filter helps

remove dust, lint, and other particles from

the air. Check every two weeks to see if filter

needs cleaning.

Remove filter by sliding it up and out of

the top of the front panel.

2. Clean filter using a vacuum cleaner.

If very dirty, wash filter with warm water

and mild detergent. Air dry thoroughly

before replacing.

3. Replace filter by sliding it back down into

opening at top of front panel.

Performing annual maintenance

Your air conditioner needs annual mainte-

nance to help ensure steady, top performance

throughout the year.

Call the service company recommended

by your dealer to:

Inspect and clean the coils and conden-

sate water passages.

Check fan.

The compressor and fan motor are sealed

and need no oiling. Expense of annual

inspection is the customer’s responsibility.

If you are familiar with electrical appliances,

you can do the cleaning and maintenance

yourself. If you choose to do so, follow the

steps on page 9.

Electrical Shock Hazard

Unplug power cord from outlet

before servicing.

Be sure no liquid gets into the

motor, electrical control box, or

compressor terminals.

Failure to follow these instructions

can result In death, electrical shock,

or serious injury.

Excessive Weight Hazard

Use 2 or more people to move and

install air conditioner.

Failure to do so can result in back or

other injury.

NOTE:

Do not lift, push, or pull any white

beaded foam (expanded polystyrene) parts.

Unplug the power cord.

Remove the front panel. (See “Cleaning

the front panel” on page 7.)

Remove the unit from the window.

Remove the side curtains. Slide curtains

out to their fullest width. From the back

side, remove the Phillips-head screws

which attach the curtains to the cabinet.

(See A in illustration.)

Remove the slotted, hex-head screws

holding the top channel. (See B

in illustration.)

6. Remove slotted, hex-head screws on

sides of cabinet. (See C in illustration.)

7. Holding the cabinet on both sides,

carefully lift cabinet off base. Watch out

for the sharp metal fins on the front and

rear coils.

6. Wrap the motor, electrical control box,

and compressor terminal box in plastic

film to make sure no water or other

liquids get inside. Water or other liquids

could damage the insulation and cause

serious mechanical problems.

9. Clean and hose out the base, coils, and

condensate pans. Clean air conditioner

at least once a year or more often if the

condenser coils and pans collect dirt,

sand, leaves, insects, or algae. Also,

clean the air conditioner if you detect an

odor coming from it. Do not use the

collected water for drinking purposes. It

is not sanitary.

10.

Remove plastic film from the motor and

electrical parts.

11.

Replace unit in cabinet. Reattach the

top channel and side curtains. Tighten

all screws.

12. Reinstall air conditioner in the window.

13. Replace the front panel.

14. Plug in the power cord.

NOTE:

It is a good idea to wait 24 hours

before starting the air conditioner again.

Doing so allows time for all areas to

dry thoroughly.

The water from rainfall or from normal

operation does not harm the motor or

electrical parts.

Saving energy

You can help save energy by following the

tips below.

Improve your home’s insulation. Seal all

doors and windows. Close the fireplace flue.

. Close all blinds and drapes on sunny sides

of the house. Add window awnings.

Keep the air filter clean.

Do not block the airflow with drapes

or furniture.

. Ventilate the attic. High temperatures in

the attic add to the air conditioner’s

cooling load.

Try not to use heat-producing appliances

during the hottest part of the day.

. Turn off lights and appliances when they

are not needed.

Keep heat registers and cool-air

returns closed.

Use exhaust venting fans when cooking,

doing laundry, or bathing.

Otros manuales para ACM062

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Whirlpool

Whirlpool

Whirlpool 881306658997 Instrucciones de montaje

Whirlpool

Whirlpool CA10WXP0 Manual de usuario

Whirlpool

Whirlpool 881406658997 Instrucciones de montaje

Whirlpool

Whirlpool COOL IMPRESSION SERIES Manual de usuario

Whirlpool

Whirlpool ACM 152XE0 Manual de operación

Whirlpool

Whirlpool 63851338 Instrucciones de montaje

Whirlpool

Whirlpool PORTABLEAIR CONDITIONER Manual de usuario

Whirlpool

Whirlpool AW05CR1SRHUE Manual de usuario

Whirlpool

Whirlpool AC0062XM0 Manual de usuario

Whirlpool

Whirlpool AMD 302 Manual de usuario

Whirlpool

Whirlpool AMD 018 Manual de usuario

Whirlpool

Whirlpool PACW9COL Manual de usuario

Whirlpool

Whirlpool ACS072XE Manual de usuario

Whirlpool

Whirlpool SIA90IN Manual de usuario

Whirlpool

Whirlpool 1188907 Instrucciones de montaje

Whirlpool

Whirlpool ACU072XE Hoja de información del producto

Whirlpool

Whirlpool ACM122XR0 Manual de usuario

Whirlpool

Whirlpool PACW29CO BK Manual de usuario

Whirlpool

Whirlpool ACE244PT2 Manual de usuario

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manual de usuario

Whirlpool

Whirlpool ACS082PP0 Manual de usuario

Whirlpool

Whirlpool 1188018 Manual de usuario

Whirlpool

Whirlpool ACP102PS2 Manual de usuario

Whirlpool

Whirlpool AMD 313 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
