INTRODUCTION

Congratulations on the purchase of your new dishwasher. We trust you will be delighted with it.

Please read this instruction book carefully. It will give you the information you need to:

•care for, and

•use your dishwasher

Contact your nearest Authorised Service Centre if you need advice. You will find their addresses in

the warranty information on the last page of this document. Your retailer can also tell you the name

of your nearest service agent.

Installation Double Checks

Before you use your dishwasher, check that the installer has:

•Adjusted the leveling legs to ensure that the door opens & closes without rubbing against the

sides of the tub.

•Plugged in the power cord & turned on the power.

•Connected the drain hose to the f

ully drilled out drain spigot.

•Connected the inlet hose to the tap with no leaks and the tap is turned on.

•Tested the dishwasher using the “Rinse” cycle.

Safety Warnings

•Dishwasher detergents are very alkaline and extremely dangerous if swallowed.

Be careful to:

- Keep them away from your eyes and skin.

- Keep children away from the dishwasher when the door is open.

- Only put detergent in the dispenser when you are ready to wash.

- Check that the detergent receptacle in the dispenser is empty after completion of the

wash cycle.

•The door should not be left open as this can present a tripping hazard.

•Knives and other utensils with sharp points must be loaded in the basket with their points

down or placed in a horizontal position.

•Be careful when opening the door during wash cycle. To avoid burn injury, slightly open door

and wait until spray arms and wash action stops. Failure to do so may result in hot water

splashing out of the dishwasher.

•Use care unloading the dishware when the “Boosted Dry” option has been selected. Contents

may be hot to touch immediately after the end of cycle.

•This appliance is not intended for use by young children or infirm persons, without supervision.

•Young children should be supervised to ensure that they do not play with the appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

or a similarly qualified person in order to avoid a hazard.

INTRODUCTION

How your dishwasher works:

The way your dishwasher works is quite simple

•Water enters the unit through an inlet hose&awatervalve.

•A level switch controls the amount of water received into the unit. A dishwasher does

not fill up, like a washing machine. It uses much less water than a washing machine.

•During the main wash, a heater hidden under the stainless steel tub, heats the water.

•Detergent that you added to the dispenser, is dispensed in the main wash and is

gradually dissolved in heated water.

•This solution is then pumped through the spray arms, and the force of the water makes

the spray arms rotate so that all items in the baskets are reached. This wash action

removes the soil from your dishes.

•Depending on wash program and option selected, during the final rinse, the water is

heated to high temperatures and a small dose of rinse aid is automatically injected into

the water. This rinse aid stops water droplets clinging to washed items, and along with

the heat generated from the high water temperature, dries the items in the

dishwasher.

OPERATING INSTRUCTIONS

Quick Start

To run your dishwasher, follow these basic steps

•Load Dishwasher

•Add Detergent

•Fill Rinse Aid

Rinse aid must be filled to ensure good drying performance

•Close the dishwasher door.

•Select & start desired wash program.

•Press this button repeatedly to select wash program

•Press this button to start

ram

•When usin

deter

ent tablets, we recommend usin

the “Normal” wash

rogram

•Switch on the “Power” button

925

•Press this button repeatedly to select wash program

•Press this button to start

ram

•When usin

deter

ent tablets, we recommend usin

the “Normal” wash

ram

•Switch on the “Power” button

915

•Press this button repeatedly to select wash program

•Press this button to start

ram

•When usin

deter

ent tablets, we recommend usin

the “Normal” wash

ram

•Switch on the “Power” button

907

NORMAL

OPERATING INSTRUCTIONS

Program selection Guide

Models 907, 915 & 925

Wash times are approximate and vary by options selected. An automatic sensor checks the incoming

water temperature for the main wash of each cycle, delaying the timer if necessary, until the water is

hot enough.

Program Program Description Water

Usage

Duration

Cold Water

Detergent

Tablets

SENSOR

WASH

This dishwasher’s Smart Sensor technology

automatically senses the LOAD (Number of

items) & SOIL (how dirty the items are) to

determine which wash program is used to best

clean your dishes with optimised energy &

water consumption.

12 - 22

Litres

95 - 115

Minutes

RINSE

This is a rinse only cycle. It is intended for

dishes that are to be washed later with a full

load.

Litres

Minutes

FRAGILE

WASH

Select this wash for lightly soiled or fragile

dishware

Litres

Minutes

NORMAL

ECO

WASH

Select this wash for normal every day soiled

plates, with energy & water usage minimized

Litres

Minutes

NORMAL

WASH

Select this wash for normal every day soiled

plates, with maximum performance.

Litres

102

Minutes

HEAVY

WASH

Select this wash for heavily soiled dishes,

pots & pans

Litres

123

Minutes

NOTE

1) All values are indicative. Variations will occur due to loading of dishes, soil level, inlet water

temperature, water pressure and voltage fluctuations etc.

2) Program combinations may differ depending on model & market

3) Use normal detergent for programs marked with a x

OPERATING INSTRUCTIONS

Operation Selection Guide

Program Button

•Press this button repeatedly to select the program you want.

•Press & hold this button for 3 seconds during a wash to cancel program.

Start Button

•Press the start button to commence the selected program.

•Pressing the start button again during a wash program will pause the machine, and

a “P” will flash in the display (All lights will flash on Model 907)

•Pressing the start/pause button again will continue the wash program.

Progress Indicator Lights

Shows the progress and position in the program.

Digital Display Window (Models 915 & 925)

Unit in Program Selection mode ÆSelect program and press Start

Shows approximate remaining time of the wash cycle.

The initial wash time shown in the digital display window may vary over time.

The dishwasher adjusts the displayed wash time after each wash depending

on the wash load and water conditions detected

Unit in 2 hours Delay Start mode ÆTo Cancel hold “Delay” button for 3 seconds

Unit in Pause mode ÆPress Start button to continue wash program

Not Filling Fault ÆCheck water supply & tap.

ÆCheck inlet hose filter

Not Draining Fault ÆCheck drain hose for kinks.

ÆCheck sink trap spigot is not blocked and f

ully drilled out.

ÆCheck filters and clean if dirty.

Overfill Fault ÆTurn off water tap and power

ÆCall service

Electrical Fault ÆTurn off water tap and power

ÆCall service

Model 907 Model 915 / 925

OPERATING INSTRUCTIONS

Option Selection Guide

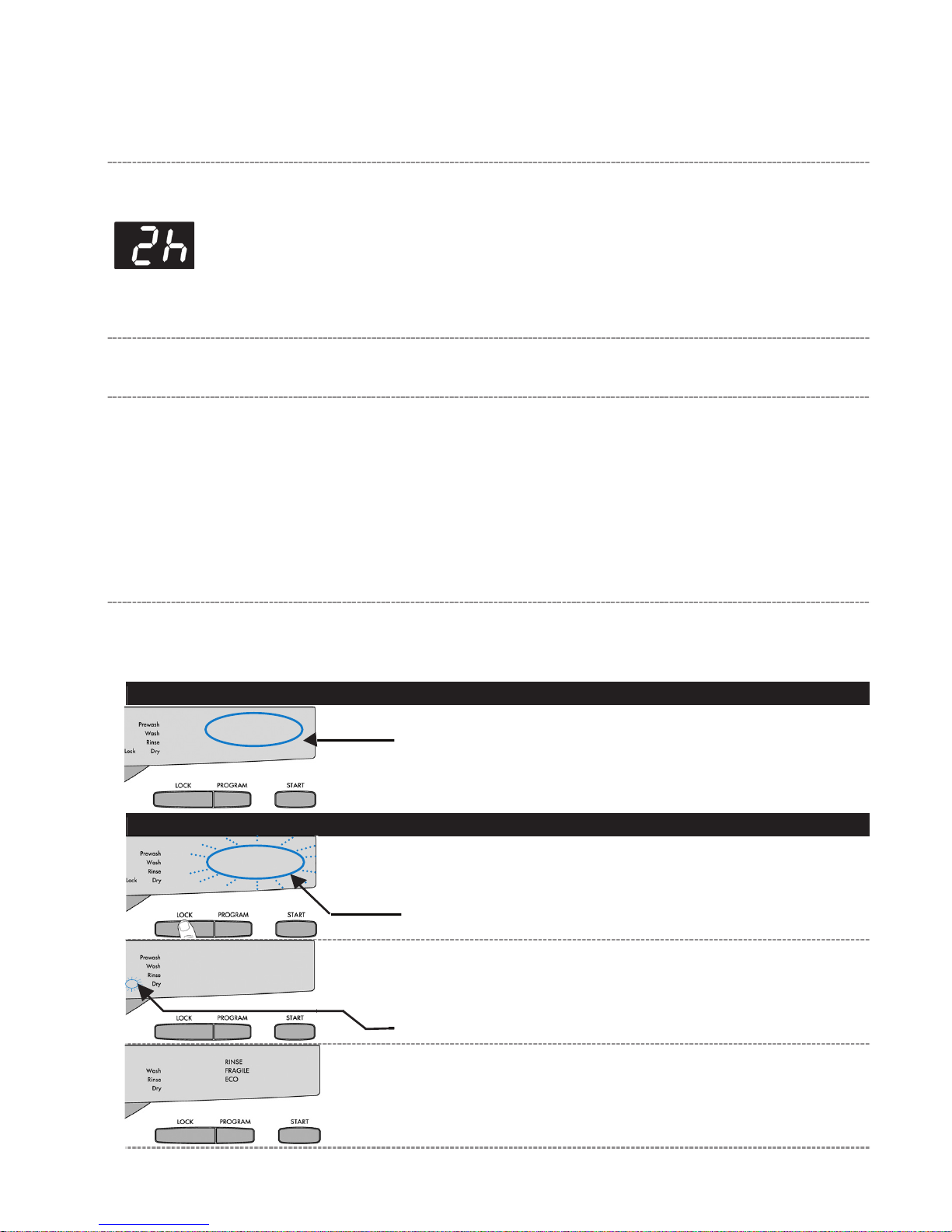

Delay Start Option

This option is available on models 915 / 925 and allows you to automatically delay

starting your dishwasher from 1 to 19 hours.

•Select the desired wash program.

•Press the D

ELAY button repeatedly until the desired time is shown in the status

window. (Eg: For a 2 hour delay, press DELAY until “2

h” appears)

•Press the START button. The program will start when the delayed time expires.

To cancel the delayed start, hold the DELAY button in for 3 seconds.

Boosted Dry Option

To gain enhanced drying performance by boosting the temperature and time during the final rinse, use

this procedure:

• Select Normal or Normal Eco wash program

• Press P

ROGRAM and S

TART buttons s

imultaneously. The estimated wash time shown on the

display will increase by around 10 - 20 minutes indicating that the Boosted Dry Option is on.

• On model 907 the “Dry” progress indicator will come on for 3 seconds.

• Press S

TART to begin wash program

To turn off Boosted Dry, repeat the above procedure.

Boosted Dry remains on for subsequent cycles until turned off.

The Boosted Dry option does not apply to the Rinse or Fragile wash programs.

Child Lock Option

The Child Lock has 3 states: 1) Child Lock On, 2) Temporarily Unlock, 3) Child Lock Off

Program Selection Mode

The Child Lock can only be turned on when in this mode.

Program Indicators should be on (“- -“ on - models with display)

•When first turned on… or

•Before selecting a new wash cycle

Child Lock On

In Program selection mode.

•Press & hold the “Lock” button for 5 seconds

•Program Indicators will flash.

When Child Lock is activated, it is in ”Temporarily Unlock” mode.

All buttons are still active so you can select & start a wash cycle.

The Child Lock auto-engages 15 sec after the last button press.

“LOCK” indicator will flash during the 15 seconds

The Child Lock is on, with the program you selected.

The illustration shows the “LOCK” indicator is on with the other

activated indicators showing the “NORMAL” program running.

RINSE

FRAGILE

ECO

NORMAL

HEAVY

RINSE

FRAGILE

ECO

NORMAL

HEAVY

NORMAL

HEAVY

RINSE

FRAGILE

ECO

NORMAL

HEAVY

Lock

Prewash

Lock

OPERATING INSTRUCTIONS

Option Selection Guide

Child Lock Option (continued)

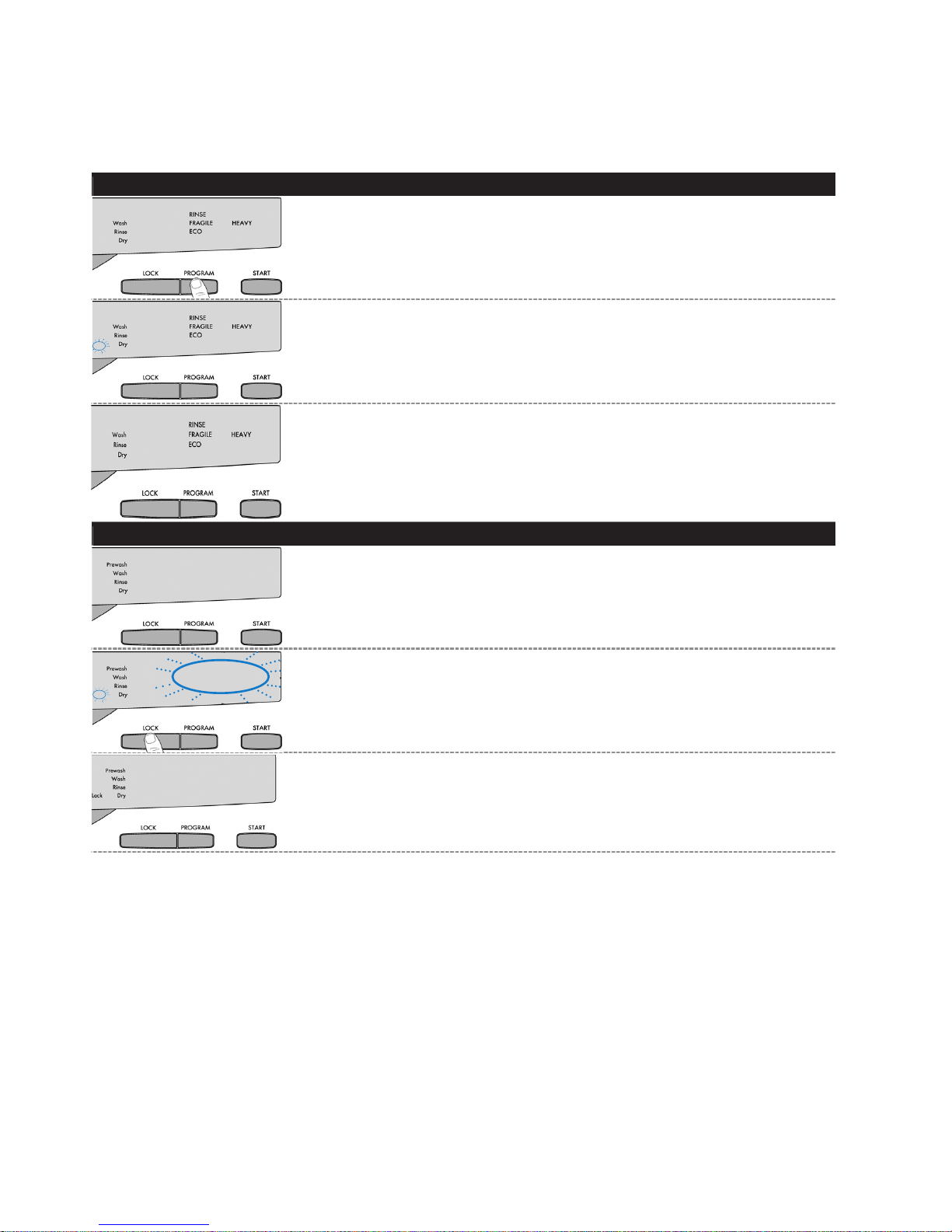

Temporarily Un-Lock

Child Lock can be t

emporarily unlocked to access buttons

•Press & Hold any button for 5 seconds.

When unlocked, the “LOCK” indicator will begin to flash.

•All buttons are now accessible to select & start program.

The Child Lock auto-engages 15 sec after the last button press.

•The “LOCK” indicator will stop flashing but stay on.

Child Lock Off

To turn Child Lock off you must be in Program Selection mode

•Firstly “Temporarily unlock” Child Lock as shown above.

•Press & hold “LOCK” for 5 seconds

•All Program Indicators will flash.

•“LOCK” Indicator also will flash.

The Child Lock is now permanently off.

•“LOCK” indicator turns off

•Unit is in Program Selection mode

NORMAL

HEAVY

NORMAL

RINSE

FRAGILE

ECO

RINSE

FRAGILE

ECO

NORMAL

HEAVY

RINSE

FRAGILE

ECO

NORMAL

HEAVY

Lock

Prewash

Lock

LOADING YOUR DISHWASHER

Dish Care & Preparation

•Your dishwasher is not a waste disposal unit so please take care to remove all large food

scraps from your dishes before loading in the dishwasher.

•Place crockery and glassware so that they do not touch. This will allow them to wash.

•Do not use your dishwasher for cutlery with wooden or bone handles. Do not wash items that

have glued parts. Long periods in hot water may damage them.

•You can wash most good quality plastics in dishwashers. However, do not force them into racks

or they will change shape. Do not put items that soften at temperatures of 55°C and over into

the dishwasher.

Adjusting Upper Basket Height

Non- Easy Lift system (if applicable)

•Make sure the basket is empty.

•Remove the end clip on each rail.

•Reposition the basket on its lower set of wheels.

•Replace the clips

Easy Lift system (if applicable)

The upper basket height can be easil

adjusted to

accommodate loadin

taller dishes in either basket.

Hei

ht can be adjusted with or without dishes in the

basket.

To accommodate taller dishes in the lower basket,

raise the basket height as follows:

•Lift the upper basket on each side, verticall

.The

self-

uided adjusting mechanism will stop when

the raised position is reached.

•The raised position provides nearl

50mm of

additional height for items in the lower basket.

To accommodate taller dishes in the upper basket,

lower the upper basket height as follows:

•Lift the upper basket on each side, verticall

, until it

lifts and unlocks.

•Gently lower the rack into the lower position. The self-

uided adjusting mechanism will stop when the

lowered position is reached.

•This position provides nearl

50mm of additional

height for items in the top basket

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Westinghouse

Westinghouse

Westinghouse SB926SL Manual

Westinghouse

Westinghouse WSU67381 Manual de usuario

Westinghouse

Westinghouse WSU6603 Manual de usuario

Westinghouse

Westinghouse WSF6725I Manual de usuario

Westinghouse

Westinghouse WSF6608 Manual de usuario

Westinghouse

Westinghouse WSF6608XA Manual de usuario

Westinghouse

Westinghouse WSF6604WA Manual de usuario

Westinghouse

Westinghouse Silhouette 906 Manual de usuario

Westinghouse

Westinghouse WSF6604WA Manual de usuario

Westinghouse

Westinghouse SB926 Manual de usuario

Westinghouse

Westinghouse WDF901 Manual de usuario

Westinghouse

Westinghouse WSF67251 Manual de usuario

Westinghouse

Westinghouse SB908 Manual de usuario

Westinghouse

Westinghouse WSF6606 Manual de usuario

Westinghouse

Westinghouse WSF6608X Manual de usuario

Westinghouse

Westinghouse WDF902 Manual de usuario

Westinghouse

Westinghouse SC400L Manual de lista de piezas

Westinghouse

Westinghouse WSF6605 Manual de usuario

Westinghouse

Westinghouse WDF901SA Manual de usuario

Westinghouse

Westinghouse WSF6608KXA Manual de usuario

Westinghouse

Westinghouse SB916 Manual de usuario

Westinghouse

Westinghouse WSF6602WA Manual de usuario

Westinghouse

Westinghouse WSF6606X Manual de usuario

Westinghouse

Westinghouse WSF6602 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
