Western Digital Ultrastar Data60 Manual de usuario

Installation

Guide

Ultrastar Data60

Regulatory Model: H4060-J

August 2020

Rev. 1.13

1ET1105

Installation Guide Table of Contents

Table of Contents

Revision History.....................................................................................................................................iii

Notices....................................................................................................................................................v

Points of Contact..................................................................................................................................vi

Product Label Information............................................................................................................. vi

Chapter 1. Overview.........................................................................................................1

Ultrastar Data60 Description............................................................................................................... 2

Ultrastar Data60 Layout....................................................................................................................... 2

Environmental Specifications...............................................................................................................4

Electrical Specifications....................................................................................................................... 4

Mechanical Specifications....................................................................................................................5

Performance Specifications................................................................................................................. 5

Ultrastar Data60 Rack Requirements.................................................................................................. 6

Compatible Rack Hardware Configuration................................................................................. 7

List of Compatible Drives....................................................................................................................9

Chapter 2. Disclaimers..................................................................................................20

Restricted Access Location............................................................................................................... 21

Safety Compliance..............................................................................................................................21

Electromagnetic Compatibility (EMC) Class A Compliance............................................................ 21

Country Certifications........................................................................................................................ 22

Chapter 3. Safety........................................................................................................... 23

Safety Warnings and Cautions..........................................................................................................24

Electrostatic Discharge......................................................................................................................24

Optimizing Location...........................................................................................................................24

Power Connections............................................................................................................................25

Power Cords.......................................................................................................................................25

Rackmountable Systems....................................................................................................................25

Installation Guide Table of Contents

Safety and Service............................................................................................................................. 26

Chapter 4. Packaging....................................................................................................27

Ultrastar Data60 Packaging Overview..............................................................................................28

Ultrastar Data60 Unpacking Procedure............................................................................................29

Chapter 5. Installation...................................................................................................34

Ultrastar Data60 Installation Overview............................................................................................. 35

Ultrastar Data60 Installation Procedure............................................................................................35

Special Considerations for Cable Routing................................................................................56

Cabling for CMA.................................................................................................................................58

Before You Begin........................................................................................................................58

Cabling CMA............................................................................................................................... 59

SAS Cabling........................................................................................................................................60

Installation Guide Revision History

Revision History

Date Revision Comment

November 2017 Revision 1.0 Initial Release

November 2017 Revision 1.1 •The crossbar on the CMA was changed. See the installation

instructions for details.

•Changed required rack depth, see Required Rack Depth (page

5).

•Changed typical power consumption, see Typical Power

Consumption (page 4).

December 2017 Revision 1.2 •Added active cable support

•Added a note regarding single IOMs in SATA TLAs. See

Ultrastar Data60 Description (page 2)

•Updated the Non-Op altitude specification. See Non-

Operational Altitude (page 4).

•Correct the packaging images to show the two CMA boxes

that come in the accessory tray. See Packaging Layout (page

28).

January 2018 Revision 1.2.1 Updated the product name

January 2018 Revision 1.2.2 Added an image for cage nut positioning in the installation

procedure.

January 2018 Revision 1.3 •Updated information on the 2.5" drive carrier option. (topic

removed)

•Added torque requirements for all screws used in the

enclosure.

•Updated the IOM replacement section to account for the

possibility of a firmware mismatch. (topic removed)

•Updated the drive assembly installation instructions to clarify

the orientation of the drive assemblies. See Ultrastar Data60

Installation Procedure (page 35).

April 2018 Revision 1.4 •Updated Compatible Drives List. See List of Compatible Drives

(page 9).

•Updated the Rack Requirements. See Ultrastar Data60 Rack

Requirements (page 6).

June 2018 Revision 1.5 •Updated the Compatible Drives List. See List of Compatible

Drives (page 9)

December 2018 Revision 1.6 •Updated Compatible Drives List. See List of Compatible Drives

(page 9)

iii

Installation Guide Revision History

Date Revision Comment

March 2019 Revision 1.7 Updated the Ultrastar Data60 Installation Procedure (page 35)

May 2019 Revision 1.8 Updated the Ultrastar Data60 Installation Procedure (page 35)

July 2019 Revision 1.9 •Updated servicing image to correct length values and rail

servicing extension in Ultrastar Data60 Rack Requirements

(page 6) section.

•Updated revision history to remove broken links to topics no

longer in this document.

November 2019 Revision 1.10 •Replaced references to He12 drives with Ultrastrar DC HC520

in List of Compatible Drives (page 9)

•Corrected layout image annotations to match table numbering

in Ultrastar Data60 Layout (page 2)

•Updated images of chassis cover screws throughout

December 2019 Revision 1.11 •Rebranded document to WD design

•Updated the List of Compatible Drives (page 9)

April 2020 Revision 1.12 •Updated drive installation order in the Ultrastar Data60

Installation Procedure (page 35)

•Added SAS Cabling (page 60)

•Added note about minimum time between removing and

reapplying power in Power Connections (page 25)

August 2020 Revision 1.13 Updated SAS Cabling (page 60)

Installation Guide Notices

Notices

Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not

recommend the use of its products in life support applications wherein a failure or malfunction of the product

may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of Western

Digital products in life support applications assumes all risk of such use and indemnifies Western Digital

against all damages.

This document is for information use only and is subject to change without prior notice. Western Digital

assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential

damages resulting from the furnishing, performance or use of this material.

Absent a written agreement signed by Western Digital or its authorized representative to the contrary,

Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,

or could, be associated with this document and related material, and any user of this document or related

material agrees to such disclaimer as a precondition to receipt and usage hereof.

Each user of this document or any product referred to herein expressly waives all guaranties and warranties

of any kind associated with this document any related materials or such product, whether expressed or

implied, including without limitation, any implied warranty of merchantability or fitness for a particular

purpose or non-infringement. Each user of this document or any product referred to herein also expressly

agrees Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential

damages, including without limitation physical injury or death, property damage, lost data, loss of profits or

costs of procurement of substitute goods, technology, or services, arising out of or related to this document,

any related materials or any product referred to herein, regardless of whether such damages are based on

tort, warranty, contract, or any other legal theory, even if advised of the possibility of such damages.

This document and its contents, including diagrams, schematics, methodology, work product, and

intellectual property rights described in, associated with, or implied by this document, are the sole and

exclusive property of Western Digital. No intellectual property license, express or implied, is granted by

Western Digital associated with the document recipient's receipt, access and/or use of this document or the

products referred to herein; Western Digital retains all rights hereto.

Western Digital, the Western Digital logo, and Ultrastar are registered trademarks or trademarks of Western

Digital Corporation or its affiliates in the US and/or other countries. Linux® is the registered trademark of

Linus Torvalds in the U.S. and other countries. All other marks are the property of their respective owners.

Product specifications subject to change without notice. Pictures shown may vary from actual products. Not

all products are available in all regions of the world.

Western Digital

5601 Great Oaks Parkway

San Jose, CA 95119

Installation Guide Points of Contact

Points of Contact

For further assistance with a Western Digital product, contact Western Digital Datacenter Platforms technical

support. Please be prepared to provide the following information: part number (P/N), serial number (S/N),

product name and/or model number, and a brief description of the issue.

Email:

support@wdc.com

Website:

https://portal.wdc.com/Support/s/

1.1 Product Label Information

The following product information is required for technical support requests:

•Part Number (P/N)

•Serial Number (S/N)

•Product Name and/or Model Number (MODEL)

This information may be found on the product label, which is affixed to an exterior, non-removable surface of

the chassis. The following is an example label with the applicable information fields highlighted:

Western Digital

Overview

This section provides a high level overview of the features of the

Ultrastar Data60 .

In This Chapter:

- Ultrastar Data60 Description........................ 2

- Ultrastar Data60 Layout................................ 2

- Environmental Specifications........................4

- Electrical Specifications................................ 4

- Mechanical Specifications............................. 5

- Performance Specifications...........................5

- Ultrastar Data60 Rack Requirements........... 6

- List of Compatible Drives..............................9

Installation Guide 1. Overview

1.1 Ultrastar Data60 Description

Figure 2: Ultrastar Data60

The Ultrastar Data60 is a 4U form factor, high availability, high density, rack-mounted storage enclosure

that is capable of hosting up to 60 SAS or SATA drives. The maximum data storage capacity of the Ultrastar

Data60 is 840 TB using 14TB HGST Ultrastar® HC530 drives . (For a full list of compatible drives and total

storage capacities, see the List of Compatible Drives (page 9).) The enclosure runs on an input voltage

of 200 - 240 VAC and consumes ~1000W of power under typical conditions. It requires a maximum of

~1250W at full load.

It is designed to fit within a 4U rack space and requires 900mm (35.43in.) usable rack space, frame to frame.

A fully loaded system will add 79.4 kg. / 175 lbs. of static load when fully loaded with drives.

•4U Storage Enclosure

•Supports up to 60 Drives

•Can support 3.5” drives and 2.5” SSD drives (2.5" requires an adapter) in the 60 available drive bays.

•Up to 12W per drive slot for the 60 data storage drives (Cannot exceed 85A on the 5V rail)

•House and control four (4) N+1 redundant 80mm rear fans

•House and control a dual rotor 40mm internal IOM Fan

•Controlled by two (2) redundant I/O Modules1

•Powered by two (2) redundant 1600W PSUs

•Supports High Line (220-240 VAC) Input Power

•Full high availability with independent dual paths to all HDDs

•Toolless replacement of all Customer Replaceable Units (CRUs)

•Fits within a standard EIA-310 rack including all necessary cable management (see Compatible Rack

Hardware Configuration (page 7))

•Supports up to 3m passive SAS cables (limited to 3m or less) or active cables (any length) (see SAS

Cabling (page 60))

1.2 Ultrastar Data60 Layout

1. SATA based models will only include 1 IOM

Installation Guide 1. Overview

1.2 Ultrastar Data60 Layout

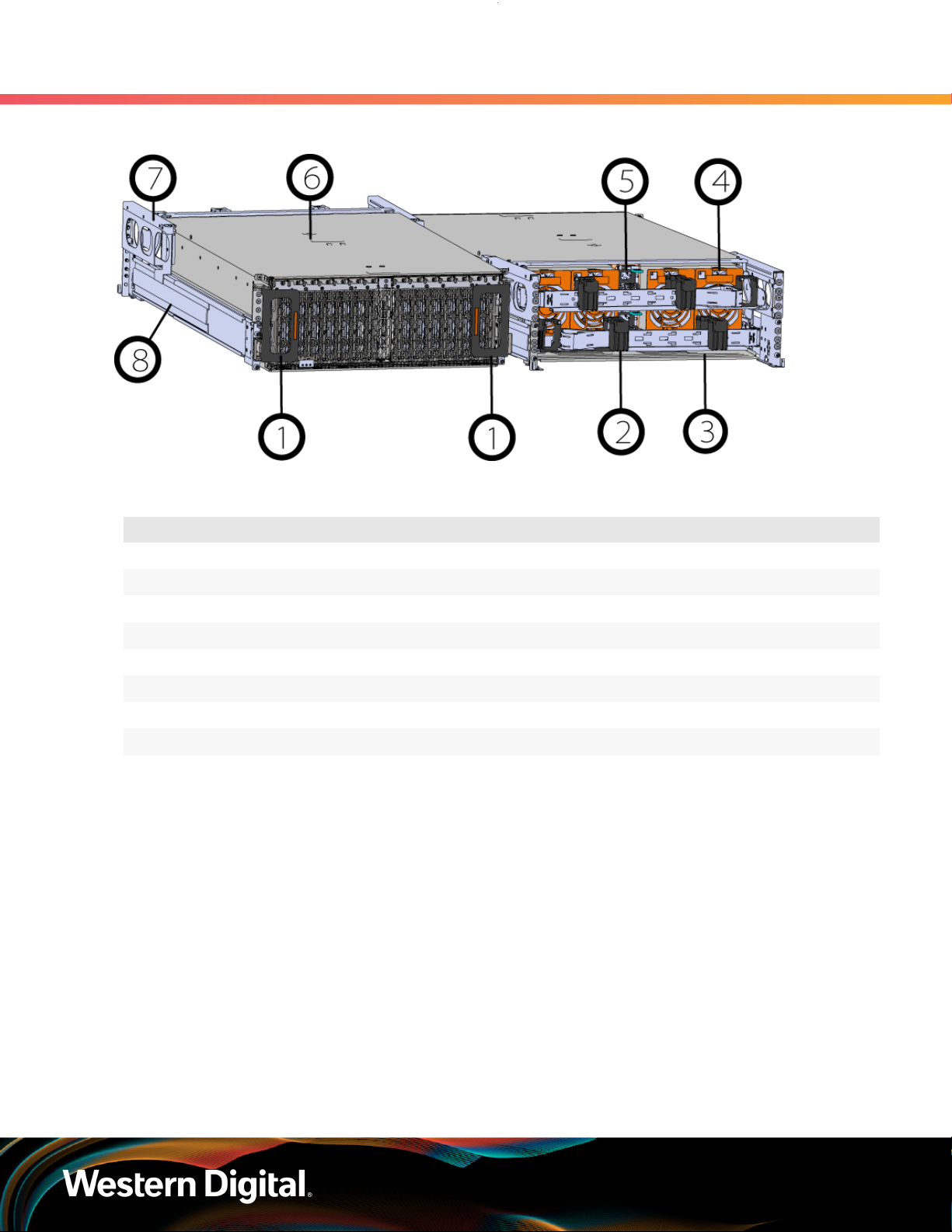

Figure 3: Front and Rear Product Layout

Table 1: Front and Rear Component Identification

Number Component

1 Enclosure Handles

2 CMAs

3 CMA Tray

4 Rear Fans

5 PSUs

6 Chassis Cover

7 Rear Cover Alignment Brackets

8 Rails

The following is an image of the layout of the major system components inside the Ultrastar Data60 .

Otros manuales para Ultrastar Data60

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Almacenamiento de Western Digital

Western Digital

Western Digital Caviar Green WD5000AADS Manual de operación

Western Digital

Western Digital Ultrastar Data102 Guía rápida

Western Digital

Western Digital Ultrastar Data102 Manual de usuario

Western Digital

Western Digital WDBAAC2500ACH - My Passport Elite Manual de usuario

Western Digital

Western Digital WDXUB3200JB - Dual-Option USB Manual de usuario

Western Digital

Western Digital WDBAAF6400EBK - My Book Essential Manual de usuario

Western Digital

Western Digital My Book Essential Edition Instrucciones de instalación

Western Digital

Western Digital WDBAAH0010HCH - My Book Elite Manual de usuario

Western Digital

Western Digital My Passport WDME1600 Manual de usuario

Western Digital

Western Digital My Book WDH1U10000 Manual de usuario

Western Digital

Western Digital Caviar Black WD1002FAEX Manual de operación

Western Digital

Western Digital WD10SPZX Manual de usuario

Western Digital

Western Digital My Book Studio Manual de usuario

Western Digital

Western Digital My Passport Ultra Manual de usuario

Western Digital

Western Digital WDBAAF0010HBK - My Book Essential 1 TB External Hard... Manual de usuario

Western Digital

Western Digital Ultrastar Serv60+8 Manual de usuario

Western Digital

Western Digital WDBAAP0000NBK - TV Live Media Player Manual de usuario

Western Digital

Western Digital WD1500HLFS - VelociRaptor 150 GB Hard Drive Instrucciones de instalación

Western Digital

Western Digital Scorpio Blue WD1600BEVE Manual de usuario

Western Digital

Western Digital WDBACX0010Bxx - My Passport Essential SE Manual de usuario

Western Digital

Western Digital WDBACX0010Bxx - My Passport Essential SE Instrucciones de instalación

Western Digital

Western Digital My Passport WDBBEP0010BBK Manual de usuario

Western Digital

Western Digital My Passport WDMEA3200 Manual de usuario

Western Digital

Western Digital WDBAAA3200ABK - My Passport Essential 320 GB External Hard... Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario
