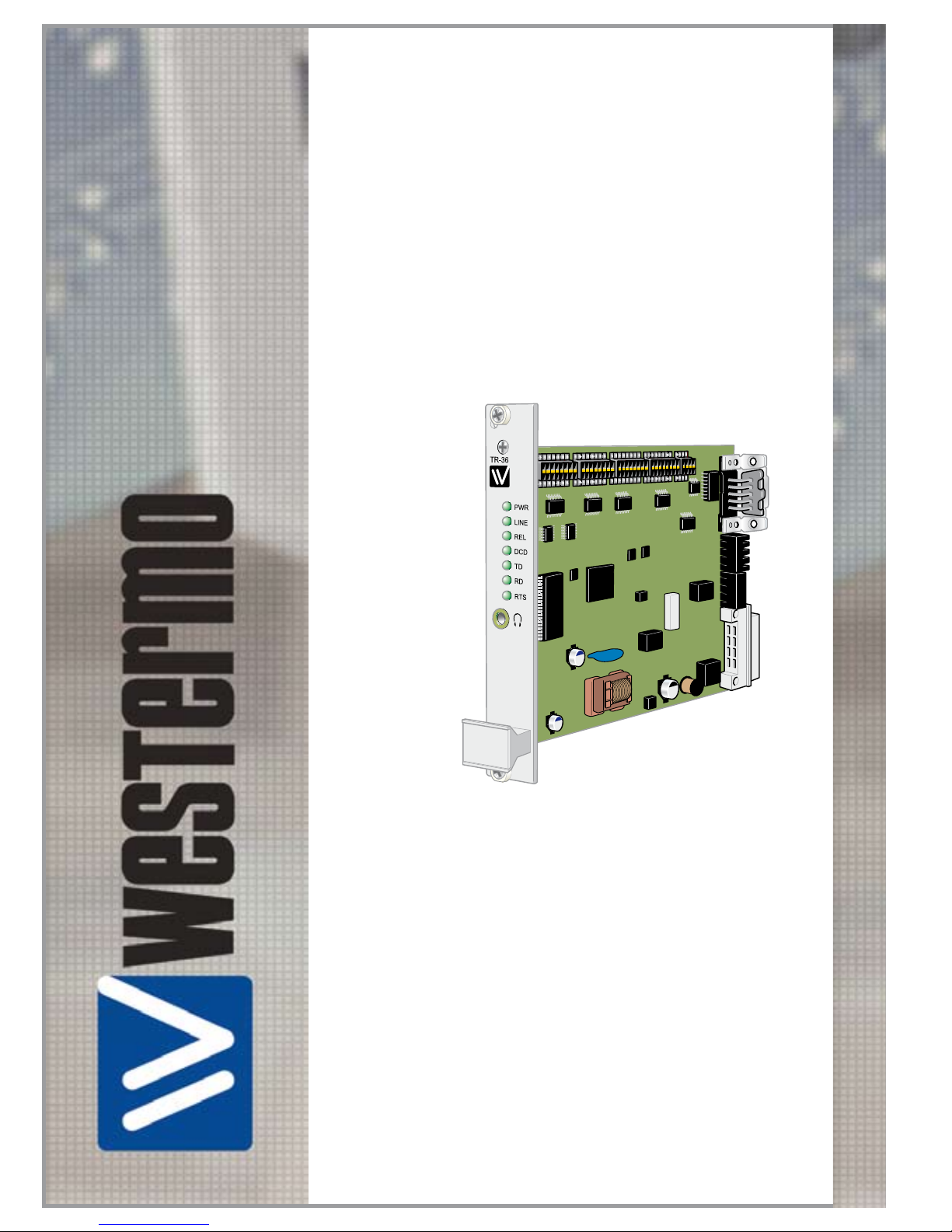

Westermo TR-36 Manual de usuario

Tele and leased line modem

for RV-07 19” rack system

www.westermo.com

REV.C 6614-2202 2008.08 Mälartryck AB, Eskilstuna, Sweden

©Westermo Teleindustri AB

User Guide

6614-2202

TR-36

26614-2202

Legal information

The contents of this document are provided “as is”. Except as required by applicable

law, no warranties of any kind, either express or implied, including, but not limited to,

the implied warranties of merchantability and fitness for a particular purpose, are made

in relation to the accuracy and reliability or contents of this document. Westermo

reserves the right to revise this document or withdraw it at any time without prior

notice.

Under no circumstances shall Westermo be responsible for any loss of data or income

or any special, incidental, and consequential or indirect damages howsoever caused.

More information about Westermo can be found at the following Internet address:

http://www.westermo.com

6614-2202

Safety

Before installation:

This modem is for restricted access area use only

Read this manual completely and gather all information on the unit. Make sure that

you understand it fully. Check that your application does not exceed the safe oper-

ating specifications for this unit.

This unit should only be installed by qualified personel.

This unit should be built-in to an apparatus cabinet, or similar, where access is

restricted to service personnel only.

The power supply wiring must be sufficiently fused, and if necessary it must be

possible to disconnect manually from the power supply. Ensure compliance to

national installation regulations.

This unit uses convection cooling. To avoid obstructing the airflow around the unit,

follow the spacing recommendations (see Cooling section).

Before mounting, using or removing this unit:

Prevent access to hazardous voltage by disconnecting the unit from power supply

and all other electrical connections.

Warning! Do not open connected unit. Hazardous voltage may occur within this

unit when connected to power supply or TNV circuits.

Prevent access to hazardous voltage by disconnecting the unit from power supply.

Warning! Do not open connected unit. Hazardous voltage may occur within this

unit when connected to power supply or TNV circuits.

Care recommendations

Do not drop, knock or shake the unit, rough handling above the specification may cause

damage to internal circuit boards.

Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.

Do not paint the unit. Paint can clog the unit and prevent proper operation.

Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water-

proof. Keep the unit within the specified humidity levels.

Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical

part may be damaged.

If the unit is not working properly, contact the place of purchase, nearest Westermo dis-

tributor office or Westermo Tech support.

Maintenance

No maintenance is required, as long as the unit is used as intended within the specified

conditions.

46614-2202

Agency approvals and standards compliance

Type Approval / Compliance

EMC EN 61000-6-2, Immunity industrial environments

EN 55024, Immunity IT equipment

EN 61000-6-3, Emission industrial environments

Safety EN 60950-1, IT equipment

PSTN ETSI TS103 021-1, ETSI TS103 021-2, ETSI TS103 021-3

6614-2202

Declaration of Conformity

Westermo Teleindustri AB

Declaration of conformity

Org.nr/

Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office

S-640 40 Stora Sundby016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna

Sweden Int+46 16428000 Int+46 16428001

The manufacturer Westermo Teleindustri AB

SE-640 40 Stora Sundby, Sweden

Herewith declares that the product(s)

Type of product Model Art no Installation manual

Rack mounted Tele and Leased

Line modem

TR-36 3614-0500 6614-2201

Rack RV-07 3130-3001 6614-2201

RackPS-20 HV 3120-3101 6614-2201

is in conformity with the following EC directive(s).

No Short name

89/336/EEG Electromagnetic Compatibility (EMC)

73/23/EEG Low Voltage Directive - LVD

References of standards applied for this EC declaration of conformity.

No Title Issue

EN 61000-6-2 Immunity for industrial environments 2 (2001)

EN 55024 Information technology equipment – Immunity 1 (1998)

EN 61000-6-3 Emission standard for industrial environments 1 (2001)

EN 60950 Safety of information technology equipment 6 (2000)

EN 50121-4 Railway signalling and telecommunications apparatus

IEC 62236-4 Railway signalling and telecommunications apparatus

The last two digits of the year in which the CE marking was affixed: 07

Hans Levin

Technical Manager

26th September 2007

66614-2202

Type tests and environmental conditions

Electromagnetic Compatibility

Phenomena Test Description Test levels

ESD EN 61000-4-2 Enclosure contact ± 6 kV

Enclosure air ± 8 kV

RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 1 000 MHz

20 V/m 80% AM (1 kHz), 80 – 2 000 MHz

RF field 900 MHz ENV 50204 Enclosure 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz

Fast transient EN 61000-4-4 Signal ports ± 2 kV

Power ports ± 2 kV

Surge EN 61000-4-5 Signal ports

unbalanced

± 2 kV line to earth, ± 2 kV line to line

Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line

Power ports ± 2 kV line to earth, ± 2 kV line to line

RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz

Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz

Power frequency

magnetic field

EN 61000-4-8 Enclosure 100 A/m, 50 Hz, 16.7 Hz & 0 Hz

Pulse magnetic field EN 61000-4-9 Enclosure 300 A/m, 6.4 / 16 ms pulse

Voltage dips and

interruption

EN 61000-4-11 AC power ports 10 & 5 000 ms, interruption

10 & 500 ms, 30% reduction

100 & 1 000 ms, 60% reduction

Mains freq. 50 Hz EN 61000-4-16 Signal ports 100 V 50 Hz line to earth

Mains freq. 50 Hz SS 436 15 03 Signal ports 250 V 50 Hz line to line

Voltage dips and

interruption

EN 61000-4-29 DC power ports 10 & 100 ms, interruption

10 ms, 30% reduction

10 ms, 60% reduction

+20% above & –20% below rated voltage

Radiated emission EN 55022 Enclosure Class B

Conducted emission EN 55022 AC power ports Class B

EN 55022 DC power ports Class B

Dielectric strength EN 60950 Signal port to other

isolated ports

2 kVrms 50 Hz 1 min

Power port to other

isolated ports

3 kVrms 50 Hz 1 min

2 kVrms 50 Hz 1 min (@ rated power <60 V)

Environmental

Temperature Operating 0 to +50ºC

Storage & Transport –25 to +70ºC

Humidity Operating 5 to 95% relative humidity non condensing.

Storage & Transport 5 to 95% relative humidity non condensing.

Altitude Operating 2 000 m / 70 kPa

Reliability prediction

(MTBF)

MIL-HDBK-

217F

Operating

Service life Operating 10 year

Packaging

Enclosure – – –

Dimension W x H x D 485 x 135 x 180 mm

Weight TR-36 0.14 kg

Weight Total

(17 TR-36 + 2 PS-20)

4 kg

Degree of protection IEC 529 Enclosure IP 20

Cooling Convection

Mounting 19” rack

6614-2202

Description

TR-36 is designed to satisfy industry’s demands on reliability and functionality in environ-

ments with high levels of interference. The modem has an RS-232 interface and works

both as calling/answering and on 2- or 4-wire leased line. TR-36 can handle rates up to

115.2 kbit/s on the terminal side and up to 33.6 kbit/s on the line side. Specific param-

eters can also be set in hardware using DIP-switches.

The modem is equipped with transient protection on the line side and a “watchdog” that

monitors and automatically resets the modem in the event of a fault. These functions

together with the possibility for remote configuration makes the modem perfect for

installation at unmanned sites and prevent the need of costly service trips.

The modem also has password protection and dial-back security to ensure that only

authorised users can communicate with the modem.

TR-36 is intended for RV-07 19” rack system.

In the TR-36 there is also an RS422/485 interface allowing multidrop connections to

many types of industrial equipment.

… Data rate up to 33.6 kbit/s with Fast Connect

… Terminal rate up to 115.2 kbit/s

… 2- and 4-wire leased line

… V23 HDX with multidrop

… DTR and incoming data dialling

… DIP-switch configuration

… Watchdog

… Secure call back and access

… Industrial environment transient protection on all interfaces

… Up to 11 bits

… Tri-Galvanic isolation (interface/line/supply)

… Caller ID presentation and answering

… Remote configuration

… RS-422 / RS-485 interface

… Dial backup for PSTN and Leased Line

86614-2202

Interface specifications

Power RV-07, 17 pcs TR-36, PS-20 HV

Power supply 110 – 250 VDC +10 / –10%

115 – 230 VAC +15 / –10%

Power consumption 500/240 mA, 50 W

Rated frequency DC / 48 – 62 Hz

Fuse, F1 4 AS 5x 20 mm

Isolation to All other ports 3 kVrms 50 Hz 1 min

Connection Detachable screw terminal

Shielded cable Not required

* Direction relative this unit

Power RV-07, 17 pcs TR-36, ext 24 – 48 VDC

Power supply 24 – 48 VDC

Power consumption 34 W

Rated frequency DC

Isolation to All other ports 1.5 kVrms 50 Hz 1 min

Connection Detachable screw terminal**

Shielded cable Not required

* Direction relative this unit

** Maximum wire length to external power supply < 10 m.

Public Switched Telephone Network (PSTN)

Electrical specification Public Switched Telephone Network

Data rate 300 bit/s – 33.6 kbit/s

Protocol B103, B212, V21, V22, V22B, V23C,V23HDX, V32, V32B, V34

Protection Installation Fault Tolerant (up to ±60 V)

Isolation to Power port 3 kVrms 50 Hz 1 min

Leased line 2 kVrms 50 Hz 1 min

RS-232 2 kVrms 50 Hz 1 min

RS-485 2 kVrms 50 Hz 1 min

Connection Detachable screw terminal

Shielded cable Not required

6614-2202

Leased Line (LL)

Electrical specification 2- or 4-wire Leased Line

Data rate 300 bit/s – 33.6 kbit/s

Protocol B103, B212, V21, V22, V22B, V23C, V23HDX, V23FDX, V32,

V32B, V34

Transmission range/ Budget PSTN 30 dB

Leased line 40 dB

Protection Installation Fault Tolerant (up to ±60 V)

Isolation to Power port

PSTN line

RS-232

RS-485

3 kVrms 50 Hz 1 min

2 kVrms 50 Hz 1 min

Connection Detachable screw terminal

Shielded cable Not required

RS-422/485

Electrical specification EIA/TIA-485 ITU V.112-wire or 4-wire twisted pair

Data rate 1200 bit/s – 115.2 kbit/s

Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits,

Σ 9–12 bits

Protocol Transparent

Retiming Yes

Turn around time <10 µs (half duplex)

Transmission range 1200 m, depending on data rate and cable type (EIA RS-485)

Settings 120 W termination and failsafe biasing 680 W

Protection Installation Fault Tolerant (up to ±60 V)

Isolation to Power port 3 kVrms 50 Hz 1 min

PSTN line 2 kVrms 50 Hz 1 min

Leased line 2 kVrms 50 Hz 1 min

Connection Detachable screw terminal

Shielded cable Not required*

Miscellaneous Do not connect RS-232 and RS-422/485 simultaneously

* To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m

boundary to the rails and connected to this port.

The cable shield should be properly connected (360°) to an earthing point within 1 m from this port. This earth-

ing point should have a low impedance connection to the conductive enclosure of the apparatus cabinet, or

similar, where the unit is built-in. This conductive enclosure should be connected to the earthing system of an

installation and may be directly connected to the protective earth.

10 6614-2202

RS-232

Electrical specification EIA/TIA-232

Data rate 1 200 bit/s – 115.2 kbit/s

Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits;

Σ 9–12 bits

Protocol Transparent

Retiming Yes

Transmission range Cable length ≤15 m

Isolation to Power port 3 kVrms 50 Hz 1 min

PSTN line 2 kVrms 50 Hz 1 min

Leased line 2 kVrms 50 Hz 1 min

Connection 9-pin D-sub female (DCE) and Detachable screw terminal

(DCE )

Connector size Detachable screw terminal 0.2 – 2.5 mm2 (AWG 24 – 12)

Shielded cable Not required*

Conductive housing Isolated to all other circuits

Miscellaneous Do not connect RS-232 and RS-422 / 485 simultaneously

* To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m

boundary to the rails and connected to this port.

The cable shield should be properly connected (360°) to an earthing point within 1 m from this port.

This earthing point should have a low impedance connection to the conductive enclosure of the apparatus

cabinet, or similar, where the unit is built-in. This conductive enclosure should be connected to the earthing

system of an installation and may be directly connected to the protective earth.

Tabla de contenidos

Otros manuales de Módem de Westermo

Westermo

Westermo TD-23 Manual de usuario

Westermo

Westermo TD-32B DC EU Manual de usuario

Westermo

Westermo ODW-600 Series Manual de usuario

Westermo

Westermo ODW-720-F1 Manual de usuario

Westermo

Westermo ODW-720-F1 Manual de usuario

Westermo

Westermo ODW-630-F1 Manual de usuario

Westermo

Westermo MD-12 AC Manual de usuario

Westermo

Westermo TD-33 Manual de usuario

Westermo

Westermo TD-29 AC Manual de usuario

Westermo

Westermo GD-01 US Manual de usuario

Westermo

Westermo ODW-730-F2 Manual de usuario

Westermo

Westermo TDW-33 Manual de usuario

Westermo

Westermo GD-01 Manual de usuario

Westermo

Westermo TD-32/485 Manual de usuario

Westermo

Westermo MA-43 Manual de usuario

Westermo

Westermo TD-36 Manual de usuario

Westermo

Westermo TD-23 Manual de usuario

Westermo

Westermo ODW-621 Manual de usuario

Westermo

Westermo LD-01 AC Manual de usuario

Westermo

Westermo ODW-620-F2 Manual de usuario

Westermo

Westermo MA-12 AC Manual de usuario

Westermo

Westermo Pilot Wire RPW600M Manual de usuario

Westermo

Westermo ODW-730-F1 Manual de usuario

Westermo

Westermo MA-14 Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
