PL121

121

p/n PL121 Rev. B 080310 cps

COUNTERTOP GAS GRIDDLES

MODELS:

WG2424G, WG2436G

WG3036G, WG3048G

CONTENTS

Description page

Parts List ……………………………….………………….. 2

General Information ……………...…………….………… 3

Models:

WG2424G ……………………………………………. 4

WG2436G ……………………………………………. 6

WG3036G ……………………………………………. 8

WG3048G ……………………………………………. 10

PART # DESCRIPTION

ELECTRICAL & GAS

59007 REGULATOR (NAT)

59284 REGULATOR (LP)

59335 ORIFICE, BURNER (LP) (pk2)

62195 THERMOPILE

65302 BURNER, WG3036G, WG3048G

65303 BURNER, WG2424G, WG2436G

65307 GAS VALVE

65308 PILOT W/NAT ORIFICE

65313 TUBE, MANIFOLD TO GAS VALVE

65314 TUBE - BURNER 1

65315 TUBE - BURNER 2

65316 TUBE - BURNER 3

65317 TUBE - PILOT 2

65318 TUBE - PILOT 1

65319 TUBE - PILOT 3

65357 ELBOW - BURNER ORIFICE

65406 TUBE - PILOT 4

65457 TUBE - BURNER 4

65352 ORIFICE, PILOT (LP)

65408 ORIFICE, BURNER (NAT)

68817 THERMOSTAT, GAS GRIDDLE

PART # DESCRIPTION

MECHANICAL

51973 HANDLE, GREASE DRAWER

53453 MAGNETIC CATCH

53948 PANEL FRONT, GREASE DRAWER

55952 HOLDER, THERMOBULB 30”

59039 INSULATION, THERMOBULB

59331 GREASE CHUTE

59173 GREASE DRAWER ASSY COMPLETE

60083 LABEL, TRADE MARK

65271 FRONT PANEL WG2424G

65272 CONTROL PANEL WG2424G

65278 GREASE TRAY (SLEEVE) ASSY

65292 FRONT PANEL WG2436G, WG3036G

65297

CONTROL PANEL WG2436G, WG3036G

65321 KNOB, GAS GRIDDLE

65373 CONTROL PANEL WG3048G

65375 FRONT PANEL WG3048G

65951 HOLDER, THERMOBULB 24”

68258 TOP ASSY, WG2436G

68527A TOP ASSY, WG2424G

PART # DESCRIPTION

HARDWARE, etc.

51053 NUT 8-32 HEX KEPS Ni (pk100)

51718 SCREW 6-32x3/16 PH Ni (pk10)

53935 SCREW 6x1/4 SHEET METAL (pk100)

55485 NUT 1/4-20 HEX SS

59245 PLUG, HEX 1/8 NPT BRASS

60680 NUT, 10-32 HEX KEPS SS (pk10)

OPTIONAL ACCESSORIES

20563 FEET, ADJ 4” METAL (pk4)

LITERATURE & DOCUMENTATION

45322 LIT OP MANUAL GAS GRIDDLE

45354 WIRING DIAGRAM W2424G

45355

WIRING DIAGRAM W2436G, WG3036G

45356 WIRING DIAGRAM W3048G

PL021 Service Parts List - Countertop Gas Griddles

WIRING

Note: each gas system is wired individually. This diagram depicts a single system comprised of a single gas

valve, thermopile & thermostat.

CONTROL KNOB CONFIGURATION

For all models, control knob p/n 62321 is marked in degrees Fahrenheit from 200ºF to 450ºF.

When the thermostat is OFF, the flat of the control shaft is positioned on the bottom.

OFF

450

400

350

300

250

200

TH/TP

GAS VALVE THERMOSTAT

THERMOPILE

PL021 Service Parts List - Countertop Gas Griddles

COUNTERTOP GAS GRIDDLE

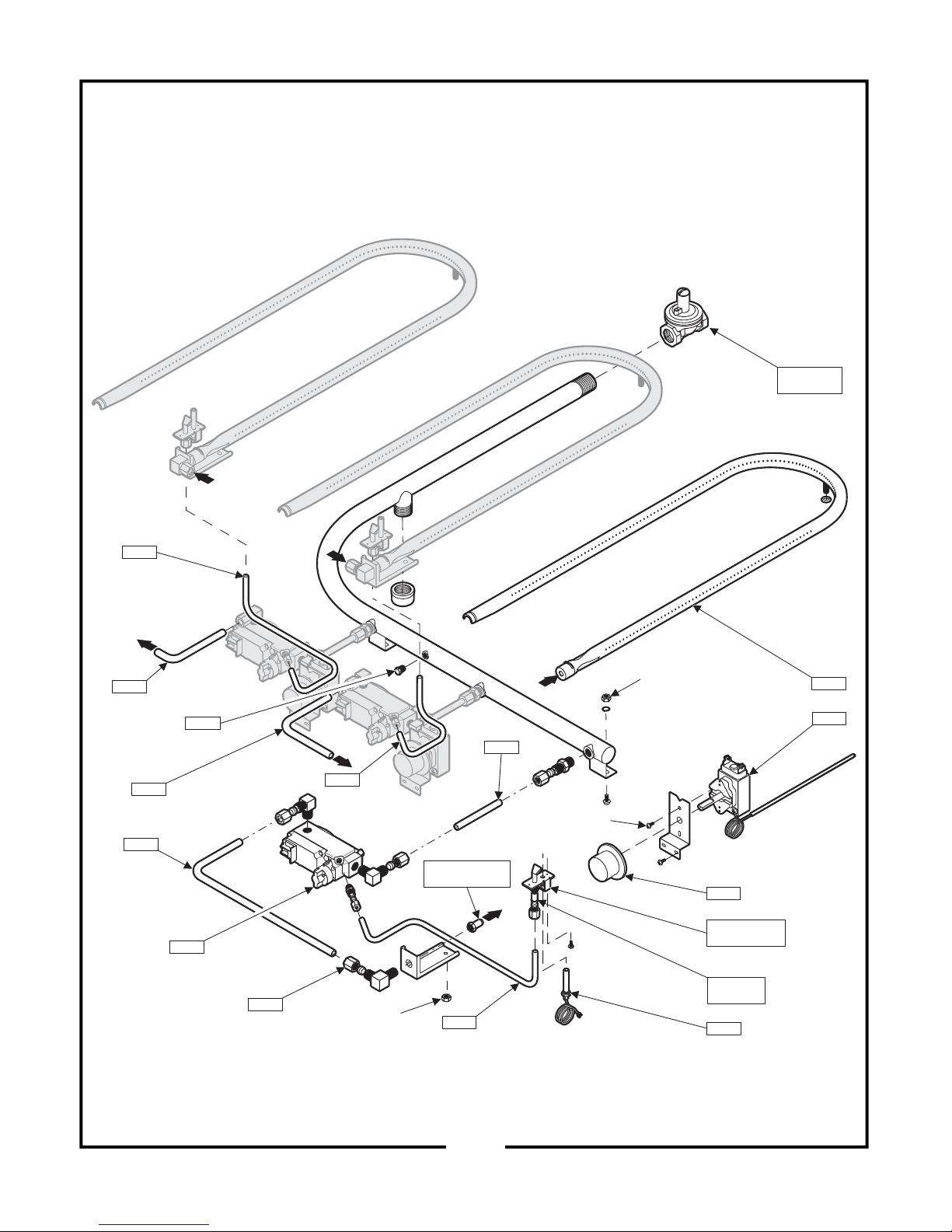

MODEL WG2424G GAS & BURNER SYSTEMS

NATURAL GAS & PROPANE (LP)

59007 (NAT)

59284 (LP)

59245

65303

2 places

65313

2 places

65308 pilot

plus NAT orifice

65321

65408 (NAT)

59335 (pk 2)(LP) 62195

65352 (LP)

orifice only

68817

2 places

65307

2 places

60680

(pk 10)

51718

(pk 10)

53935

(pk 100)

51053

(pk 100)

65357

65317

65318

65314

65315

PL021 Service Parts List - Countertop Gas Griddles

COUNTERTOP GAS GRIDDLE

MODEL WG2424G CABINET

NATURAL GAS & PROPANE (LP)

55485

(pk 100)

20563

65951

2 places

59039

2 places

4 places

53948

51973

59173

53453

65278

59331

68527A

55485 (pk 100)

2 places

53935

(pk 100)

60083

65271

65272

PL021 Service Parts List - Countertop Gas Griddles

COUNTERTOP GAS GRIDDLE

MODEL WG2436G GAS & BURNER SYSTEMS

NATURAL GAS & PROPANE (LP)

59007 (NAT)

59284 (LP)

59245

65303

3 places

65313

3 places

65308 pilot

plus NAT orifice

65321

65408 (NAT)

59335 (pk 2) (LP)

62195

65361

3 places

65307

3 places

60680 (pk10)

51718 (pk 10)

51053 (pk100)

65352 (LP)

orifice only

3 places

65318

65314

65315

65317

65316

65357 65319

PL021 Service Parts List - Countertop Gas Griddles

COUNTERTOP GAS GRIDDLE

MODEL WG2436G CABINET

NATURAL GAS & PROPANE (LP)

68258

ASSEMBLY

65951

3 places

59039

3 places

20563

4 places

2 places

53453

65278

53948

51973

59173

59331

55485 (pk100)

53935

(pk100)

60083

55485 (pk100)

65292

65297

PL021 Service Parts List - Countertop Gas Griddles

COUNTERTOP GAS GRIDDLE

MODEL WG3036G GAS & BURNER SYSTEMS

NATURAL GAS & PROPANE (LP)

59007 (NAT)

59284 (LP)

59245

65302

3 places

65313

3 places

65308 pilot

plus NAT orifice

65321

65408 (NAT)

59335 (pk 2) (LP)

62195

65352 (LP)

orifice only

65361

3 places

65307

3 places

60680 (pk10)

51718 (pk10)

51053

(pk100)

65318

65314

65315 65317

65316

65319

65357

PL021 Service Parts List - Countertop Gas Griddles

COUNTERTOP GAS GRIDDLE

MODEL WG3036G CABINET

NATURAL GAS & PROPANE (LP)

65952

3 places

59039

3 places

53453

65278

53948

51973

59173

59331

55485 (pk100)

53935

(pk100)

60083

55485 (pk100)

2 places

65292

65297

PL021 Service Parts List - Countertop Gas Griddles

COUNTERTOP GAS GRIDDLE

MODEL WG3048G GAS & BURNER SYSTEMS

NATURAL GAS & PROPANE (LP)

59007 (NAT)

59284 (LP)

59245

123

65313

4 places

65308 pilot

plus NAT orifice

65321

65408 (NAT)

59335 (pk2) (LP)

62195

65352 (LP)

orifice only

65361

4 places

65302

65307

4 places

60680 (pk 10)

51718

(pk10)

51053

(pk100)

65318

65314

65315

65317

65316 65319

65457

65357

65406

PL021 Service Parts List - Countertop Gas Griddles
