WaterTech Pool Blaster CX-1 Manual de usuario
EN
OPERATOR’S MANUAL
1
Contents
1. WARNINGS & CAUTIONS......................................................................
2. PACKAGE CONTENTS...........................................................................
3. SPECIFICATIONS....................................................................................
4. KNOWING YOUR UNIT...........................................................................
5. KNOWING THE CONTROL PANEL / Smart Features..........................
a. Select Cleaning Cycle........................................................................
b. Weekly Mode Running Schedule / Select Cleaning Mode.............
6. PREPARE THE CLEANER FOR USE.....................................................
a. Charging..............................................................................................
b. Filter Bag Mounting...........................................................................
7. START CLEANING..................................................................................
8. RETRIEVAL AFTER USE.......................................................................
9. OWNER PERFORMED MAINTENANCE................................................
a. Cleaning the Filter Bag......................................................................
b. Check the Filter Screen.....................................................................
c. Cleaning Bottom Cover.....................................................................
d. Impeller Maintenance.......................................................................
e. Long Term Storage............................................................................
10. CX-1 Calibration Procedure................................................................
11. CX-1 Troubleshooting..........................................................................
12. CX-1 FAQs.............................................................................................
2
3
4
5
6
7
8
9
9
11
13
14
15
15
15
16
17
19
20
22
23
Dear Valued Water Tech Customer,
Thank you for choosing Water Tech’s innovative new swimming pool
cleaner, the CX-1. The CX-1 has been designed to be completely “user
friendly” beginning with its “Hands-Free” launch into your pool. Simply
place the cleaner at poolside, press one button and the CX-1 will climb
into the pool by itself and get to work.
CX-1 VIP CUSTOMER SERVICE
Tel: 732-967-9888 EXT. 250
Email: [email protected]
2
IMPORTANT SAFETY INSTRUCTIONS
Save these instructions
This appliance is not intended for use by persons (including
children) with reduced physical, sensory and mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instructions concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
1. This product contains Li-Ion batteries. Do NOT abuse this product. If you suspect any damage to the
batteries, do NOT attempt to charge the robot, contact Water Tech Customer Service.
2. Do NOT store the CX-1 near heat or an open ame.
3. The safe temperature range for both use and storage is 41 to 113°F (5 to 45°C). Do not attempt to charge,
use, or store the CX-1 in temperatures outside of this range.
4. Using any charger other than the one provided with the unit will cause damage and possible injury.
Always charge the unit inside a dry, sheltered area.
5. Place the charger in a shaded dry area during both charging and storage. Keep away from
direct sunlight and liquids.
6. Maintain a minimum distance of 3m (10ft.) from the edge of the pool when recharging the batteries of the
cleaner.
7. Before operation, unplug the charging cable from the control box.
8. Unit is NOT intended for COMMERCIAL USE. Unit is NOT intended for OPENING A POOL.
9. Do not enter the pool while the pool cleaner is working. When the robot is in sleep mode, it is safe to
enter the pool.
10. Ensure the electrical outlet used for charging is protected by a ground fault circuit interrupter (GFCI) or
an earth leakage interrupter (ELI). DO NOT use an extension cord or power strip.
11. The pool cleaner must be charged for 1.5 - 2.5 hours before long term storage.
12. The sole purpose of this product is for use as a robotic pool cleaner as described in this manual; any
modications or other use will VOID the warranty.
13. Do not allow children to use, touch, or play near or around the unit and the charger.
14. Do not use if the unit or charger is damaged in any way.
15. MAKE SURE the robotic pool cleaner is unplugged from its power supply and turned o before opening
the unit or performing any other maintenance.
16. It is recommended that you clean your lter and check the impeller to make sure it is free and clear of
debris after every use.
17. Disconnect the charger from the outlet when not in use.
18. If your robotic pool cleaner is not working as it should or has been dropped or damaged in any way,
contact Water Tech Customer Service.
19. Save these instructions. Refer to them frequently. Provide these instructions to others who may use
the product.
Before using your CX-1, please read the following warnings
and read carefully through this Operator Manual.
3

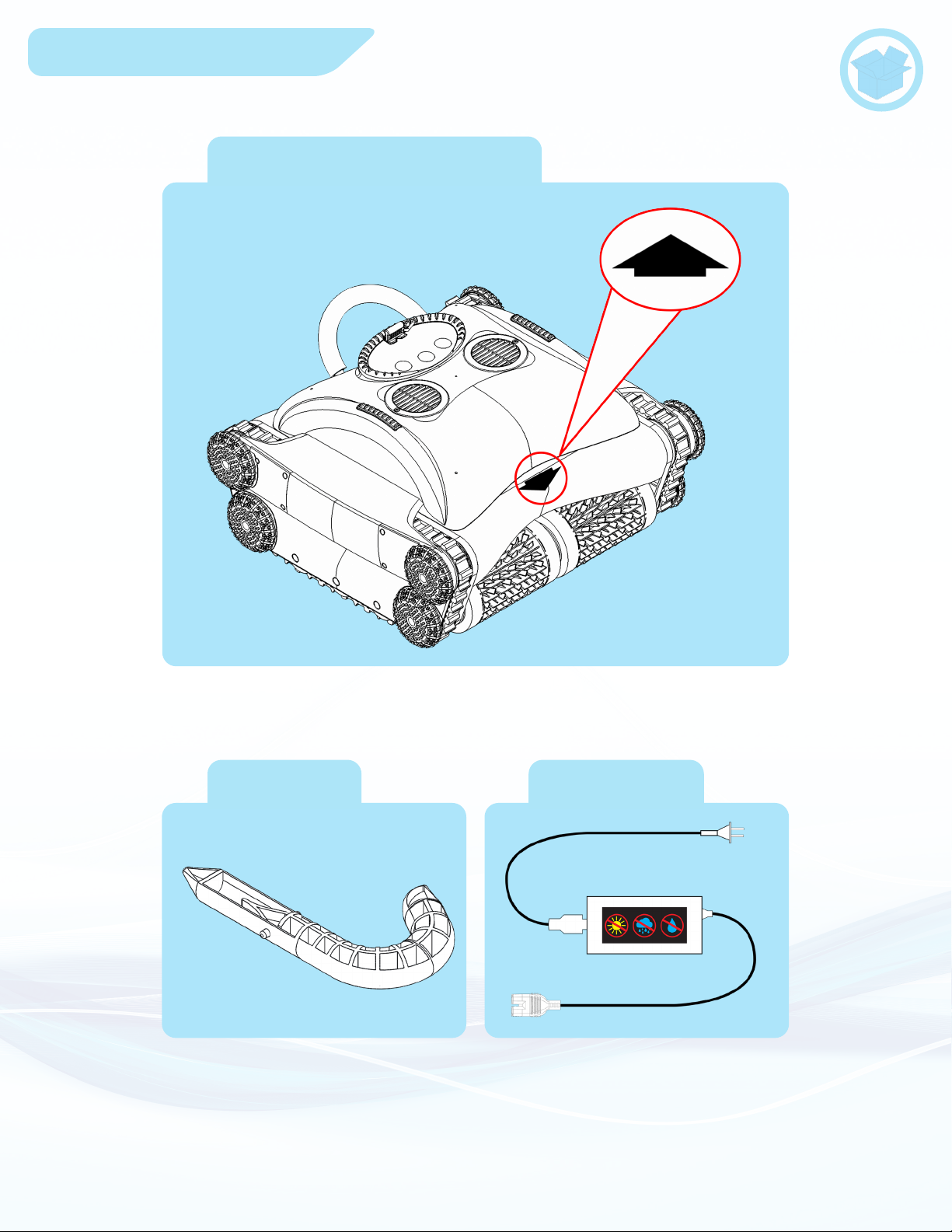

Package Contents
Pool Blaster CX-1
Hook Charger
* The hook attaches to your
standard size pool pole to help you
retrieve the unit from your pool.
4
Specications
Cleaning Coverage (sq. ft./hr.).................3542 sq. ft./hr.
Minimal Operation Depth........................................16 in.
Maximum Operation Depth.....................................15 ft.
Run Time.................................................Up to 4 Hours.
Charging Time................................................6-8 Hours.
Cleaning Width.......................................................18.0”.
Suction Power...................................Up to 7200 gal. /hr.
Unit Size..........................................19.85 x 18.0 x 11.0”.
Unit Weight...........................................................21 lbs.
Shipping Weight...................................................27 lbs.
Retrieval Hook Adapter............................................Yes.
Warranty.............................................................2 years.
CX-1 Specications
Charger Specications
AC-DC CHARGER:
• Input: 100-240AC Volts
50-60Hz
60W
1.5A
•Output: 29V
2.0A
Battery Specications
Battery type..............................................Li-Ion.
Battery Conguration................................6S4P.
5

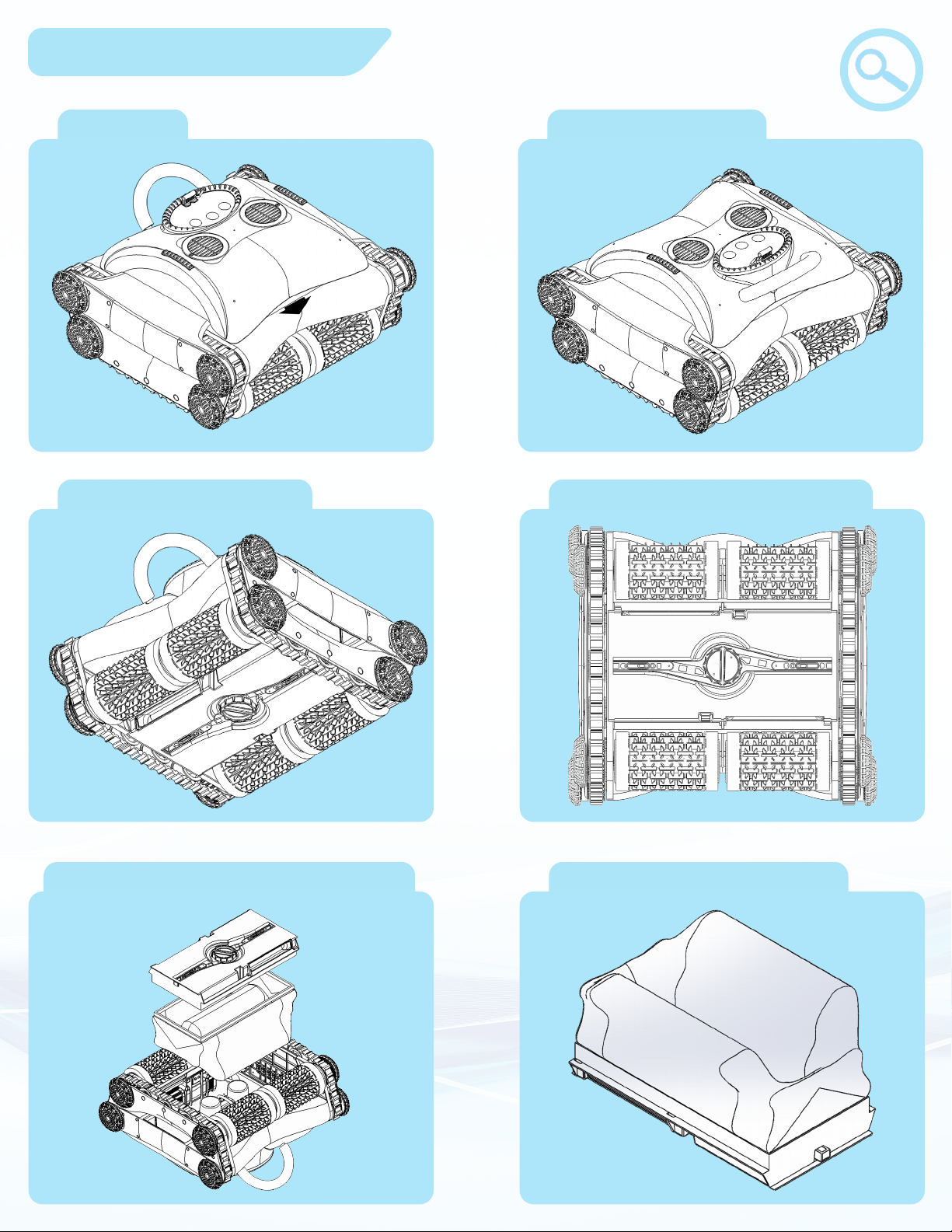

Knowing Your Unit
Full Unit Full Unit - Rear
Full Unit - Bottom Bottom - Cover Closed
Bottom - Filter Bag - Cover Filter Bag with Cover
*
6

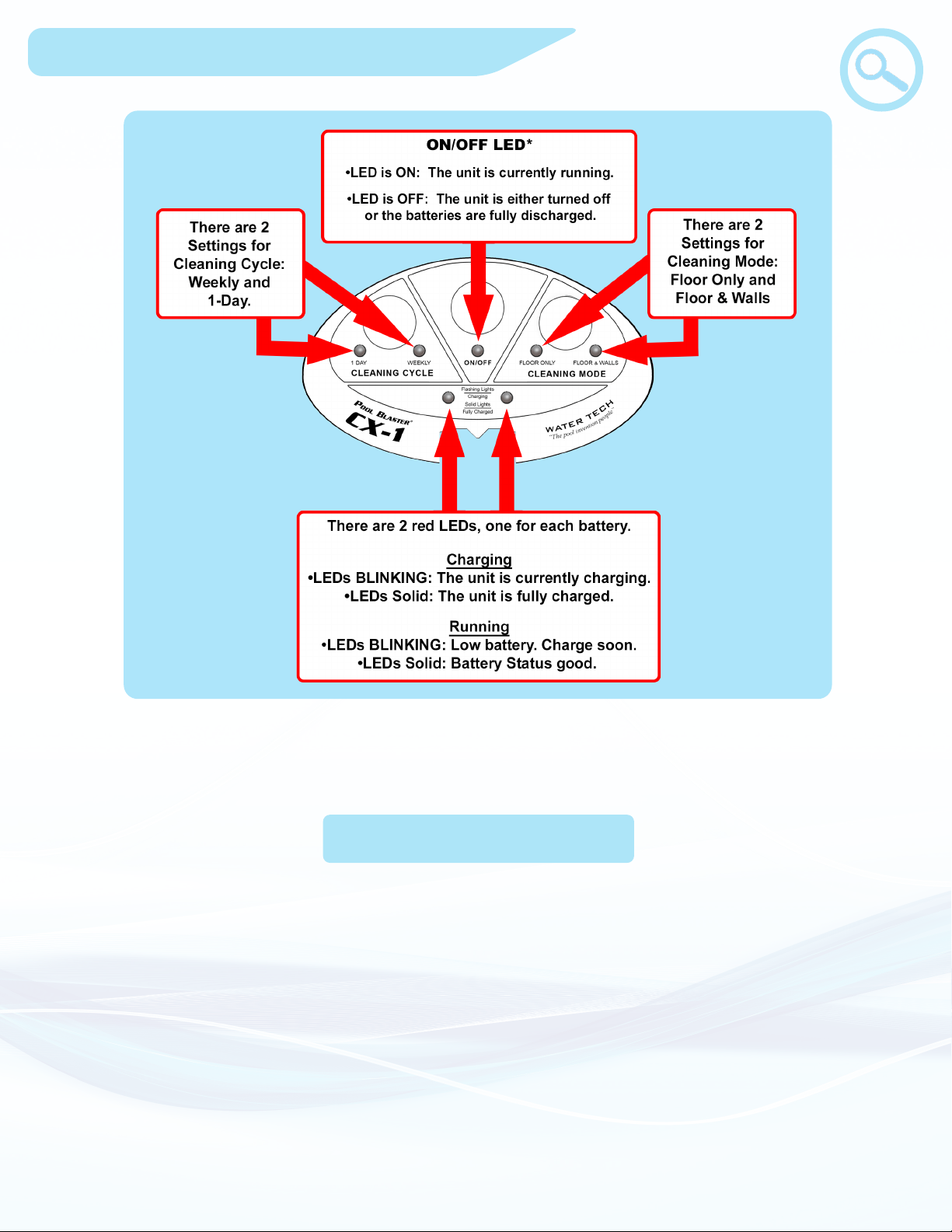

Knowing The Control Panel
On the next page, you will nd more detail on how each mode and cycle works.
*Note: When your CX-1 is in sleep mode, only the Battery LEDs (and ON/OFF LED for “Weekly”
Mode) will stay ON.
No matter which modes are chosen, these smart features are included into the software:
• Upside-down: The CX-1 is fully capable of detecting when it is upside-down and can then reorient itself
to continue cleaning. It also has a feature where, if it cannot ip itself over (such as if it is stuck on an
obstacle or too full of heavy debris), it will shut itself OFF to avoid wasting energy from the batteries.
When this happens, you can ip over your CX-1 and it will start cleaning again.
• Out of water: The CX-1 can detect when it is in or out of water and will avoid wasting energy when it is
out of the water. It will also drive itself back into the water, which is especially useful for beach style
pools or pools with steps. If the CX-1 is out of water for too long, it will shut itself down (with the LEDs
still ON). To continue operation you must turn it OFF and ON again.
• Cleaning Path: The CX-1 is programmed with a completely unique cleaning path that will t any non-
commercial size, shape, and style of pool.
Smart Features
7
You can program the CX-1 to run continuously or in intervals over a week long period.

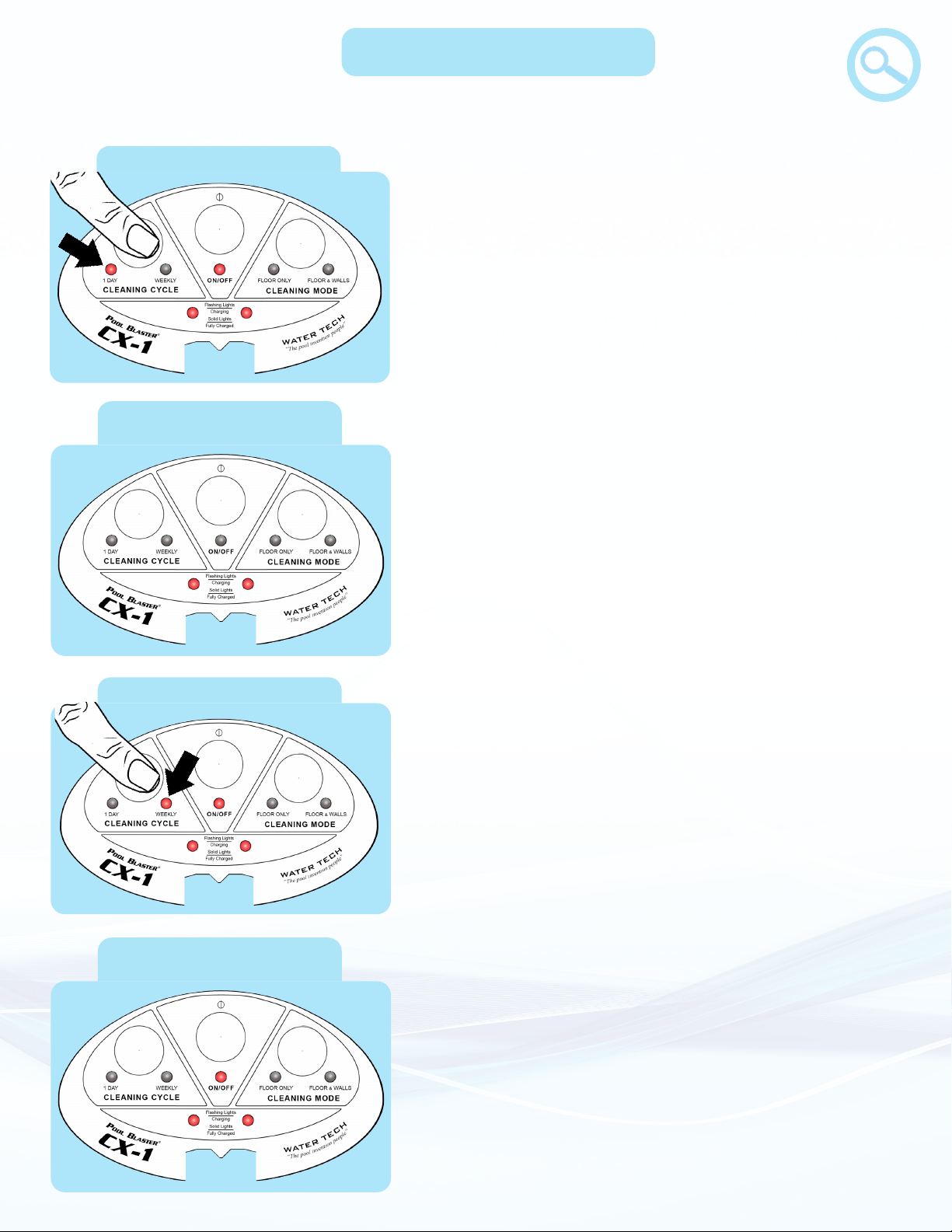

a. Select Cleaning Cycle
1-Day Cleaning Cycle
• 1-Day: The CX-1 will run continuously for up to 2
hours and then go into sleep mode. If 2 hours is not
enough, you can wake the robot from the sleep mode
to start another 2-hour cycle. The robot can run for
two “1-Day” cycles on a single charge. This mode is
most eective for thorough cleaning of a dirty pool.
Weekly Cleaning Cycle
• In “1-Day” Sleep mode the ON/OFF LED is o and
both battery LEDs stay on. The robot will not wake
from this “Sleep” mode until you turn the robot OFF
and ON (or press the “Cleaning Cycle” button). It is
recommended to turn the robot OFF if you do not
intend on using it again immediately.
Sleeping during 1-Day
Cleaning Cycle
Sleeping during Weekly
Cleaning Cycle • When in Weekly Sleep mode, both Cleaning Mode and
Cleaning Cycle LEDs will turn o. Only the ON/OFF
LED and the battery LEDs will stay on for the entire
time that the robot is in sleep mode. You can leave the
CX-1 in your pool while it’s in sleep mode. If you take
your CX-1 out of the pool, make sure you place it facing
the pool so it can drive itself back in when it wakes up.
• Weekly: The CX-1 will run on a schedule (illustrated
on next page) that will end after 7 days, at which point
the battery will be fully discharged. This mode is most
eective for maintaining a clean pool as it will clean
the debris that slowly accumulates throughout the
week.
Floor Only Mode
8

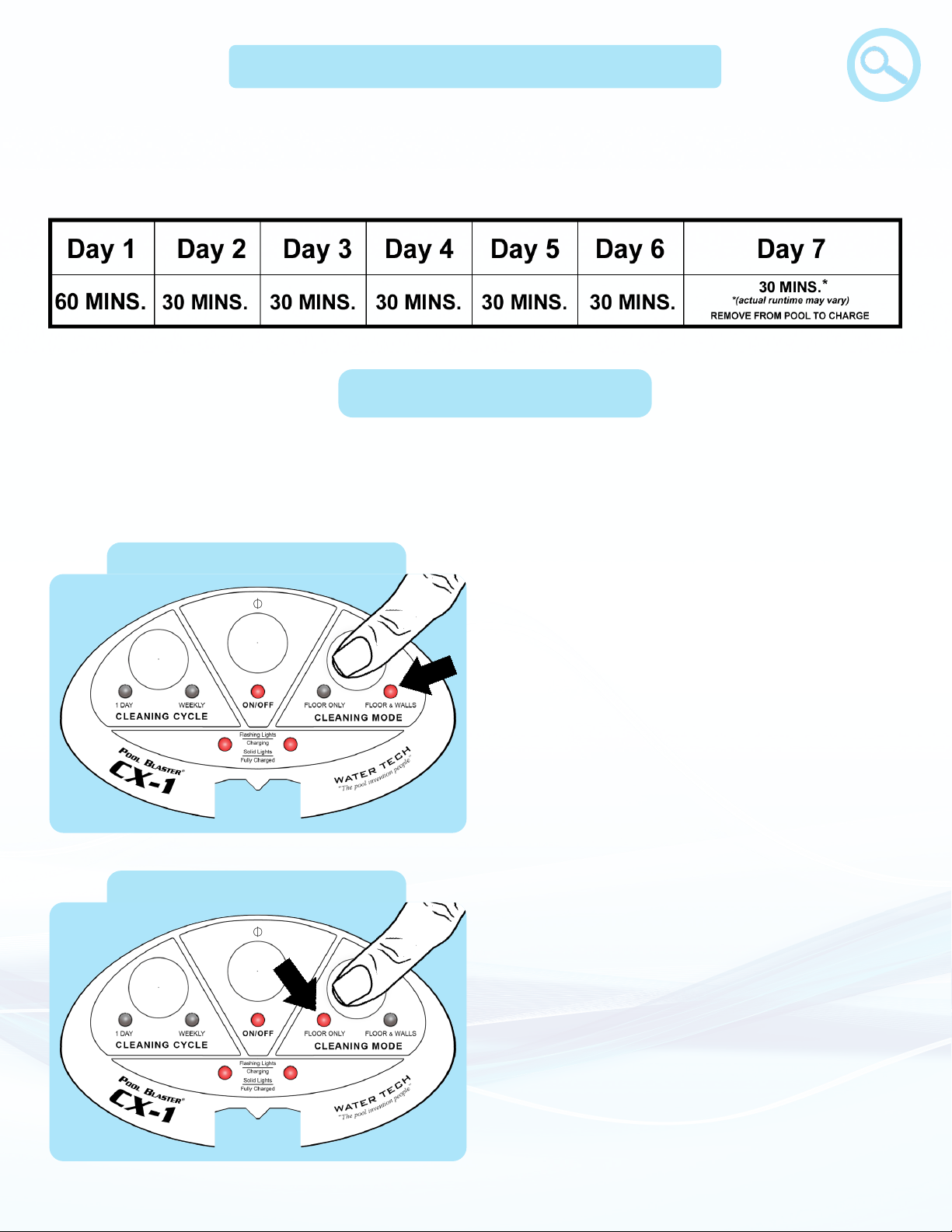

b. Select Cleaning Mode
• Cleaning Modes: The CX-1 is equipped with tilt sensors to help achieve the customer’s
desired cleaning mode.
• Floor & Walls – The CX-1 will clean the
oors and climb the walls, enabling the
CX-1 to scrub the waterline.
Floor & Walls Mode
• Floor Only – The CX-1 will stay on the
oor, picking up debris and scrubbing
scum. It will partially climb the walls
enough for it to clean the hard to reach
edges along the bottom of some pools.
Weekly cycle runs your robot every day for a full week. Starting from when you rst turn it
on, the robot will clean approximately 60 minutes. Then at the same time every day for the
remainder of the week, the robot will run for approximately 30 minutes.
Weekly Cycle Running Schedule
9

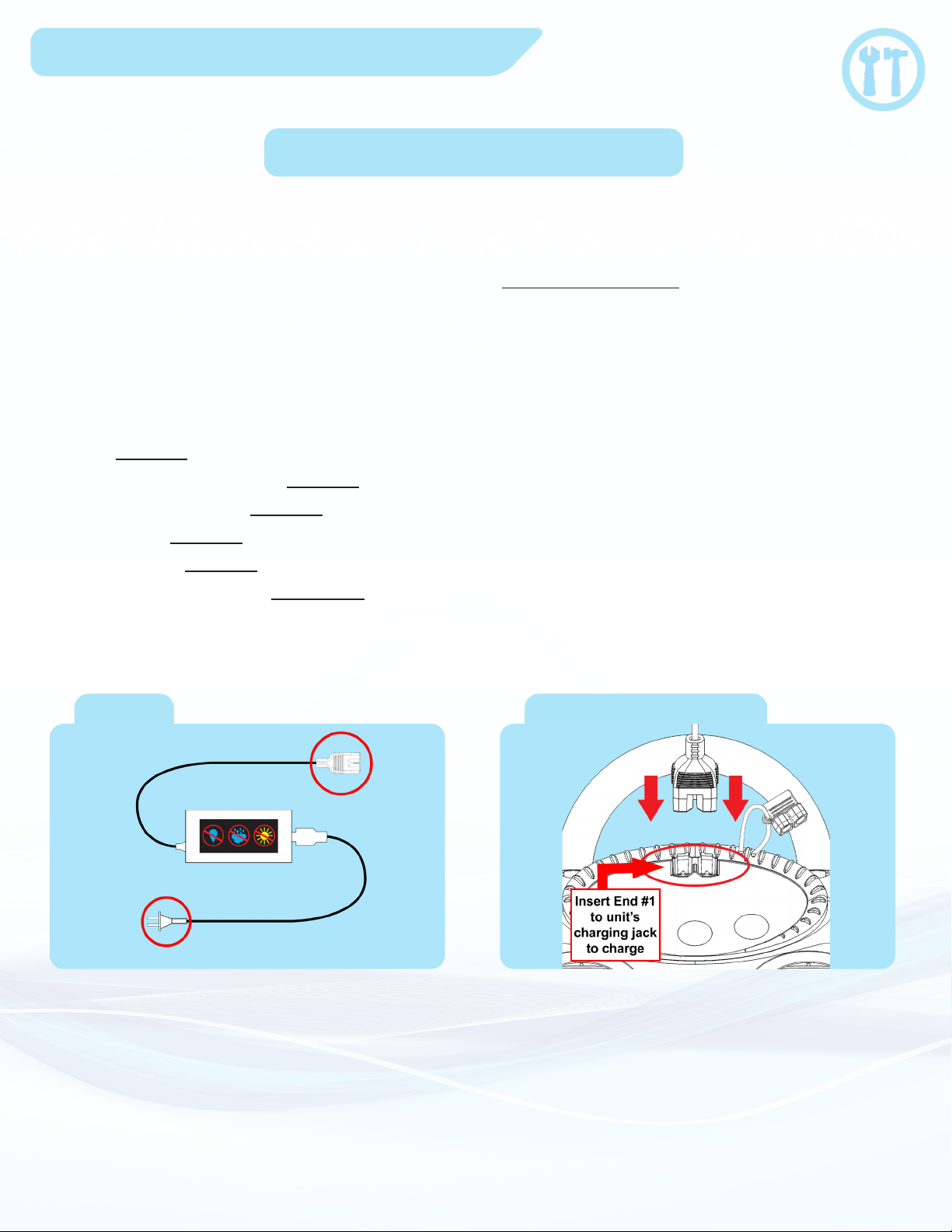

Prepare the Cleaner for Use
a. Charging your cleaner
• End #1: To unit’s charging jack.
• End #2: To an Indoor Grounded
Residential power source.
Make sure there is no water present on
the pins of the Unit’s charging jack.
CHARGING TIME: 6-8 HOURS
Be sure to charge in a dry, shaded area.
1.
2.
(The CX-1 will not run when the charger is plugged in).
The robot cannot be charged while in the pool. But the robot can be charged immediately after removing from the pool. Just
make sure that the pins of the robot’s charging jack are dry before plugging in the charger.
Charger Unit’s Charging Jack
DO NOT charge outside of the accepted temperature range: 41 to 113°F (5 to 45°C)
DO NOT use extension cord or power strip.
DO NOT expose charger to water or direct sunlight.
DO NOT leave unit plugged into charger for extended periods of time.
DO NOT leave unit plugged into charger during long term storage.
ONLY USE the charger that came with the unit.
