USER MANUAL
Shaker+
[ CARE AND USE MANUAL ]
1
• The device must always be completely switched o (cables removed)
before moving it.
• The device must be handled with caution as it contains moving parts.
• The user must maintain a distance of at least 20cm from the product
(WiFi antenna) while it is being installed and operated.
• The device is intended for indoor use only.
• Device maintenance has to be done exclusively by a Waters representative.
• If the device is used in a manner not specied by the manufacturer,
the protection provided by the device may be impaired.
• All the input/output ports are Safety Extra Low Voltage (SELV) circuits.
SELV circuits should only be connected to other SELV circuits.
• To avoid damaging the unit, do not remove labware from the device if
the device’s clamps are closed. If the device’s clamps are closed onto a
labware and the device is OFF, the device must rst be turned ON.
The clamps will automatically open upon device initialization and will
thus release the labware.
• Non-slip pads are positioned below each Shaker+ Device. If any of these
pads are damaged or have been removed, they must be replaced with a
new set of pads to avoid damaging Shaker+ units.
Safety instructions
Do not touch moving parts during operation!
The user must never put their ngers or any objects on and
around the moving platform.
[ CARE AND USE MANUAL ]
About this manual
Read the user manual before using this device. Strictly follow usage and maintenance
instructions provided in the manual. It is the user’s responsibility to become familiar with all
available information concerning the correct use, care and limitations of these products.
If you are uncertain about the correct use or limitations of the products, contact Waters
service and support. The manufacturer, the distributor and their respective owners,
employees, agents and representatives are not responsible or liable for errors or omissions.
Information in this User Manual is subject to change without notice and does not represent
a commitment on the part of Waters. Waters assumes no responsibility for any inaccuracies
that may be contained in this User Manual. Waters makes no commitment to update or
keep current the information in this User Manual, and reserves the right to make improve-
ments to this User Manual and/or to the products described in this User Manual, at any time
without notice.
If you nd information in this manual that is incorrect, misleading, or incomplete,
we would appreciate your comments and suggestions.
Product
overview LED indicator Labware holder
Power socket
Ethernet port for
cable connection
Power button
Built-in
computer
Built-in wireless
adapter
Open hatch
from here
[ CARE AND USE MANUAL ]

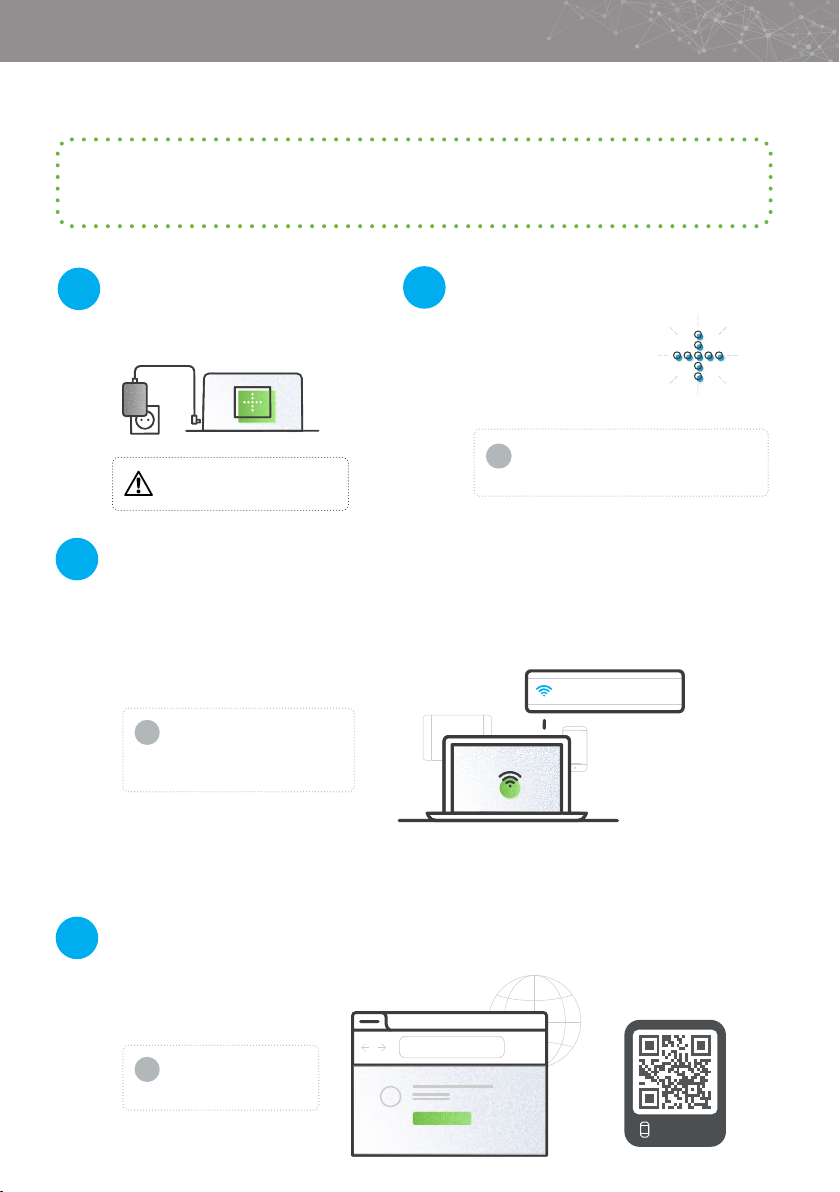

Getting started
Plug your Shaker+
into a power source.
Wait for the LED indicator to
turn blue and blink.
After a couple of mi-
nutes, the Shaker+ will
inform you when it is
in installation mode.
Connect your computer, tablet or smartphone to the Shaker+
Launch a web browser, type http://192.168.2.1
and follow the on-screen steps to continue the installation.
A. Go to your Wi-Fi settings
and select the network named Shaker-5xx.4xxx.xxxxx
12
3
4
scan me
xxxx.xxxxx is the Shaker+ device serial number (you can nd it on top of your
device)
B. The LED indicator will stop blinking when the device has been successfully connected.
Shaker-5xx.4xxx.xxxxx
If the Shaker+ doesn’t automatically enter ins-
tallation mode, press the power button 5 times.
!
http://192.168.2.1
Before
you begin
If you do not have a OneLab account, please create one by going to:
https://onelab.andrewalliance.com/signup
The device will automatically start up.
Only use the provided AC/DC
power supply unit and cords.
Please note that the ins-
tallation page might open
automatically.
If you do not have access to a Wi-Fi
compatible device, please refer to
our online help:
help.andrewalliance.com
!
!
[ CARE AND USE MANUAL ]
of
45 steps
1
1:46:37
No additional guidelines
Simultaneous activity
None
I've made a mistake...
Continue
Next step
Pipetting
Wait for the end of shaking…
01:20
BDspl-8 BDspl-9
Shaker+ - 518.9303.XXX
Shaker+
Shaking...
1200 rpm
Step list Abort
No additional guidelines
Experiment ongoing: Cell analysis - FD12
Guidelines (optional)
Give guidelines for experiment about this
step, eg. how to proceed etc.
Drop labware you want shakehere
Duration
Speed
rpm
Labware to shake
minutes1
1
100 %
1
A
B
C
D
E
F
G
H
32 4 5 6 7 8 9 1011 12
Templateplate
50 mL tube #2 50 mL tube #3
384-well plate
50 mL tube
A
B
1 32
6-well tissue culture plate
Save step
1. Shaking Drag required labware and enter parameters for shaking
Operations
Design your protocol
Execute experiment with
Shaker+
Start the experiment and let OneLab
control your device
Our drag-and-drop editor makes it easy
to design a precise and complete protocol
with all that you need to run your
experiment perfectly.
Create a Shaking action by clicking on
this menu, which is located on the left
of the screen.
Shaking
Actions
Follow the visual instructions based on the
protocol being used and you will be guided
through your experiment.
Each step of the experiment will be recorded
and available in OneLab.
OneLab will automatically select your
Shaker+ and allows you to use it with every
available experiment set-up: manual,
semi-automated or fully automated.
Choose your desired experiment setup and
then prepare all the required materials.
Feel free to contact
the Waters
support team Send us an email to
Chat with our support team
directly in OneLab
We reply within 1 business day
[ CARE AND USE MANUAL ]
Technical data
Labware
compatible
Check the OneLab Domino
Catalog at andrewalliance.com/
domino-catalog
Mixing frequency • Tube: 200 to 2000 rpm
• Microplate: 200 to 3000 rpm
(The maximum speed may dier
according to the type of used
labware)
Mixing orbit
constant
2 mm
Speed setting
resolution
1 rpm
Mixing regulation
accuracy
±25 rpm
Relative humidity 80% at 37°C
Maximum
operating altitude
2000 m
Environment
temperature
operating range
+4 to +37 °C
User interface Through OneLab software
Ingress protection IP20*
Dimensions
(W x L x H)
170 x 162 x 100 mm
(The specied dimensions are
subject to change according to
the labware)
Weight 2.55 kg
External power
supply
Input 100-240 VAC, 1.4 A / out-
put 24 VDC, 5 A, 120 W
Power or
current rating
5 A
Overvoltage
category DC port
Cat I
Operating voltage 24 VDC
Network
connectivity
• Gigabit Ethernet
• Wi-Fi 2.4 GHz and 5 GHz
Pollution degree
of the intended
environment
Pollution degree 2
Cleaning Only with a wet tissue or
isopropanol
Warranty 1 year
Certications CE, FCC, RoHS, WEEE, UKCA
1. Place your connected
devices in front of Andrew+ as indicated
byOneLab.
2. Open the hatches.
3. Plug the power cables into the power sockets
of your devices.
4. Pass the cables into the dedicated channels in
front of the devices.
5. Close the hatches.
Multiple connected devices
installation
Operating device
Power on
Power o
When the device is in standby mode
(plugged into a power source but turned
o), press the power button to turn on the
device.
Note: The device will automatically start up
when you plug into a power source.
When the device is in its idle state
(no experiment running), press the
power button for 5 seconds to turn
o the device.
5s
*Avoid spilling liquid on the device.
[ CARE AND USE MANUAL ]
Unit end of life
When a unit reaches the end of its useful life, contact Andrew Alliance for
directions and information on the end-of-life policy.
This is in accordance with the European Union Directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE).
Certications
Electrical safety
EMC
RADIO
FCC
RoHS
I. IEC 61010-1: 2010
II. IEC 61010-1/A1: 2016
III. UL 61010-1:2012
IV. CAN/CSA 22.2#61010-1-12
I. EN 61326-1: 2013
II. EN 301 489-1 V2.2.3
III. EN 301 489-17 V3.2.4
I. EN 300 328 Ver 2.1.1
II. EN 301 893 V2.1.1
I. FCC 47 CFR part 15 subpart B section 15.107 (b) and section 15.109 (b and g)
Class A all over other device tested per ANSI C63.4 (Ed. 2014) procedures
II. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired opera-
tion.
RoHS 3 (EU) 2015/863
[ CARE AND USE MANUAL ]
Waters Corporation
34 Maple Street
Milford, MA 01757 U.S.A.
T: 1 508 478 2000
F: 1 508 872 1990
waters.com
©2024 Waters Corporation. January 2024 23-12097 Part numer: 715009229 Rev A
