WaterChef U9000 Manual de usuario

This System may require the

services of a licensed plumber.

PREMIUM WATER FILTRATION

U9000

INSTALLATION, USE & CARE GUIDE

UNDER-SINK

Filtration System

Read & Save These Instructions.

IMPORTANT

System Tested and Certiﬁed by NSF International against NSF/ANSI Standard 42 for the

reduction of Chloramine, Chlorine Taste and Odor, and nominal Particulate Class I and

NSF/ANSI Standard 53 for the reduction of Cysts, Lead, VOC and MTBE.

QUESTIONS?

1.800.879.8909

(int’l +1.775.359.9500)

MON - FRI 8 AM - 5 PM PST

ASSEMBLED

USA

ASSEMBLED

USA

bpafree

18/8

STAINLESS

System Serial Number:

Serial Number is located on lter housing base.

TABLE OF CONTENTS

Introduction ...................................................................... 1

Important Use Guidelines ........................................................... 1

Product Specications.............................................................. 2

Replacement Parts Directory......................................................... 2

Setup and Installation .............................................................. 3

Replacing the Filter Cartridge ........................................................ 9

Troubleshooting ................................................................... 11

Warranty ......................................................................... 12

Product Registration ............................................................... 13

Notes ........................................................................... 13

Designer Faucet

3/8” T-Valve

Included Literature:

- Installation, Use & Care Guide

- Performance Data Sheet

- Product Registration Card

LED Faucet Ring

Spacer Wing Nut

INTELLIGENT MONITOR™

COMPONENTS

Monitor

(includes Battery and

Battery Shuttle)

Lid and Housing Assembly

(includes Clamp and Base)

WaterChef®UR90

Filter Cartridge

(ships pre-installed

in housing assembly)

Red and Blue Tubing

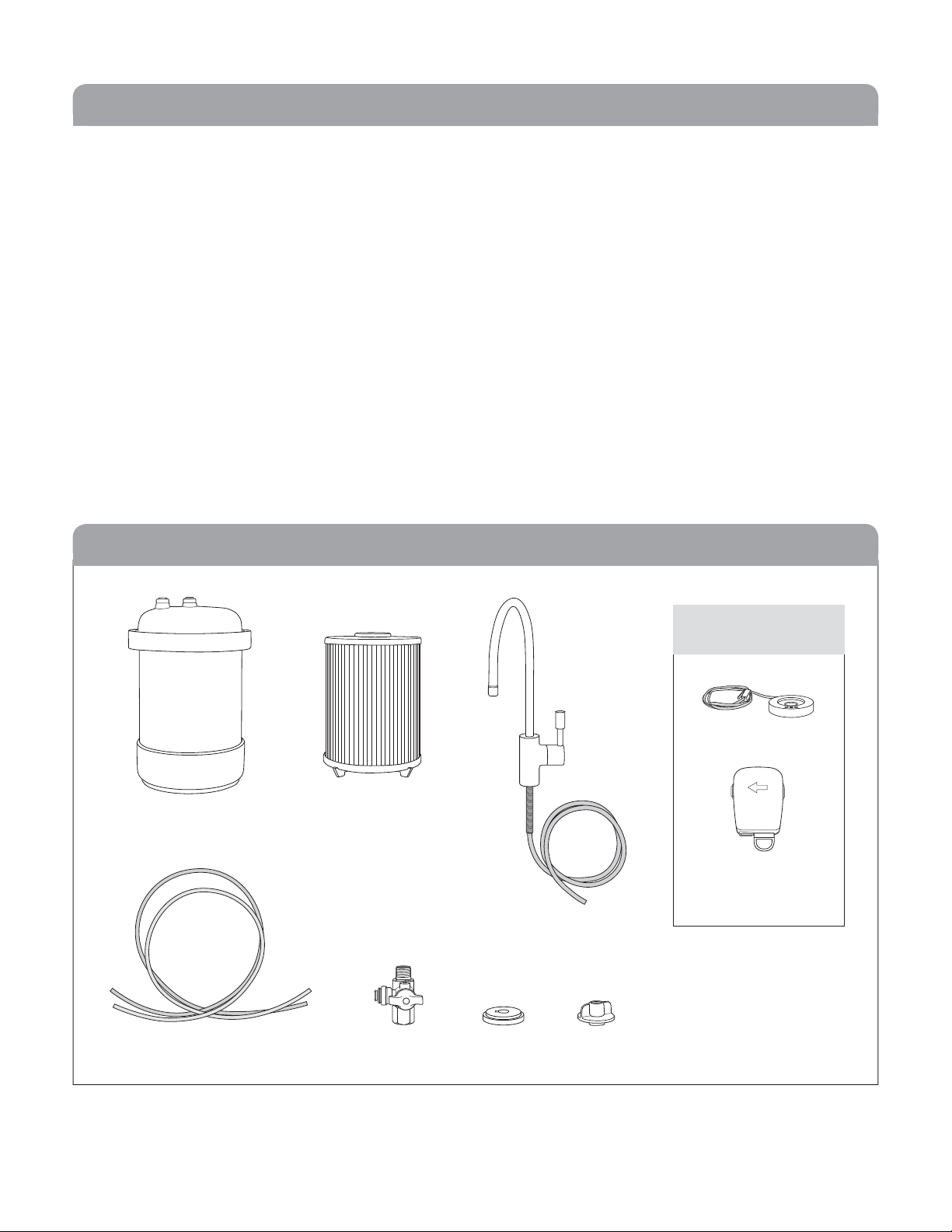

WHAT’S IN THE BOX [MODEL: U9000]

www.waterchef.com

INTRODUCTION

1. Read this manual completely before attempting to install or use this product.

2. Replacement Filter Cartridges may be purchased from a WaterChef reseller. For the location of the

reseller nearest you, or for additional purchase information, contact WaterChef Customer Care at

1.800.879.8909 (int’l +1.775.359.9500).

3. The actual capacity of your Filter Cartridge may vary from the rated capacity. This may be due to the

volume of contaminants or sediment actually present in your water supply.

For optimal performance, replace your Filter Cartridge upon the rst occurrence of the following:

-Annually

- The ow rate diminishes

-The rated capacity of the Filter Cartridge has been reached

-You notice a taste or odor recurrence

-The RED LED Indicator on the System Faucet begins ashing

4. Do not use water that is microbiologically unsafe or of unknown quality without adequate disinfection

before or after the System.

5. Individuals requiring specic microbiological purity should consult their physician.

6. For use on cold potable water supplies only.

7. For this System to continue to perform as tested and represented, be sure to use only genuine,

NSF certied WaterChef®UR90 Filter Cartridges.

8. Do not allow System to sit for extended lengths of time without being used (10 days or more). If System

must be left unused for more than 10 days, drain all water from the System and remove the Filter

Cartridge. Once you return, re-install Cartridge and ush for 15 min. prior to use (The ushed water can

be used to water plants).

9. Installation of this product must comply with all state and local laws and regulations.

Refer to your local agencies for details.

10. The contaminants or other substances removed or reduced by this System may not be in all users’ water.

Congratulations on the purchase of your new WaterChef®Premium Filtration System!

You have taken an important step toward improving the quality of your drinking and cooking water.

WaterChef Premium Filtration Systems are crafted using only the nest materials and workmanship, and

will serve you reliably for many years to come when operated and maintained according to the directions

contained in this guide.

You have made a wise investment in providing quality water for you and your loved ones. Now please take

a few minutes to learn about all the features and benets your new System has to oer!

IMPORTANT USE GUIDELINES

www.waterchef.com

PRODUCT SPECIFICATIONS

Installation . . . . . . . . . . . . . . . . . . . Under-Sink

Particle Retention Size . . . . . . . . . . . . .Sub-Micron

Intelligent Monitor. . . . . . . . . . . . . . . . . . . . LED

Rated Capacity . . . . . . . . . . . 1,000 gallons (3,785 L)

Rated Service Flow . . . . . . . . 0.65 gal/min @60 psi

Maximum Working Pressure . . . . . 125 psig (861.8 kPa)

Minimum Working Pressure . . . . . . 30 psig (206.8 kPa)

Maximum Operating Temperature . . . . . . 100˚ F / 38˚ C

Minimum Operating Temperature. . . . . . . . . 34˚ F / 1˚ C

Filter Cartridge (includes Battery and Shuttle) . . . . . . UR90

EPA Establishment Number . . . . . . . . 63018-NV-001

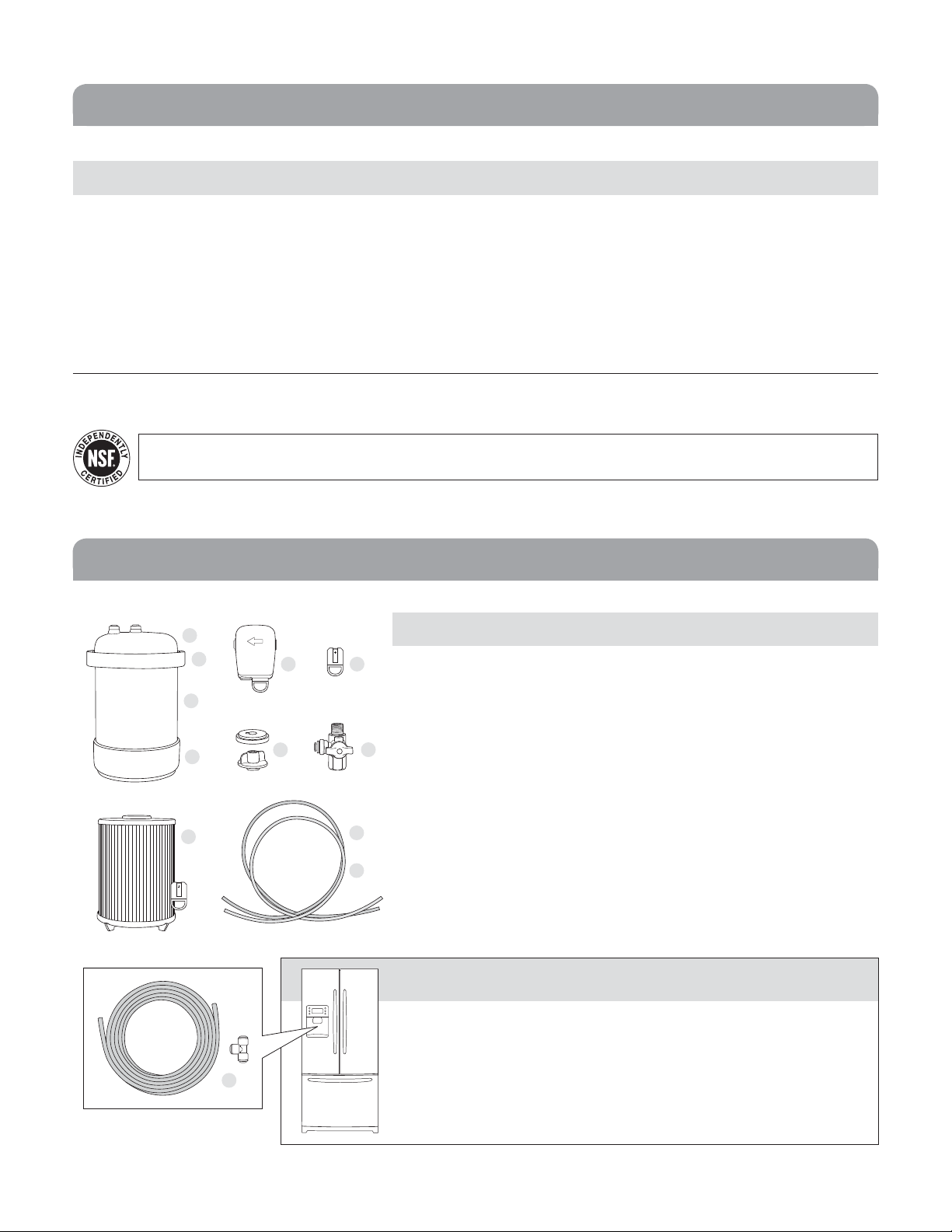

WATERCHEF UNDER-SINK FILTRATION SYSTEM (Model: U9000)

Refer to Performance Data Sheet for actual contaminant and substance reduction capabilities.

ITEM PART # DESCRIPTION

1 0581-17-16 Lid Assembly

2 9-902-0002 Clamp Assembly

3 0581-04-11 Filter Housing

4 4-105-0012-01 Base

5 9-903-0035 Intelligent Monitor™(includes Battery and Shuttle)

60581-15-05 Battery Shuttle (includes Battery)

7 9-904-0100 Spacer & Wing Nut

8 3-212-0015 3/8” T-Valve

9 UR90 Filter Cartridge (includes Battery and Shuttle)

10 4-600-0017 Blue Tubing (5 ft.)

11 4-600-0015 Red Tubing (5 ft.)

12 0071 Refrigerator Kit (25 ft. Tubing & T-Fitting) (Optional)

System Tested and Certiﬁed by NSF International against NSF/ANSI Standard 42 for the reduction of Chloramine, Chlorine Taste and Odor,

and nominal Particulate Class I and NSF/ANSI Standard 53 for the reduction of Cysts, Lead, VOC and MTBE.

REPLACEMENT PARTS DIRECTORY

Enjoy WaterChef® premium ltration from your refrigerator too!

Does your refrigerator have a water dispenser or ice maker?

Enjoy better water, greater savings and convenience, and less waste by

adding a WaterChef Refrigerator Kit to your existing U9000 System.

Stop replacing additional small, costly and less eective refrigerator

lters. A single WaterChef Cartridge provides an abundant source of

premium quality water to your entire kitchen for up to 12 months!

www.waterchef.com

SETUP & INSTALLATION

1. Open the shipping carton, remove all System parts and place

them on your kitchen counter.

2. Compare them with the parts shown in this guide to be certain

all items were included (see inside front cover).

3. The type of plumbing that you have in your home will determine

the method of installation and type of hardware that will be used.

4. Following is a list of common tools required for most

under-counter installations:

Drilling a Hole in a PORCELAIN/CERAMIC Sink (g. A):

3/8” Electric Drill

5/8” Carbide Masonry Drill Bit

5/8” High Speed Drill Bit

Hammer

Punch

Masking Tape

Drilling a Hole in a STAINLESS STEEL Sink (g. B):

3/8” Electric Drill

5/8” High Speed Drill Bit

1/8” High Speed Drill Bit

Hammer

Punch

Masking Tape

Installing the 3/8” T-Valve and Faucet (g. C):

5/8” or 1/4” Open Ended Wrench (varies by model)

Knife

INSTALLATION QUESTIONS?

Call WaterChef Customer Care: 1.800.879.8909 (int’l +1.775.359.9500)(MON - FRI, 8 AM - 5 PM PST)

www.waterchef.com

SETUP & INSTALLATION

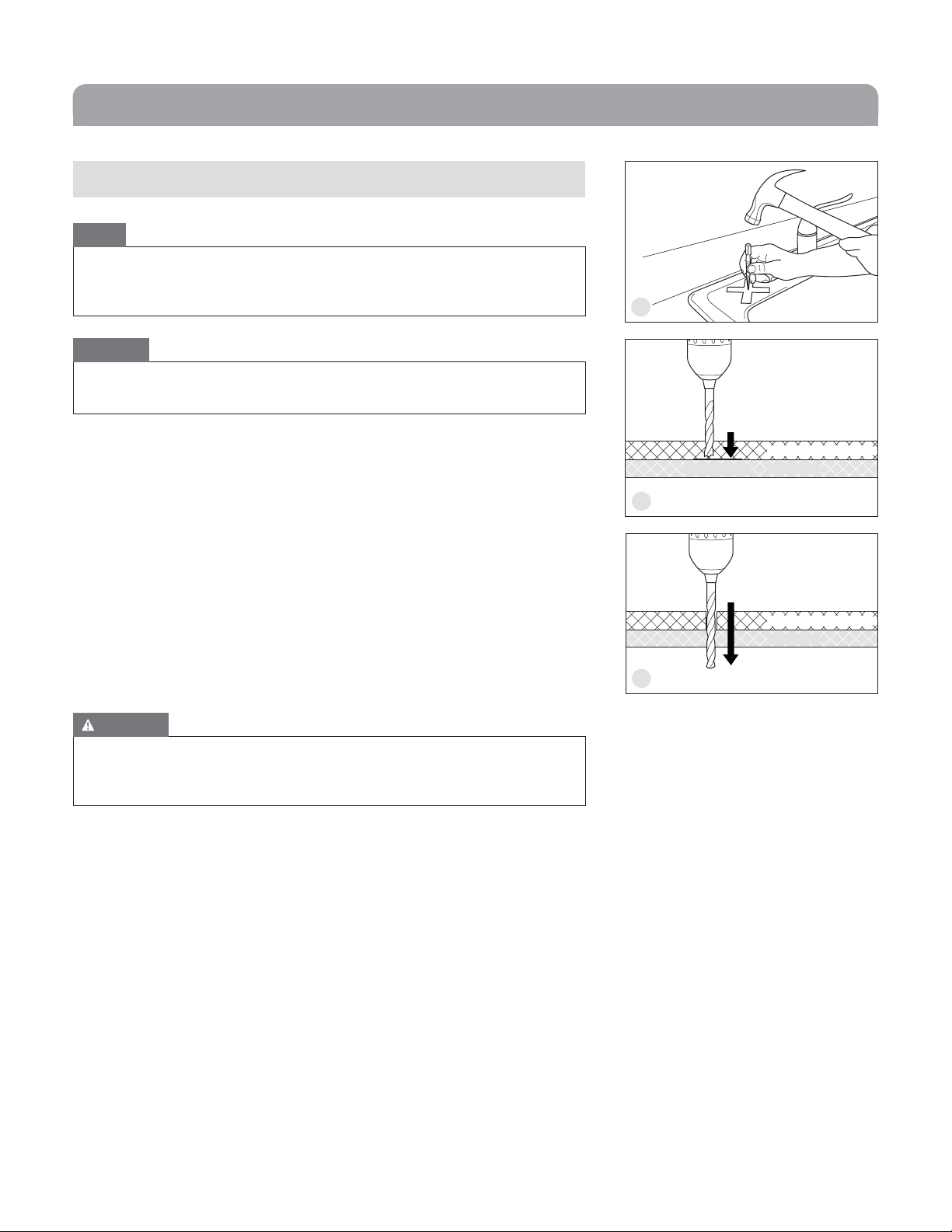

1. Locate an area on your sink to install the System Water Faucet

(make certain that there are no support ribs under the sink

in that location). Cover the designated location for the Faucet

installation on sink with masking tape. Use the punch and

hammer to lightly score the porcelain at the designated location

for the faucet installation. (g. D)

2. Use the 5/8” masonry drill bit to remove the porcelain down

to the metal. Drill slowly or at half speed. (g. E)

3. Use the 5/8” high speed drill bit to drill through the exposed

surface of the metal. Hold the drill in the upright position to avoid

catching the edge of the porcelain with drill bit. (g. F)

Proceed to “Faucet Installation” instructions on page 6.

5/8” Masonry Drill Bit

5/8” High Speed Drill Bit

Sink Cross-Section:

Porcelain/Ceramic Layer

Metal Layer

STOP at Metal

NOTE

CAUTION

If your sink has another hole that currently has a spray attachment, you may decide to

remove the spray attachment and use the existing hole to continue your installation

(skip the next section and go to “Faucet Installation” on page 6).

This type of sink can chip easily. Use extreme care. If you have any doubts about

doing this yourself, consult a licensed plumber.

WARNING

Use EXTREME CAUTION with electric power tools near water. Ensure that there is no

standing water in the sink and that the area is dry. Failure to follow this warning could

result in serious injury or death.

Drilling a Hole in a PORCELAIN/CERAMIC Sink:

www.waterchef.com

SETUP & INSTALLATION

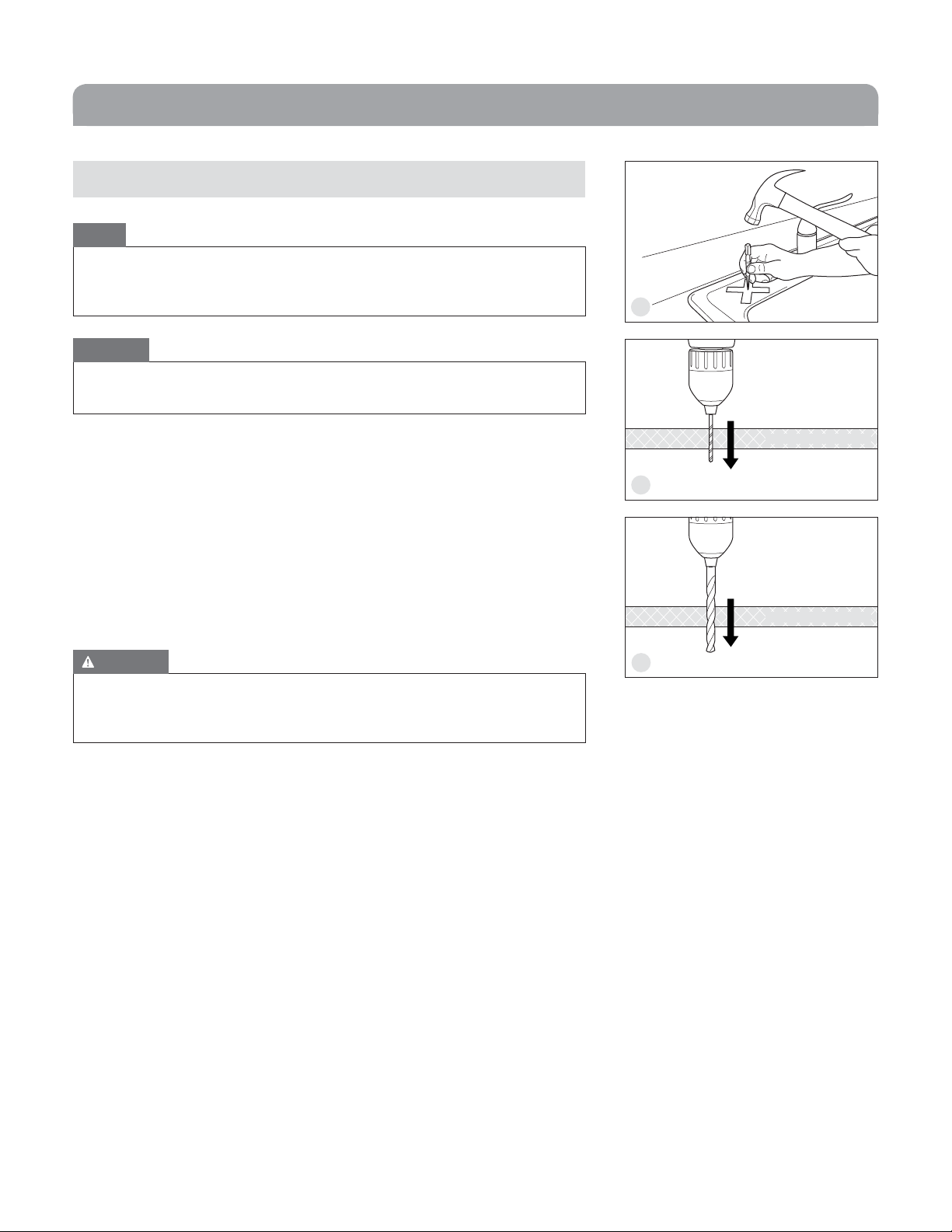

1. Locate an area on your sink to install the System Water Faucet

(make certain that there are no support ribs under the sink in

that location). Cover the designated location for the Faucet

installation on sink with masking tape. Use the punch and

hammer to make a light indentation at the designated location

for the Faucet installation. (g. G)

2. Using a 1/8” high speed drill bit, drill a pilot hole. (g. H)

3. Use a 5/8” high speed drill bit to enlarge the pilot hole. (g. I)

Proceed to “Faucet Installation” instructions on page 6.

1/8” High Speed Drill Bit

5/8” High Speed Drill Bit

Steel Sink Cross-Section

NOTE

If your sink has another hole that currently has a spray attachment, you may decide to

remove the spray attachment, and use the existing hole to continue your installation

(skip the next section and go to “Faucet Installation”).

CAUTION

This type of sink can be scratched easily. Use extreme care. If you have any doubts

about doing this yourself, consult a licensed plumber.

WARNING

Use EXTREME CAUTION with electric power tools near water. Ensure that there is no

standing water in the sink and that the area is dry. Failure to follow this warning could

result in serious injury or death.

Drilling a Hole in a STAINLESS STEEL Sink:

www.waterchef.com

SETUP & INSTALLATION

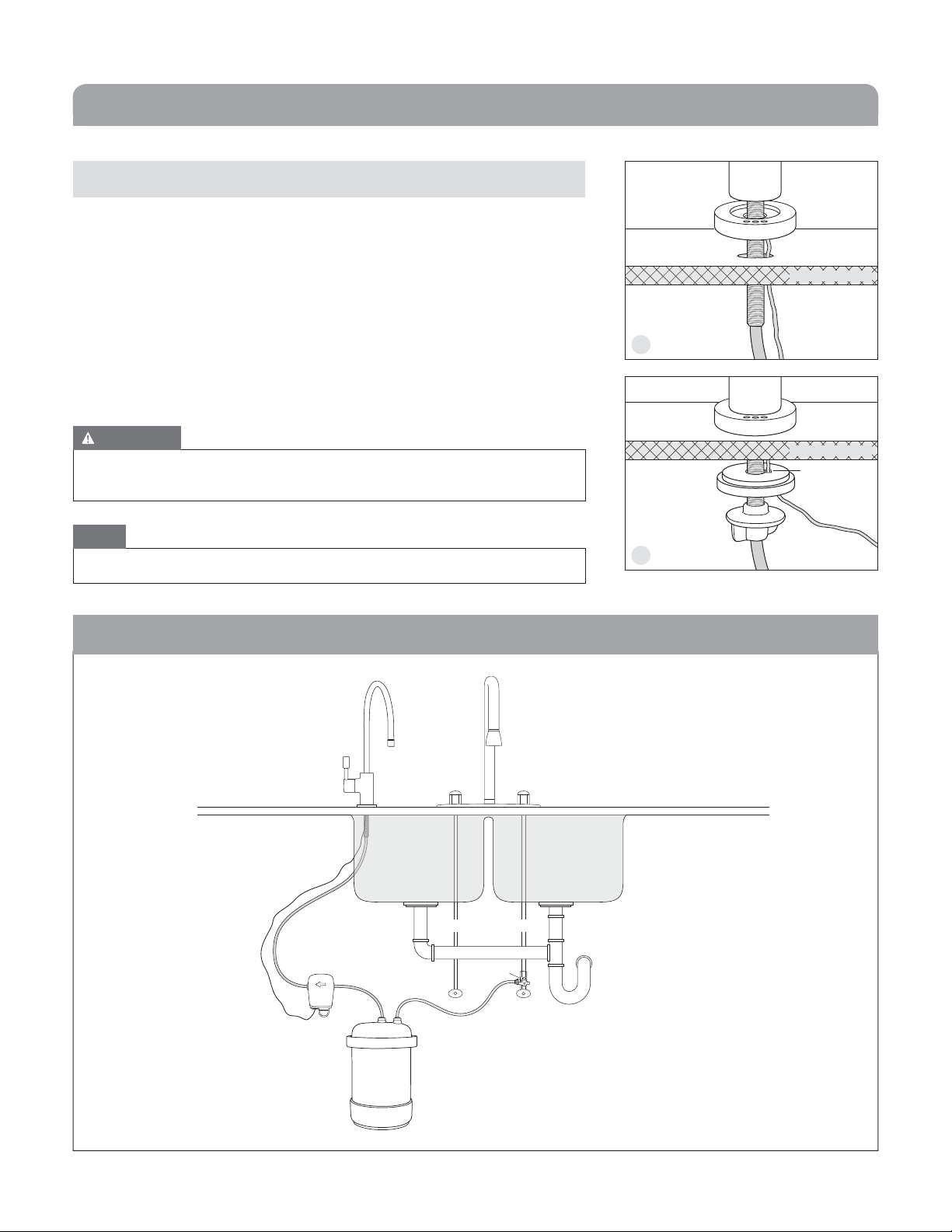

1. Slide the LED Faucet Ring up Faucet Tubing and onto Faucet

Stem. Next, insert Cable through hole in sink, followed by Faucet

Tubing and Faucet Stem (be careful not to crimp the Cable). (g. J)

2. From under the sink, guide Cable through the hole in the Spacer

(small side up). Next, slide Cable into the small notched area of

the Spacer hole. Insert the Faucet Tubing through the main area

of the Spacer hole and guide Spacer onto Faucet Stem. Thread

Wing Nut onto Faucet Stem and hand tighten. (g. K)

Faucet Stem

Blue Tubing

Spacer

Wing Nut

LED Faucet Ring

Cable

Cable Notch

Sink Cross-Section

System Faucet

NOTE

Final Faucet positioning may require two people when tightening the Wing Nut.

Be sure Cable remains in the notched area of Spacer hole as you slide the Faucet

Tubing and Stem through the Spacer to avoid damaging the Cable.

Faucet Installation:

IMPORTANT

TYPICAL UNDER-SINK INSTALLATION

Designer

Faucet

Monitor

Housing

RED Tubing

T-Valve

BLUE Tubing

Cable

HOT COLD

www.waterchef.com

SETUP & INSTALLATION

STEP

Red Tubing

Compression Nut

3/8” T-Valve

Cold Water

Supply Line

Cold Water

Supply Line

Red Tubing

(from 3/8” T-Valve)

Red Inlet Connector

Blue Outlet Connector

1. Locate an area under the kitchen sink to place the Base. Base should

be located directly under area where the Faucet will be installed.

2. Using the open ended wrench, unthread the compression nut

located on top of the shut-o valve located on existing cold water

supply line. (g. L)

3. Thread the 3/8” T-Valve onto cold water supply line, and tighten

with the open ended wrench. (g. M, Step 1) Next, thread the

compression nut onto the top of T-Valve and tighten. (g. M, Step 2)

Lastly, press the Red Tubing into the Outlet Connector located

on the T-Valve. (g. M, Step 3)

4. Press opposite end of Red Tubing into Red Inlet Connector located

on top of Lid Assembly. (g. N) Then press Blue Tubing into

Blue Outlet Connector. (g. O)

5. Locate an area on cabinet wall to mount the Intelligent Monitor™.

Secure Intelligent Monitor™to the wall using the Velcro Adhesive

Strips provided. (g. P)

(continued on following page)

Blue Tubing

Velcro Strip

(on cabinet wall) Intelligent

Monitor™

System Installation:

IMPORTANT

Before attempting this installation, be certain to turn “OFF” the cold water supply

located under your sink. If a shut-off valve is not located on the cold water line directly

under your kitchen sink, shut off the main water supply to your home.

RECOMMENDATION

You may want to reduce the length of the Tubing if you ﬁnd there is excess. However,

it is advisable to leave the Red and Blue Tubing long enough so that the System can

be easily removed from under the sink for Filter Cartridge replacement.

CAUTION

Use a sharp knife when cutting Tubing.Take extra care not to distort Tubing while

cutting. Cut Tubing end straight. Failure to do so may result in leaking.

3STEP 2

STEP 1

IMPORTANT

Once inserted completely, give Tubing a gentle tug to make sure it has been properly

seated in the ﬁtting to create a permanent seal. If you ﬁnd that it is necessary to

remove theTubing from Inlet or Outlet Connectors, depress the small Collar located

on the Inlet and Outlet Connectors and pullTubing upward at same time.

www.waterchef.com

SETUP & INSTALLATION

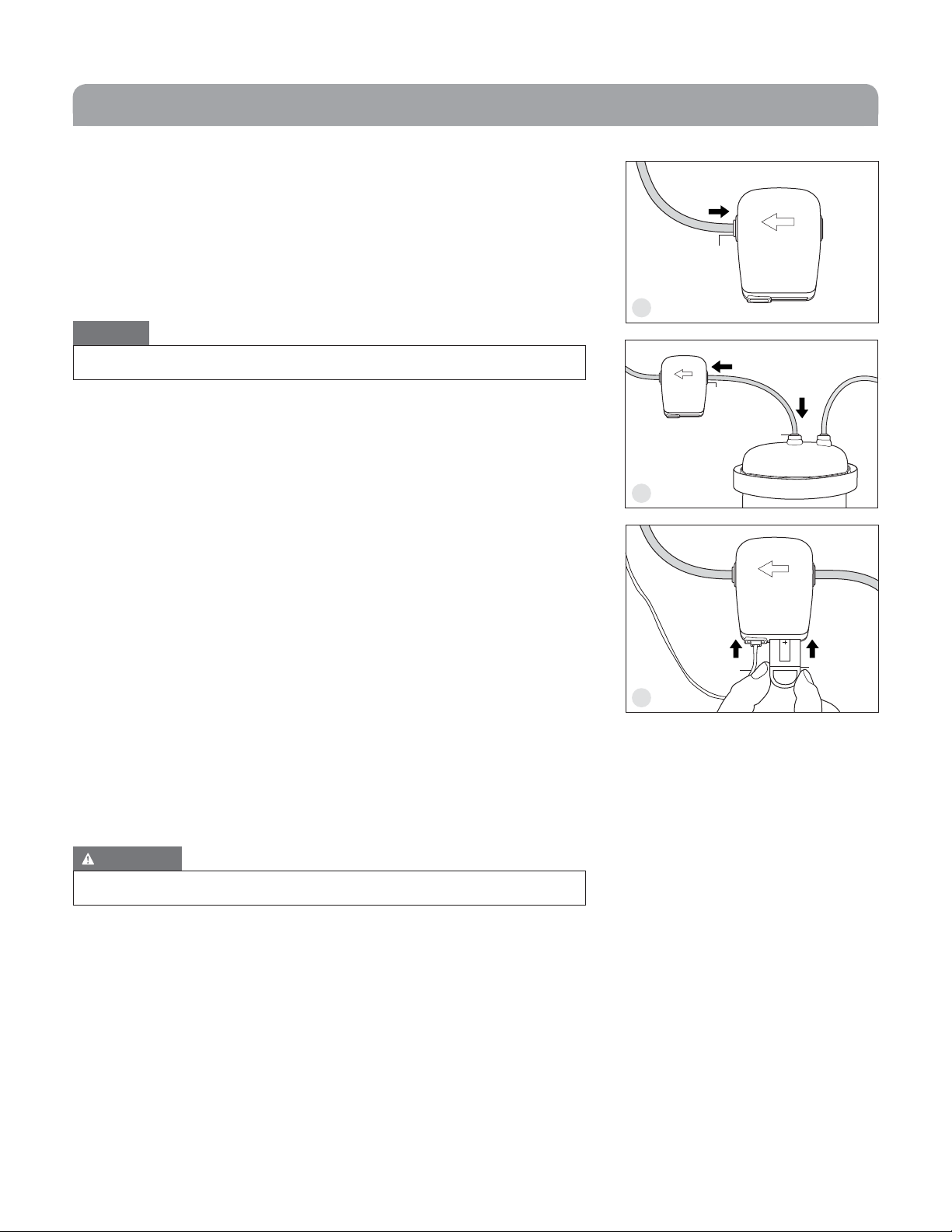

6. Push the Blue Tubing from the System Faucet into the Outlet

Connector located on Intelligent Monitor™. (g. Q)

7. Using the other piece of Blue Tubing provided, push one end of

the Tubing into Outlet Connector located on Lid Assembly, and

remaining end of Tubing into the Inlet Connector located on

Intelligent Monitor™. (g. R)

8. Insert Cable Connector into Cable Port located on Intelligent

Monitor™, then insert Battery Shuttle into Battery Port located

on Intelligent Monitor™. (g. S) The LED Indicators located on

the System Faucet will ash GREEN, YELLOW and RED ve

times. This resets the rated capacity counter to zero gallons.

Do NOT remove Battery Shuttle until it is time to replace the

Filter Cartridge. Removing Battery Shuttle prematurely may

result in a loss of data.

9. Slowly turn your cold water supply “ON” and check for leaks.

10. Turn System Faucet “ON”. Water will begin to ll the Filter Housing.

Once water begins to ow from the System Faucet, the GREEN

LED Indicator will begin ashing to indicate peak operational

performance. Check to see that all hose, clamp and housing

connections are tight and do not leak.

11. Allow System to ush into sink for 15 minutes. This removes

any ne, black carbon particles left over from the manufacturing

process, expels trapped air and conditions the Filter Cartridge for

normal use. (This water may be used to water plants.)

Congratulations! Your new WaterChef® Filtration System is ready!

Outlet

Connector

Blue Outlet

Connector

Inlet

Connector

Cable Battery Shuttle

Intelligent

Monitor™

Blue Tubing

(from System

Faucet)

Blue Tubing

CAUTION

Be sure to leave enoughTubing length so that it does not kink or bend sharply.

IMPORTANT

Repeat ﬂushing procedure each time a new Filter Cartridge is installed.

Tabla de contenidos

Otros manuales de Sistema de filtración de agua de WaterChef

WaterChef

WaterChef Countertop C7000 Manual de usuario

WaterChef

WaterChef EVO100 Manual de usuario

WaterChef

WaterChef Countertop C7000 Manual de usuario

WaterChef

WaterChef Countertop C7000 Manual de usuario

Manuales populares de Sistema de filtración de agua de otras marcas

Wisy

Wisy LineAir 100 Manual de usuario

Schaffner

Schaffner Ecosine FN3446 Series Manual de funcionamiento

Pentair

Pentair FLECK 4600 SXT Guía del usuario

H2O International

H2O International H20-500 Manual de usuario

Renkforce

Renkforce 2306241 Manual de usuario

Neo-Pure

Neo-Pure TL3-A502 Manual de usuario

FLTR

FLTR OBF Manual de usuario

STA-RITE

STA-RITE VERTICAL GRID DE FILTERS S7D75 Manual de usuario

Applied Membranes

Applied Membranes W-G844EM Manual de usuario

BEGA

BEGA 116 Manual de usuario

WATA

WATA Standard Manual de usuario

Price

Price FFU series Manual

Gaggenau

Gaggenau BRITA INTENZA 467873 Manual de usuario

Brita

Brita SAFF-100 Manual de usuario

HEISSNER

HEISSNER FPU24000-00 Manual de usuario

BGS technic

BGS technic 1518 Manual de usuario

Reverse Osmosis

Reverse Osmosis RF Series Manual de usuario

ubbink

ubbink Filtramax Series Manual de usuario
