Wasserstein Wall Plate Manual de usuario
Wall Plate
USER MANUAL
• We recommend that you use a magnetic screwdriver.
• Make sure the arrow on the Wall Plate is facing up.
In the Box
Pre-Installation
Google Nest Doorbell (Wired, 2nd Gen)
Compatibility:
1 x wall plate
2 x mount screws
+ wall anchors
Page 1
1. Turn off the power of your doorbell at the electrical panel.
Note: Always consult a professional electrician before working
with electrical wires.
2. If a doorbell was previously installed on your wall, take it down
and disconnect the wires.
3. Align the doorbell backplate with the wall plate.
Installation
Page 2
Page 3

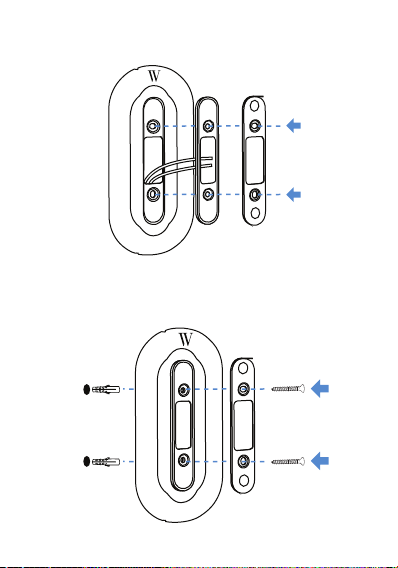

4. Feed the wires through the cutout as shown below. Mount
the wall plate along with the backplate to the wall using the
screws and wall anchors provided (the drill bit size is 1/8 in).
5. Connect the wires to the doorbell. Then, attach the doorbell
to the wall plate as shown.
Page 4
6. Secure the doorbell with the screw that came with your
doorbell. Turn on the power and check the App to make
sure the doorbell have been installed properly.
Installation with the Doorbell Wedge
1. Repeat Step 1 - 2 from the last section.
Page 5
2. Feed the wires through the cutout as shown below.
3. Attach and screw in the doorbell backplate onto the doorbell
wedge together with the wall plate.
Page 6
4. Connect the wires to the doorbell. Then, attach the doorbell
to the wall plate as shown.
5. Secure the doorbell with the screw that came with your
doorbell. Turn on the power and check the App to make
sure the doorbell have been installed properly.
Google Nest Doorbell is not included.
Google Nest is a trademark of Google LLC.
Wasserstein is not affiliated with Google LLC.
Wasserstein is a trademark of Dropcases Ltd.
Scan the QR code below or email us at:
Get More Support
This product has been certified by Wasserstein to meet Google’s compatibility
standards. Google is not responsible for the operation of this product or its
compliance with any applicable safety or other requirements.
Learn more at g.co/madeforgoogle.
Google’s “made for” badge, Google Nest Cam, and related
marks are trademarks of Google LLC.
Placa de Pared
MANUAL DEL USUARIO
• Te recomendamos que utilices un destornillador magnético.
• Asegúrate de que la flecha de la placa de pared esté hacia
arriba.
Contenido de la Caja
Preinstalación
Timbre Google Nest (cableado, 2nd generación)
Compatibilidad:
1 x placa de pared
2 x tornillos d e montaje
+ anclajes de pared
Página 1
