Wasp WLP 4170 CCD Instrucciones de funcionamiento

Wasp WLP 4170 CCD

Programming Guide

Please Read

Note:

The Wasp

WLP 4170 CCD

Scanner is ready to scan the

most popular bar codes out of the box. This manual

should only be used to make changes in the

configuration of the scanner for specific applications.

This scanner does not require software or drivers to

operate.The scanner enters data as keyboard data. Please

review this manual before scanning any of the programming

bar codes in this manual.

TechTip

If you are unsure of the scanner configuration or have

scanned the incorrect codes, please scan the default

bar code on page 6.This will reset the scanner to its

factory settings.

Version 1.0

No part of this publication may be reproduced or transmitted in any form

or by any means without the written permission of Wasp Technologies.

The information contained in this document is subject to change without

notice.

Wasp is a trademark of Wasp Technologies. All other trademarks or registered trademarks are the

property of their respective owners.

Table of Contents

Chapter 1. Introduction..............................................................................1

Chapter 2. Installation................................................................................2

Chapter 3. Quick Start ..............................................................................3

Chapter 4. Bar Code Symbologies............................................................4

Chapter 5. Setup & Configuration........................................................5-34

1. Factory Default ..........................................................6

2. Beep and Delay..........................................................7

3. Intercharacter Delay ..................................................8

4. Keyboard Wedge........................................................9

5. Scanning Modes ......................................................10

6. Preamble/Postamble Configuration..........................11

5. Bar Code Symbology..........................................12-29

Code 39......................................................12-13

Code 128....................................................14-15

UPC-A ........................................................16-17

UPC-E ........................................................18-19

EAN-13 ......................................................20-21

EAN-8 ........................................................22-23

Code 93 ..........................................................24

Interleaved 2 of 5 ............................................25

Codabar......................................................26-27

MSI/Plessey ....................................................28

PDF417............................................................29

Appendix A. Bar Code Test Symbols....................................................30-33

Specifications ........................................................................34

Product Support, Warranty....................................................35

ASCII Code Table..................................................................36

Chapter 1

Introduction

Bar coding is the most common Automated Data Collection (ADC) technology

providing timely, error-free information that can be used to increase productivity,

accuracy, and efficiency in the workplace. Virtually every type of industry is

using bar codes to replace keyboard data entry. Studies have shown that a

proficient data entry operator will make one error for every 300 characters that

are manually entered. The error rate using bar codes is almost negligible and

can be error-free using bar code symbologies with the check digit enabled.

The Wasp Charged Coupled Device (CCD) technology is a technique whereby a

bar code is photographed, digitized, and electronically sampled by built-in

photodetectors. The detectors process the measurement of every bar and

space using the number of adjacent photodetectors which contrast a black mark

and a white space.Wasp WLP 4170 CCD is extremely rugged since it has no

moving parts. Wasp WLP 4170 CCD reader supports PC AT/XT and PS/2

keyboard interfaces and easily wedges between the computer and keyboard.

Bar code data is passed directly into the keyboard buffer as if it had been typed

in by hand by a data entry operator.

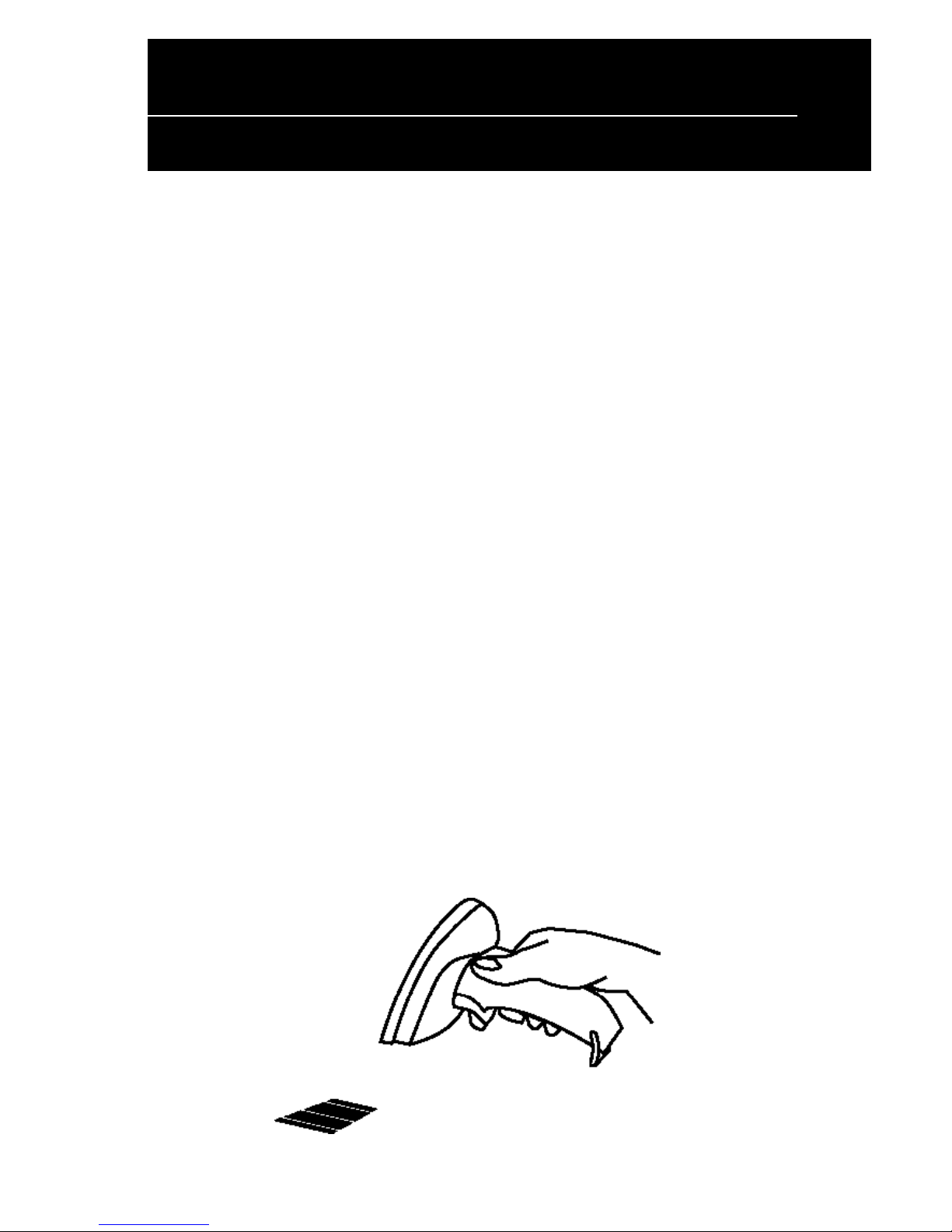

Of all the hand held bar code scanning devices on the market, the CCD reader

is the easiest to use and most cost effective for the typical business user. To

activate the scanner, the user simply points the scanning aperture towards the

bar code, pulls the trigger, and aims the red LED beam across the bar code.

1. Turn off your computer.

2. Unplug your PC keyboard cable and plug the male end (Din 5) of the Wasp

WLP 4170 CCD Scanner directly into your PC keyboard port. Plug your

keyboard cable into the other end (female Din 5) of the the Wasp WLP

4170 CCD Scanner. If your keyboard and PC support a Din 6 connection,

use the enclosed Din 5 to Din 6 converter cable to connect to the keyboard

power tap cable.

3. Turn your computer on.

Chapter 2

Installation

Keyboard

Y-Cable

Din-5F

Din-6M

Scanning Aperture

Your Wasp WLP 4170 CCD Scanner is ready to go.The default settings of the

Wasp WLP 4170 CCD Scanner have been pre-programmed for the most

common bar code configurations. Use the "Setup & Configuration" sections only

to customize the Wasp settings.

Tip: Use the pre-printed "Bar Code Test Symbols" in Appendix A on page 30

as a test chart to begin practicing scanning.

Chapter 3

Quick Start

Bar codes are symbols consisting of a series of bars and spaces which can be

applied to packages, cartons, bottles, and other commercial products. The bars

and spaces in each symbol are grouped in such a way to represent a specific

ASCII character or function. The interpretation of these groups is based on a

particular set of rules called symbologies. Various symbologies have been

developed for particular applications. Some examples are shipping and

receiving, manufacturing, retail, healthcare, transportation, document processing

and tracking, and libraries.

The resolution of a bar code is dependent on the narrowest element of a bar

code (X dimension), and can vary from high density (nominally less than 0.009

in./0.23 mm), medium density (between 0.009 in./0.23 mm and 0.020 in./0.50

mm), and low density (greater than 0.020 in./0.50 mm). Medium and low

densities are the most common since these are the easiest to read (scan) with

nearly all scanning devices.Wasp WLP 4170 CCD Scanner can read bar codes

with X-dimensions as low as 4 mils (0.10mm).

Wasp WLP 4170 CCD Scanner can read the most popular linear bar code

symbologies including Code 39, Code 93, Code 128, Interleaved 2 of 5, UPC-A,

UPC-E, EAN/JAN-8, EAN/JAN-13, Codabar, and MSI Plessey, and also the 2D

bar code symbology PDF417.

Please see test chart on pages 30-33.

Chapter 4

Bar Code Symbologies

In order to configure Wasp WLP 4170 CCD Scanner, you must familiarize

yourself with the setup procedures on the following pages.The default settings

of Wasp WLP 4170 CCD Scanner are identified on each page and clearly

marked using an asterisk (*). The default settings have been preprogrammed

for the most common bar code configurations. Use the Setup &

Configuration only to customize the Wasp settings. If you need to configure

Wasp WLP 4170 CCD Scanner, the default settings will be overwritten.All the

programmed settings are stored permanently in non-volatile memory.Therefore,

your configuration will be maintained even if keyboard power to Wasp WLP 4170

CCD Scanner is removed by turning off your PC.

In order to configure Wasp WLP 4170 CCD Scanner, seven basic steps need to

be followed for each programmed setting:

(1) Determine what, if any, options on EACH PAGE that you wish to change.

(2) Scan the "Begin" bar code.WLP 4170 CCD Scanner will sound an

ascending tone to indicate that setup is in progress.

(3) Scan the bar code representing the option to be changed.

(4) Scan the bar codes representing the option values (e.g. 01, 02, 3A etc.).

These option values can be found on the inside back cover flap of this

manual. You must scan two digits for each option setting.

(5) Repeat the above two steps, if necessary, to change the options in the same

group.

(6) Scan the “Set” bar code on the back cover flap to confirm your selections.

(7) Scan the "Exit" bar code to exit the group currently selected. Wasp WLP

4170 CCD Scanner will sound a descending tone.

NOTE: Pages 6 and 7 are designed as walk through example

pages. Use these pages as examples on how to change

an option for the rest of the manual.

Chapter 5

Setup &Configuration

NOTE: Scanning these bar codes returns the scanner to

the factory default settings

1. Scan “Begin ”

2. Scan “Default” to restore

scanner to default settings

Tip: Use this configuration to restore the factory default settings if you are

unsure how your scanner has been configured. The 'Factory Default'

configuration is very useful when you need to reprogram your Wasp

WLP 4170 CCD Scanner after the defaults have been changed. By setting

the default configuration, the user knows precisely the configuration for each

programmed setting.

Setup & Configuration

—Factory Default

Begin

Default

Setup & Configuration

—Beep and Delay

Beep Volume Settings

00 None

01 Lowest

02 Low

03 Medium (Default)

04 Medium-High

05 High

06 High-Medium

07 Highest

The 'Beep Volume' configuration changes the volume of the audible indicator of

the WLP 4170 CCD Scanner.

NOTE: For help in configuring these settings, consult the programming

steps on page 5.

1. Scan “Begin ”

2. Scan “Set Beep Volume”

4. Scan the “Set” barcode on

the back cover flap

5. Scan the “Exit” barcode

3. Pick a setting from the table

at right, then turn to the

back cover flap and scan

the corresponding two

digits. For example: if you

desire no beep, scan 0 and

0 on the back cover flap

Begin

Set Beep Volume

Exit
