The preparation：

First of all, please set up the antenna and connect to the transmitter RF OUT port

with RF cable。If you need to testing equipment indicators, please pick up the attenuator

is greater than kw，attenuation more than 50db。Connect the power cable then Access

to the XLR audio cable. There are “L” and “R” Channels。Turn on the “Power” button.

Equipment start after 5 seconds.

Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401

Transmitter operating interface:

1.Boot logo and system load

2.The main screen and enter the Settings

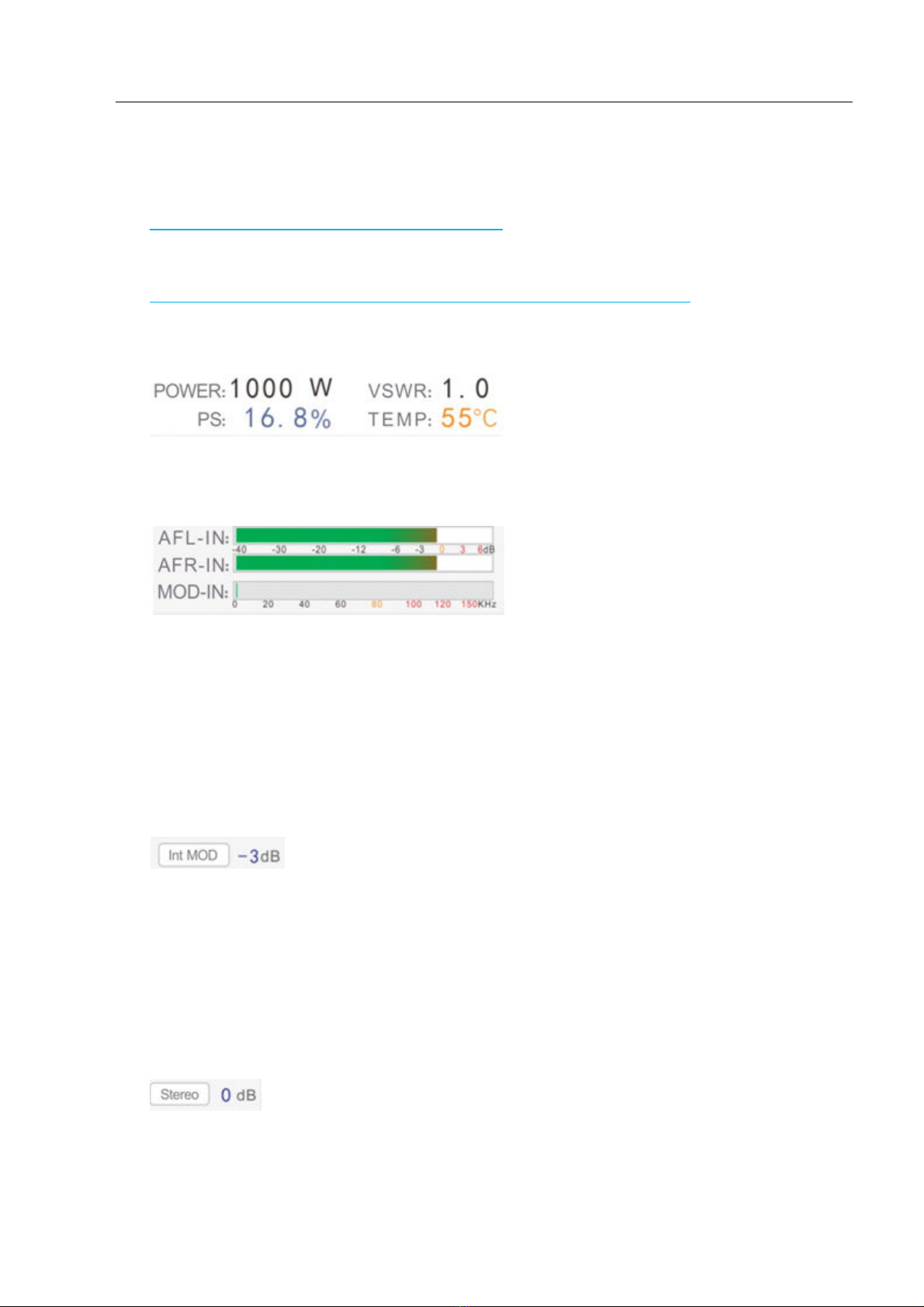

Current Frequency /Current

Power / Current SWR /Driving power tuning ratio Core temperature

Around a track the level of UV indicator 0,

0 db is full load.Please input signal does not exceed 0 db so as not to affect the audio

quality. But close to Odb or small audio sound.

External mo ulation：

External AUX input signal level indicator，Please do not enter the

margin level of more than 75 KHZ.

Mo ulation mo e: according to the external or internal and external modulation, the

external modulation input is enabled, the right of the level value - 3 db.Such as

display internal modulation, external input is disabled, the right of the level value - 3

db is invalid.

Soun mo e: stereo, mono, mute3 Kinds, 0 db on the right for voice level then mute

and external modulation invalid.

Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401

Pre-emphasis: 50us /75u s, 0 means” close preemphasis.”

Press set button to enter the settings menu, six password into by default is 000008

Enter the passwor to enter the Settings menu

Select frequency into frequency setting, manual or sweep

Manually set into the manual tuning frequency.

Frequency sweep into the antenna standing wave ratio matching scanning.

Automatic frequency sweep the antenna standing wave ratio from 88- 08 MHZ for step

MHZ each with 20% of the entire section standing wave ratio of power to scanning

antenna.V.S.W.R is less than . 4 and less than . best, according to frequency after the

scan is complete.

Rate set button to enter the manual tuning frequency.

Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401

Modulation mode menu: AF mode: audio mode is set.

ternal modulation: AUX input closed mixed. Pre-emphasis:

audio pre-emphasis of choice

Modulation: AUX modulation level tuning. Volume: stereo/ mono volume level tuning.

3.System Settings menu:

Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401

System at present time, the first time use please correct local time.

Device types and versions, continuous operation time and total run time.Default warranty time for 1

year or 2500 hours, the first to shall prevail.Equipment abnormal history record, store most recent

records.Record the type of exception and state. According to page UP and page Down could remove

all the records.

Press the button to enter time calibration set.

According to the password into password menu button.

Optional password closed and open,” open “by default.

Change: change user password.

Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401

Password change Confirm change password input again.

Transmitter operation exception information

SWR high pls check your antenna.

Antenna at least five meters from the ground, around 0 meters without sunscreen.

Bending over 90 degrees will damage the feed tube

4.Transmitter troubleshooting tips

If transmitter appear this page, please remember the error code, namely the number

of internal error.The Numbers tell us.

Contact me: lanyue@cantonmade.com whatsapp:+86 360242040
