PAGE 1 85553 Rev. A0

INSTALLATION INSTRUCTIONS

WARN Portable Anchor Plate

Part Number: 70770

Your safety, and the safety of others, is very important. To help you make informed decisions about safety, we have provided

installation and operating instructions and other information on labels and in this guide. This information alerts you to potential hazards

that could hurt you or others. It is not possible to warn you about all potential hazards associated with this product; you must use your

own good judgment.

CARELESS WINCH & ACCESSORY INSTALLATION AND OPERATION CAN RESULT IN SERIOUS INJURY OR

EQUIPMENT DAMAGE. READ AND UNDERSTAND ALL SAFETY PRECAUTIONS AND OPERATING

INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS PRODUCT.

This guide identifies potential hazards and has important safety messages that help you and others avoid personal injury

or death. WARNING and CAUTION are signal words that identify the level of hazard. These signal words mean:

WARNING signals a hazard that

could

cause serious injury or death, if you do not follow

recommendations.

CAUTION signals a hazard that

may

cause minor to moderate injury, if you do not follow

recommendations.

This guide uses

NOTICE

to call attention to important mechanical information, and Note: to emphasize general information worthy of

special attention

PAGE 2 85553 Rev. A0

Product Description: WARN Portable Anchor Plate

The WARN Portable Anchor Plate provides a stable anchoring platform for WARN utility winches. The plate

can allow a utility winch to be portable and anchored to a variety of objects.

Introduction

Thank you for choosing WARN for your utility winch needs. All WARN products have been designed and

manufactured for many years of problem-free operation. For future reference please record the following

information:

Model/Part Number: Date of Purchase:

Before you begin

Read the instructions completely to familiarize yourself with the installation process.

Review all the notices, cautions and warnings to make sure the kit will be installed correctly and safely.

Parts List

The WARN Portable anchor plate comes from the factory with the items pictured below. Depending upon your

application, it may be necessary for you to source grade 5 or better fasteners front a hardware store.

The kit comes with one mounting plate (#1) and two anchor chains with hooks (#2).

PAGE 3 85553 Rev. A0

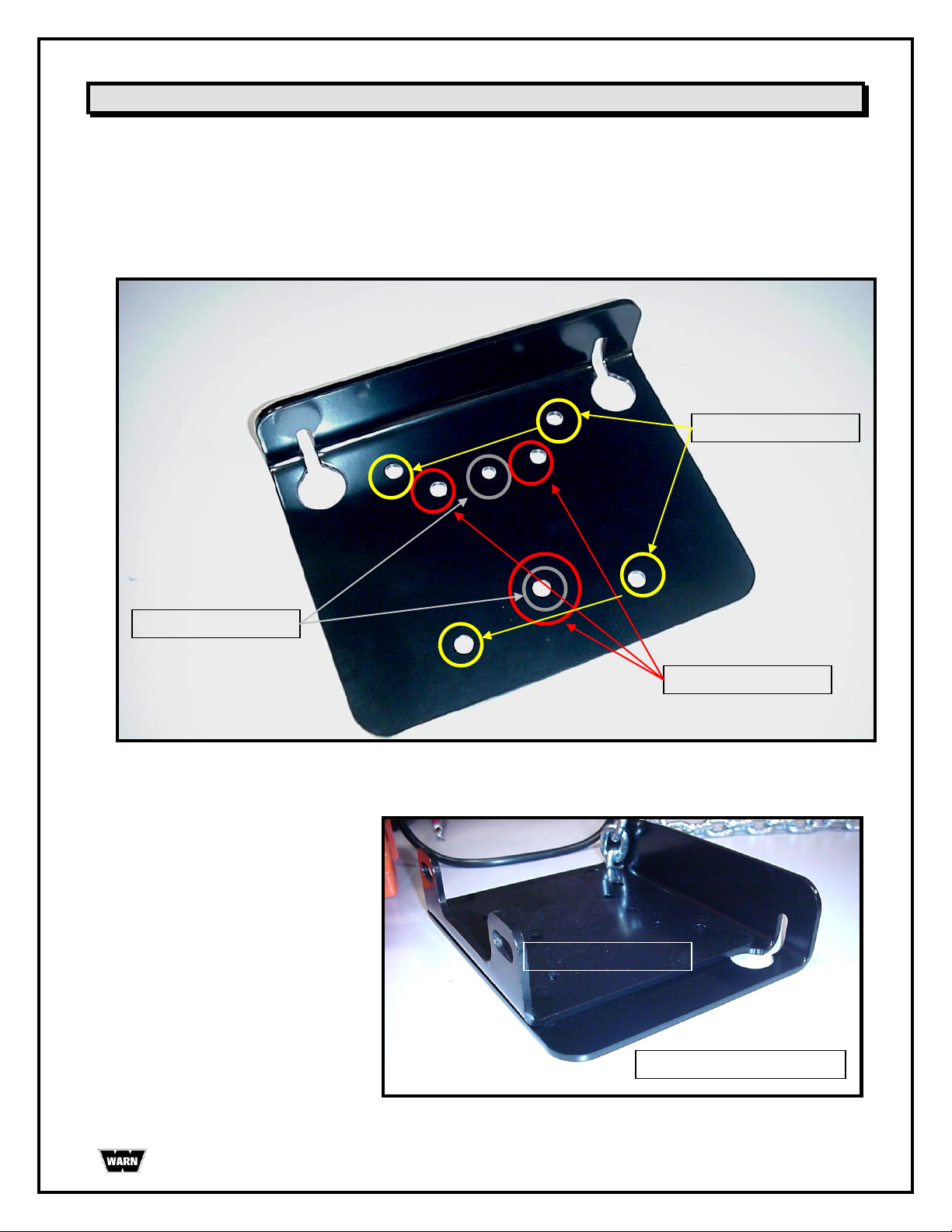

Installing the Winch to the Portable Anchor Plate

Installation of Winch

Identify the whole pattern for your winch. Install the winch per your application using the hardware included

in the winch. Refer to the winch user manual for specific winch installation information.

For the 4700 and early utlity winches

that did not have the integrated

fairlead, it will be necessary to use

the fairlead plate provided with the

winch.

Simply sandwich the fairlead plate

between the winch and the Portable

Anchor Plate.

1700 & 1500AC

3700 & 3200AC

4700

Fairlead Plate

Portable Anchor Plate

PAGE 4 85553 Rev. A0

Using the Portable Anchor Plate Anchors

Anchor Chain Attachment to Plate

Attach each of the two chains as follows:

Thread at least six chain links through one of the two large holes in the winch mounting plate. (Fig. A)

Engage a chain link into the mounting plate key slot. (Fig. A)

To hold the engaged chain link in place, drape the threaded chain links over the edge of the mounting

plate. During operation, tension will hold the engaged chain link in place. (Fig. B)

Key slot engagement

6 chain links

Mounting plate

High test chain

Fig. A

Fig. B

PAGE 5 85553 Rev. A0

Using the UMP with the Chain Anchors - Continued

Warning

Moving Parts Entanglement Hazard

Failure to observe these instructions could lead to severe injury or death.

ALWAYS keep hands clear of the wire rope, hook loop, hook and fairlead opening

during installation, operation and when spooling in or out.

ALWAYS use supplied hook strap whenever spooling the wire rope in or out, during

installation, or operation to avoid injury to hands or fingers.

General Rigging Guidelines

Always choose an anchor point suitably

strong for the job.

Always spool out as much cable as

possible when preparing to pull a load.

Pick an anchor point as far away as

practical from the object you wish to pull.

This provides the winch with its greatest

pulling power.

Rigging a double line with a snatch block

will reduce the load on the winch to half

without significant loss of spooling speed.

Natural anchors such as trees, stumps

and rocks are the handiest when

available.

Attach the choker chain, wire choker rope

or tree trunk protector on the anchor as

low as possible to avoid pulling the

anchor down.

If several possible anchors are available

but they are not strong enough

individually, it may be practical to attach a

wire or chain choker around several

anchors to form a strong collective anchor

point.

PAGE 6 85553 Rev. A0

Customer Support

WARRANTY

See separate sheet packed with winch

-Or-

If warranty sheet is lost or misplaced contact:

Warn Industries, Inc.

Customer Service Dept.

12900 SE Capps Rd

Clackamas, OR 97015-8903.

United States:

Phone: 503.722.1200 or (800) 543-9276 (US only)

Fax: 503.722-3000

International:

Phone: 503.722.3008

Fax: 503.722.3005
