Assembly Instructions

Please visit our website for the most current instructions, assembly tips, to report damage

or request parts. www.walkeredison.com

Revised 06/2022

P.1

LEEBD

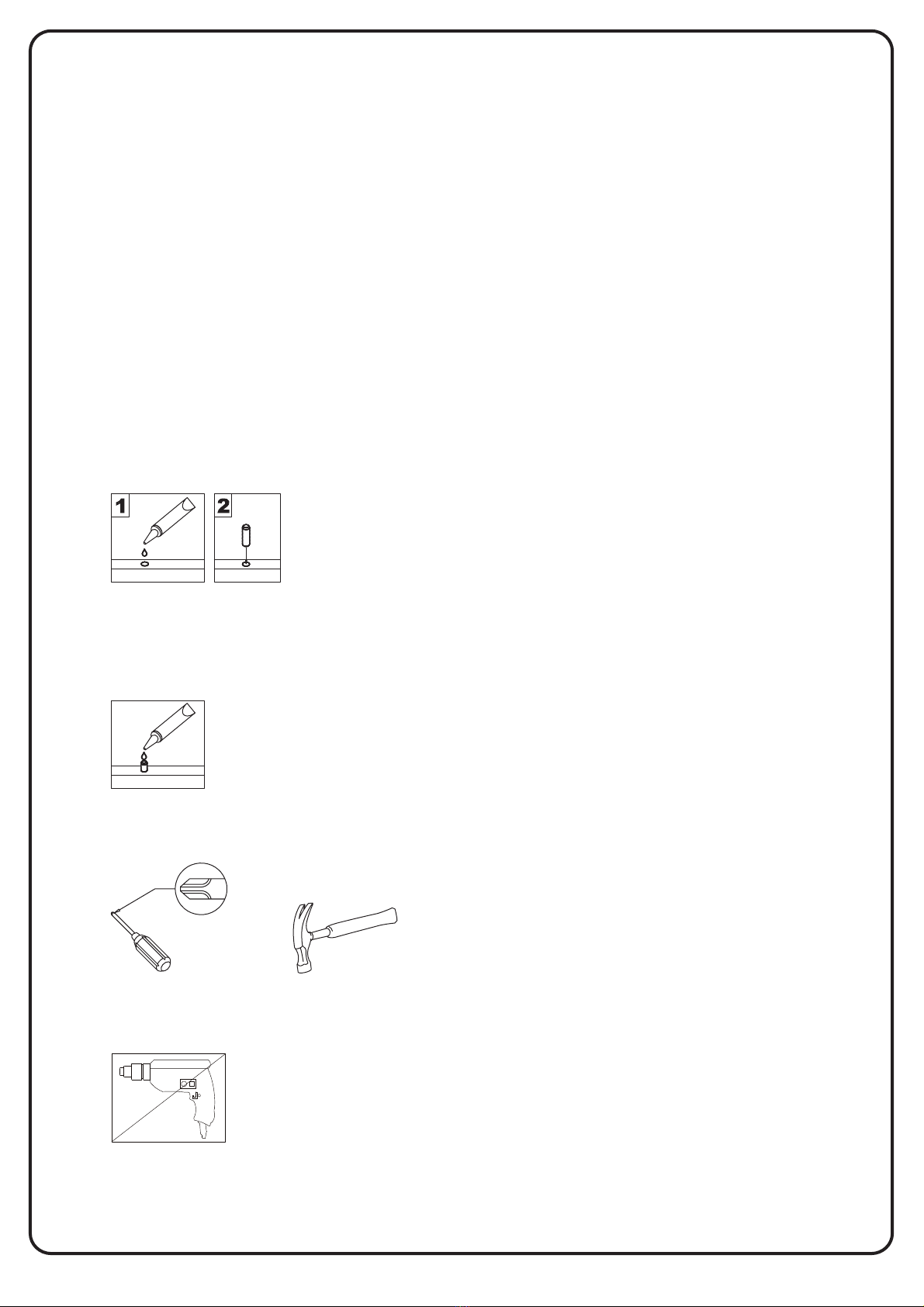

I. Ensure that all parts and hardware are available before beginning assembly.

II. Follow each step carefully to ensure the proper assembly of this product.

III. Two people are recommended for ease in the assembly of this product.

IV. The three main types of hardware used to assemble this product are wood

dowels, screws and bolts.

V. The provided glue is to secure wood dowels in place. When first inserting dowels, locate

the appropriate hole for the dowel, place a small amount of glue in the hole and insert

the dowel. Wipe away excess glue immediately.

In future assembly steps when dowels are necessary to attach assembly parts together,

place a small amount of glue on the end of the dowel before attaching parts together.

Wipe away excess glue immediately.

VI. A Phillips head screwdriver and hammer is required for the assembly of this product.

VII. Power tools should not be used to assemble this product.

General Assembly Guidelines

P.2

P.3

Top panel

1 0 pcs1

Left side panel

2 01 pcs

Right side panel

3 01 pcs

40 pcs1

5Middle panel 01 pcs

706 pcs

14 0 pcs1

9 0 pcs2

Drawer left side

10 0 pcs2

Description QtyPart# Description QtyPart#

Drawer right side

11 0 pcs6

12 06 pcs

Drawer bottom

8 01 pcs

16 0 pcs4

15 0 pcs6

Back anelp low

606 pcs

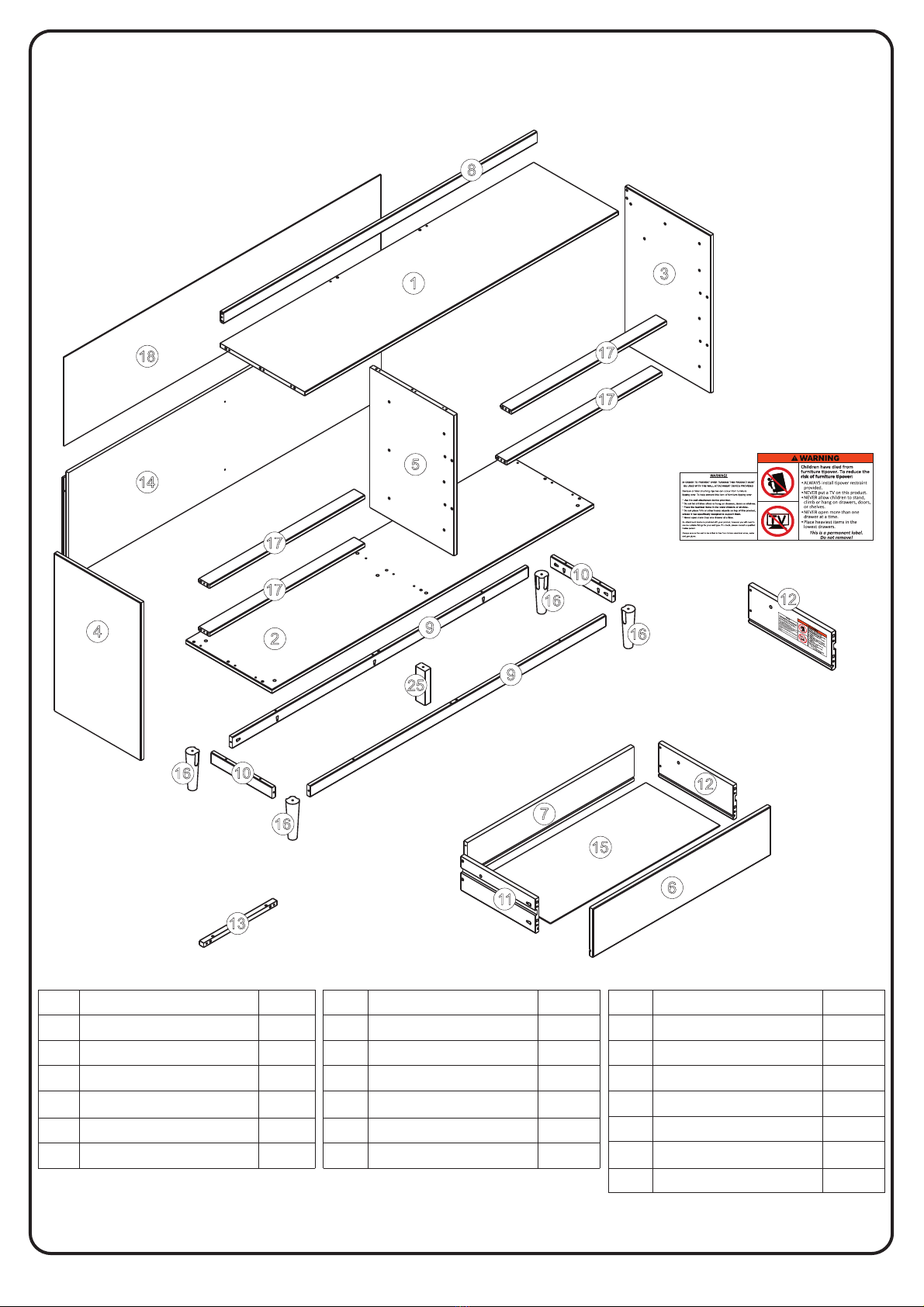

Parts List

Base panel

Drawer front

Drawer back

Top crossbeam

Bottom front crossbeam

Bottom side crossbeam Leg

25 0 pc1 s

Central Leg

12x

17 0 pcs4

Front crossbeam

18 0 pcs1

Back anelp up

13 12 pcs

Drawer runner

Description QtyPart#

The side drawer with WARNING LABEL,

nshould be mou ted in highest drawer.

Philips head screwdriver required for assembly

(not included)

Hammer recommended for assembly

(not included)

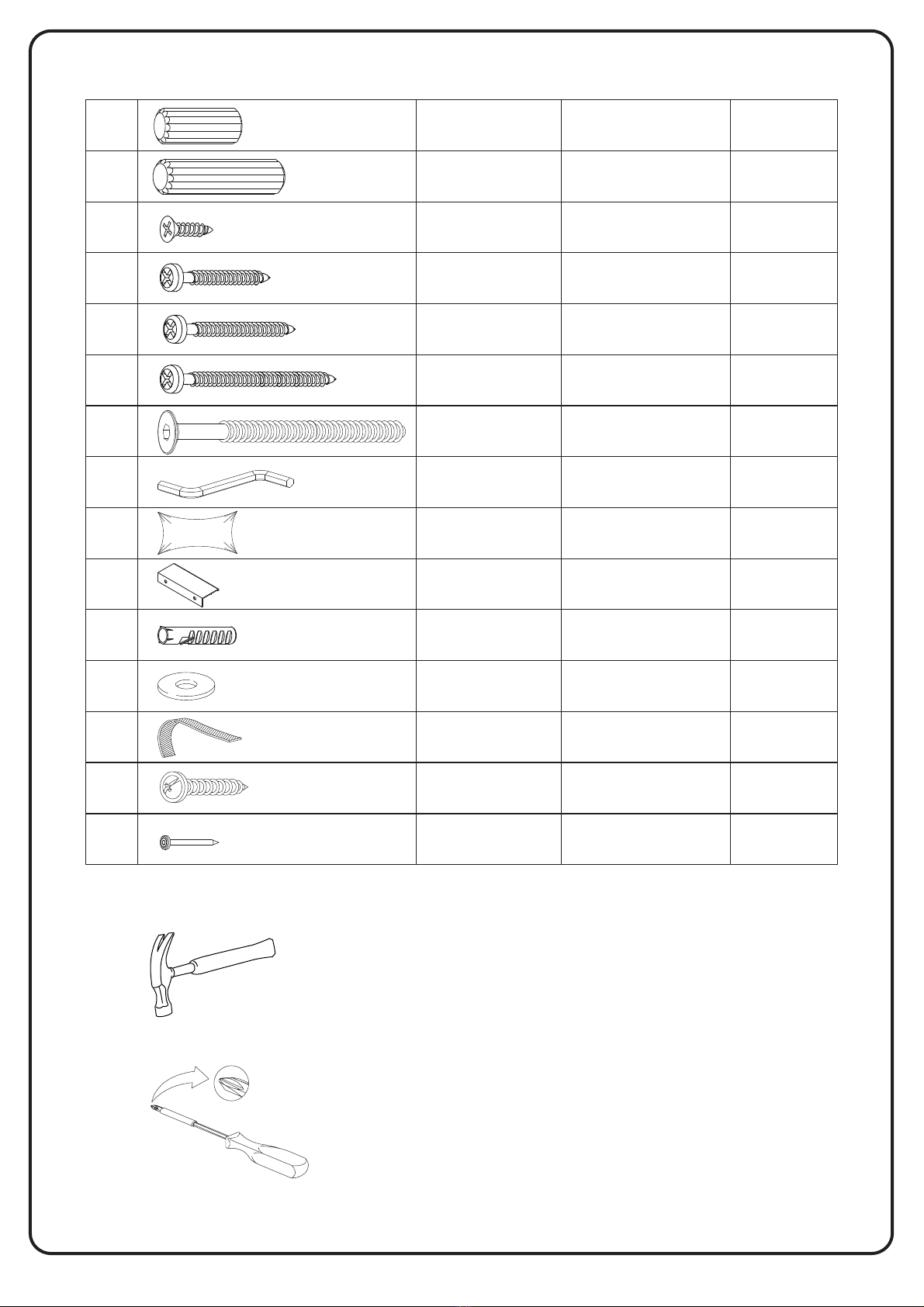

Hardware List

Ø8*20mm Wood dowel 24 pcs

Ø8*30mm Wood dowel 90 pcs

Ø3,0*12mm Screw 24 pcs

Ø4,0*25mm Screw 24 pcs

Ø6mm 01 pc

Ø7,0*70mm Screw 05 pcs

-Hex Key 01 pc

- Handle 12 pcs

Washer 02 pcs

Ø4,0*30mm Screw 83 pcs

Ø4,0*40mm Screw 17 pcs

I- Glue 01 pc

Wall anchor 01 pc

P.4

The hardware quantities listed above are required for proper assembly.

Some extra hardware may also have been included.

O24 pc

Nail

Ø8,0*8mm

NØ3,5*20mm Screw 04 pcs

Insert wood dowel (B) and glue (I) 1 3into part ( ), ( ),

4 (5), (9), 1 2 , 7 .( ), (8), (1 ), (1 ) (1 )

Insert ood dowel ( ) into part ( ).w A and glue ( ) 13I

Step 1

P.5

B66

Ø8*30mm

A24

Ø8*20mm

I01

12x

4x 17

6x 11

6x 12

Please assemble on

a clean soft surface

to avoid damage.

Step 2

Secure parts (13) to

part (3) and (4) with screw (D)

and screwdriver (not included).

P.6

Step 3

Secure part (8) to part (1) with screw (E) and screwdriver (not included).

D12

Ø4,0*25mm

Ø4,0*30mm 02

TOP

Please assemble on

a clean soft surface

to avoid damage.

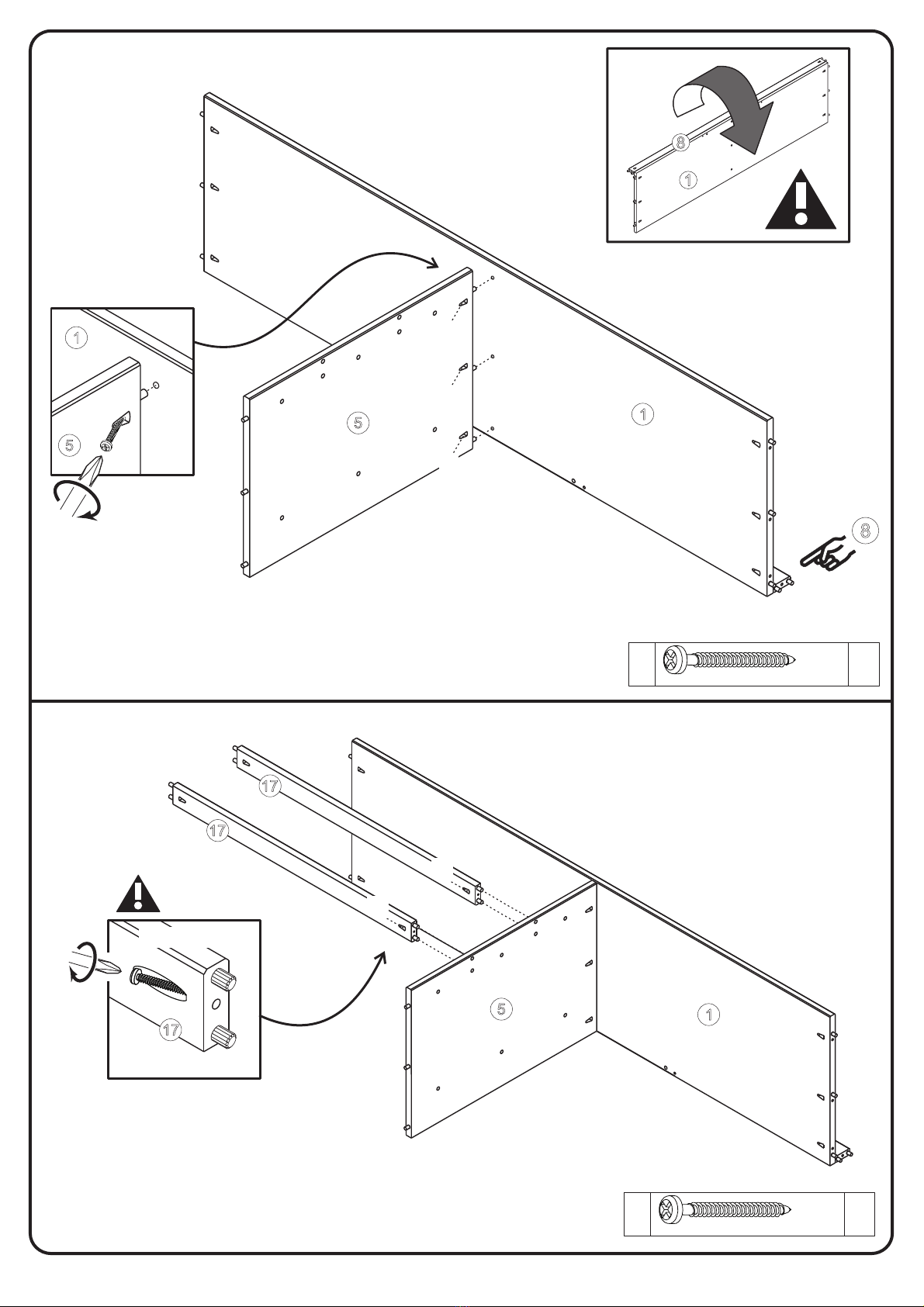

Step 5

Step 4

Secure parts (17) to part (5)

with screw (E) and screwdriver (not included).

P.7

Secure part (5) to part (1) with screw (E)

and screwdriver (not included).

E03

Ø4,0*30mm

E02

Ø4,0*30mm

unpainted!

beveled side!

Step 7

Step 6

Secure parts (17) to part (5)

with screw (E) and screwdriver (not included).

P.8

Secure parts (1) (17) to part (4) with screw (E)and

and screwdriver (not included).

E05

Ø4,0*30mm

E02

Ø4,0*30mm

beveled side!

unpainted!

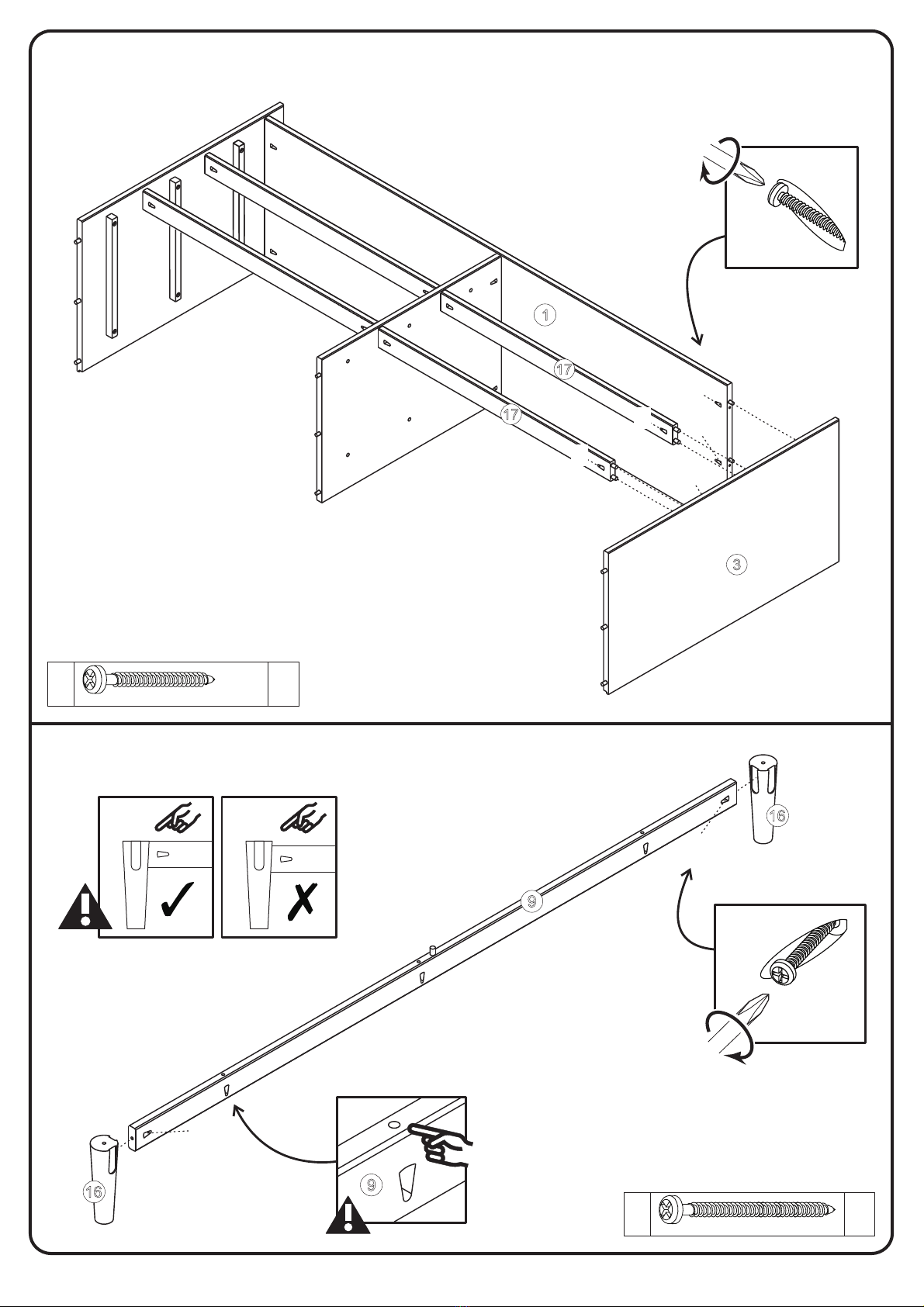

Step 9

Step 8

P.9

Secure parts (1) and ( ) to part (3)17

with screw (E) and screwdriver (not included).

Secure part ( ) to part ( ),9 s 16

Fwith screw ( ) and

screwdriver (not included).

E05

Ø4,0*30mm

F04

Ø4,0*40mm

17 E

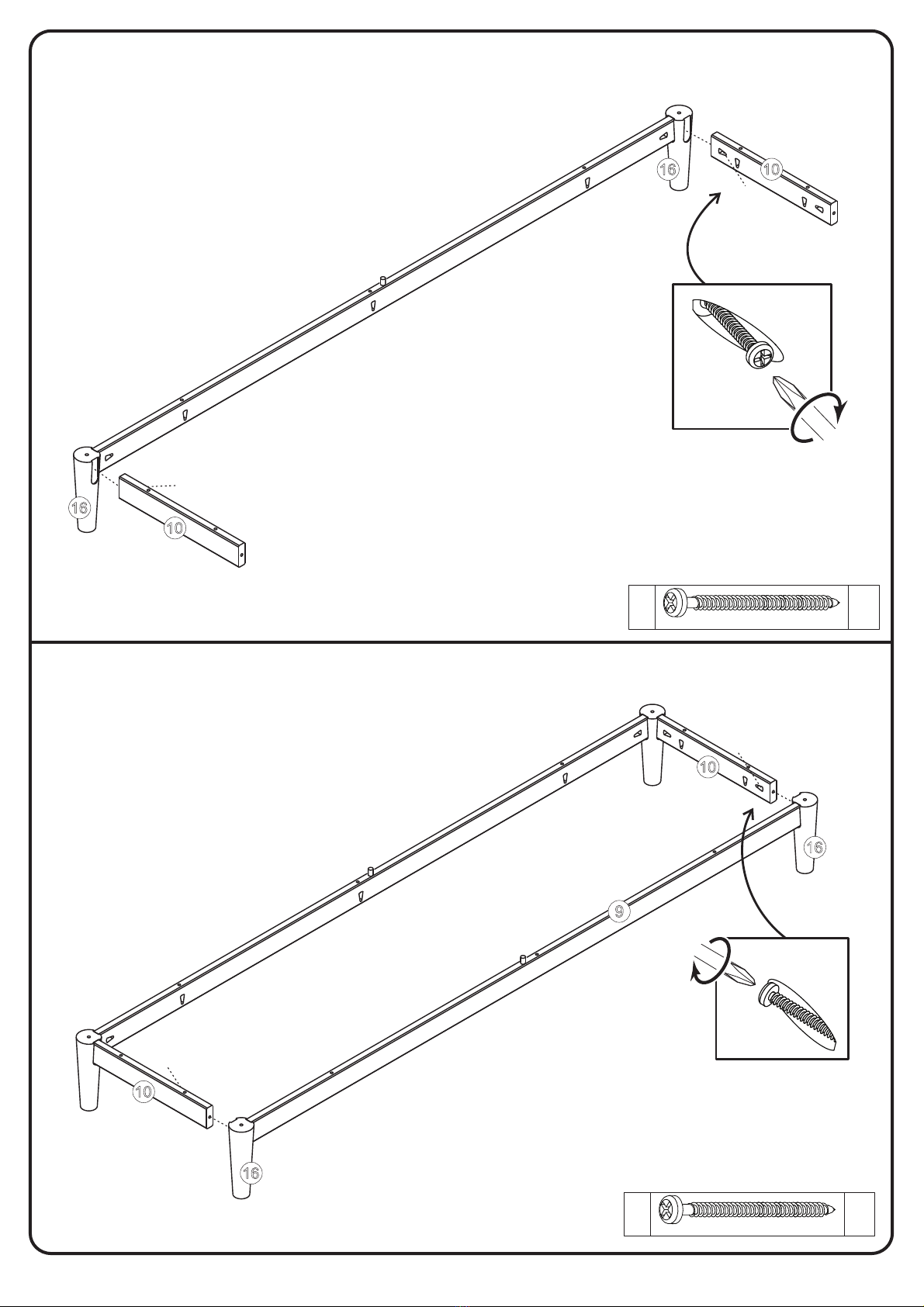

Step 10

Step 11

Secure part ( ) to part ( ),s 10 s 16

Fwith screw ( ) and

screwdriver (not included).

Secure the part (1 ) to part (16),0

Fwith screw ( ) and

screwdriver (not included).

P.10

F02

Ø4,0*40mm

F02

Ø4,0*40mm
