Wali GSDM002-P Manual de usuario
75x75/100x100 32"
MAX
(2-12kg)x2
(4.4-26.4lbs)x2
RATED
GSDM002-P
INSTALLATION MANUAL
Dual Monitor Desk Mount
2
Arm
A (x1)
VESA Plate
B (x2)
Pole
C (x1)
Base
D (x1)
C-clamp Brace
E (x1)
C-Clamp
F (x1)
Cover
G (x1)
Bolt
H (x1)
Grommet Base Plate
I (x1)
Support Plate
J (x1)
Nut
K (x1)
Spring Washer
L(x1)
M6X16 Bolt
M (x3)
M6X12 Bolt
N (x3)
M6X10 Bolt
O (x2)
M4X12 Bolt
M-A (x8)
M5X12 Bolt
M-B (x8)
D5 Washer
M-C (x8)
Anti-skid Pad
P (x4)
Wire Clip
Q (x1)
4mm Allen Key
R (x1)
6mm Allen Key
S (x1)
Wrench
T(x1)
Supplied Parts List
3
2.Connect Base D and C-clamp Brace E using M6X12 Bolt N and tighten with 4mm Allen Key R . Tear off the protective
paper to attach Anti-Skid Pad P to the bottom designated position of Base D as image shown.
Connect Pole and Base from the bottom using Bolt M6X16 Bolt Mand tighten with 4mm Allen Key R.
C
N
R
E
D
D
R
P
1.C DM
R
4
Step 2
Step 1
Option A
Clamp Installation
D
DENR
P D
M
Fit clamp: 0.4”-3.3”
Grommet: 0.4”-3.3“
F
3.Select the preferred height firstly and connect C-Clamp Fto C-Clamp Brace Eusing M6x10 Bolt Oand tighten with
4mm Allen Key R .
RO
0.4”-2.2”
RO
2”-3.3”
or
4.Rotate the hand knob clockwise to fasten for stability.
Attach the Cover G to the C-clamp.
O
G
G
E
5
Hand Knob
E
R
F
F
E
E
F
D
1.Guide Grommet Base Plate I through Bolt H and
connect them to Base D from the bottom using
M6x12 Bolt N and tighten with 4mm Allen Key r .
2. Tear off the protective paper to attach Anti-Skid Pad P to
the bottom designated position of Base Das image shown.
P
D
H
R
N
D
I
Option B
Grommet Base Installation
I
H
N
R
3a. Existing Grommet Hole Installation
If the existing grommet hole comes with a plastic
protector, remove it to ensure a flat surface before
installing the desk mount.
Mark the position of the hole on your mounting surface.
Drill a 3/8"(10mm) diameter hole at the marked position
through the mounting surface.
3b. Self-drilled Grommet Hole Installation
0.4’’-3.3’’
0.4’’-3.3’’
ø 10mm
(ø ")3/8
P
6
D
D
D

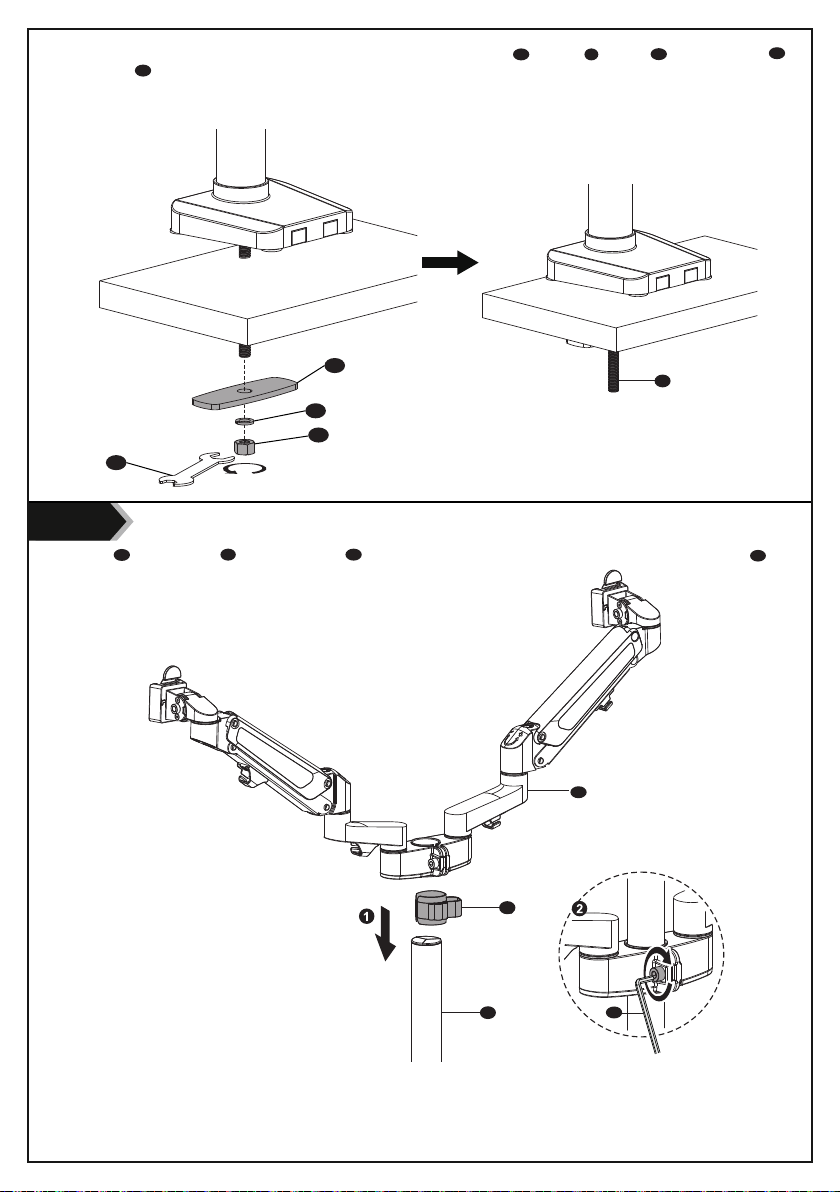

and Wire ClipQ through the Pole C, adjust the preferred height and tighten using 6mm Allen Key S
.
4.Insert the assembled Pole through the desk hole, guide the Support Plate J , Washer L and Nut K through the Bolt H ,
rotate the Nut K clockwise to fasten for stability.
C
Put the
Arm A
Step 3
T
K
L
J
Q
A
A
Q
S
C
K
H
L
K
7
S
J
H
Select M4x12 Bolt or M5x12 Bolt
according
to your TV/Monitor,connect VESA Plate together
with D5 Washer
into the mounting holes on the
back of TV/Monitor, tighten with screwdriver.
(Screwdriver needed but not included)
Pull the buckle and put the assembled TV/Monitor onto the Arm A and ensure stability.
8
Step 4
Step 5
A
Step 4.1
Step 4.2
Only one screw size fits your Monitor
M4 M5
Hand thread screws into the
threaded inserts on the back
of your Monitor to determine
which screw diameter (M4 or M5)
to use.
Step 4.2
Select Monitor Screws
A
M-A M-B
B
M-C
BM-A
M-B
M-C
M-C
To properly balance the arm with monitors mounted, adjust the spring tension with 6mm Allen Key .
9
Step 6
S
S
First, position and firmly hold the arm horizontally
as shown. Ask for assistance should you require it.
CAUTION: To avoid damage to monitors or
mount, always keep the arm in a horizontal
position while making adjustments. Again,
ask for assistance if required.
If the arm rises, turn the adjustment screw clockwise
until it stays in a horizontal position.
CAUTION:
If the arm drops, turn the adjustment screw
counter-clockwise until it stays in a horizontal position.
DO NOT over tighten the screws.
10
Step 7
Guide the cable through the cable slot.
