Wahsega Labs Carina Instrucciones de montaje
www.wahsega.com Page 4
Wiring
Power
Option A: To use Power-over-Ethernet (POE 802.3af), route a Cat 5e or
Cat 6 Ethernet cable from a PoE switch or injector to the LAN port.
Option B: Alternately, use the included 2-pin male connector to
connect +9-16VDC and Ground wires for power. Use standard
(unpowered) Ethernet for data.
NOTE: Use either POE or 9-16V for power. DO NOT USE BOTH.
Status
The status LED will increase in brightness as the zone controller is
powering up and will remain steadily lit when the unit is successfully
powered.
Status
LED
Ethernet or POE
If using Power Option A = POE 802.3af
If using Power Option B = Ethernet
Do Not
Use
Power
Option B
Reset
www.wahsega.com Page 5
Audio Inputs / Outputs
LINE 1 and LINE 2 –Connect unbalanced, mono audio in or out via RCA
connectors. For best results, use mono connectors. Configure each
audio channel as either Line In (Input) or Line Out (Output) in
configuration webpages as described in User’s Guide.
STAT –LED will illuminate when audio is being passed. The steadier the
STAT LED, the stronger the audio signal present.
www.wahsega.com Page 8

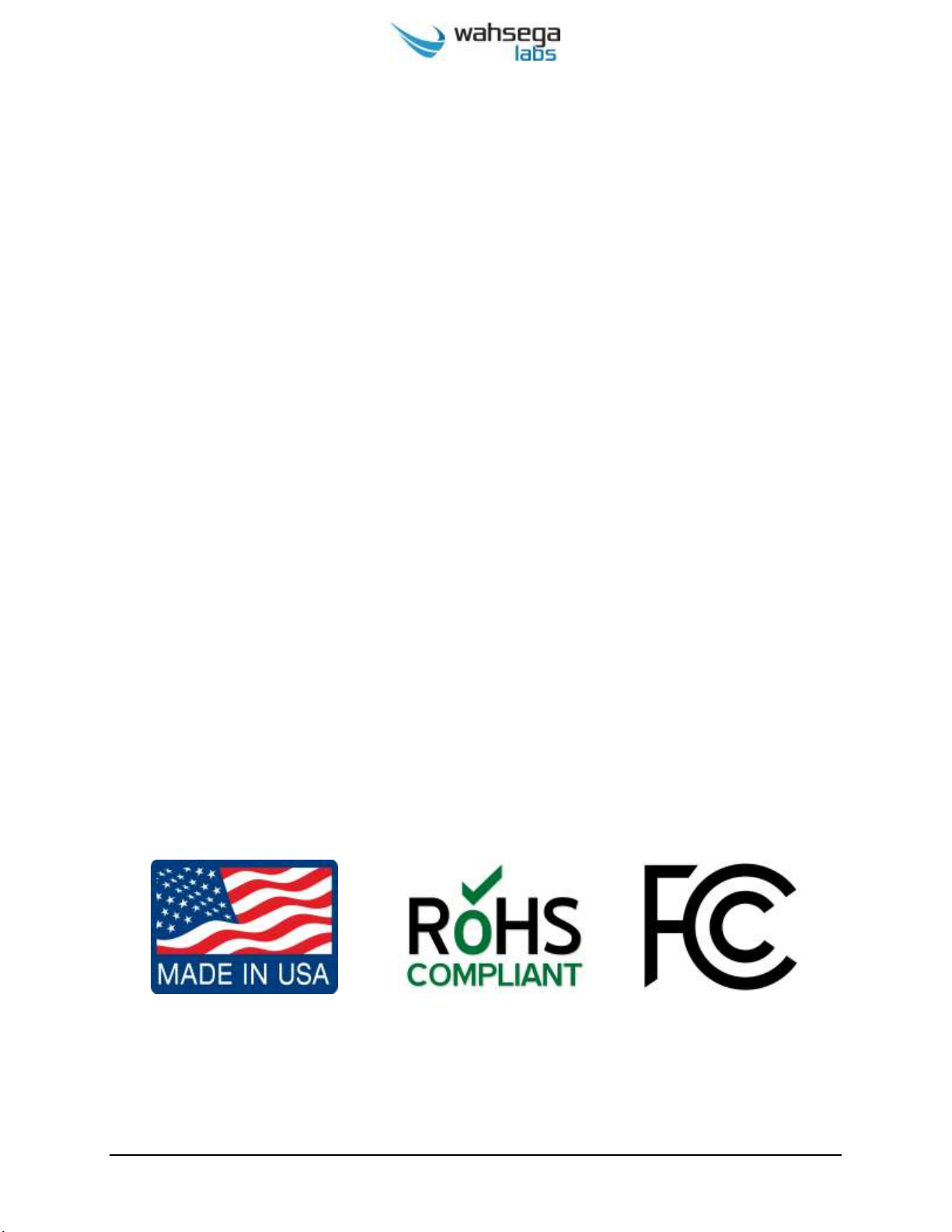

Standards Compliant
The Carina IP Paging Zone Controller meets or exceeds the following RF
emissions standards:
FCC 47 CFR Part 15 Subpart B
Industry Canada ICES-003 Issue 5
Cet appareil numérique de la classe A est conforme à la norme
ICES-003 du Canada.
This product is designed and manufactured in the USA.
ISO 9001:2008 certified factory
ROHS compliant
Industrial temperature -40C to +85C.
