This manual describes the Digital Input Module 750-651 (/xxx-xxx) TTY-

Interface 20mA Current Loop of the modular WAGO-I/O-SYSTEM 750.

Handling, assembly and start-up are described in the manual of the Fieldbus

Coupler. Therefore this documentation is valid only in the connection with the

appropriate manual.

750-651 (/xxx-xxx) [TTY-Interface 20mA Current Loop] • 7

View

WAGO-I/O-SYSTEM 750

Busklemmen

2 I/O Modules

2.1 Special Modules

2.1.1 750-651 (/xxx-xxx) [TTY-Interface 20mA Current Loop]

2.1.1.1 View

TxD

RxD

13 14

750-651

TxD

RxD

TxD

Data contacts

RxD

TxD

Function

TxD

RxD

___

Receiver

Transmitter

Fig. 2.1.1-1: TTY-Interface 750-651 g065100e

2.1.1.2 Variations

Item-No. Designation Description

750-651 TTY/ 9600/ N/ 8/ 1 Baud rate: 9600 baud,

Parity: none, data bits: 8, stop bits: 1

750-651/000-001 TTY/ 9600/ N/ 8/ 1/

5 byte

Baud rate: 9600 baud,

Parity: none, data bits: 8, stop bits: 1,

user data: 5 byte

750-651/000-002 TTY/ 9600/ E/ 8/ 1 Baud rate: 9600 baud,

Parity: even, data bits: 8, stop bits: 1

750-651/000-003 TTY/ 1200/ N/ 8/ 1 Baud rate: 1200 baud,

Parity: none, data bits: 8, stop bits: 1

8 • 750-651 (/xxx-xxx) [TTY-Interface 20mA Current Loop]

Description

WAGO-I/O-SYSTEM 750

Busklemmen

2.1.1.3 Description

This interface allows the connection of devices which are equipped with a

20 mA current interface.

The wiring to the communication partner is made by the connections TxD,

/TxD, RxD and /RxD.

The interface is working in active, semi-active or passive operation mode. The

module communicates with the control unit over the fieldbus coupler/-

controller.

The active communication channel works independently of the higher-level

fieldbus system and allows full duplex operation up to 19200 baud.

Three green LEDs signal readiness for operation and troublefree internal bus

communication as well as the condition of the signal transmission.

The TTY interface guarantees high interference immunity because of the

electrical isolation and the driven loop current.

Any configuration of the specialty modules is possible when designing the

fieldbus node. Grouping of module types is not necessary.

Attention

This module has no power contacts. For field supply to downstream I/O

modules, a supply module will be needed.

The TTY-Interface module 750-651 and its variations can be used with all

couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy

types 750-320, -323, -324 and -327).

This description is valid from hardware and software version XXXX3A03...

and up. The version is specified in the manufacturing number, which is part of

the lateral marking on the module.

750-651 (/xxx-xxx) [TTY-Interface 20mA Current Loop] • 9

Display Elements

WAGO-I/O-SYSTEM 750

Busklemmen

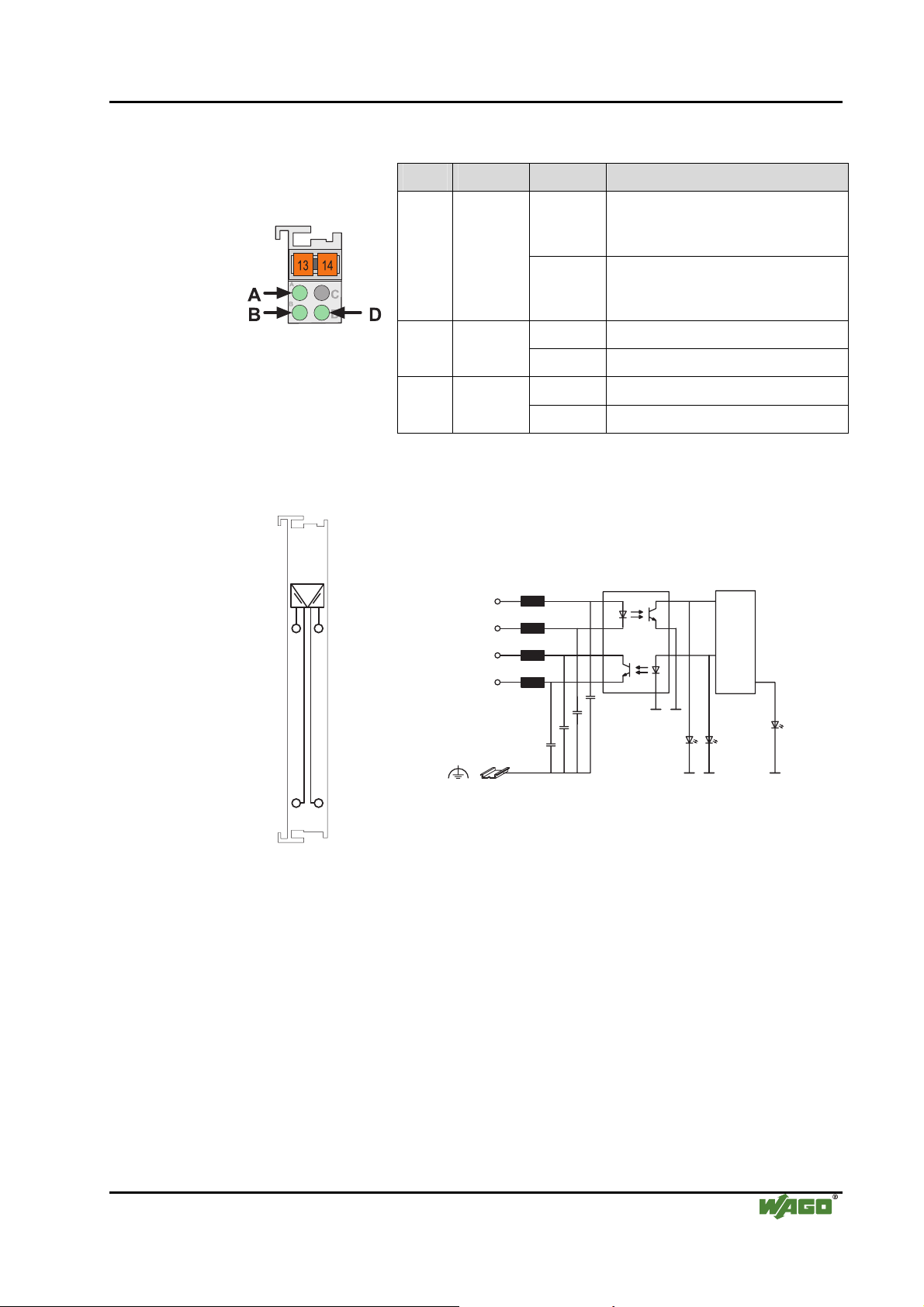

2.1.1.4 Display Elements

LED Channel State Function

off No operational readiness or the

internal data bus communication is

interrupted

green

Function

on Operational readiness and trouble-

free internal data bus

communication

off Loop current ≤2 mA( SPACE)B

green

TxD

on Loop current ≥12 mA (MARK)

off Loop current ≤2 mA( SPACE)

Fig. 2.1.1-2: Display

Elements g065002x

green

RxD

on Loop current ≥12 mA (MARK)

2.1.1.5 Schematic Diagram

TxD TxD

RxD RxD

TxD

RxD

Function

Logic

TTY

___

750-651

Fig. 2.1.1-3: TTY-Interface 750-651 g065101e

10 • 750-651 (/xxx-xxx) [TTY-Interface 20mA Current Loop]

Technical Data

WAGO-I/O-SYSTEM 750

Busklemmen

2.1.1.6 Technical Data

Module Specific Data

Transmission channel 1 TxD / 1 RxD, full duplex

Baud rate 1200 ... 19200 baud

Bit transmission MARK: I ≥12 mA, SPACE: I ≤2 mA

Load impedance < 500 Ω

Line length max. 1,2 kBd

≤800 m

2,4 kBd

≤400 m

9,6 kBd

≤100 m

Buffer 128 bytes in / 16 bytes out

Current consumption (internal) 55 mA

Voltage supply via system voltage DC/DC

Isolation 500 V (System/Supply)

Bit width 1 x 40 bits data

1 x 8 bits control/status

Dimensions (mm) W x H x L 12 x 64* x 100

* from upper edge of 35 DIN rail

Weight ca. 55 g

Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)

EMC-Immunity to interference (CE) acc. to EN 50082-2 (96)

EMC-Emission of interference (CE) acc. to EN 50081-1 (93)

Approvals (cf. Chapter 2.2 of the Coupler/Controller Manual)

CULUS (UL508)

ABS (American Bureau of Shipping)

BV (Bureau Veritas)

DNV (Det Norske Veritas) Cl. B

GL (Germanischer Lloyd) Cat. A, B, C, D

KR (Korean Register of Shipping)

LR (Lloyd's Register) Env. 1, 2, 3, 4

NKK (Nippon Kaiji Kyokai)

RINA (Registro Italiano Navale) (only for 750-651)

CULUS (UL1604) Class I Div2 ABCD T4A

KEMA II 3 G EEx nA II T4

Conformity Marking

Otros manuales para 750-651

Tabla de contenidos

Otros manuales de Unidad de control de WAGO

WAGO

WAGO SPEEDWAY 767 Series Manual de usuario

WAGO

WAGO 753-668/000-004 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750 Manual de usuario

WAGO

WAGO 750 Series Manual de usuario

WAGO

WAGO 750-333/040-000 Manual de usuario

WAGO

WAGO SPEEDWAY 767 Series Manual de usuario

WAGO

WAGO 750-489 Manual de usuario

WAGO

WAGO 750-1504 Manual de usuario

WAGO

WAGO 750-655 Manual de usuario

WAGO

WAGO 750-606/040-000 Manual de usuario

WAGO

WAGO 750-1416/040-000 Manual de usuario

WAGO

WAGO 753-646 Manual de usuario

WAGO

WAGO 750-536 Manual de usuario

WAGO

WAGO 751-3501 Manual de usuario

WAGO

WAGO 767-9101 Manual de usuario

WAGO

WAGO 761-216 Manual de usuario

WAGO

WAGO WAGO-I/O-SYSTEM 750 Series Manual de usuario

WAGO

WAGO SPEEDWAY 767 Series Manual de usuario

WAGO

WAGO WAGO-I/O-SYSTEM 750 Series Manual de usuario

WAGO

WAGO 750-564 Manual de usuario

WAGO

WAGO 750-469 Manual de usuario

WAGO

WAGO 750-557/040-000 Manual de usuario

WAGO

WAGO 750-645 Manual de usuario

WAGO

WAGO 750-458 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario

Flyron

Flyron FN-BC04 Manual de usuario
