Würth WDM 6-22 Manual de usuario

WDM 6-22

Overview 2

Technical data 4

Instrument Set-up 6

Settings 10

Operations 26

Message Codes 44

Care 45

Warranty 46

Safety instructions 47

Würth WDM 6-22 | EN 1

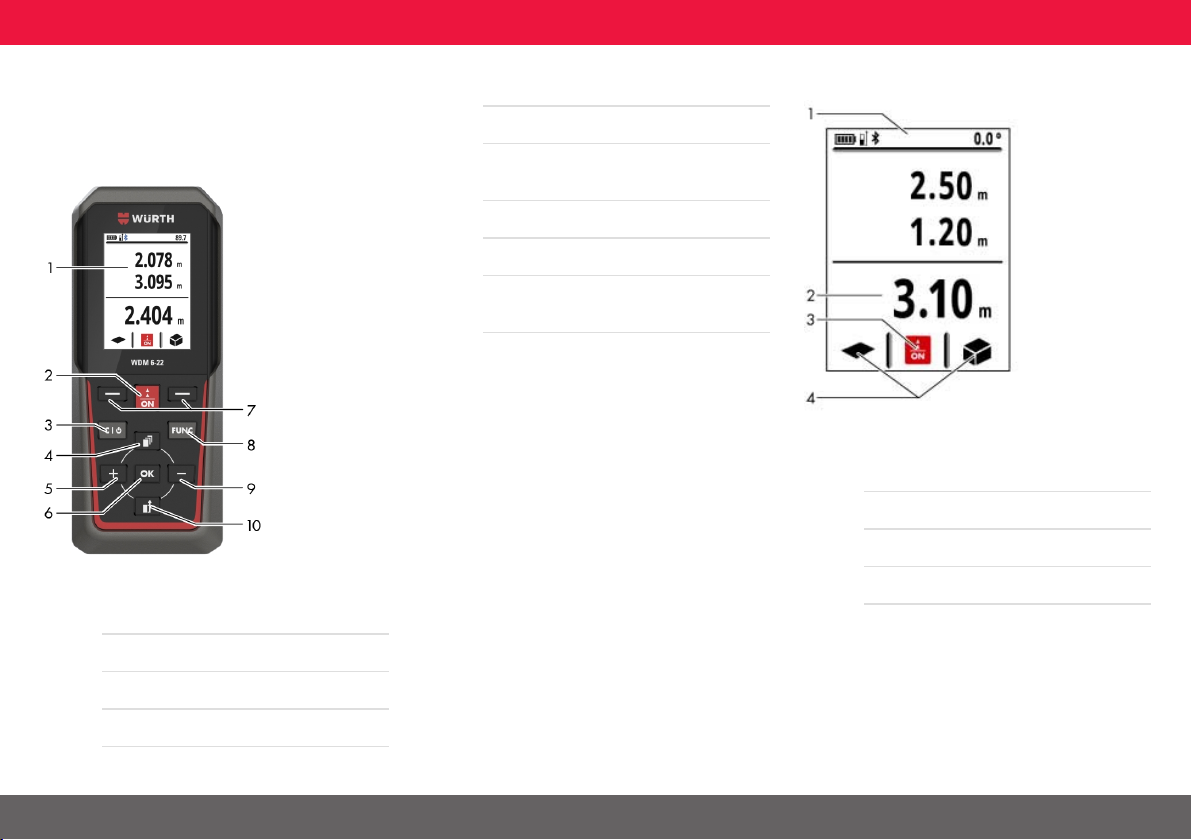

Overview

Components

The Würth WDM 6-22 is a laser distance meter

operating with a class 2 laser. See chapter Tech-

nical data for scope of use.

1Display

2ON/ Measure

3Clear/ OFF

4Memory/ Navigate upwards

5Add/ Navigate left

6Enter/ Equal

7Selection keys linked to symbols

above

8Functions

9Subtract/ Navigate right

10Measuring reference/ Navigate

downwards

Basic measuring screen

1Status bar

2Main line

3Active function

4Favorites

Würth WDM 6-22 | EN 2

Overview

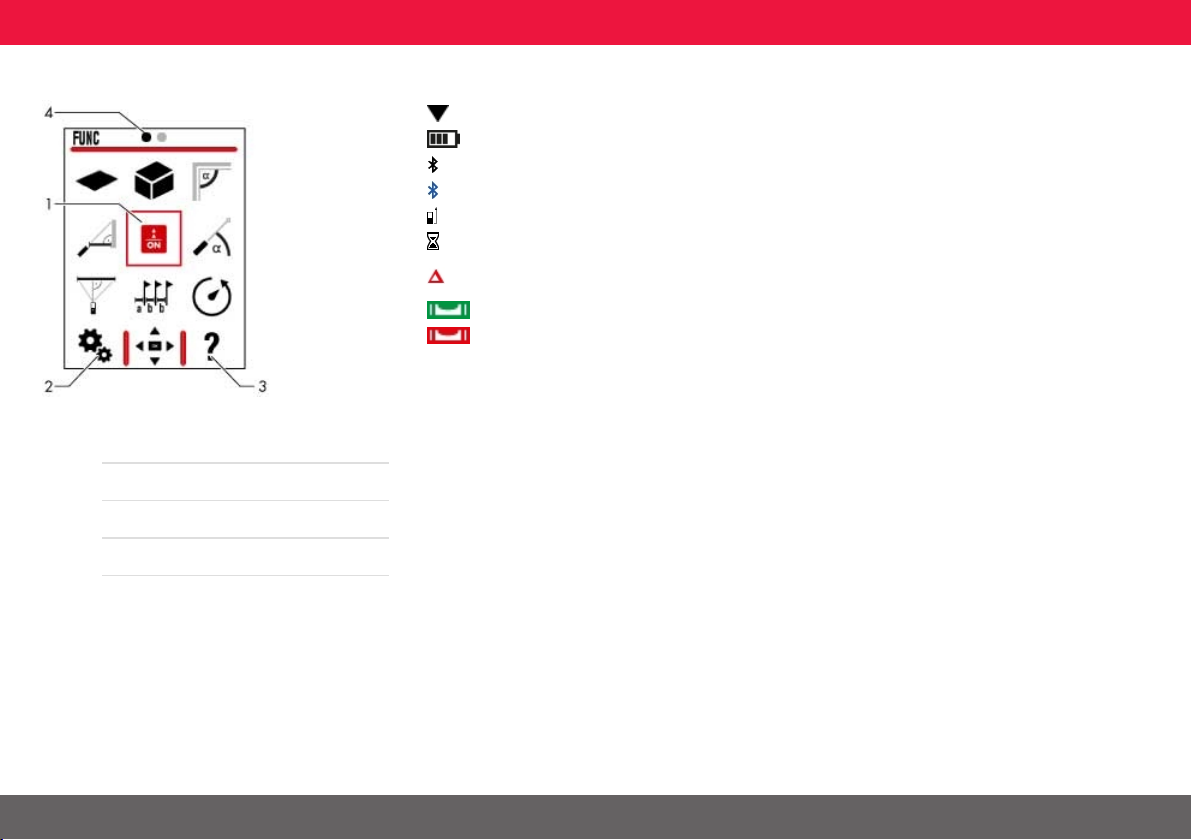

Selection screen

1Function/ Settings

2Settings

3Help function

4Page indicator

Icons on status bar

Scroll down for further results

Battery power

Bluetooth® is switched on

Bluetooth® connection established

Measuring reference

Device is measuring

Offset is activated and adds/substracts

the defined value from measuring distance

Device is levelled

Device is not levelled

Würth WDM 6-22 | EN 3

Technical data

General

Accuracy with favourable conditions * 1 mm / 0.04" ***

Accuracy with unfavourable conditions ** 2 mm / 0.08" ***

Range with favourable conditions * 0.05 - 150m / 0.16 - 500ft ***

Range with unfavourable conditions ** 0.05 - 80m / 0.16 - 260ft ***

Smallest unit displayed 0.1 mm / 1/32 in

Laser class 2

Laser type 635 nm, <1 mW

ø laser point | at distances 6 /30 /60 mm | 10/ 50/ 100 m

Tilt measuring tolerance to laser beam **** ± 0.2°

Tilt measuring range **** 360°

Protection class IP54 (dust- and splash water protected)

Auto. laser switch off after 90 s

Auto. power switch off after 180 s

Bluetooth® Smart Bluetooth® v4.0

Power of Bluetooth® Smart 0.71 mW

Frequency of Bluetooth® Smart 2400 - 2483.5 MHz

Range of Bluetooth® Smart <10m

Battery durability (2 x AA) up to 4000 measurements

Dimension (H x D x W) 132.5 x 28.5 x 54.6 mm | 5.22 x 1.12 x 2.15 in

Weight (with batteries) 175 g/ 6.17 oz

Temperature range Storage | Operation -25 to 70°C/ -13 to 158°F | -10 to 50°C/ 14 to 122°F

* favourable conditions are: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.

** unfavourable conditions are: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.

*** Tolerances apply from 0.05 m to 10 m with a confidence level of 95%.

With favourable conditions the tolerance may deteriorate by 0.10 mm/m for distances above 10 m. With unfavourable conditions the tolerance may deteriorate by 0.15 mm/m for distances above 10 m.

**** after user calibration. Additional angle related deviation of +/-0.01° per degree up to +/-45° in each quadrant.

Applies at room temperature. For the whole operating temperature range the maximum deviation increases by +/-0.1°.

Würth WDM 6-22 | EN 4

Technical data

Functions

Distance measuring yes

Min/Max measuring yes

Permanent measuring yes

Stake out yes

Addition/Subtraction yes

Area yes

Room angle yes

Volume yes

Painter function (area with partial measurem.) yes

Pythagoras 3-point

Smart Horizontal Mode / Indirect height yes

Level yes

Memory yes

Beep yes

Bluetooth® Smart yes

Personalized Favorites yes

Timer yes

Würth WDM 6-22 | EN 5

Instrument Set-up

Introduction

The safety instructions (see Safety

Instructions) and the user manual

should be read through carefully

before the product is used for the first

time.

The person responsible for the

product must ensure that all users

understand these directions and

adhere to them.

The symbols used have the following

meanings:

WARNING

Indicates a potentially hazardous situ-

ation or an unintended use which, if

not avoided, will result in death or ser-

ious injury.

CAUTION

Indicates a potentially hazardous situ-

ation or an unintended use which, if

not avoided, may result in minor injury

and/or appreciable material, financial

and environmental damage.

Important paragraphs which

must be adhered to in practice as

they enable the product to be

used in a technically correct and

efficient manner.

Würth WDM 6-22 | EN

Instrument Set-up

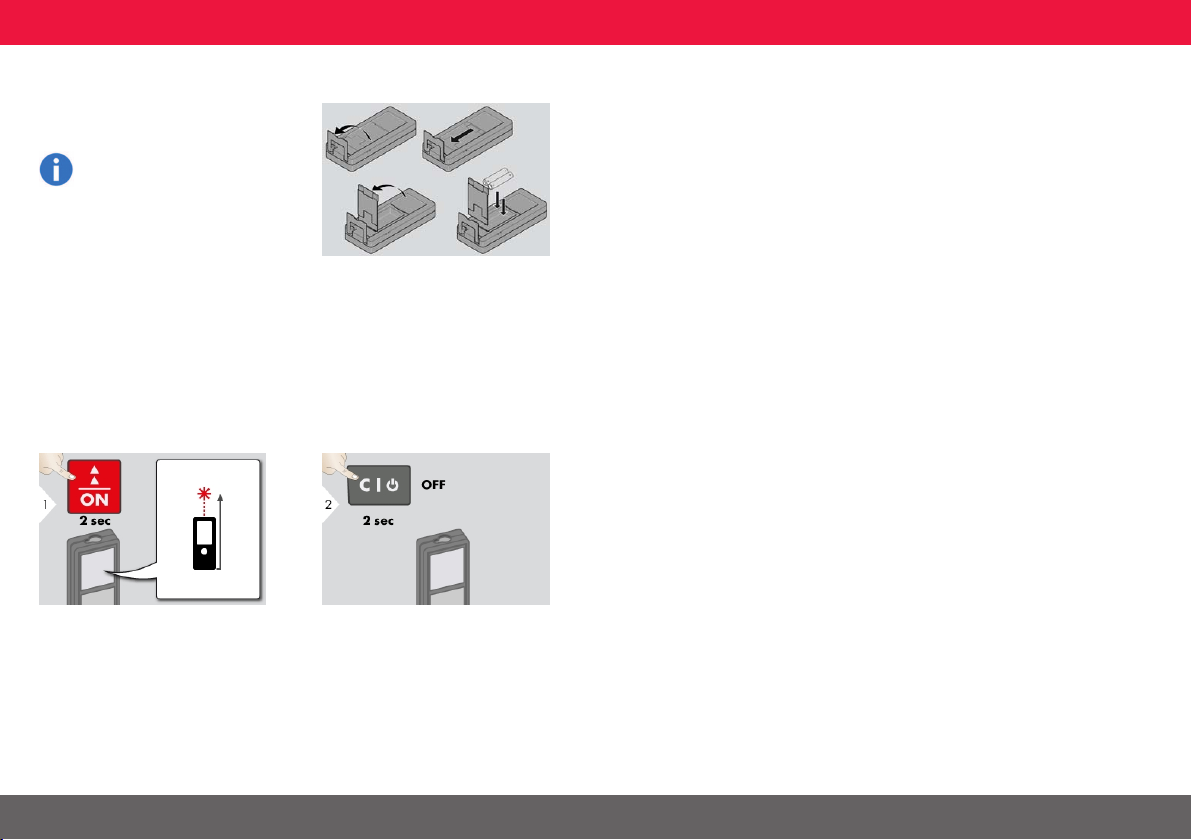

Insert batteries

To ensure a reliable use, we

recommend using high quality

Alkaline batteries. Change bat-

teries when battery symbol is

flashing.

Switching ON/OFF

Würth WDM 6-22 | EN 7

Device is turned OFF.

Instrument Set-up

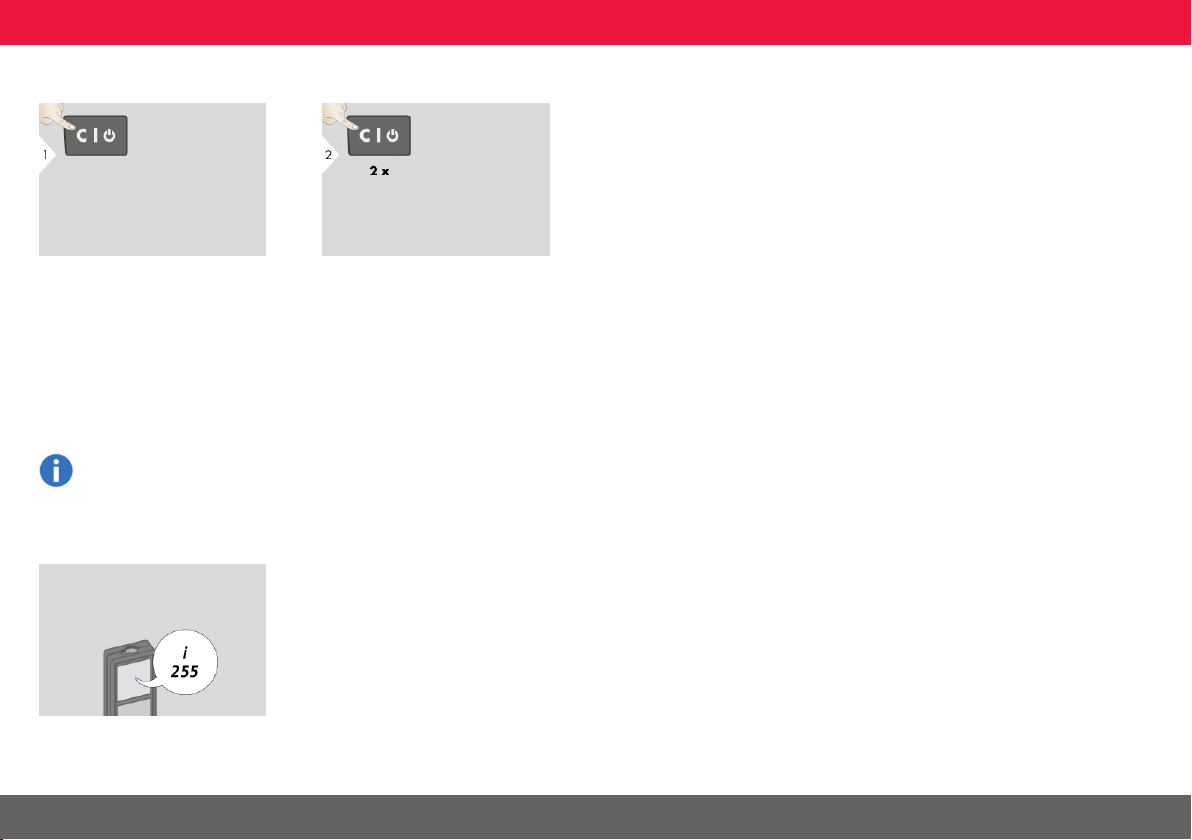

Clear

Undo last action. Leave actual function, go to default

operation mode.

Message Codes

Würth WDM 6-22 | EN 8

If the message "i" appears with a

number, observe the instructions

in Message Codes section.

Example:

Instrument Set-up

Multifunctional endpiece

The orientation of the endpiece is

automatically detected and the

zero point is adjusted accord-

ingly.

When measuring with 90°

flipped-out endpiece please

meake sure that it lies plane

against the edge you measure

from.

Adjusting measuring reference

Würth WDM 6-22 | EN 9

a) Distance is measured from the rear

of the device (standard setting).

b) Distance is measured from the front

of the device.

c) Distance is measured from the tripod

thread.

Confirm setting.

If device is switched off, ref-

erence goes back to standard set-

ting (rear of the device).
