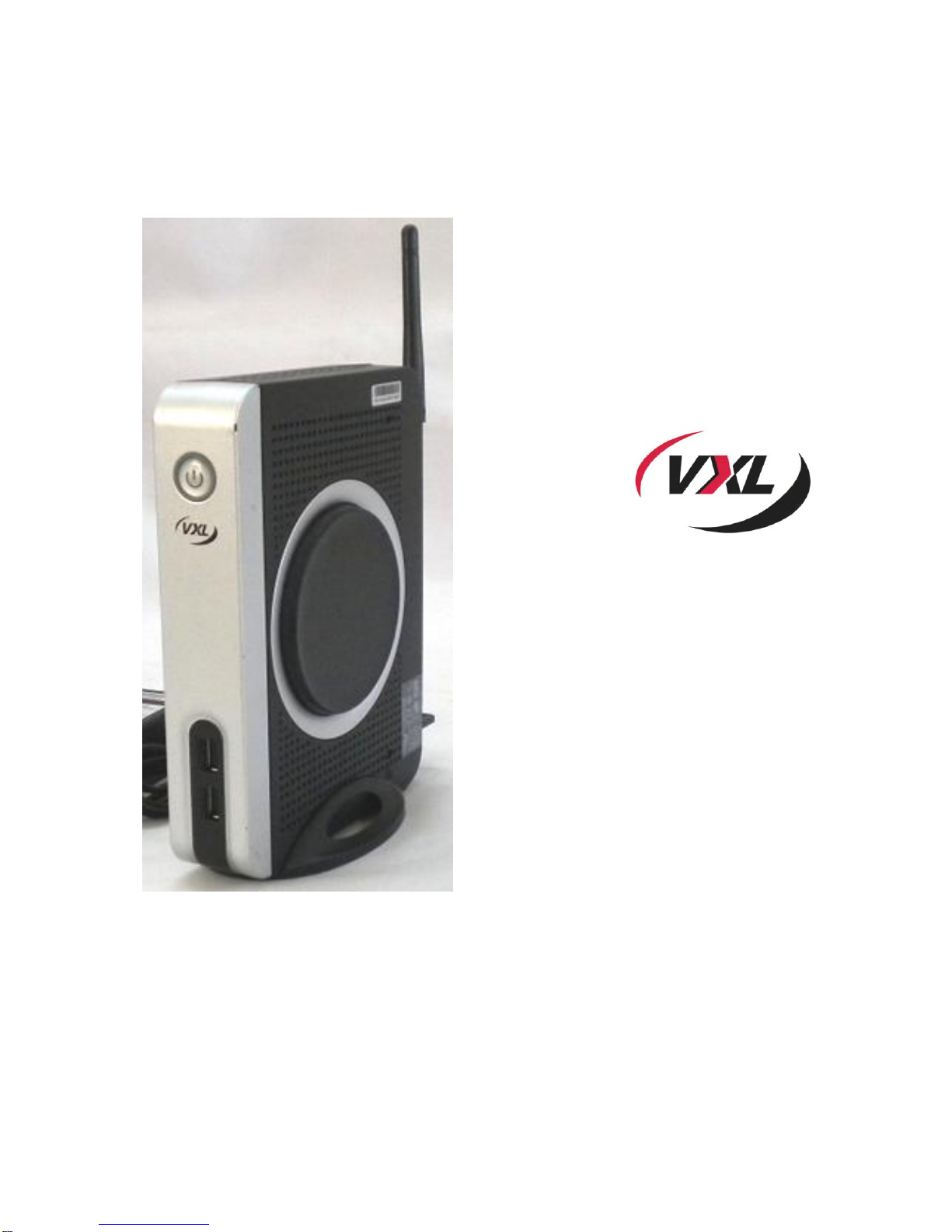

Vxl TC15yy Manual de usuario

TC15yy

Service Manual

Information in this document is subject to change without notice and does not represent a commitment on

the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means,

electronic or mechanical, including photocopying and recording, for any purpose, without the express written

permission of the manufacturer.

Every effort has been made to make this guide as complete and as accurate as possible, but no warranty or

fitness is implied. The authors and the publisher shall have neither responsibility nor liability to any person or

entity with respect to loss or damages arising from the use of information contained in this guide. This

disclaimer does not apply in countries where such provisions are inconsistent with local law.

All Trademarks are acknowledged.

Last Updated: September, 2012.

Version: TC15yy/SM-37-12.

VXL Instruments Ltd.,

House of Excellence,

No. 17, Electronics City,

Hosur Road,

Bangalore–560 100, INDIA.

www.vxl.net

Table of Contents

1Tools Required.......................................................................................................................................1

2Pedestal and Side Cover ........................................................................................................................3

Removing the Pedestal and Side Cover..................................................................................................3

Fixing the Pedestal and Side Cover........................................................................................................4

3Replacing RAM.......................................................................................................................................5

4Replacing Flash......................................................................................................................................7

5Replacing Wireless LAN .........................................................................................................................8

6Replacing the Motherboard...................................................................................................................10

Warning and Caution Statements

Warning: It is best to wear an electrostatic discharge (ESD) cuff when handling electronic

components (Motherboard, RAM and Power Supply).

Warning: Please ensure that the power supply is switched off before unplugging the power supply

connector from the motherboard.

Caution: Memory modules have a foolproof insertion design. A memory module can be installed in

only one direction. If you are unable to insert the module, please reverse the direction

Tools Required 1

1 Tools Required

The tools required for servicing the TC 15yy series Thin Client are shown in Figure 1.

Figure 1: Tools Required

A. ALLEN Hex HEAD 2.0mm

Screwdrivers

A. HEX Screwdriver E. Hot Glue Gun with rod.

B. Star Screwdriver F. Isopropyl Alcohol ((CH3)2CHOH)

C. Nut Driver

D. Nose pliers

2 Tools Required

B. Phillips screwdriver

C. Hex Nut driver 5.0 mm

D. Nose pliers with spring

Pedestal and Side Cover 3

2 Pedestal and Side Cover

Removing the Pedestal and Side Cover

The procedure to remove the power adapter, pedestal and top cover of the Thin Client is explained in this

section.

To remove the pedestal and top cover:

1. Turn Off the power to the client.

2. Unplug and remove the power adapter from its connector at the back of the client.

3. Unlock and remove the pedestal as shown in Figure 2.

Figure 2: TC15yy Series

4. Using the star screwdriver ( Item B in Figure 1) unscrew the 4 screws shown in Figure 3.

Figure 3: Side Cover Screws

4 Pedestal and Side Cover

Note: Retain the screws for future use.

5. Pull the side cover upwards and remove it as shown in Figure 4.

Figure 4: Side Cover

Fixing the Pedestal and Side Cover

To fix the side cover, pedestal and power adapter:

1. Gently press the side cover downwards.

2. Using the star screwdriver tighten the four screws holding the side cover.

3. Fix the pedestal and lock it.

4. Switch On the power to the client.

Replacing RAM 5

3 Replacing RAM

To replace RAM:

1. Remove the power adapter, pedestal and side cover . For more information see, section

‘Removing the Pedestal and Side Cover’ on page 3.

Note: If the RAM is fixed using glue, apply isopropyl alcohol on the glue holding the RAM,

pull the glue out using the nose pliers.

2. Unlock the clip on either side of the RAM, by pushing it sideways simultaneously.

Figure 5: RAM Socket Clips

3. Remove the existing RAM from the socket by pulling it outward.

Figure 6: Remove RAM

4. Insert the new RAM in the socket.

Note: Ensure that the new RAM is of the same dimensions as the existing RAM.

5. Press the RAM downwards until the clip at each end of the socket lock into position.

6 Replacing RAM

Note:

You will hear a distinctive click, indicating the module is correctly locked into position.

Use the hot glue gun to fix the RAM with glue.

6. Fix the top cover, pedestal and power adapter. For more information see, section ‘Fixing the

Pedestal and Side Cover’ on page 4.
