Itona TC63yy

Hardware User Guide

Information in this document is subject to change without notice and does not represent a commitment on

the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means,

electronic or mechanical, including photocopying and recording, for any purpose, without the express written

permission of the manufacturer.

Every effort has been made to make this guide as complete and as accurate as possible, but no warranty or

fitness is implied. The authors and the publisher shall have neither responsibility nor liability to any person or

entity with respect to loss or damages arising from the use of information contained in this guide. This

disclaimer does not apply in countries where such provisions are inconsistent with local law.

All Trademarks are acknowledged.

Last Updated: September, 2012

Version: TC63yy/UG-37-12

VXL Instruments Ltd,

House of Excellence,

No. 17, Electronics City,

Hosur Road,

Bangalore–560 100, INDIA

www.vxl.net

Federal Communication Commission

(FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment Off and On, the user is encouraged to try to correct the

interference by one or more of the following measures:

Re-orient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio / television technician for help.

Each Thin Client is equipped with a FCC compliance label that shows only the FCC identification

number. The full information of the associated label is as follows:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

Regulatory Certifications

iii

Table of Contents

Federal Communication Commission (FCC) Statement i

Regulatory Certifications ii

1Introduction 1

About the User Guide 1

Abbreviations and Acronyms 2

Chapters in the Manual 2

2Installation 4

Unpacking the Unit 4

Preparing to Connect 4

Connecting the Accessories and Power Supply 5

Connecting to the Server 7

3Specifications 8

Hardware 8

Mechanical 8

Environmental Operating 8

Electrical –External Power Adapter 9

4Troubleshooting 10

Appendix 11

1 Introduction

Thin Clients are terminal devices that connect to multi-user application servers operating under

Citrix MetaFrame and Windows Server 2000/2003 operating systems.

This guide covers installation procedure and hardware details of Itona TC 63yy series..

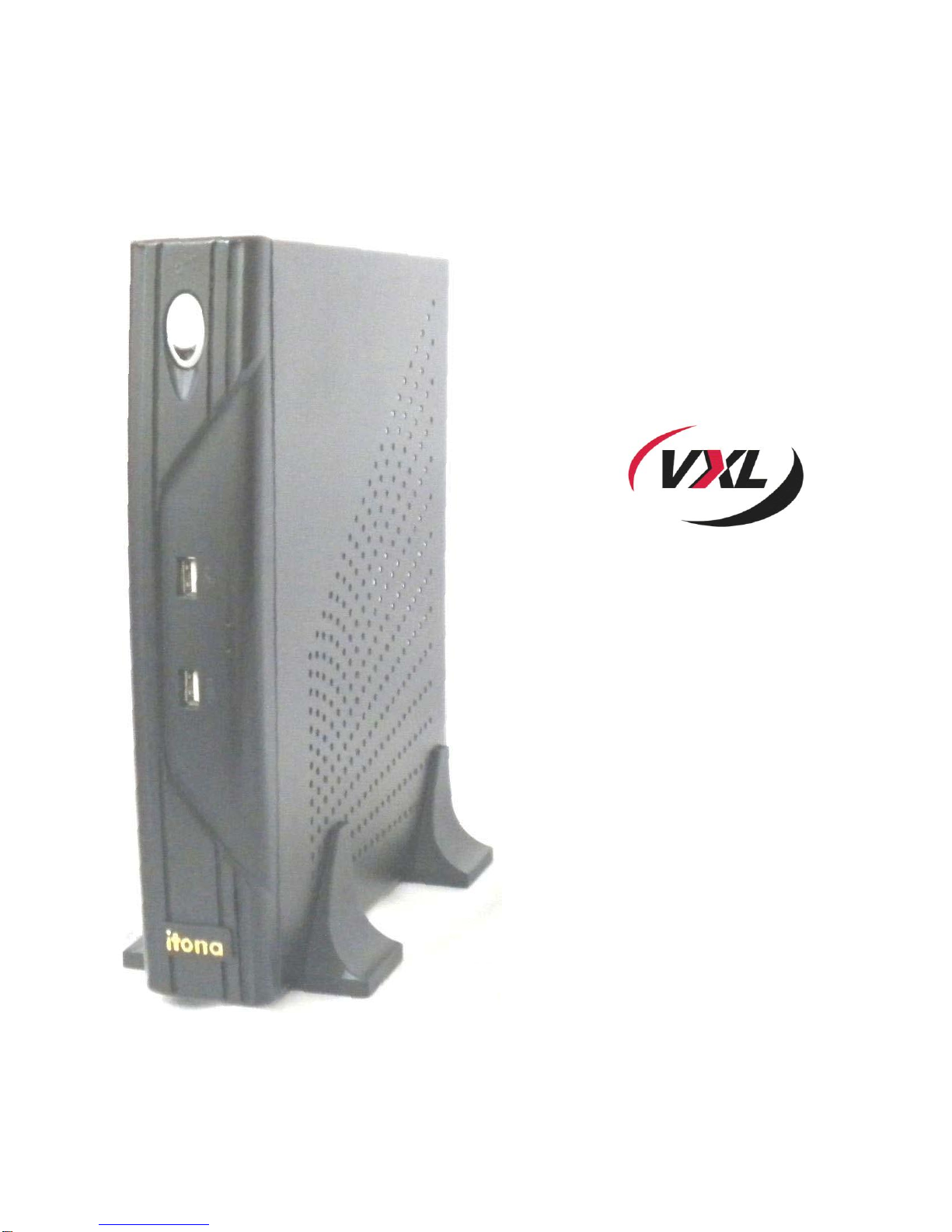

Figure 1: ItonaTC63yy

Itona TC63yy deliver smart and robust solutions for Thin Client computing. They are aesthetically

and ergonomically designed compact desktop. Itona series thin clients offer fanless CPU solution to

enhance reliability.

About the User Guide

This User Guide provides step by step instructions to install Itona D series hardware. The

specifications and troubleshooting steps are also included in this User Guide.

1. Power Button.

2. USB Ports.

Introduction 2

Abbreviations and Acronyms

Abbreviation

Expansion

Alternating Current

Direct Current

LAN

Local Area Network

LED

Light Emitting Diode

TCP/IP

Transmission Control Protocol/Internet Protocol

USB

Universal Serial Bus

VESA

Video Electronics Standards Association

VGA

Video Graphics Array

Table 1: Abbreviations and Acronyms

Chapters in the Manual

Chapter No

Chapter Name

Description

Introduction

Contains an overview of the product,

information about this guide and

abbreviations used in this guide.

Installation

Contains the procedure to set up the

hardware.

Specifications

Contains hardware, mechanical, electrical,

interface and operating environment

specifications

Troubleshooting

Contains solutions to problems that you

may encounter while using the product.

—

Appendix

Contains detailed specifications for

connectors and cables used with the

product.

Table 2: List of Chapters

Warning

Do not open enclosure, hazardous voltages present inside equipment.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

There is no user serviceable part inside. Do not open enclosure, hazardous voltages

present in the equipment’s components. Do not disassemble the equipment as this can

nullify your warranty.

3 Introduction

This equipment must be earthed to prevent accidental electric shocks, connect a three pin

connector to ensure adequate earthing.

As a precaution, the AC socket outlet should be near the equipment and should be easily

accessible.

Sound Power Level is less than 60dB (A), when measured according to ISO 7779.

Caution

Ensure that all expansion slots (on the back or side of the client) are covered with metal

retaining brackets, and tightly attached to the computer cabinet.

Only equipment certified to comply with Class B (computer input/output devices, terminals,

printers etc.) should be connected to this equipment, and must have shielded interface

cables.

This equipment should not be used in electro-medical applications.

Do not operate this equipment in corrosive or explosive atmosphere.

Operate this equipment within specified temperature limits.

Installation 4

2 Installation

You have to install the client before you can use it. Installation involves setting up the hardware and

connecting the peripherals required for normal use.

To install the Itona TC 63yy hardware, perform the following steps:

1. Unpack the unit.

2. Prepare to connect.

3. Connect the accessories and power.

4. Connect to the server

Each step is explained in detail in this chapter.

Unpacking the Unit

Unpack the unit from its carton box, handle safely to ensue you do not damage any components

during unpacking.

The carton in which the product was shipped to you contains the following:

Itona TC 63yy Series Thin Client

Power cord (optional)

Wall mounting bracket-single side

Hardware Installation Guide

Ensure that all the contents mentioned above are in the carton. Contact the dealer or reseller from

whom you have purchased the product if any of those are missing.

Note: Please retain the original carton and packing material for future use.

Preparing to Connect

1. Ensure that the following are available at the site where you want to install the product.

100~240V AC, 0.65A, 50/60 Hz, 3-pin power inlet for power adapter .

Note: Ensure that the power inlet plug is regulated and earthed. A floating ground/chassis

could cause an electric shock.

Well ventilated, clean, dry and dust free atmosphere.

Specified environmental conditions. For more information see, Environmental Operating

Specifications on page 8.

Note: The product can only be used in vertical position. Do nor placed it flat on a desk as it

will block the air vents and heat up.

5 Installation

2. Place the product on the table in a location that provides quick and easy access to the power Inlet

plug to shutdown the power in emergencies.

3. Ensure a minimum space of 2 inches (5 cm) on all sides of the unit for efficient convection cooling.

Connecting the Accessories and Power Supply

The various connectors available on the rear panel of the client are shown in Figure 2.

Figure 2: Itona TC63yy Series Rear View

1. Audio Line Out

2. 2x Ethernet Ports.

3. LPT Port

4. PS/2 Mouse Port

5. MIC

6.4xUSB

7. COM Port

8. SVGA Port

9. PS/2 Keyboard Port

10. AC Power Out

Ac Power IN
