Voxx Electronics Code Alarm ELITE ca1155E Manual de usuario
12019 Voxx Electronics Corporation. All rights reserved.
Elite
SERIES
Owner’s Guide
For Model:
ca1155E
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the conguration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
Vehicle Security and
Keyless Entry System
2ca1155E Owners revA
Table of Contents
Using Your Remote Control.................................................................... 3
Arming the Security System .............................................................. 3
Bypassing the Shock Sensor ............................................................ 3
Disarming the Security System ......................................................... 3
Two Stage Door Unlock (optional)..................................................... 3
Activating Trunk Release (optional)................................................... 3
Activating AUX 1 (optional)................................................................ 4
Using the Progressive Car Finder Feature........................................ 4
Using the Personal Protection Alarm................................................. 4
Valet Mode ........................................................................................ 4
User Selectable Notication Chirps................................................... 4
User Selectable LED ......................................................................... 5
Manually Overriding the Security System ......................................... 5
Carjack Mode .................................................................................... 5
Status LED, Light Flashes and Siren/Horn Indications ....................... 6
Remote Control Buttons & Functions ................................................... 7
Replacing Remote Control Batteries..................................................... 7
Warranty Information .............................................................................. 8
32019 Voxx Electronics Corporation. All rights reserved.
Arming the Security System
To arm the system, exit the vehicle, close all doors, then press the button. The
parking lights will ash 2 times, indicating the system is armed, has locked the doors
(if equipped and connected) and activated the starter disable feature. The LED status
indicator will blink steadily, once per second.
NOTE: The system is equipped with a feature called Silent Choice. If enabled, the
system requires a second press of the button to activate an audible arming
response from the vehicle.
Bypassing The Shock Sensor
To arm the system and ignore the shock sensor press button, then within 5
seconds press + , the system will respond with 1 long chirp.
NOTE: The system will only change the shock sensor setting for one arm cycle and
will be defaulted back to normal operation the next time the system is armed.
Disarming the Security System
To disarm the system press the button. The parking lights will ash 1 time,
indicating the system is disarmed and has unlocked the doors (if equipped and
connected).
NOTE: The system is equipped with a feature called Silent Choice. If enabled, the
system requires a second press of the button to activate an audible disarming
response from the vehicle. If your system is set up for 2 step unlock, a third press of
unlock will activate the audible response.
Two Stage Door Unlock (Optional)
If this feature is enabled on your system, pressing the button one time will unlock
only the driver’s door. Press again within three seconds to unlock the remaining
doors.
Activating the Trunk Release Feature (Optional)
If this feature is enabled on your system, pressing and holding the button for 3
seconds will open the vehicle’s trunk or hatch.
*Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to pressing for more
than 2 seconds.
Using Your Remote Control
4ca1155E Owners revA
Activating the AUX 1 Output (Optional)
If this feature is enabled on your system, pressing the and buttons
simultaneously will activate an optional feature. This feature can be programmed for a
wide range of functions like power window or sunroof automation, please consult your
installing dealer to determine the functionality of your system.
Using the Progressive Car Finder Feature
Press the button to locate your vehicle. The system will ash the parking lights
and sound 5 times at low volume, increasing in volume each time the button is
pressed.
Using the Personal Protection Alarm (Panic)
Press and hold the button for 3 seconds to activate the personal protection alarm.
During panic mode, the normal function of the transmitter buttons will be suspended.
The transmitter’s and buttons can be used to lock and unlock the door (if the
option is installed). To stop the alarm, press and hold the button on the transmitter
again for 3 seconds. The system will automatically stop after 30 seconds.
Valet Mode
When valet mode is activated the status LED will light solid, and all security functions
will be disabled. To enter or exit valet mode simply follow the steps outlined below:
1. Turn the vehicle’s ignition ON.
2. Push and hold the programming/valet button.
3. The LED will turn on solid when valet mode is active
4. Release the programming/valet button.
User Selectable Notication Chirps
System ARM / DISARM chirps can be toggled ON or OFF without entering the
programming feature banks.
1. Turn the ignition ON then OFF.
2. Press and release the valet/programming button 3 times. The system
will respond with 1 chirp for ON or 2 chirps for OFF.
52019 Voxx Electronics Corporation. All rights reserved.
Carjack Mode (Anti-Hijack Mode)
This feature must be turned on in system programming, please consult your installing
dealer.
Triggering Carjack mode: While the ignition is ON and press and hold + for 2
seconds, the parking lights will ash 1 time and the system will act as follows;
1. 50 seconds after being triggered the siren will chirp for 15 seconds,
during this 15 seconds you will be alerted to push the valet button to
turn off Carjack mode. If Carjack mode is not turned off at this time it
will advance to the next step.
2. Following the 15 second chirps (total time now 65 seconds) the siren
will go into full sound and the parking lights will start ashing.
3. 90 seconds after trigger in, addition to the siren and parking lights, the
system will activate the starter kill. THE SYSTEM WILL REMAIN IN THIS
STATE UNTIL THE BATTERY IS DEPLETED.
OVERRIDE THE SYSTEM TO TURN OFF CARJACK MODE: Turn the ignition OFF
then On and press the valet button within 10 seconds.
Manually Overriding the Security System
Your system can be disarmed without the use of the transmitter. This is necessary,
since you will need the ability to operate your vehicle if the transmitter is lost or its
battery fails. To by-pass the alarm system;
1. Open the vehicle door. The alarm will sound.
2. Turn the ignition key to the ON position.
3. Within 10 seconds, press and release the valet push button switch.
The alarm system will stop sounding and enter the (by-passed) mode. You can now
start and operate the vehicle normally.
User Selectable LED
This feature will control whether the LED is ON or OFF when the system is Armed/
Locked and can be toggled ON or OFF without entering the programming feature
banks.
1. Turn the ignition ON, OFF, ON, OFF.
2. Press and release the valet/programming button 3 times. The system
will respond with 1 chirp for ON or 2 chirps for OFF.
6ca1155E Owners revA
Status LED, Light Flashes, and Siren/Horn Indications
Status LED Flash Indications
LED Flashes Function
OFF Disarmed
Slow Flash Armed
Fast Flash Passive Arming Countdown
ON (Solid) Valet Mode
2 Flashes Zone 2 Trigger, Hood / Trunk
3 Flashes Zone 3 Trigger, Door
4 Flashes Zone 4 Trigger, Shock Sensor
5 Flashes Zone 5 Trigger, Ignition
6 Flashes Zone 6 Trigger, Tilt Sensor
Siren/Horn Chirp Indications
Chirps Function
1 Disarm
2 Arm
3 Door Ajar Upon Arming
4 Disarm / Triggered
5 Car Find
Parking Light Flash Indications
Flashes Function
1 Disarm
2 Arm
3 Disarm / Triggered
5 Car Find
72019 Voxx Electronics Corporation. All rights reserved.
Remote Control Buttons & Functions
4-Button
Transm itterLock Unlock Trunk Car Find /
PanicOperation Method
Lock XPress and Release
Unlock X Press and Release
Trunk XPush and Hold (3 Sec)
Car Finde
rX
Press and Release
Pani
cX
Push and Hold (3 Sec)
AUX 1 XX Push and Hold (3 Sec)
Shock Bypass XX
Press and Release Lock then Pre
ss
Lock + Car Find (within 5 Sec)
Replacing Remote Control Batteries
4 Button Remote Control - Model CAT4ME
The batteries inside each remote control should last approximately 1 year under normal
use. When the batteries become weak you will notice the remote control range (the
distance from the vehicle the remote control will work) deteriorate and the small LED on
the remote control will dim. To replace the remote control batteries:
1. Remove 1 screw then disassemble the halves of the remote
control by unsnapping the back of the case.
2. Remove the old battery, observing the +/- symbols on the
batteries and replace with a new battery.
3. Reassemble the halves of the remote control and reinstall 1 screw.
4. Test operation of the remote control.
8ca1155E Owners revA
LIMITED LIFETIME WARRANTY
Applies to Code Alarm Series Control Modules, Sirens, Sensors, and Relays.
Voxx Electronics Corporation (the Company) warrants to the original purchaser of this
product that should this product or any part thereof, (other than transmitters) under nor-
mal use and conditions, be proven defective in material or workmanship during the life-
time of the vehicle, in which it was originally installed from the date of original purchase
such defect(s) will be repaired or replaced with new or reconditioned product, (at the
Company’s option) without charge for parts or repair labor. A transmitter is warranted for
12 months from the date of original purchase.
To obtain repair or replacement within the terms of this Warranty, the product is to
be delivered with proof of warranty coverage (e.g. dated bill of sale), specication of
defect(s), transportation prepaid, to an approved warranty station. This Warranty is not
transferable.
This Warranty does not cover damage to the vehicle’s electrical system or costs
incurred for removal or reinstallation of the product. This Warranty does not cover bat-
teries, broken LCD or OLED display screens, nor apply to any product or part thereof
which, in the opinion of the Company, has suffered or been damaged through alteration,
improper installation, mishandling, misuse, abuse, neglect, accident, or by removal or
defacement of the factory serial number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WAR-
RANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL
BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. IN NO CASE
SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person or rep-
resentative is authorized to assume for the Company any liability other than expressed
herein in connection with the sale of this product.
The company does not warrant that this product cannot be compromised or circum-
vented. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY
IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO
EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID
BY PURCHASER FOR THE PRODUCT WITHOUT COST OF INSTALLATION.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damage so the above limitations or
exclusions may not apply to you. This Warranty gives you specic legal rights and you
may also have other rights which vary from state to state.
Voxx Electronics Corporation, 180 Marcus Blvd., Hauppauge, New York 11788 / 1-800-645-4994
128-9445
12 ca1155E Owners revA
Voxx Electronics Corporation.
Customer Service 1-800-421-3209
WWW.CODE-ALARM.COM
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that
may cause undesired operation.
Warning!
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
PATENTED: www.voxxintl.com/company/patents
1
2019 Voxx Electronics Corporation. All rights reserved.
Elite
SERIES
ca1155E
Security and Keyless Entry
Installation and Reference Guide
Tabla de contenidos
Otros manuales de Arranque remoto de Voxx Electronics
Voxx Electronics
Voxx Electronics Pursuit PRO9556Z Manual de usuario
Voxx Electronics
Voxx Electronics CA-510 Manual de usuario
Voxx Electronics
Voxx Electronics Prestige PE1BTWZ Manual de usuario
Voxx Electronics

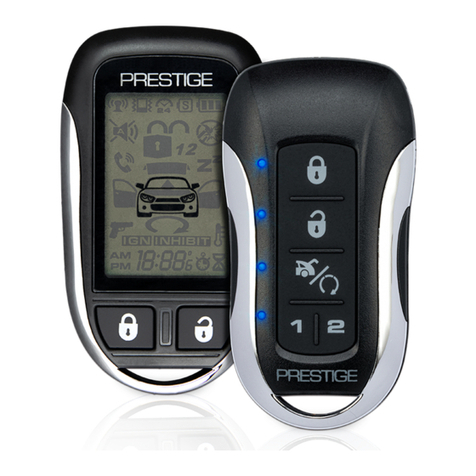

Voxx Electronics Prestige APS997Z Manual de usuario
Voxx Electronics
Voxx Electronics PURSUIT PR1BTWZ Manual de usuario
Voxx Electronics
Voxx Electronics Prestige APS997ZLR Manual de usuario
Voxx Electronics
Voxx Electronics PurSuit PRO9776Z Manual de usuario
Voxx Electronics
Voxx Electronics Prestige APS901TM Manual de usuario
Voxx Electronics
Voxx Electronics PRESTIGE APS901Z Manual de usuario
Voxx Electronics
Voxx Electronics SRT-9000 Manual de usuario
Voxx Electronics
Voxx Electronics Pursuit PRO9056Z Manual de instalación y funcionamiento
Voxx Electronics
Voxx Electronics Prestige APS510Z Manual de instalación y funcionamiento
Voxx Electronics
Voxx Electronics PRESTIGE APSSECRS Manual de usuario
Voxx Electronics
Voxx Electronics Code Alarm Professional Series ca6155 Manual de usuario
Voxx Electronics
Voxx Electronics Elite Series Manual de usuario
Voxx Electronics
Voxx Electronics Prestige APSRS1Z Manual de usuario
Voxx Electronics
Voxx Electronics CA-420 Manual de usuario
Voxx Electronics
Voxx Electronics PRESTIGE APS787Z Manual de usuario
Voxx Electronics
Voxx Electronics Prestige PE2LCD Manual de usuario
Voxx Electronics
Voxx Electronics Prestige PE1BZ Manual de usuario
