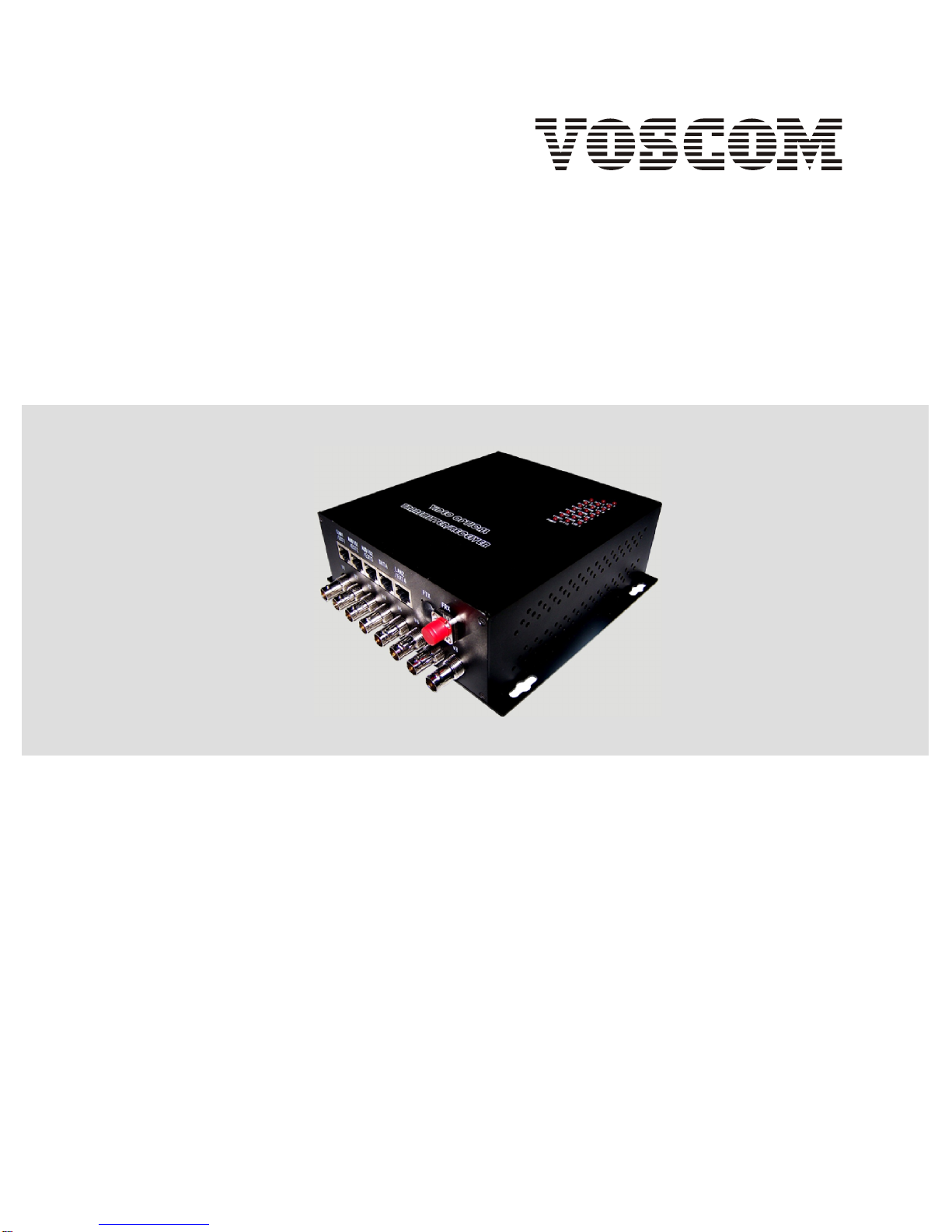

Voscom VOS-8800FDMT Manual de usuario
VOS-8800FDT/R series
8-Channel Video + 8 Duplex Audio Transmission
Installation Manual
Fiber Optic Transmission Systems
VOSCOM TECHNOLOGIES CO.,LIMITED
WWW.VOSCOM.COM
TM
Important Safety Instructions EN_1
1. Readthese instructions. Keep these instructions. Heed allwarnings. Follow all instructions.
5. Donot use this apparatus near water. Cleanonly with dry cloth.
7. Donot block any ventilation openings. Install in accordance with the manufacturers
instructions.
8. Donot install near any heat sources such as radiators, heatregisters, stoves,or other
apparatus (includingamplifiers) that produce heat.
9. Donot defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has twoblades with one wider than the other. Agrounding type plug has two blades and a third
grounding prong. The wideblade or the third prong are provided for your safety. Ifthe provided
plug doesnot fit into your outlet consult an electrician for replacement of the obsolete outlet.
10. Protectthe power cord from being walked on or pinched particularly at plugs,convenience
receptacles, andthe points where they exit from the apparatus.
13. Referall servicingto qualified service personnel. Servicing is required when the apparatus
has beendamaged in any way, suchas power-supply cord or plug is damaged, liquid has been
spilled or objects havefallen into the apparatus,the apparatushas been exposed to rain or
moisture, doesnot operate normally,or has been dropped.
14. Apparatusshall not be exposed to dripping or splashing and that no objects filled with liquids,
such asvases shall be placed on the apparatus.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatusto rain or
moisture.
16. Installation should be done only by qualified personnel and conform to all local codes.
20. CAUTION: These servicing instructions are for use by qualified service personnel only.To
reduce therisk of electric shock do not perform any servicing other than that contained in the
operating instructionsunless youare qualified to do so.
Website:www.voscom.com
Product Overview En_2
The VOS-8800FDT/R can transmission8-Channel
video and 8 duplex analog auido over singlemodeor
multimode optical cable.
Stand-alone orrack-mount. The cards can be inserted
into our 14 slots,19inch 4U or 6U rack-mountable
card cage (VOS-CH04 or VOS-CH06). The card of thismodel require two slots widths.
System Diagram:
Model Number
Transmitter Receiver Fiber Mode Wavelengths Optical
Power
Budget
Maximum
Transmission
Distance
Multi-Mode 1310nm/1550nmVOS-8800FDMRVOS-8800FDMT
•The OpticalPower Budgetdata fitMulit-mode(62.5/125 m),Single-Mode(9/125 m).
•When using50/125 m multimode fiber, subtract3 dBfrom the optical power budget.
•Optical transmissiondistance is limited to optical loss of thefiber and any additional loss introduced by connectors,
splices andpatch panels.
•Maximum transmissiondistance is also limited by fiber bandwidth.
•Power adapteris manufactured by thirdparty and is supplied with fitted screw-terminal outputcables.Power
adapter included(for standalone) US, European, UK or Australian powerplug.
•Please feelfree to consult factory for anyspecial requirement and customization
Note:
10dB 1.2km
Single-Mode
VOS-8800FDSRVOS-8800FDST 12dB 20km
Models and Optical Power Budget:
•24-Bit Digitally Encoded Audio over onefiber
•Multi-mode Fiber Support for Distances up to 1.2 km
•Single-Mode Fiber Support for Distances up to 100 km
•No EMI or RFI and noground loops
•Stand alone or rack-mount
Features:
Video
88
1310nm/1550nm
Single-Mode
VOS-8800FDSR-4VOS-8800FDST-4 18dB 40km
1310nm/1550nm
Single-Mode
VOS-8800FDSR-6VOS-8800FDST-6 25dB 60km
1310nm/1550nm
Audio
88
1 Fiber opticCable
Monitor
VOS-8800FDT
Transmitter VOS-8800FDR
Receiver
8 x Video
8 x Video
8 x DuplexAudio 8 x DuplexAudio
.
.
.
.
.
.
.
.
.
.
8 x Microphone
8 x Microphone
8 xSpeaker
8 xSpeaker
.
.
.
.
8 x Fixed Camera
Panel & Cable Connection En_3
NOTE1: Digital video optic transmitterand receivershould be used in pairs, one is Transmitter
(LED is red), theother is Receiver (LED is green).
FTX
REAR PANEL
DC5V
17
1
1
2
3
Fiber OpticConnector, FC/PC or ST/PC
V1~V8 BNCConnector, 75-ohmanalog video input (Transmitter)/output (Receiver)
Audio Connector, RJ-45Connector, duplexanalog audio1 & audio2 input /output.
FRONT PANEL
LAN1
/EXT1 DATA
AUDIO1
/EXT2 AUDIO2
/EXT3 LAN2
/EXT4
3456
None
1
4
5
6
Audio Connector, RJ-45 Connector, duplex analog audio3 & audio4 input /output.
Audio Connector, RJ-45 Connector, duplex analog audio5 & audio6 input /output.
Audio Connector, RJ-45 Connector, duplex analog audio7 & audio8 input /output.
V1 V2 V3 V4
2
V5 V6 V7 V8
1
7Stand-alone Power supply Connector, DC5V3A Input.
Panel & Cable Connection En_4
RJ-45 interface specification
Website:www.voscom.com
Panel & Cable Connection En_5
Transmitter (Audio): 8-Channel Duplex Audio Connection (Input/Output)
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Connect Audio1 (Backward)
Connect GND1 (Backward)
1
2
3
4
5
6
7
8
Connect GND1 (Forward)
PIN
Connect Audio2 (Forward)
Connect Audio2 (Backward)
Connect GND2 (Backward)
Connect Audio1 (Forward)
Connect GND2 (Forward)
Input
Input
Output
Output
Transmitter RJ-45LAN1/EXT1 : Audio1 & Aduio2 input/output
Website:www.voscom.com
LAN1/EXT1
Input
Input
Output
Output
Connect Audio3 (Backward)
Connect GND3 (Backward)
1
2
3
4
5
6
7
8
Connect GND3 (Forward)
PIN
Connect Audio4 (Forward)
Connect Audio4 (Backward)
Connect GND4 (Backward)
Connect Audio3 (Forward)
Connect GND4 (Forward)
Input
Input
Output
Output
Transmitter AUDIO1 RJ-45/EXT2 : Audio3 & Audio4 input/output
AUDIO1/EXT2
Input
Input
Output
Output
Panel & Cable Connection En_6
Transmitter (Audio): 8-Channel Duplex Audio Connection (Input/Output)
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Connect Audio5 (Backward)
Connect GND5 (Backward)
1
2
3
4
5
6
7
8
Connect GND5 (Forward)
PIN
Connect Audio6 (Forward)
Connect Audio6 (Backward)
Connect GND6 (Backward)
Connect Audio5 (Forward)
Connect GND6 (Forward)
Input
Input
Output
Output
Transmitter AUDIO2 RJ-45/EXT3 : Audio5 & Aduio6 input/output
Website:www.voscom.com
AUDIO2/EXT3
Input
Input
Output
Output
Connect Audio7 (Backward)
Connect GND7 (Backward)
1
2
3
4
5
6
7
8
Connect GND7 (Forward)
PIN
Connect Audio8 (Forward)
Connect Audio8 (Backward)
Connect GND8 (Backward)
Connect Audio7 (Forward)
Connect GND8 (Forward)
Input
Input
Output
Output
Transmitter LAN2 RJ-45/EXT4 : Audio7 & Audio8 input/output
LAN2/EXT4
Input
Input
Output
Output
Panel & Cable Connection En_7
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Receiver (Audio): 8-Channel Duplex Audio Connection (Input/Output)
Website:www.voscom.com
Connect Audio1 (Forward)
Connect GND1 (Forward)
1
2
3
4
5
6
7
8
Connect GND1 (Backward)
PIN
Connect Audio2 (Backward)
Connect Audio2 (Forward)
Connect GND2 (Forward)
Connect Audio1 (Backward)
Connect GND2 (Backward)
Input
Input
Output
Output
Receiver RJ-45LAN1/EXT1 : Audio1 & Aduio2 input/output
LAN1/EXT1
Input
Input
Output
Output
Connect Audio3 (Forward)
Connect GND3 (Forward)
1
2
3
4
5
6
7
8
Connect GND3 (Backward)
PIN
Connect Audio4 (Backward)
Connect Audio4 (Forward)
Connect GND4 (Forward)
Connect Audio3 (Backward)
Connect GND4 (Backward)
Input
Input
Output
Output
Receiver AUDIO1 RJ-45/EXT2 : Audio3 & Audio4 input/output
AUDIO1/EXT2
Input
Input
Output
Output
Panel & Cable Connection En_8
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Receiver (Audio): 8-Channel Duplex Audio Connection (Input/Output)
Website:www.voscom.com
Connect Audio5 (Forward)
Connect GND5 (Forward)
1
2
3
4
5
6
7
8
Connect GND5 (Backward)
PIN
Connect Audio6 (Backward)
Connect Audio6 (Forward)
Connect GND6 (Forward)
Connect Audio5 (Backward)
Connect GND6 (Backward)
Input
Input
Output
Output
Receiver AUDIO2 RJ-45/EXT3 : Audio5 & Aduio6 input/output
AUDIO2/EXT3
Input
Input
Output
Output
Connect Audio7 (Forward)
Connect GND7 (Forward)
1
2
3
4
5
6
7
8
Connect GND7 (Backward)
PIN
Connect Audio8 (Backward)
Connect Audio8 (Forward)
Connect GND8 (Forward)
Connect Audio7 (Backward)
Connect GND8 (Backward)
Input
Input
Output
Output
Receiver LAN2 RJ-45/EXT4 : Audio7 & Audio8 input/output
LAN2/EXT4
Input
Input
Output
Output
Stand-alone Installation En_9
The VOS-8800FDTtransmitter/VOS-8800FDR receivercan be mounted into a rackor can be used as
a stand-alonemodule. As a stand-alone module, the unit can be placed on a desktop or can be
mounted to a wall.
NOTE: Before mounting the VOS-8800FDTtransmitter/VOS-8800FDR receiver, pleaseensure that
there is adequate space at both ends forviewing the front-panel LEDsand formaking the various
rear-panel cableconnections.
Stand-alone Mounting Size: 176.5mm x 158mm x 59mm
Website:www.voscom.com
