Volvo 31285547 Manual de usuario

Instruction No Version Part. No.

31310090 1.3 31285547

Handsfree, Bluetooth

IMG-

331664

Instruction No Version Part. No.

31310090 1.3 31285547

Handsfree, Bluetooth

IMG-

331664

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 1 / 54

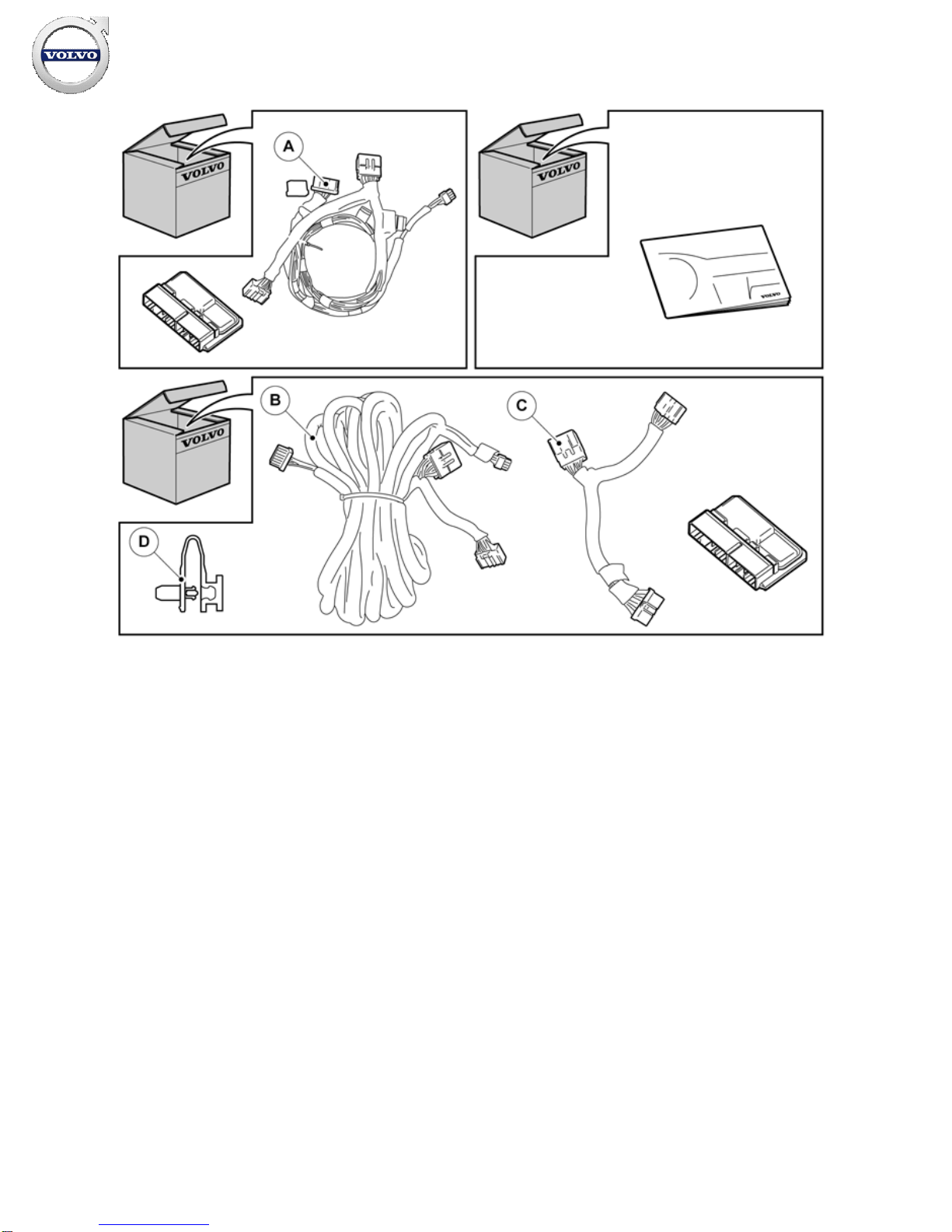

Equipment

A0000162

IMG-

239664

IMG-

332314

IMG-

331666

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 2 / 54

IMG-

331667

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 3 / 54

INTRODUCTION

Read through all of the instructions before starting installation.

Notifications and warning texts are for your safety and to

minimise the risk of something breaking during installation.

Ensure that all tools stated in the instructions are available

before starting installation.

Certain steps in the instructions are only presented in the form

of images. Explanatory text is also given for more complicated

steps.

In the event of any problems with the instructions or the

accessory, contact your local Volvo dealer.

Note!

Wiring A is for vehicles with an internal amplifier that is

located in the media player.

Wiring B and C are for vehicles with an external amplifier

located on the left-hand side of the cargo compartment.

Cars with Performance Sound have internal amplifier.

Cars with the High Performance and Premium Sound audio

systems have external amplifier.

These installation instructions apply to left-hand drive

vehicles. When installing in a right

-hand drive vehicle, the

procedure is carried out on the opposite side and/or mirrored.

Where the operation differs, right-hand versions are also

displayed with text and images.

There may be components in the accessories kit that are not

used for this installation.

Note!

When installing Velcro fasteners/tape the underlying surface

must be kept at a temperature of at least +20° C (68°F).

Place the manual for this accessory in a suitable place in the

vehicle.

Preparations

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 4 / 54

IMG-

331668

Preparations

Set the ignition key to position 0.

J8504532

Open the glovebox.

Pry off the panel in front of the center console. It is secured with

two clips on each short side.

Pull the panel away downwards.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 5 / 54

IMG-

239762

Apply tape to the center console to protect it during removal and

installation of the glove compartment.

IMG-

240082

Remove the panel.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 6 / 54

IMG-

244221

Detach the clip holding the vent from the glove compartment.

J8803318

Remove the rubber mat from the glovebox.

Remove the five screws in the opening.

Pull the glovebox straight back so that the two hidden clips at the

upper edge release.

Remove the outer section of the glovebox.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 7 / 54

IMG-

222669

Unplug the connectors on the top.

IMG-

239763

Remove the screws for the vent.

Pull off the vent to the right and place to one side.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 8 / 54

J8504871

Remove the clips at the rear edge of the soundproofing panel

and remove it.

J8504893

Detach the surround around the display and media player. Press

in the catch in one of the upper corners of the surround using a

small screwdriver. Carefully pry off the surround on the same

side using a weatherstrip tool.

Note!

Do not damage the panel and dashboard.

Do the same on the other side.

Hint

If the panel is difficult to remove, press the panel on both sides

again and repeat the procedure starting at the other side.

Fold the surround backwards. Remove by pulling upwards.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 9 / 54

J8504534

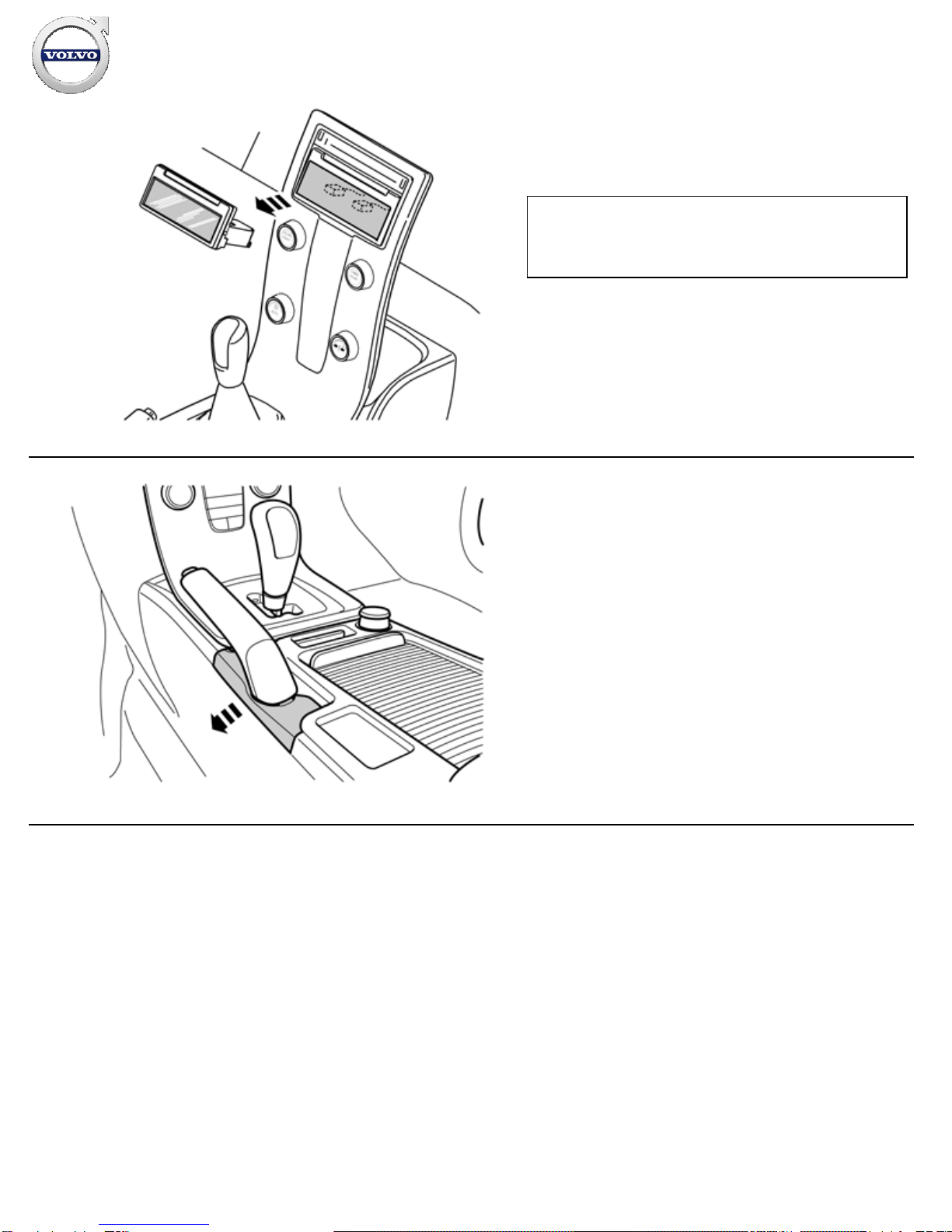

Remove the display with the infotainment control module (ICM). It

is secured by two hidden clips.

Hint

Grip the control module with both hands and pull the control

module straight out of the center console.

Unplug the connectors.

IMG-

263205

Detach the panel by pulling it carefully sideways.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation Handsfree, Bluetooth

31310090

V1.3

Page 10 / 54
