VocoPro CDG-8800 PRO Manual de usuario
Professional Dual-Deck CD/CD+G Player
CDG-8800 PRO
OWNER’S MANUAL
Welcome,
And Thank you for purchasing the CDG-8800 PRO from VocoPro, your ultimate choice
in Karaoke entertainment! With years of experience in the music entertainment
business, VocoPro is a leading manufacturer of Karaoke equipment, and has been
providing patrons of bars, churches, schools, clubs and individual consumers the
opportunity to sound like a star with full-scale club models, in-home systems and mobile
units. All our products offer solid performance and sound reliability, and to further
strengthen our commitment to customer satisfaction, we have customer service and
technical support professionals ready to assist you with your needs. We have provided
some contact information for you below.
VocoPro
1728 Curtiss Court
La Verne, CA 91750
Toll Free: 800-678-5348
TEL: 909-593-8893
FAX: 909-593-8890
VocoPro Company Email Directory
Customer Service & General Information
Tech Support
Remember Our Website
Be sure to visit the VocoPro website www.vocopro.com for the latest information on new
products, packages and promos. And while you’re there don’t forget to check out our
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a
Service directory!
We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in
Karaoke entertainment.
FOR YOUR RECORDS
Please record the model number and serial number below, for easy reference, in case of loss or theft. These
numbers are located on the rear panel of the unit. Space is also provided for other relevant information
Model Number
Serial Number
Date of Purchase
Place of Purchase
1
Table of Contents
Introduction
Safety Instructions ..............................................................................................................
FCC Information .....................................................................................................................
Listening for a Lifetime .......................................................................................................
Specifications and Features .............................................................................................

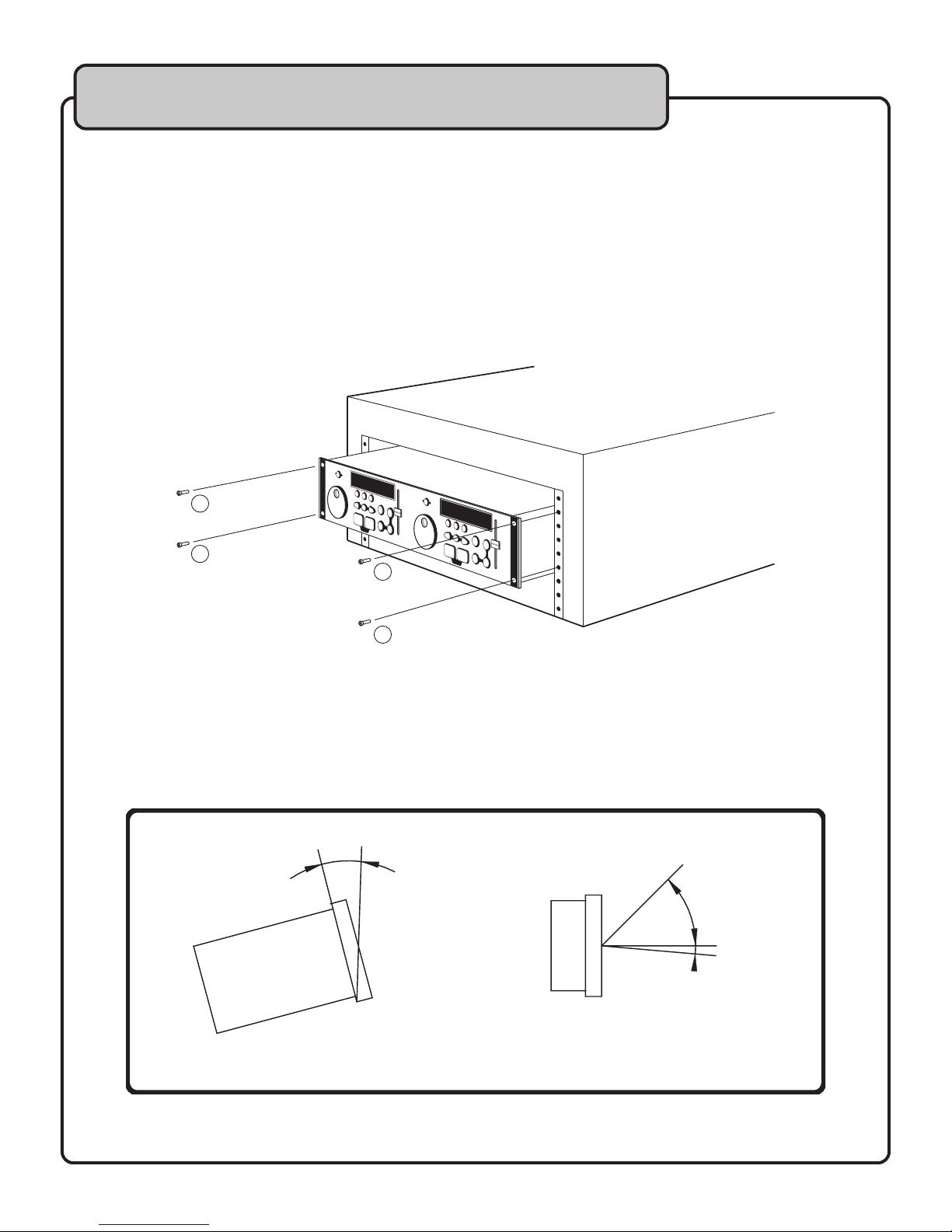

Mounting ......................................................................................................................................
Getting Connected ..................................................................................................................
Controls and Functions

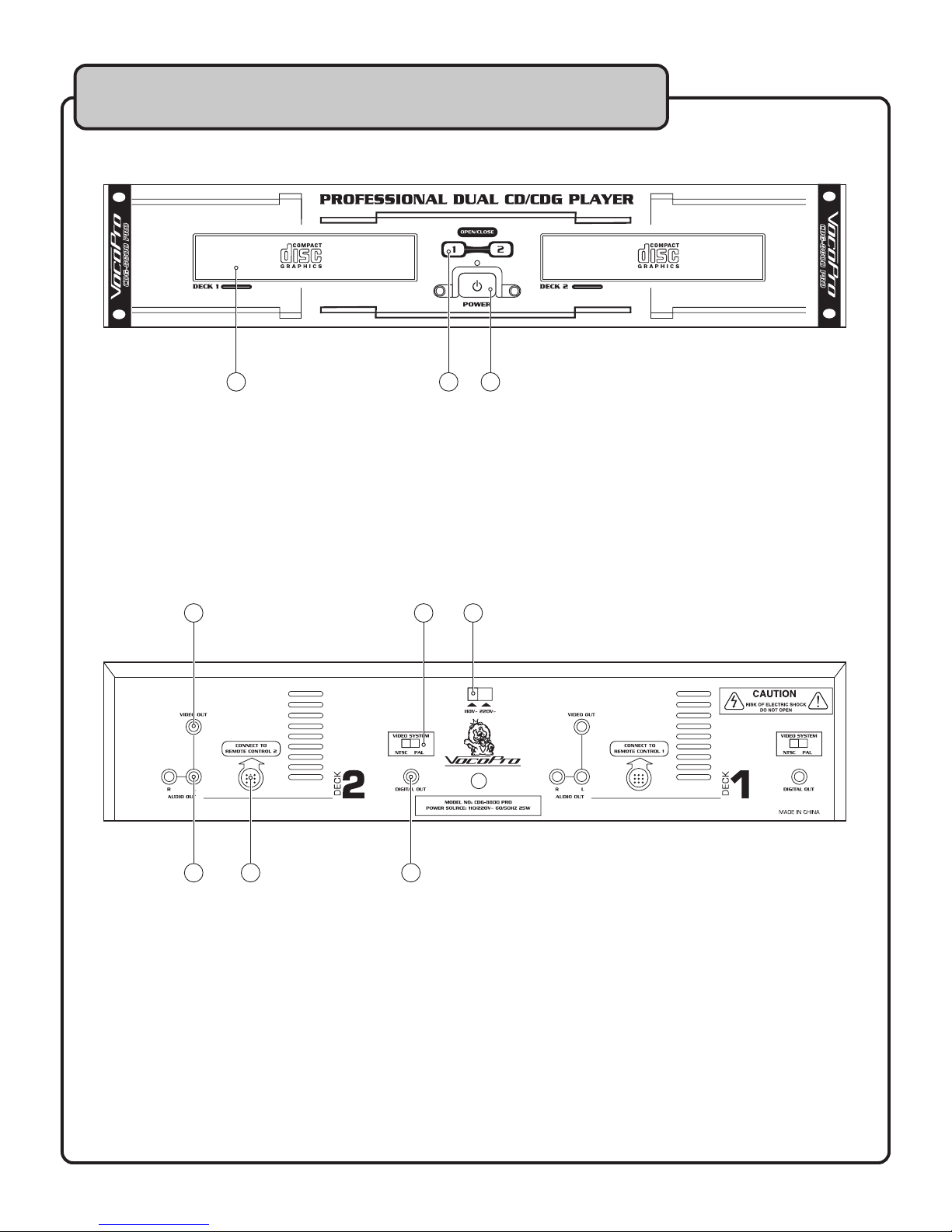

Player Unit
Front Panel ...........................................................................................................................
Rear Panel ............................................................................................................................
Controller Unit
Front Panel ...........................................................................................................................
Rear Panel ............................................................................................................................
Operations ..................................................................................................................................
Troubleshooting .......................................................................................................................
2
3
4
5
6
7
8
8
9
10
11
13
2
Safety Instructions
CAUTION
RISK OF SHOCK
CAUTION: To reduce the risk of electric shock,
do not remove cover (or back). No user-
serviceable parts inside. Only refer servicing to
qualified service personnel.
WARNING
To reduce the risk of fire or electric shock, do
not expose this unit to rain or moisture.
Explanation of Graphical Symbols
The lightning flash & arrowhead
symbol, within an equilateral triangle,
is intended to alert you to the
presence of danger.
The exclamation point within an
equilateral triangle is intended to alert
you to the presence of important
operating and servicing instructions.
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions - All operating and use
instructions should be followed.
5. Attachments - Do not use attachments not
recommended by the product manufacturer as they may
cause hazards.
6. Water and Moisture - Do not use this unit near water.
For example, near a bathtub or in a wet basement and
the like.
7. Carts and Stands - The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.
7 A. An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces may
cause an overturn.
8. Ventilation - The appliance should be situated so its
location does not interfere with its proper ventilation. For
example, the appliance should not be situated on a bed,
sofa, rug, or similar surface that may block the
ventilation slots.
9. Heat - The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.
10. Power Sources - The appliance should be
connected to a power supply only of the type described
in the operating instructions or as marked on the
appliance.
11. Grounding or Polarization – Precautions should be
taken so that the grounding or polarization means of
an appliance is not defeated.
12. Power-Cord Protection – Power-supply cords
should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them,
paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the appliance.
13. Cleaning – Unplug this unit from the wall outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
14. Power lines – An outdoor antenna should be
located away from power lines.
15. Nonuse Periods – The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
16. Object and Liquid Entry – Care should be taken so
that objects do not fall and liquids are not spilled into the
enclosure through openings.
17. Damage Requiring Service – The appliance should
be serviced by qualified service personnel when:
A. The power supply cord or plug has been damaged; or
B. Objects have fallen into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally
or exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure
damaged.
18. Servicing – The user should not attempt to service
the appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
Note:
To CATV system installer s (U.S.A.): This reminder is
provided to call the CATV system installer s attention to
Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected as close to the point of
cable entry as practical.
3
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!: This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved by
Vocopro may void your authority, granted by the FCC,
to use this product.
2. IMPORTANT: When connecting this product to
accessories and/or another product use only high
quality shielded cables. Cable(s) supplied with this
product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your
FCC authorization to use this product in the U.S.A.
3. NOTE: This product has been tested and found to
comply with the requirements listed in FCC Regulations,
Part 15 for Class "B" digital devices. Compliance with
these requirements provides a reasonable level of
assurances that your use of this product in a residential
environment will not result in harmful interference with
other electronic devices. This equipment
generates/uses radio frequencies and, if not installed
and used according to the instructions found in the
owner's manual, may cause interference harmful to the
operation of other electronic devices. Compliance with
FCC regulations does not guarantee that interference
will not occur in all installations. If this product is found
to be the source of interference, which can be
determined by turning the unit "Off" and "On", please try
to eliminate the problem by using one of the following
measures:
Relocate either this product or the device that is being
affected by the interference.
Use power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter(s).
In the case of radio or TV interference, relocate/reorient
the antenna. If the antenna lead-in is 300-ohm ribbon
lead, change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory
results, please contact your local retailer authorized to
distribute Vocopro products. If you can not locate the
appropriate retailer, please contact Vocopro, 1728
Curtiss Court, La Verne, CA 91750.
1. To ensure the finest performance, please read this
manual carefully. Keep it in a safe place for future reference.
2. Install your unit in a cool, dry, clean place - away from
windows, heat sources, and too much vibration, dust,
moisture or cold. Avoid sources of hum (transformers, v
motors). To prevent fire or electrical shock, do not expose to
rain and water.
3. Do not operate the unit upside-down.
4. Never open the cabinet. If a foreign object drops into the
set, contact your dealer.
5. Place the unit in a location with adequate air circulation.
Do not interfere with its proper ventilation; this will cause the
internal temperature to rise and may result in a failure.
6. Do not use force on switches, knobs or cords. When
moving the unit, first turn the unit off. Then gently disconnect
the power plug and the cords connecting to other
equipment. Never pull the cord itself.
7. Do not attempt to clean the unit with chemical solvents:
this might damage the finish. Use a clean, dry cloth.
8. Be sure to read the "Troubleshooting" section on common
operating errors before concluding that your unit is faulty.
9. This unit consumes a fair amount of power even when the
power switch is turned off. We recommend that you unplug
the power cord from the wall outlet if the unit is not going to
be used for a long time. This will save electricity and help
prevent fire hazards. To disconnect the cord, pull it out by
grasping the plug. Never pull the cord itself.
10. To prevent lightning damage, pull out the power cord
and remove the antenna cable during an electrical storm.
11. The general digital signals may interfere with other
equipment such as tuners or receivers. Move the system
farther away from such equipment if interference is
observed.
NOTE:
Please check the copyright laws in your country
before recording from records, compact discs,
radio, etc. Recording of copyrighted material may
infringe copyright laws.
CAUTION
The apparatus is not disconnected from the AC power
source so long as it is connected to the wall outlet,
even if the apparatus itself is turned off. To fully insure
that the apparatus is indeed fully void if residual power,
leave unit disconnected from the AC outlet for at least
fifteen seconds.
CAUTION:
READ THIS BEFORE OPERATING YOUR UNIT
Voltage Selector (General Model Only)
Be sure to position the voltage selector to match the
voltage of your local power lines before installing the
unit.
220V
110V
4
Listening For A Lifetime
Selecting fine audio equipment such as the unit you ve just purchased is only the start of
your musical enjoyment. Now it s time to consider how you can maximize the fun and
excitement your equipment offers. VocoPro and the Electronic Industries Association s
Consumer Electronics Group want you to get the most out of your equipment by playing it
at a safe level. One that lets the sound come through loud and clear without annoying
blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to a higher volume
of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
• Pay attention to the different levels in various recordings.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association s Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise. This list of sound levels is included for your
protection.
Some common decibel ranges:
Level
30
40
50
60
70
80
Example
Quiet library, Soft whispers
Living room, Refrigerator, Bedroom away from traffic
Light traffic, Normal Conversation
Air Conditioner at 20 ft., Sewing machine
Vacuum cleaner, Hair dryer, Noisy Restaurant
Average city traffic, Garbage disposals, Alarm clock at 2 ft.
The following noises can be dangerous under constant exposure:
Level
90
100
120
140
180
Example
Subway, Motorcycle, Truck traffic, Lawn Mower
Garbage truck, Chainsaw, Pneumatics drill
Rock band concert in front of speakers
Gunshot blast, Jet plane
Rocket launching pad
-Information courtesy of the Deafness Research Foundation
5
Features
• Independent dual CD/CD+G players
• “Continue” feature automatically skips to the next
disc tray and begins playing a paused disc when one is
finished
• Single Track Mode stops playback after a single song
has played
• External controller included
• Loop play through integrated sample feature
• Audio frame search for easy searching and cueing
• 12% + /- Pitch Control
• Anti-Scramble feature prevents graphical distortion
when using Pitch Control
• Video output (each deck): RCA video out
• Audio output (each deck): RCA (L/R stereo), Coaxial
• Easy-Search via the Jog Dial on each deck using 4-
Speed Fast Forward/Rewind
• Pitch Slider, Pitch Bender and Jog Dial for BPM match-
ing and synchronization
• Rugged, Professional and Space Saver Design with 19”
Rack Mount Chassis
• 110V-220V and NTSC/PAL switchable for worldwide
compatibility
Specifi cations and Features
• 110V-220V and NTSC/PAL switchable for worldwide
Technical Specifi cations
Linear Quantification 24 Bits
Sampling Frequency 44.1 KHz
Oversampling x8
D/A Converter 24 bits
Frequency response 20Hz -20KHz
Harmonic distortion 0.03%
S/N Ratio -85dB
Dynamic 80 dB
Cross Talk 60 dB
Output Level 1.8V
Load impedance > 47K Ohms
Pitch +/- 12%
Power Supply 115/230 VAC 25W
Dimensions
Controller: 19” x 3.6” x 2.6” (W x H x D)
Main Unit: 19” x 3.6” x 9.9” (W x H x D)
Weight 15.3 lbs.
6
Installing the unit in a rackcase
Mount the CDG-8800 PRO into a console or rack with 19” rack rails. It can be mounted using 4 screws. Make sure
the holes are aligned evenly and screw them in using an alternating “X” rotation to ensure even tension and align-
ment.
NOTE: The player unit and the external controller require 2 RUs of rack-space each. In order mount both, you must
have at least 4 RUs of available rack-space.
Max.
15
45
5
CD/CDG Player Unit Controller Unit
Mounting the CDG-8800 PRO
1
2
3
4
The player will operate properly when the main unit is mounted with the front panel at an angle within 15 degrees of
the vertical plane. If the unit is tilted excessively, discs may not load or unload properly.
7
Connecting the external controller to the player
Getting Connected
Connecting to an Audio System (Mixer, Amp, etc.)
Using L/R RCA cables, connect the AUDIO OUT on each CDG-8800 PRO deck to the AUDIO IN on a mixer or amp.
Connecting to a TV or Monitor
Using an RCA cable (yellow), connect the VIDEO OUT on each CDG-8800 PRO deck to the VIDEO IN on a TV or
monitor. NOTE: If your TV or monitor has only one video input, you may need a video switching device or a mixer
with video switching.
+
-
+
-
LTV-5 (not included)
PKJ 9090 PRO (not included)
Using the included remote cables connect Remote
1 on the remote to Main Unit 1 on the player and
connect Remote 2 to Main Unit 2.
8
DISC TRAY — Insert discs here and press the OPEN/CLOSE button to open and close the disc tray.
OPEN/CLOSE — Opens and closes the corresponding disk tray. Pressing “1” will open and close Disk Tray 1
and pressing “2” will open and close Disk Tray 2.
POWER — When the POWER button is pressed, the power turns on. Pressing the POWER button while the
unit is on will turn the unit off.
Controls and Functions - Player Unit
13
2
VIDEO OUT — This jack outputs the CDG video signal to display graphics on your TV or monitor using RCA video
cables
AUDIO OUT — The audio signals from each player are output from these jacks using RCA left and right cables.
REMOTE CONTROLLER input — Connects to the External Controller’s CONNECT TO MAIN UNIT jacks.
NTSC / PAL switch — Switch between the video modes NTSC and PAL. Use NTSC for North American TV
systems and PAL for European systems.
DIGITAL COAXIAL audio out — Connect the audio to a digital sound system with a coaxial input.
VOLTAGE SELECTOR — This switch can change the voltage from 110V to 220V. The CDG-8800 PRO is
shipped with the switch set to 115V. If you live in an area that has different voltage requirements (230-240V),
you MUST set it to 220V.
5
4
16
23
Front Panel
Rear Panel
1.
2.
3.
4.
5.
6.
1.
2.
3.
