S901 Quick User Guide Document: S901-3
---------------------------------------------------------------------------------------------------------------------------------------------
3

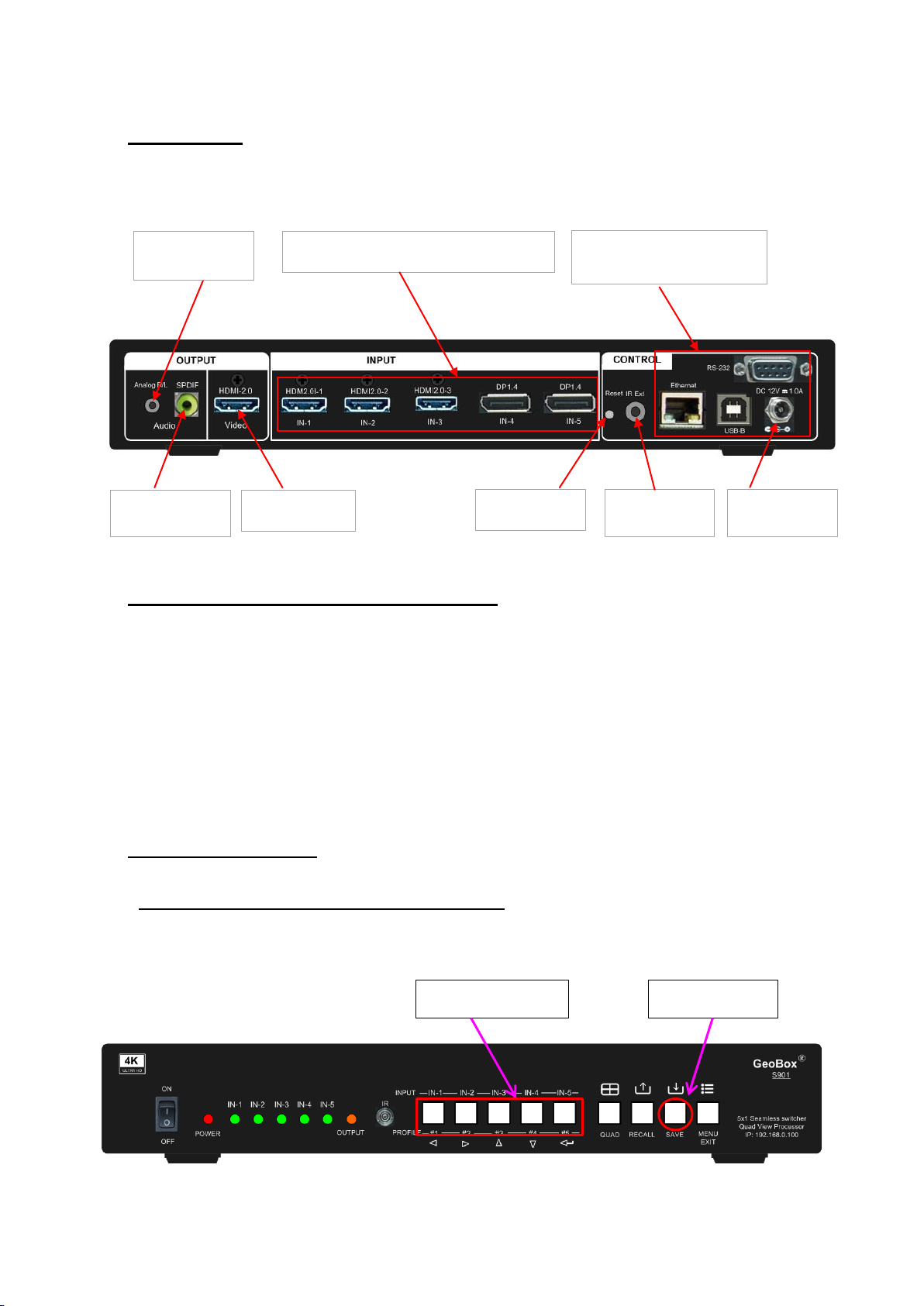

3. Front panel

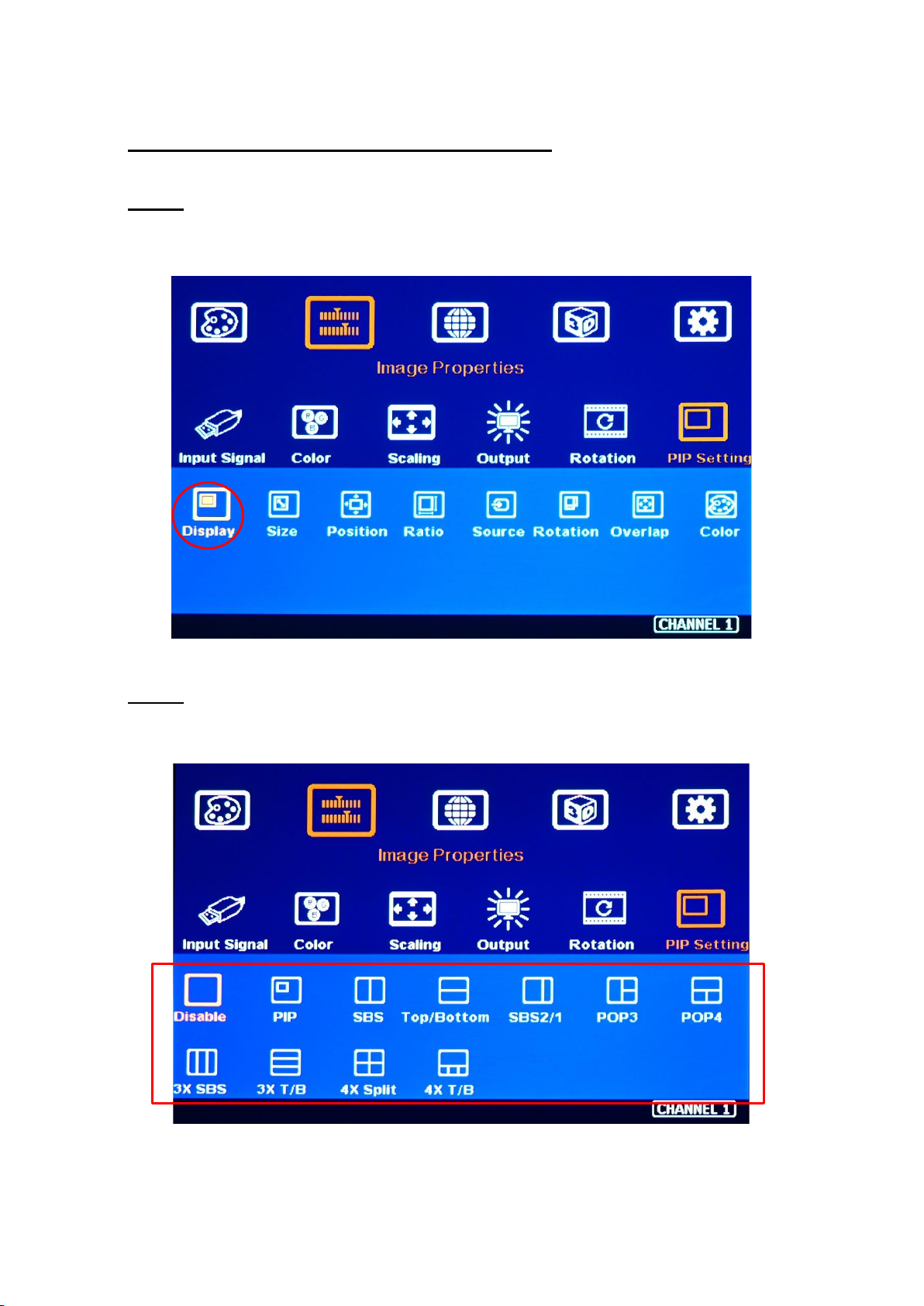

OSD menu operation
➢Activate OSD menu through MENU key
➢Manipulate OSD function through INPUT keypads (same as input selection keys). The symbol are
under each input selection button.
Profile Save and Load (Custom setting Save and Recall)
➢Press [Save] keypad, then select Profile Index # keypad (same as Input selection keys)
➢Press [Recall] keypad, then select Profile Index # keypad (same as Input selection keys)
➢The Index # is under each input selection key.
LED Indicator
➢Input LED will turn to green when S901 has detected input signal.
➢When user selects the input for display, LED will turn to orange.
➢Output LED will turn to orange when S901 has detected display device in the output.
➢Power LED:
➢RED Power LED lighted: Power connected and has been turned off by remote controller. Need
to turn on by remote controller again.
➢GREEN Power LED flashing at 1.0s interval: OSD lock through Lock through remote controller
85x command. Press 850 on remote controller number keys to unlock OSD.
➢GREEN Power LED flashing at 0.5s interval: OSD Lock through press MENU for 5 seconds.
Hold Menu key for 5 seconds to unlock if the system.
Three functions
1. Seamless input selection
2. OSD function key after
activate OSD
3. Index for Profile Save and
Load
