Quick Installation Guide
This guide describes the basic functions of PZ7131/PZ7132
All detailed information is described in the user's manual.
PZ7131/PZ7132
IP Surveillance
Indoor/2.6x Zoom/Dual Streams
English ᖅϛ Рҏᇭ Español Português
ᙏϛ Français Deutsch Italiano Türkçe Polski Русский Česky Svenska
All manuals and user guides at all-guides.com
all-guides.com
EN - 1
English
Contact your distributor when such
cases happen.
Keep the Network Camera away
from water. If the Network Camera
is wet, power off immediately.
Refer to your user's manual for the
operating temperature.
Power off the Network Camera
as soon as it is found smoking or
smelt unusual.
Do not place the Network Camera
around the heat sources, such as
television or oven.
Keep the Network Camera away
from direct sunlight.
Do not place the Network Camera
in high humid environments.
Contact your distributor when such
cases happen.
Warning Before Install
All manuals and user guides at all-guides.com
EN - 2
Do not place the Network Camera
on unsteady surfaces.
Do not touch the Network Camera
when it's lightening.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
Do not insert any object into the
Network Camera, such as needles.
Do not manually pan and tilt the
Network Camera when the power is
on.
All manuals and user guides at all-guides.com
EN - 3
English
Antenna (PZ7132 only) Screws
PZ7131 / PZ7132
Warranty card
Power adapter
Quick installation guide Software CD
Ceiling mount brackets
Package Contents
1
All manuals and user guides at all-guides.com
EN - 4
Front panel
Back panel
Built-in microphone
Status LED
Lens
Mic. In
12VDC Ethernet Ext. I/O Ext. Int.
Audio
Out Indented reset button
Ethernet 10/100
RJ45 socket
External/Internal
microphone switch
General I/O
terminal block
Audio out
Microphone in
Power cord socket
Antenna
(PZ7132 only)
Physical Description
2
All manuals and user guides at all-guides.com
EN - 5
English
Mounting the Network Camera
1. Attach ceiling mount bracket A to the Network Camera and secure it with two
small screws.
2. Drill three pilot holes into the ceiling; hammer the plastic anchors into the holes.
3. Fasten ceiling mount bracket B to the ceiling with three screws.
4. Slide the Network Camera into ceiling mount bracket B.
5. Secure ceiling mount bracket A and B with a small screw.
2
3
4
1
A B
5
Hardware Installation
3
All manuals and user guides at all-guides.com
all-guides.com
EN - 6
Network Deployment
4
General Connection (without PoE)
1. If you have external devices such as sensors and alarms, make connection from
general I/O terminal block.
2. Connect the camera to a switch via Ethernet cable.
3. Connect the supplied power cable from the Network Camera to a power outlet.
Ethernet switch
POWER COLLISION
LINK
RECEI VE
PARTITION
12345
1
2
1: Power
2: Digital ouput
3: Digital input
4: Ground
3
All manuals and user guides at all-guides.com
EN - 7
English

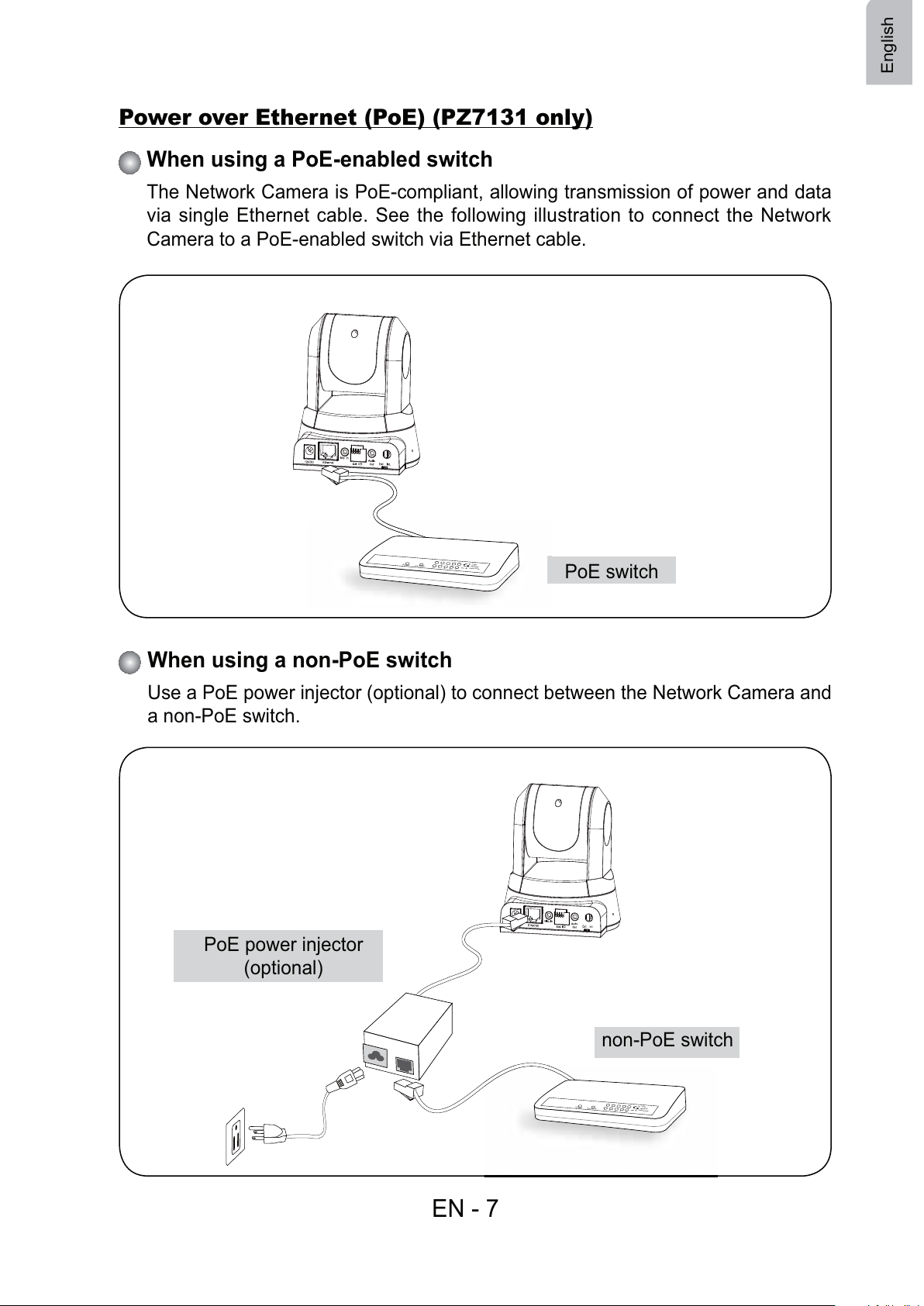

Power over Ethernet (PoE) (PZ7131 only)
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and
a non-PoE switch.
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data
via single Ethernet cable. See the following illustration to connect the Network
Camera to a PoE-enabled switch via Ethernet cable.
POWER COLLISION
LINK
RECEIV E
PARTITION
12345
PoE switch
non-PoE switch
PoE power injector
(optional)
POWER COLLISION
LINK
RECEIV E
PARTITION
12345
All manuals and user guides at all-guides.com
EN - 8
0002D106659E
RoHS
Network Camera
PZ7132
192.168.5.110 PZ7132
00-02-D1-06-65-9E
0002D106659E
1. Install the "Installation Wizard 2" under the Software Utility directory from software
CD.
2. The program will conduct analyses on your network environment. After your
network is analyzed, please click on the "Next" button to continue the program.
3. The program will search the VIVOTEK Video Receivers, Video Servers or Network
Cameras on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC that
matches the one labeled on the bottom of your device to connect the Internet
Explorer to the Network Camera.
Installation
Wizard 2
IW
2
Assigning IP Address
5
All manuals and user guides at all-guides.com
EN - 9
English
For further setup, please refer to user's manual on the software CD.
Ready to Use
6
1. Access to the Network Camera from the Internet.
2. Retrieve live video through web browsers or recording software.
All manuals and user guides at all-guides.com
