Vivotek PT3117 Manual de usuario

- 1 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Product name: Wireless Network Camera (PT3117/PT3127)

Release Date: 2006/08/14

Manual Revision: 1.10

Web site: www.vivotek.com

Email: technical@vivotek.com

[email protected]

- 2 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Before You Use This Product

The use of surveillance devices may be prohibited by law in your country. The

Network Camera is not only a high-performance web-ready camera but also can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the

list in the "Package Contents" chapter. Take notice of the warnings in “Quick

installation guide” before the Network Camera is installed, then carefully read and

follow the instructions in the “Installation” chapter to avoid damages due to faulty

assembly and installation. This also ensures the product is used properly as

intended.

The Network Camera is a network device and its use should be straightforward for

those who have basic network knowledge. The “Troubleshooting” chapter in the

Appendix provides remedies to the most common errors in set up and configuration.

You should consult this chapter first if you run into a system error.

The Network Camera is designed for various applications including video sharing,

general security/surveillance, etc. The “How to Use” chapter suggests ways to best

utilize the Network Camera and ensure proper operations. For the creative and

professional developers, the "URL Commands of The Network Camera" chapter

serves to be a helpful reference to customize existing homepages or integrating with

the current web server.

For paragraphs preceded by the reader should use caution to understand

completely the warnings. Ignoring the warnings may result in serious hazards or

injuries.

- 3 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Table of Contents

Before You Use This Product 2

Package Contents 6

Installation 1

Hardware Installation 1

Software Installation 3

Initial Access to the Network Camera 7

Check Network Settings 7

Add Password to Prevent Unauthorized Access 7

How to Use 8

Authentication 8

Installing Plug-in 9

Primary User’s Capabilities 10

Main Screen with Camera View 10

Client Settings 13

Administrator’s Capabilities 15

Fine-tuning for Best Performance 15

Opening Accounts for New Users 17

Building a Multimedia Web Attraction Site 18

Building a Security Application 21

Building a Security Application 22

Software Revision Upgrade 25

Definitions in Configuration 26

System Parameters 27

User Group Administration 28

Network Settings 29

General 29

HTTP 29

Streaming 30

WLAN Configuration 30

Mail & FTP 32

SMTP 32

- 4 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

FTP 33

DDNS and UPnP Settings 34

Audio/Video Codec Parameters 35

Audio Parameters 35

Video Parameters 35

Camera Control 37

Motion Detection 39

Application Setup 40

Weekly Schedule 40

Event Operation 40

Sequential Operation 41

Remote Controller 42

Viewing System Parameters 43

Factory Default 43

Appendix 44

A. Troubleshooting 44

B. Frequently Asked Questions 46

C. URL Commands of the Network Camera 49

Capture Update Snapshot of JPEG Image 49

Query Status of the Digital Input 49

Drive the Digital Output 49

Restore Factory Default Settings 49

Restart System 50

Page URL 51

System Resource URL 51

General Format of Command URL 52

System Configuration URL 52

Security Configuration URL 53

Network Configuration URL 53

DDNS & UPnP Configuration URL 55

Mail&FTP Configuration URL 56

Audio/Video Configuration URL 57

Camera Control URL 58

- 5 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Image Quality Configuration URL 59

Application Configuration URL 59

D. Pan/Tilt Data 61

Pan 61

Tilt 61

Technical Specifications 63

- 6 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Package Contents

PT3117 or PT3127

Power adapter

A/V Cable

Remote Controller

Antennas

Camera stand

Software CD

Quick installation guide

Warranty card

- 1 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Installation

Hardware Installation

Please verify that your product package contains all the

accessories listed in the foregoing Package Contents.

Depending on the user’s application, an Ethernet cable may

be needed. The Ethernet cable should meet the specs of UTP

Category 5 and not exceed 100 meters in length.

Upon powering up, the device runs through a self-test procedure and the front LEDs

will blink between green and red a few times. If self-test passes, the LEDs will shut off

and the Network Camera will be on stand-by and ready for software installation. If

self-test fails the red LED will blink several times. Refer to Appendix A for

troubleshooting.

The Network Camera will first detect Ethernet. If it does not connect to Ethernet, the

Network Camera will try WLAN. During the searching and connecting process to the

wireless access point or station, the red LED of the Network Camera will flash every

second. Until the Network Camera connects to the other wireless device, the red LED

will become lighted. Operating in either network mode, the green LED will flash every

second as heartbeat to indicate alive.

To install in Ethernet

Make sure the Ethernet is firmly connected to a switch hub. After attaching the

Ethernet cable plug in the power adapter. If the LED turns out to be steady green after

Connect the power adapter jack to the Network

Camera before plugging in to the power socket. This will

reduce the risk of accidental electric shock.

- 2 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

self-test, go to next paragraph “Software installation”. If the Ethernet is not available,

Network Camera will switch to wireless LAN mode.

To install in wireless LAN

If the Ethernet is not available while power on, the Network Camera will search for any

access point with the SSID “default”. Once any access point is found, the LED will turn

green to wait for installation. If the network environment cannot meet the default

settings, install Network Camera in Ethernet to proceed with wireless LAN

configuration.

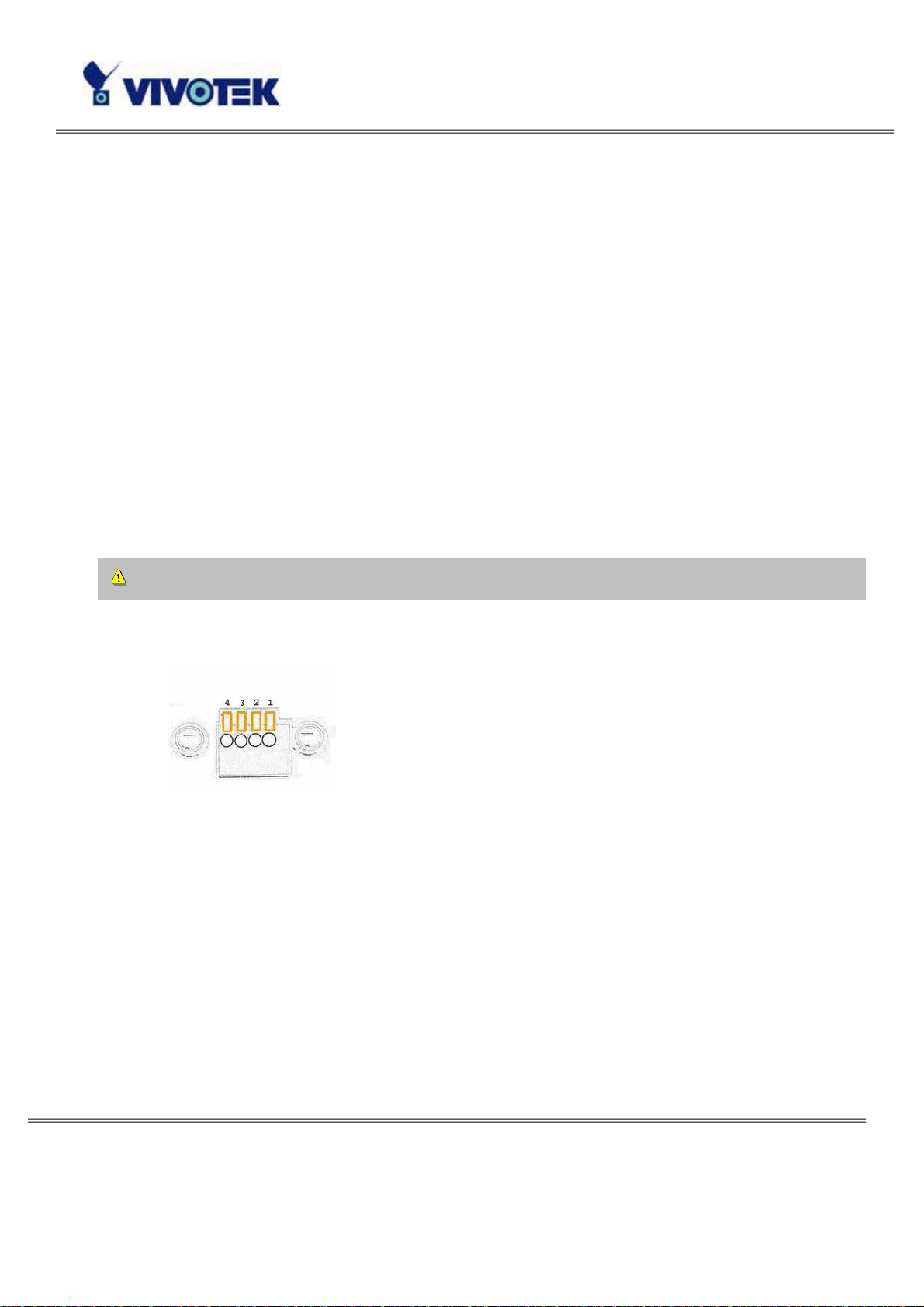

The Network Camera provides a general I/O terminal block with one digital input and

one relay switch for device control. Pin 1 and Pin 2 can be connected to an external

sensor device and the state of voltage can be monitored from the initial state 'LOW'.

The relay switches Pin 3 and Pin 4 can be used to turn on or off an external device.

Consult with the dealer of the peripherals for correct installation.

1 DI+ INPUT(Max. 50mA,12VDC)

2 DI- INPUT(InitialstateofDI is Low)

3 SW_COMMON OUTPUT (open from SW_OPEN at initial state)

(close with SW_OPEN when DO is set to ON)

4 SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC)

- 3 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and

"Administrator" refers to the person who can configure the Network Camera and grant

user access to the camera.

At the end of the hardware installation, the Administrator must place the product

software CD into the CD-ROM drive of the PC running in MS Windows. An auto-run

program will pop up (If the program is not on auto-run, go to the root directory of the

software CD and click on “autorun.exe”).

Click on “Software Utility” item, after the window contains changed, click on

“Installation Wizard” to run Vivotek’s installation program.
