Vivotek IP7151 Manual de usuario

EN - 1

English

Contact your distributor when such

cases happen.

Keep the Network Camera away

from water. If the Network Camera

is wet, power off immediately.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera

as soon as it is found smoking or

smelt unusual.

Do not place the Network Camera

around the heat sources, such as

television or oven.

Keep the Network Camera away

from direct sunlight. Do not place the Network Camera

in high humid environments.

Contact your distributor when such

cases happen.

Warning Before Install

IP7151_7152_QIG.indd 1 2007/9/19 上午 09:34:40

EN - 2

Do not place the Network Camera

on unsteady surfaces. Do not touch the Network Camera

when it's lightening.

Do not disassemble the Network

Camera. Do not drop the Network Camera.

Do not insert any object into the

Network Camera, such as needles.

IP7151_7152_QIG.indd 2 2007/9/19 上午 09:34:42

EN - 3

English

Camera stand

Lens

IP7151 / IP7152

Warranty card

Power adapter

Quick installation guide

Software CD

Check Package Contents

Antenna (IP7152 only)

EN - 4

Power cord socket

Ethernet 10/100

RJ45 socket

Indented reset button

General I/O

terminal block

Audio out

MIC in

External/Internal

MIC switch

Front panel

Back panel

Lens

Focus controller

Zoom controller

2Physical Description

Built-in MIC

Light sensor

Status LED

Antenna

(IP7152 only)

Antenna

(IP7152 only)

IP7151_7152_QIG.indd 4 2007/9/19 上午 09:34:48

EN - 5

English

Indented reset button

For further setup, please refer to the lens' instruction manual inside the

lens package.

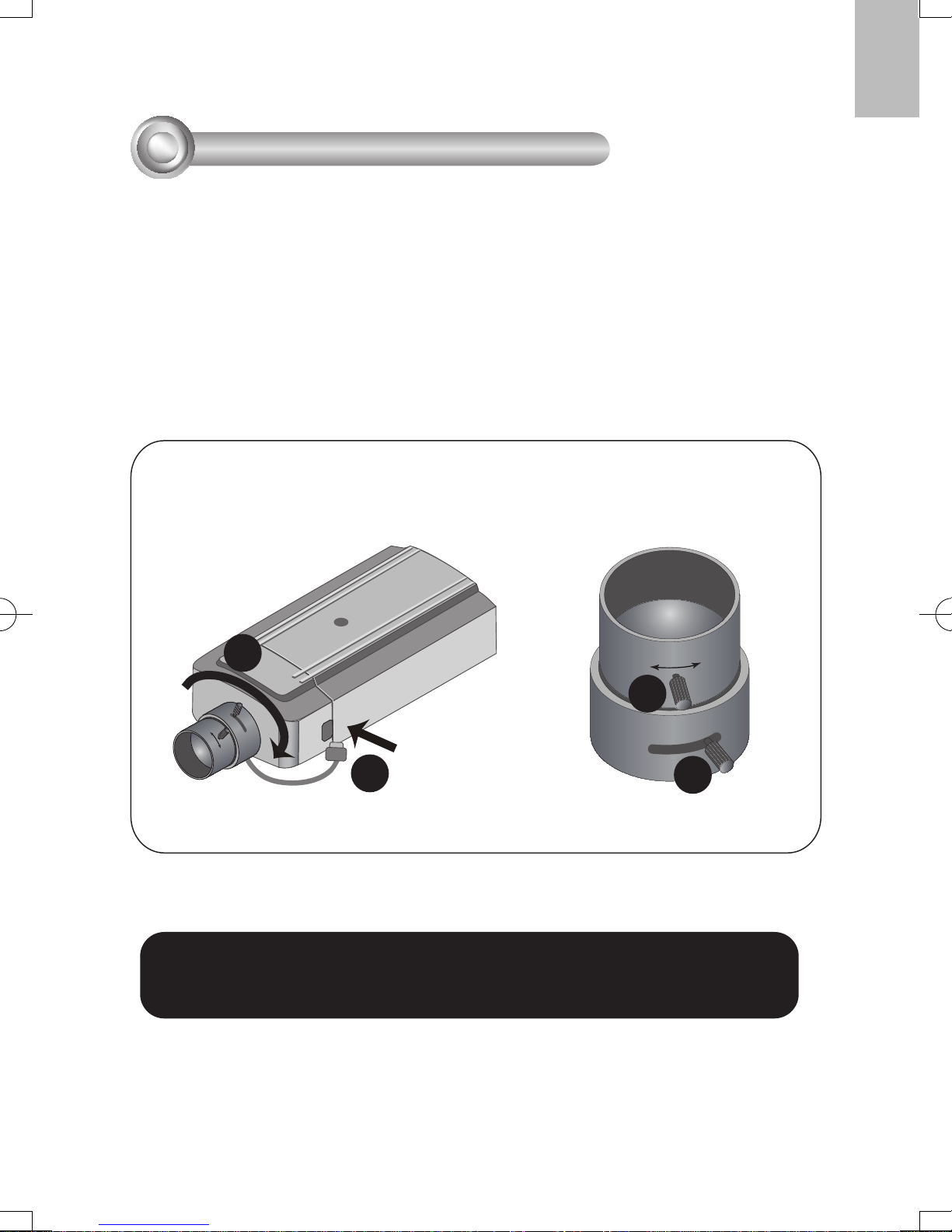

1. Mount the lens by turning it clockwise onto the camera mount until it stops. If

necessary, turn the lens counterclockwise slowly until it gets the best attitude.

2. Connect the lens cable plug to the camera connector.

3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten

the zoom controller.

4. Unscrew the focus controller to adjust the focus range. Upon completion, tighten

the focus controller.

∞

3Mounting the Lens to the Camera

IP7151_7152_QIG.indd 5 2007/9/19 上午 09:34:49

EN - 6

General Connection (without PoE)

. Connect the camera to a hub via Ethernet cable.

. Connect the supplied power cable from the camera to a power outlet.

POWER COLLISION

LINK

RECEIV E

PARTITION

12345

Ethernet hub

Network Deployment

EN -

English

Power over Ethernet (PoE) (IP7151 only)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE hub

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

When using a non-PoE hub

Use a PoE power injector (optional) to connect between the camera and a non-

PoE hub.

non-PoE hub

PoE power injector

(optional)

When using a PoE-enabled hub

The camera is PoE-compliant, allowing transmission of power and data via single

Ethernet cable. See the following illustration to connect the camera to a PoE-

enabled hub via Ethernet cable.

EN - 8

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

RoHS

Network Camera

Model No:IP7151

Pat. 6,930,709 Made in Taiwan

MAC:0002D1070417

1. Run the "Installation Wizard 2" under the Software Utility directory from software

CD.

2. The program will conduct analyses on your network environment.After your

network is analyzed, please click on the "Next" button to continue the program.

3. The program will search the Vivotek Video Receivers, Video Servers or Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that

matches the one labeled on the bottom of your device to connect the Internet

Explorer to the Network Camera.

00-02-D1-07-04-17 192.168.0.219 IP7151

Installation

Wizard 2

5Assigning IP Address

0002D1070417

IP7151_7152_QIG.indd 8 2007/9/19 上午 09:34:52

EN - 9

English

For further setup, please refer to user's manual on the software CD.

6Retrieving Images

IP7151_7152_QIG.indd 9 2007/9/19 上午 09:34:52
