Vivo MOUNT-VESA01 Manual de usuario

VESA Bracket Designed for Intel® NUC

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vesa01

SKU: MOUNT-VESA01

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

ASSEMBLY STEPS

STEP 1 (Option A)

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

M-A (x4)

M4x12mm

Screw

M-B (x4)

M5x12mm

Screw

M-C (x4)

M4x20mm

Screw

M-D (x4)

M5x20mm

Screw

If you do not understand these directions, or if you have any doubts about the safety of the installation, please

call a qualied technician. Check carefully to make sure there are no missing or defective parts. Improper

installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly

specied in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by

improper mounting, incorrect assembly or inappropriate use.

M-F (x8)

Spacer

M-E(x4)

M5 Washer

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

M-G (x4)

M4x5mm

Screw

Flat Back Monitor

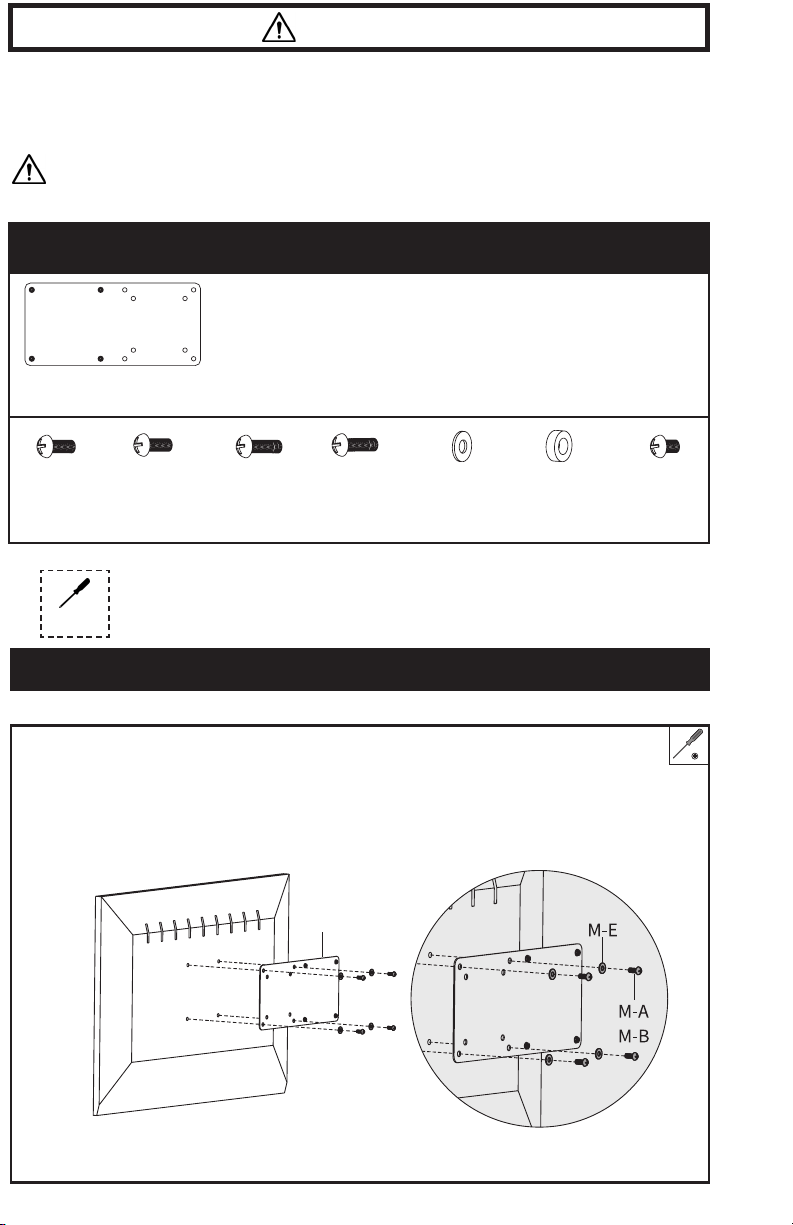

Assemble Plate (A) to the monitor using Screws (M-A or M-B) and M5 Washers (M-E).

A (x1)

Plate

Curved Moniors

Assemble Plate (A) to the

monitor using Screws (M-C or

M-D) with M5 Washers (M-E)

and Spacers (M-F).

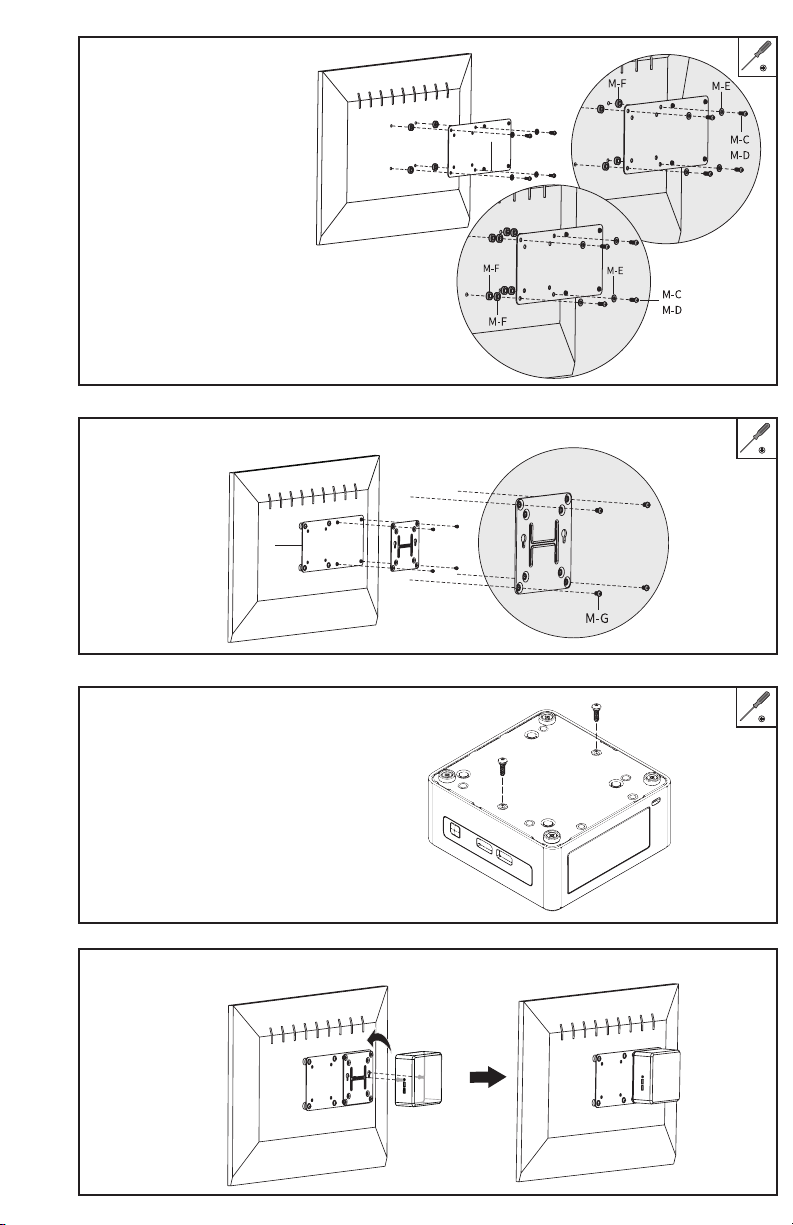

STEP 2

Secure the NUC VESA plate to Plate (A) using M4x5mm Screws (M-G).

STEP 4

Insert the heads of the two screws on the chassis into the holes on the NUC VESA bracket. Slide the

chassis down to secure.

STEP 1 (Option B)

STEP 3

Attach the M3 screws that came with the device

to the bottom of the NUC chassis.

LAST UPDATED: 01/31/2022

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
