Vivo STAND-V101J Manual de usuario
Single Monitor and TV Desk Stand
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v101j
SKU: STAND-V101J
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

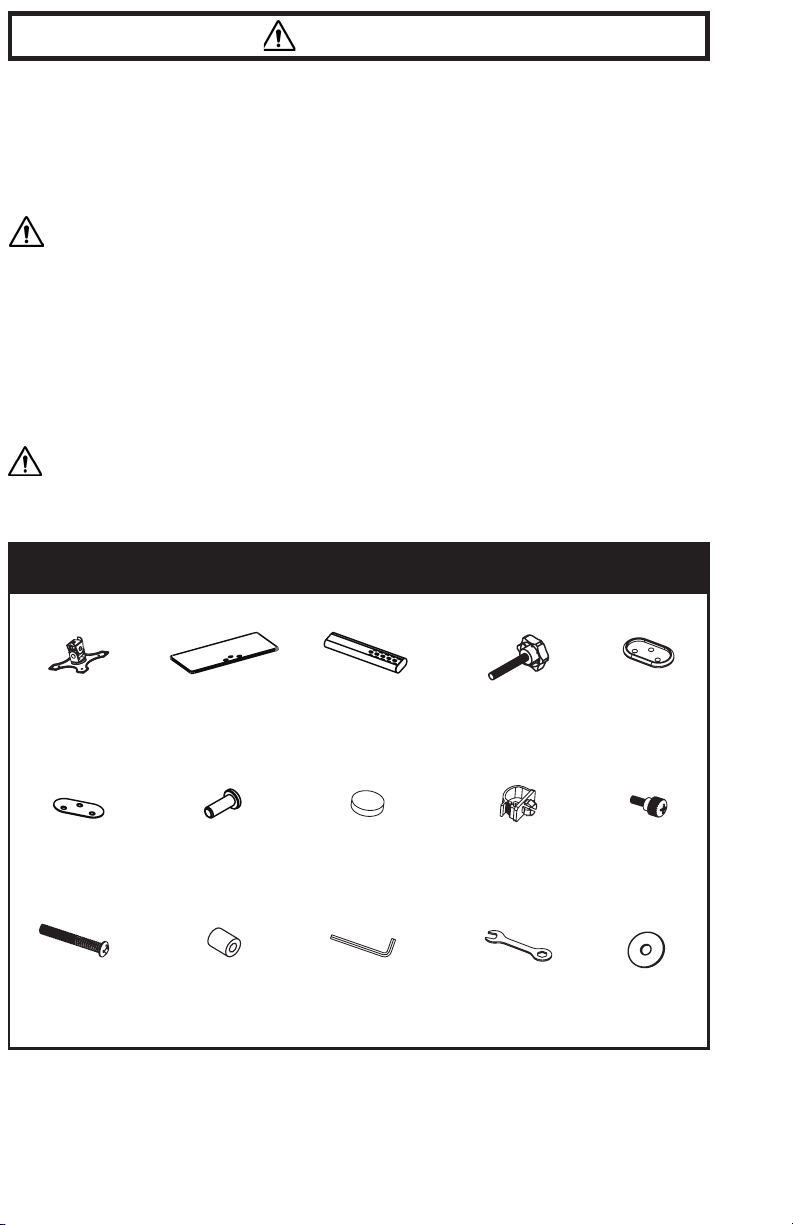

PACKAGE CONTENTS
A (x1)
VESA Bracket
B(x1)
Tempered Glass
Base
C(x1)
Support
Column
J (x4)
M4x12
Thumbscrew
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
D(x1)
Knob
E(x1)
Plastic Pad
F (x1)
Metal Pad
G (x3)
M8x22 Bolt
H (x4)
Rubber Foot
I (x2)
Wire Clip
K (x4)
M4x30
L (x4)
M4 Spacer
M (x1)
Allen Wrench
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
N (x1)
Wrench
O (x1)
M6 Washer
3
ASSEMBLY STEPS

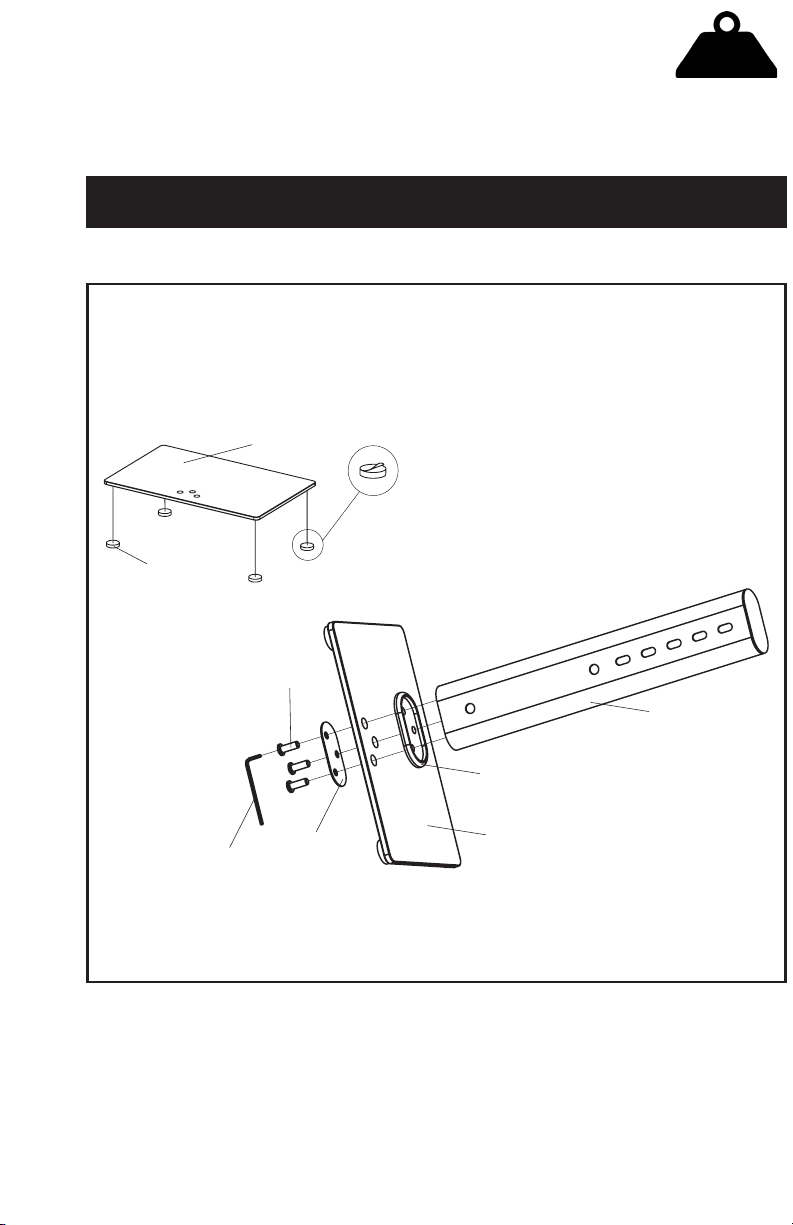

STEP 1
17.6lbs
(8 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Stick the rubber feet (H) to the bottom (painted side) of the tempered glass base (B). Place the
support column (C) and plastic pad (E) on the top of the base, and secure using the M8x22 bolts (G)
and metal pad (F) underneath. Tighten using the Allen wrench (M).
H
B
G
MFB
E
C
4

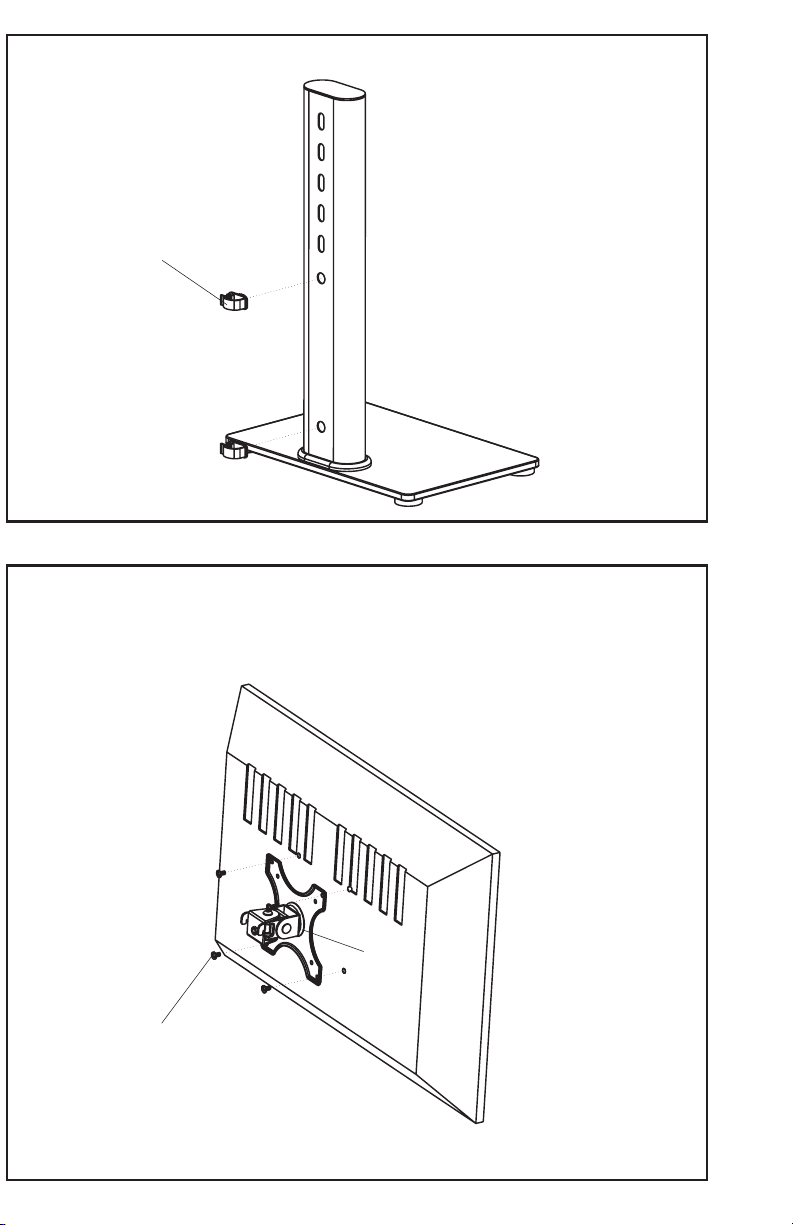

STEP 2
STEP 3
Attach the wire clips (I) to the back of the support column.
OPTION A: Flat Back Monitor
Mount the VESA bracket (A) to the back of the monitor using M4x12 thumbscrews (J), making sure the
rear hooks are facing down.
A
J
I
5

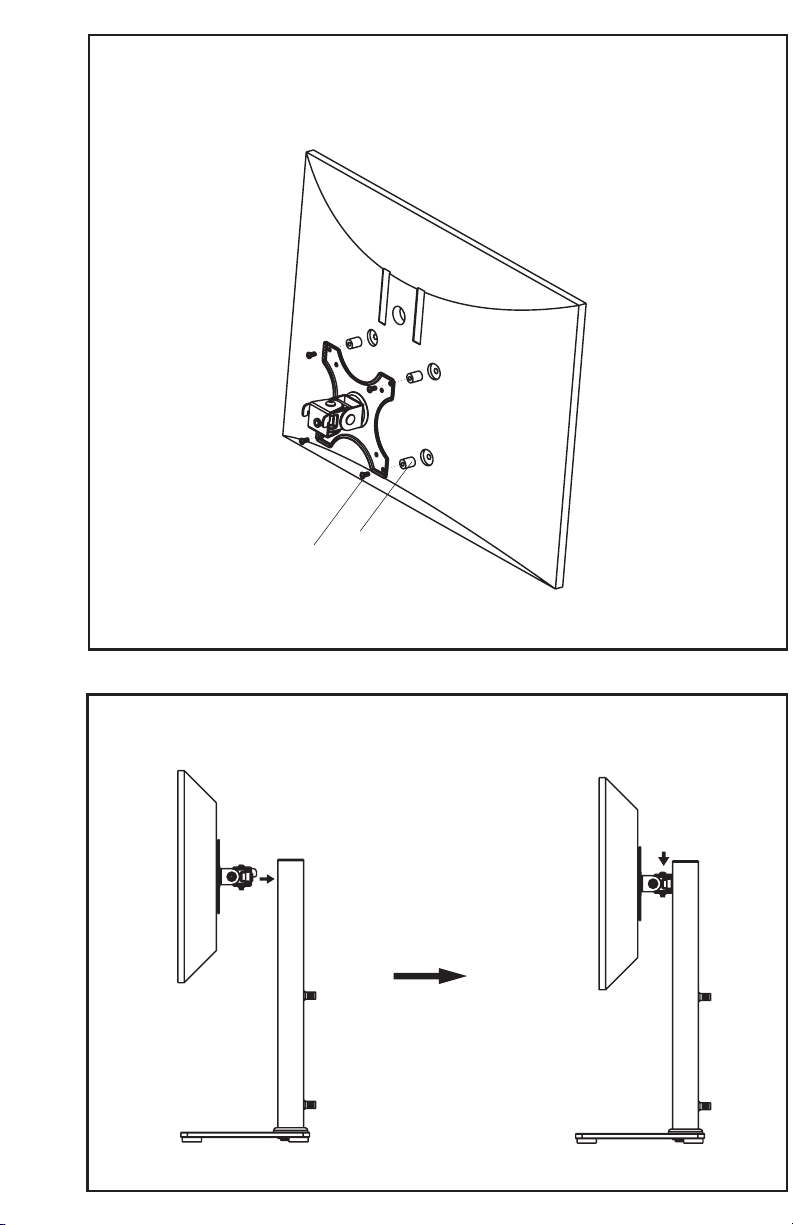

STEP 3 (Continued)
OPTION B: Curved Back Monitor
Mount the VESA bracket (A) to the back of the monitor using M4x30 screws (K) with spacers (L),
making sure the rear hooks are facing down.
STEP 4
Attach the monitor with VESA bracket to the support column by placing the rear hooks into slots at
the desired height.
L
K
A
6

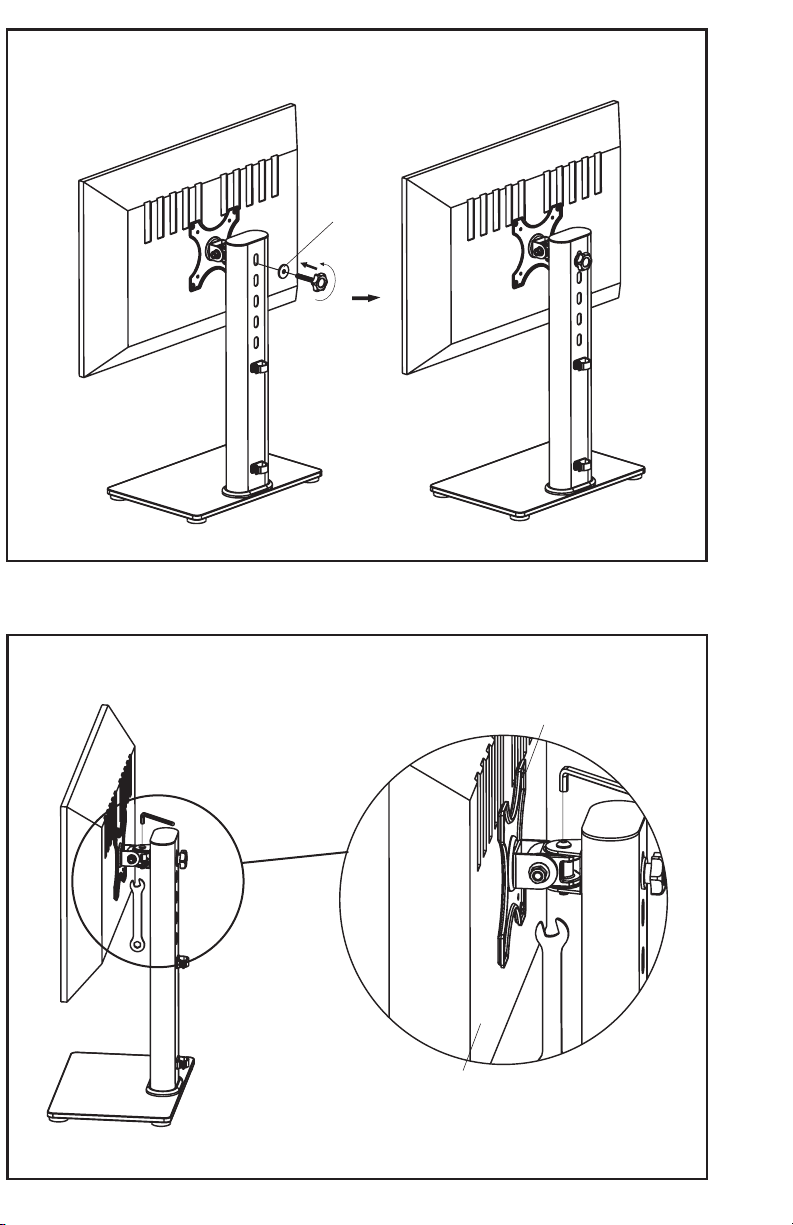

STEP 5
Insert the knob (D) with M6 Washer (O) through the back of the support column to secure the VESA
bracket.
STEP 6
Adjust the tilt and swivel joints using the wrench (N) and Allen wrench (M).
O
M
N
7

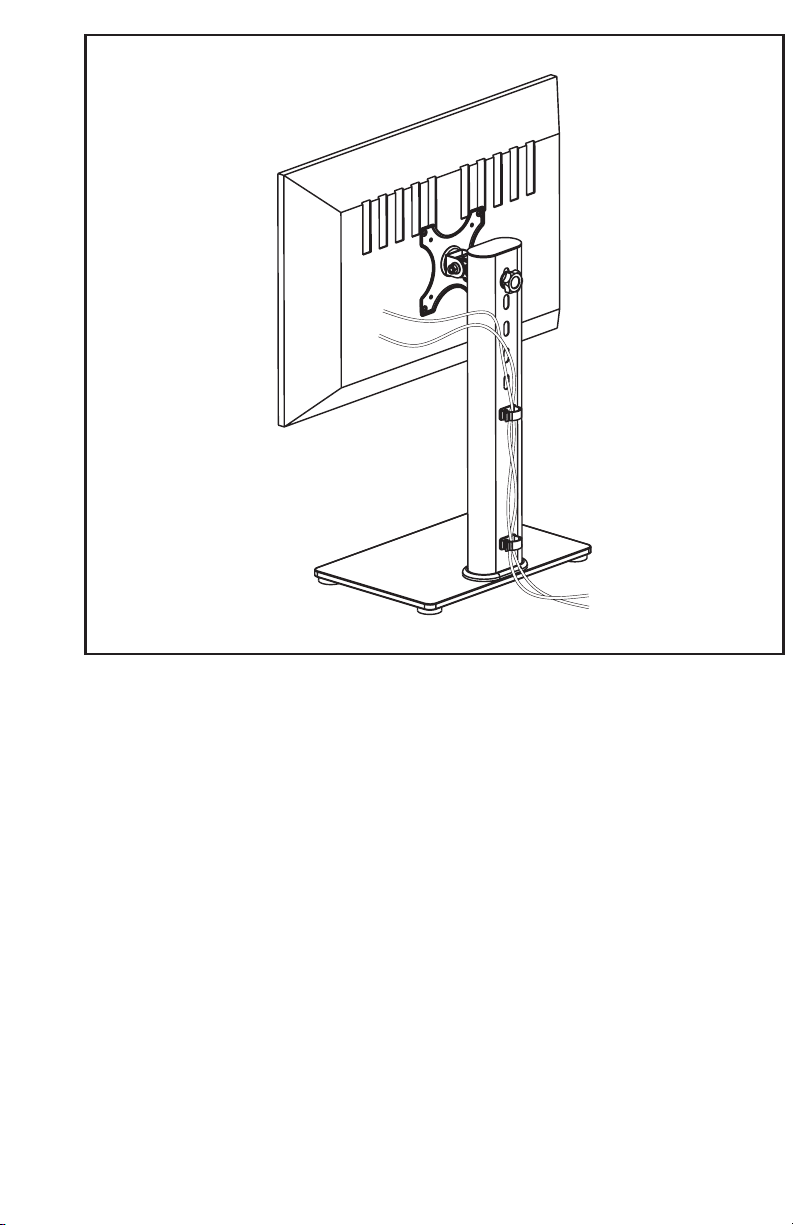

STEP 7
Organize cables in back using the wire clips (I).
LAST UPDATED: 03/18/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
