Vivo STAND-V100B Manual de usuario

Single Monitor Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v100b

SKU: STAND-V100B

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

A (x1)

Arm

B(x1)

Pole

C(x1)

Clamp

J (x1)

4mm Allen

Wrench

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x1)

VESA Plate

E(x1)

Pole Cable

Clip

F (x2)

Arm Cable

Clip

G(x1)

Pole Cap

H (x3)

M6x16

I (x1)

Thumbscrew

K (x1)

6mm Allen

Wrench

M-A (x4)

M4x12

M-B (x4)

M4x16

M-C (x4)

M5x12

M-F (x4)

Spacer

M-D (x4)

M5x16

M-E (x4)

D5 Washer

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

17.6lbs

(8 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

Attach the pole cap (G) to the top of the pole (B).

STEP 2

Attach the pole (B) to the clamp (C) using M6x16 bolts (H) and tighten using the 4mm Allen wrench

(J). Attach the clamp (C) to the desktop.

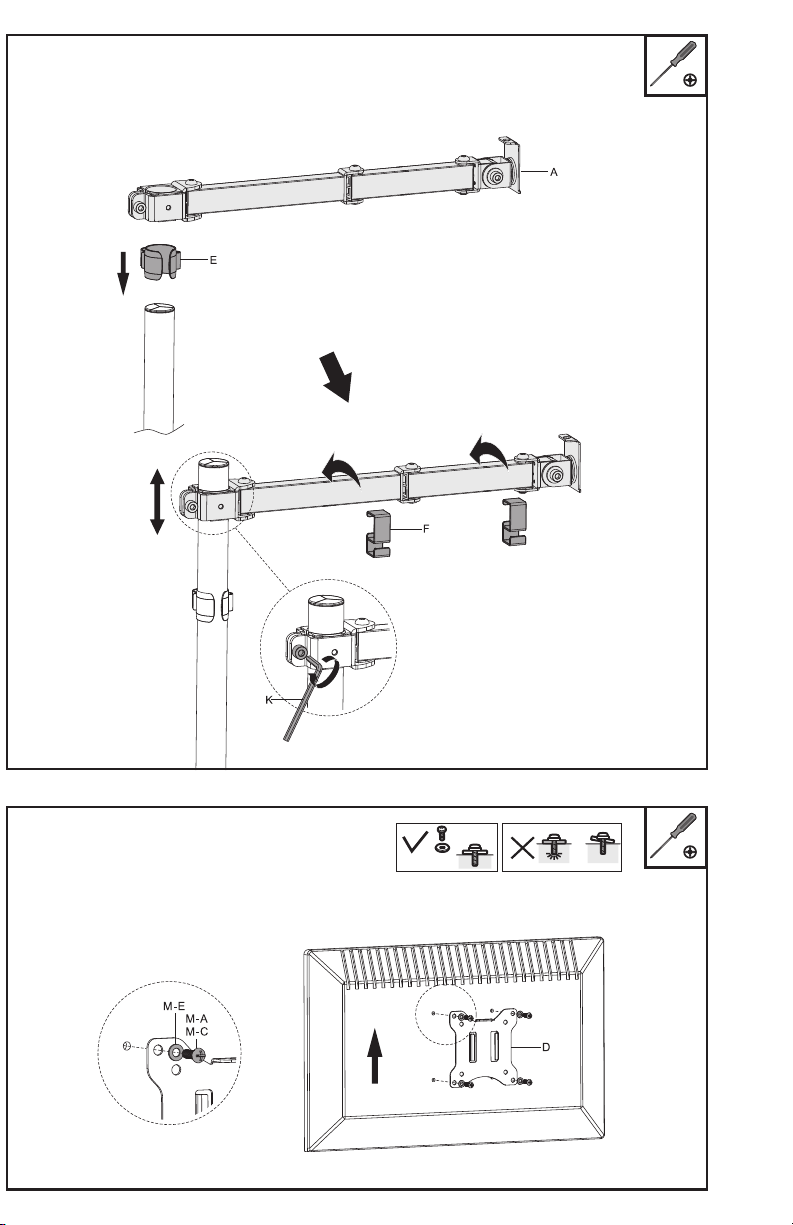

STEP 3

Slide the pole cable clip (E) and arm (A) onto the pole (B) and tighten using the 6mm Allen

wrench (K). Attach the arm cable clips (F) to the arm (A).

STEP 4

OPTION A: Flat Back Monitor

Attach the VESA plate (D) to the monitor using bolts

(M-A or M-C) and washers (M-E). Tighten with a

Phillips screwdriver.

STEP 4 (Continued)

OPTION B: Curved Back Monitor

Attach the VESA plate (D) to the monitor using bolts

(M-B or M-D), washers (M-E) and spacers (M-F).

Tighten with a Phillips screwdriver.

Slide the VESA plate (D) onto the arm (A) and secure using the thumbscrew (I).

STEP 5

STEP 6

Tighten or loosen the tilt joint using the 6mm Allen wrench (K).

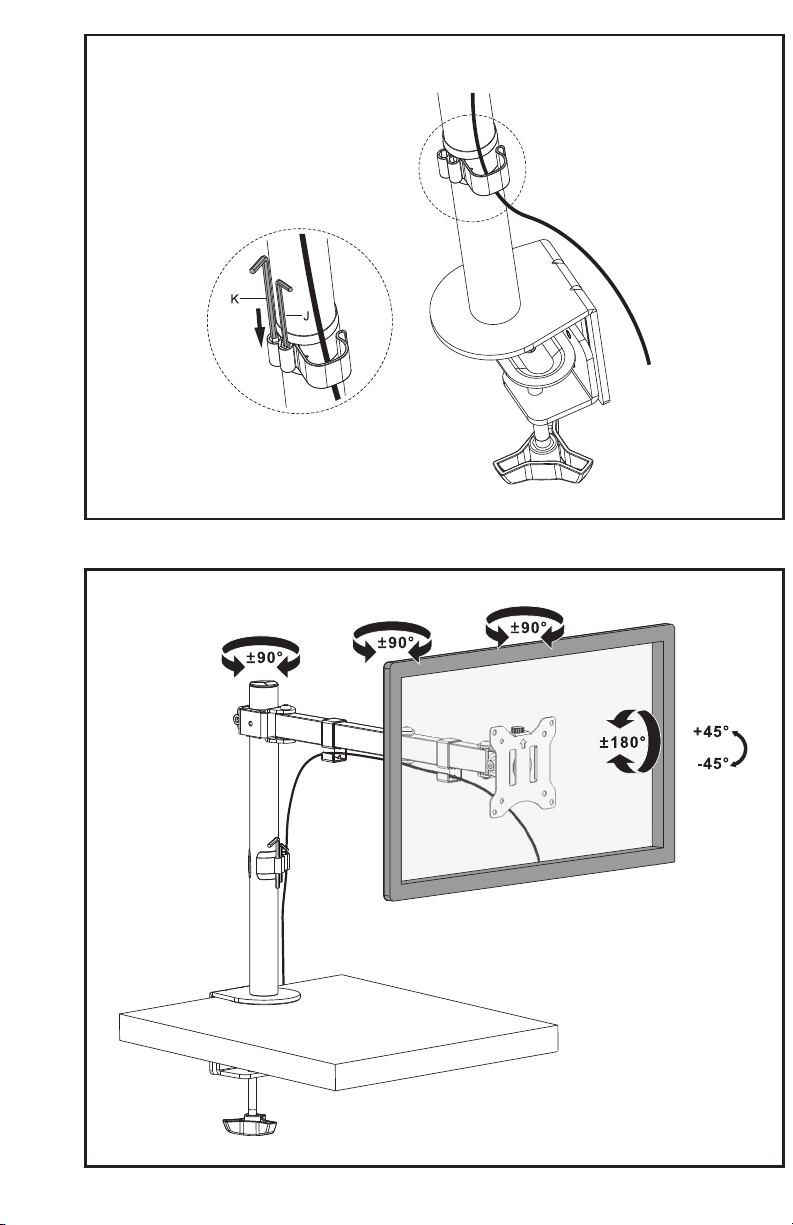

STEP 7

Route cables through the cable management clips (E,F).

STEP 8

Store tools in the cable clip.

Adjust as Desired

LAST UPDATED: 09/11/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
