Vivo STAND-V002C Manual de usuario

Single Monitor and Laptop Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002c

SKU: STAND-V002C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

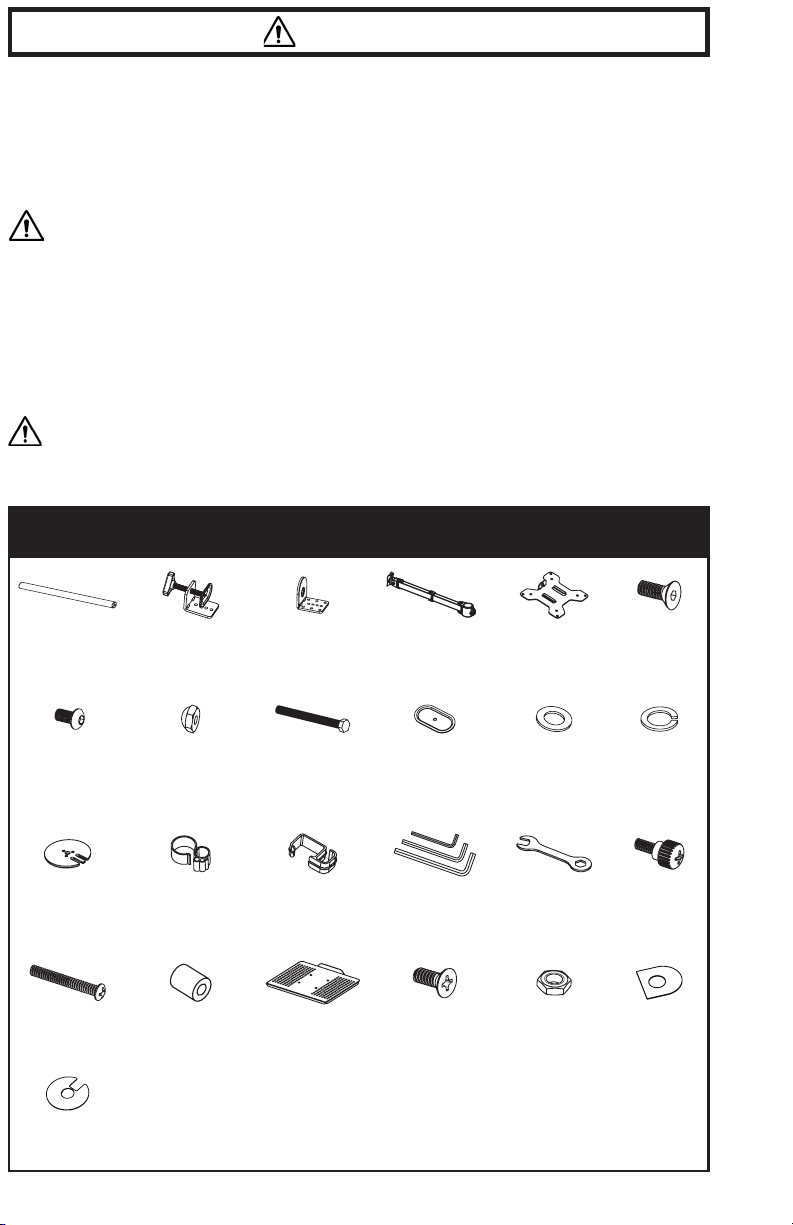

PACKAGE CONTENTS

a (x1)

Pole

b(x1)

Clamp

c(x1)

Clamp Brace

j (x1)

Support Plate

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

d(x2)

Swivel Arm

e(x2)

VESA Plate

f (x3)

M5x14

g (x2)

M8x12

h (x2)

Security Nut

i (x1)

M10 Bolt

k (x1)

M10 Washer

o (x1)

Allen Key

l (x1)

Spring Washer

m (x1)

Grommet Base

Plate

n1 (x1)

Cable Clip

p (x1)

Wrench

t (x1)

Laptop Tray

q (x8)

M4x12

r (x8)

M4x30

s (x8)

M4 Spacer

u (x4)

M4x10 Bolt

v (x4)

M4 Nut

w1 (x1)

So Pad

w2 (x1)

So Pad

n2 (x4)

Cable Clip

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

22lbs

(9.98kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

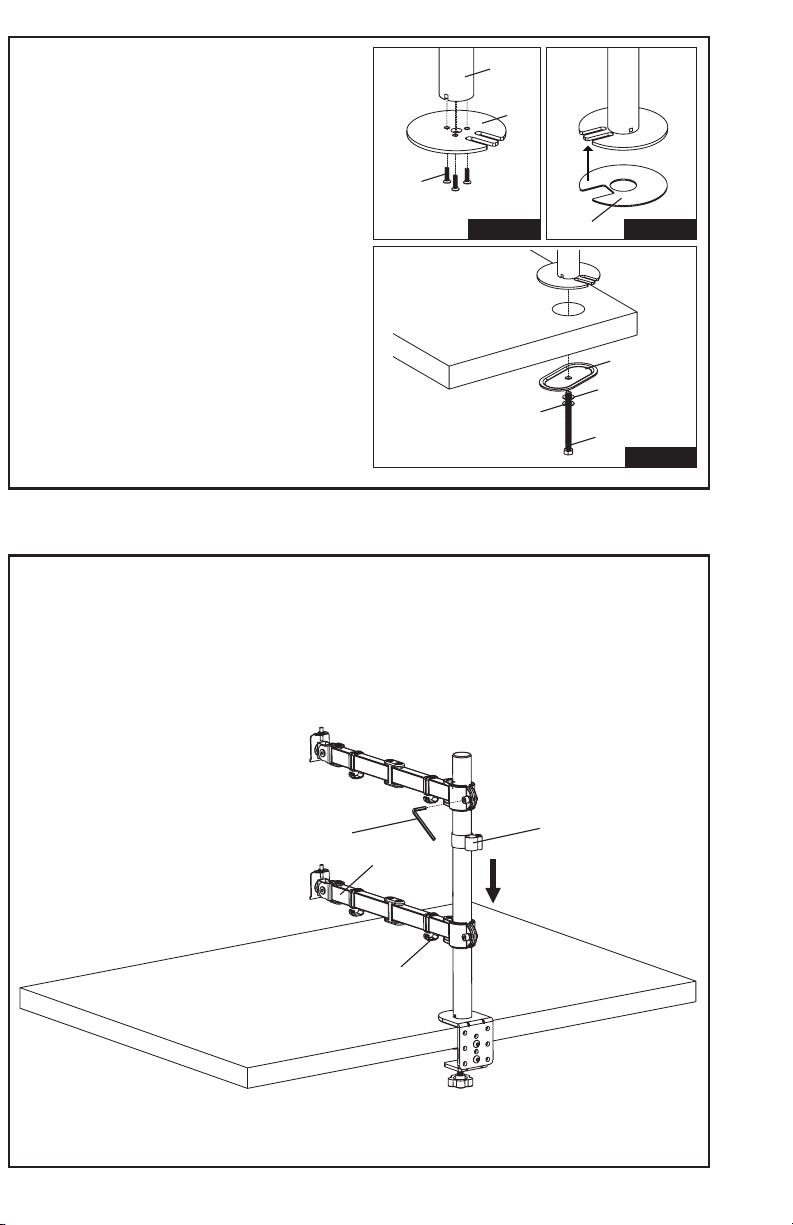

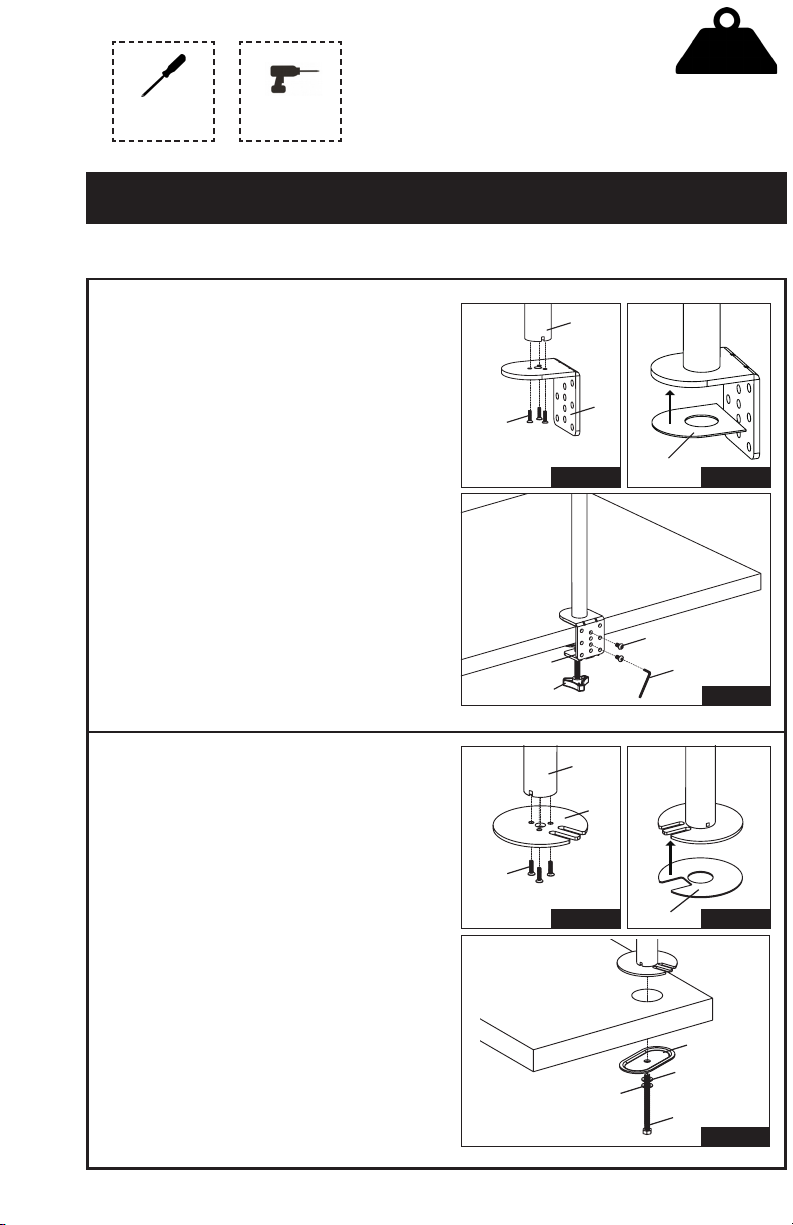

OPTION A: Clamp Installation

1. Install the “C” Clamp Brace (c) to the Pole (a)

using 3pcs M5x14 Bolts (f), and tighten using

the Allen Key (o), see Figure 1.

2. Attach So Pad (w1) to the “C” Clamp Brace

(c), see Figure 2.

3. Install the “C” Clamp (b) to the pole assembly

according to the thickness of the desktop. The

thickness can be changed to three positions.

Connect it using 2pcs M8x12 Bolts (g), and

tighten using the Allen Key (o). Tighten the

“C” Clamp (b) to the desktop using the plastic

knob, see Figure 3.

OPTION B: Existing Grommet Base Installation

1. If the existing grommet hole comes with a

plastic protector, remove it to ensure a flat

surface before installing the desk mount.

Install the Grommet Base Plate (m) to the Pole

(a) using 3pcs M5x14 Bolts (f), and tighten

using the Allen Key (o), see Figure 4.

2. Attach So Pad (w2) to the Grommet Base

Plate (m), see Figure 5.

3. Position the Pole (a) on the mounting surface

and secure using the Support Plate (j), M10

Washer (k), Spring Washer (l) and M10 Bolt (i).

Fasten the M10 Bolt using provided Wrench (p),

see Figure 6.

Plastic Knob

Figure 1

Figure 3

Figure 2

Figure 4

Figure 6

w2 Figure 5

Drill

STEP 1 (Continued)

OPTION C: Self-Drilled Grommet Base Installation

1. Position the Pole (a) on the mounting surface

and mark the center hole. Drill a 3/8” (10mm)

diameter hole at the marked position through

the mounting surface. Install the Grommet

Base Plate (m) to the Pole (a) using 3pcs

M5x14 Bolts (f), and tighten using the Allen

Key (o), see Figure 7.

2. Attach So Pad (w2) to the Grommet Base

Plate (m), see Figure 8.

3. Position the Pole (a) on the mounting surface

and secure using the Support Plate (j), M10

Washer (k), Spring Washer (l) and M10 Bolt (i).

Fasten the M10 Bolt using provided Wrench

(p), see Figure 9.

STEP 2

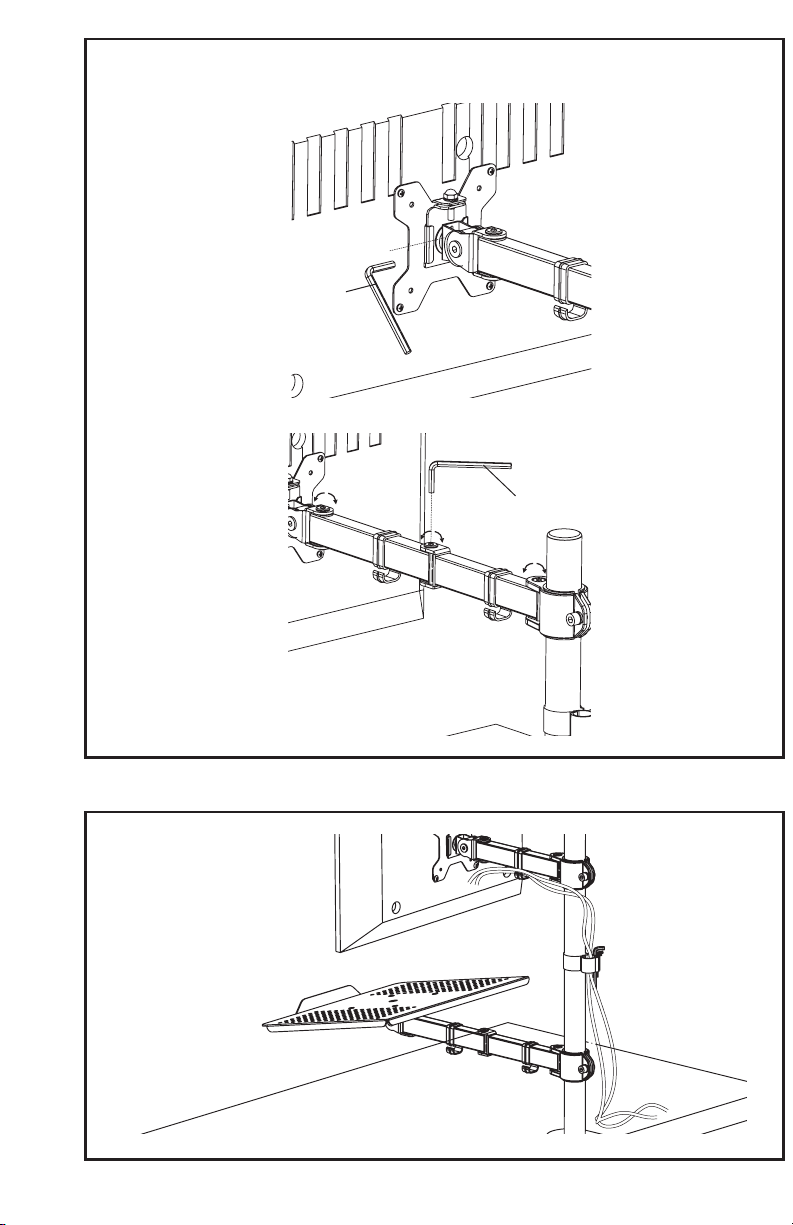

Install Swivel Arms (d) to the Pole (a). Fasten the bolt with supplied Allen Key (o). Attach the Wire Clip

(n1) to the Pole (a) and (n2) to the Swivel Arms (d).

Figure 7

Figure 9

w2 Figure 8

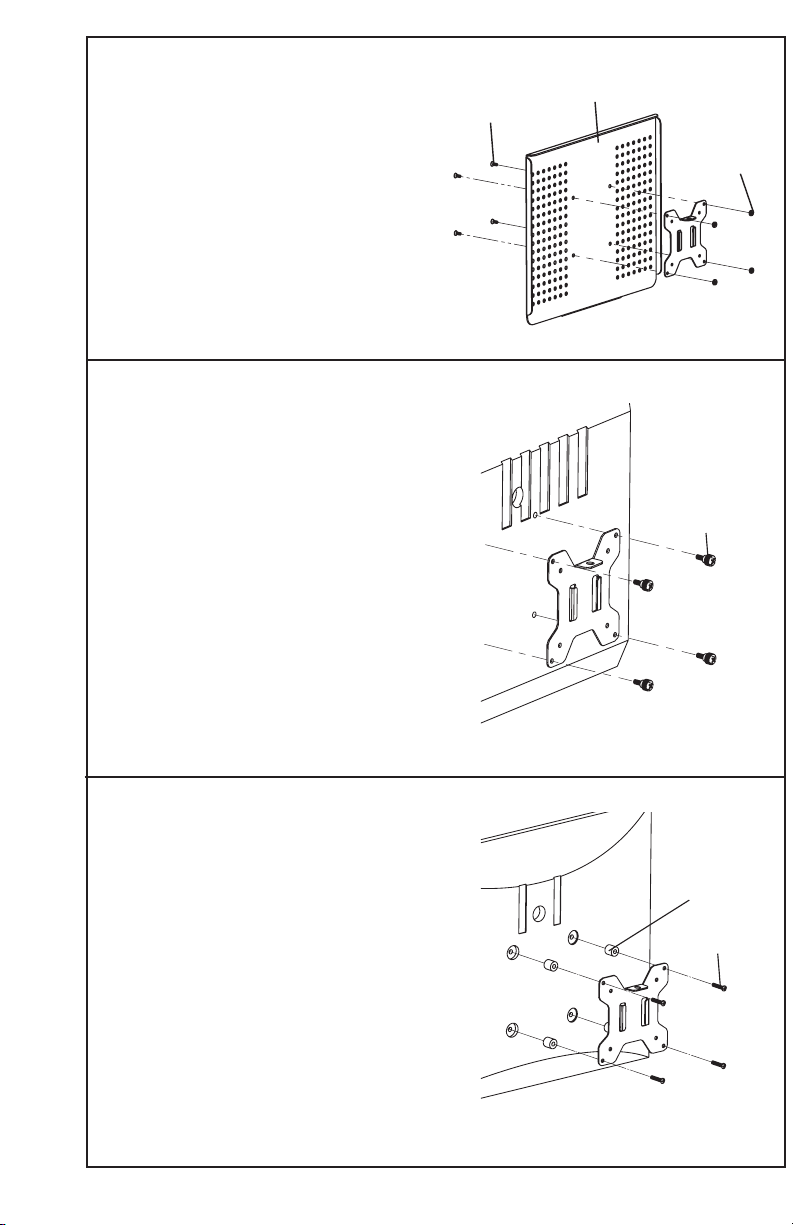

STEP 3

FOR LAPTOP

Attach VESA plate (e) to laptop tray (t) using

bolts (u) and M4 nuts (v).

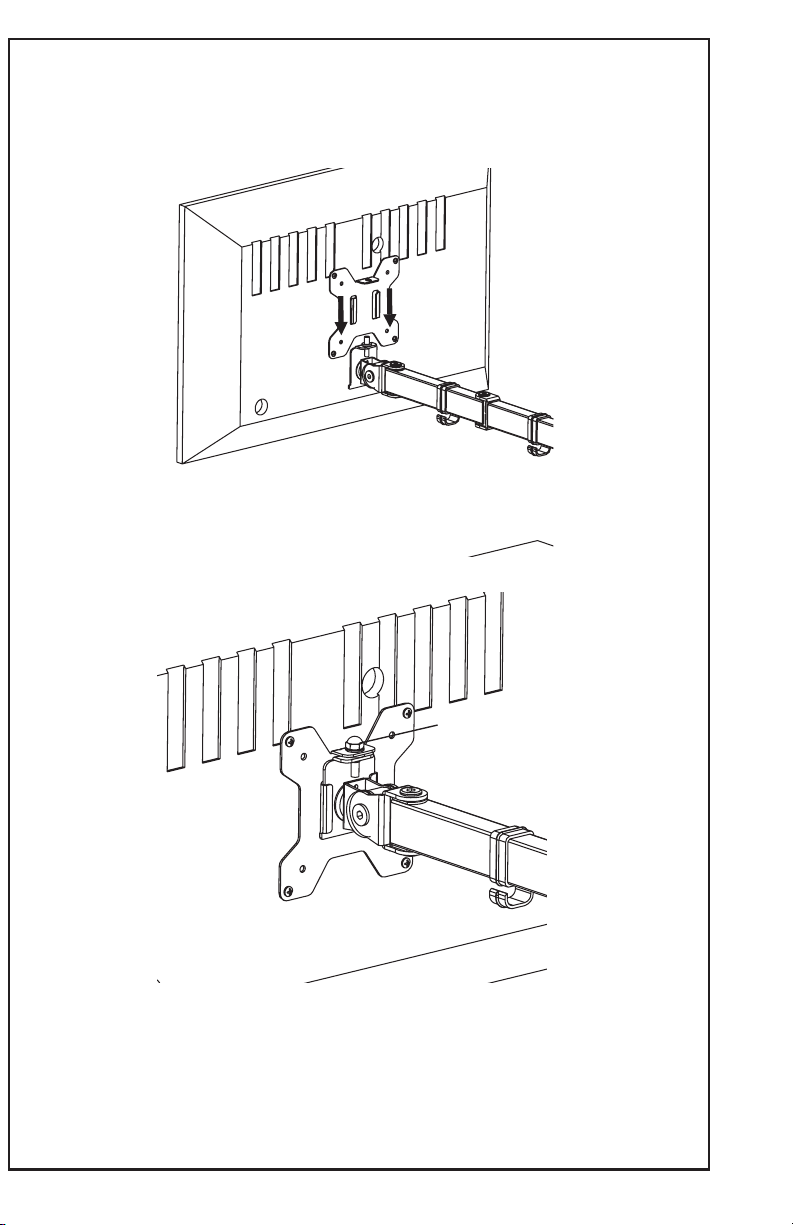

FOR FLAT BACK MONITOR

Attach VESA plate (e) to the monitor using

thumb bolts (q).

FOR CURVED BACK MONITOR

Attach VESA plate (e) to the monitor using bolts

(r) and spacers (s).

STEP 4

Slide the monitor onto the head of Swivel Arm (d) as shown in the diagram. Install the security Nut

(h). Make sure the security nut is installed before you rotate the monitor.

STEP 5

Adjust as Desired

Tighten the bolt with the supplied Allen Key (o) to fix the tilt angle. Use the supplied Allen Key (o) to

make the necessary adjustments

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
