Vivo MOUNT VW100T Manual de usuario

Tilt Wall Mount

Instruction Manual

Email: [email protected]

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-Model: MOUNT VW100T

Tools Required:

phillips screwdriver

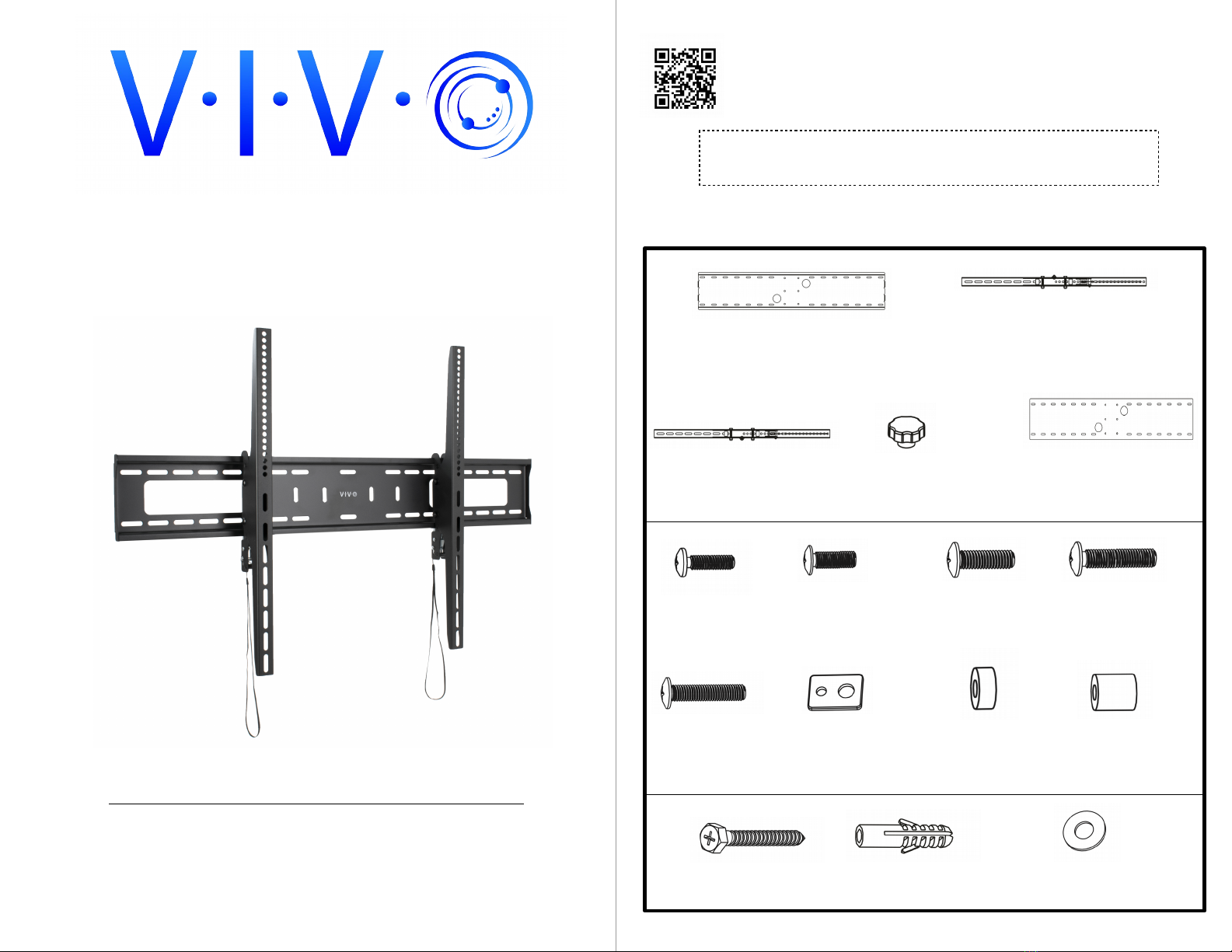

Package Contents

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

- -https:// i o us.com/products/mount w100t

A(x1)

B (x1)

C(x1) D (x2) E (x1)

-M C (x4)

M8x20

- M D (x4)

M6x30

-M A (x4)

M5x14

- M B (x4)

M6x14

-M G (x8) - M H (x4)

-M E (x4)

M8x30

- M F (x4)

-W C (x6)

-W A (x6) - W B (x6)

Assembly Steps

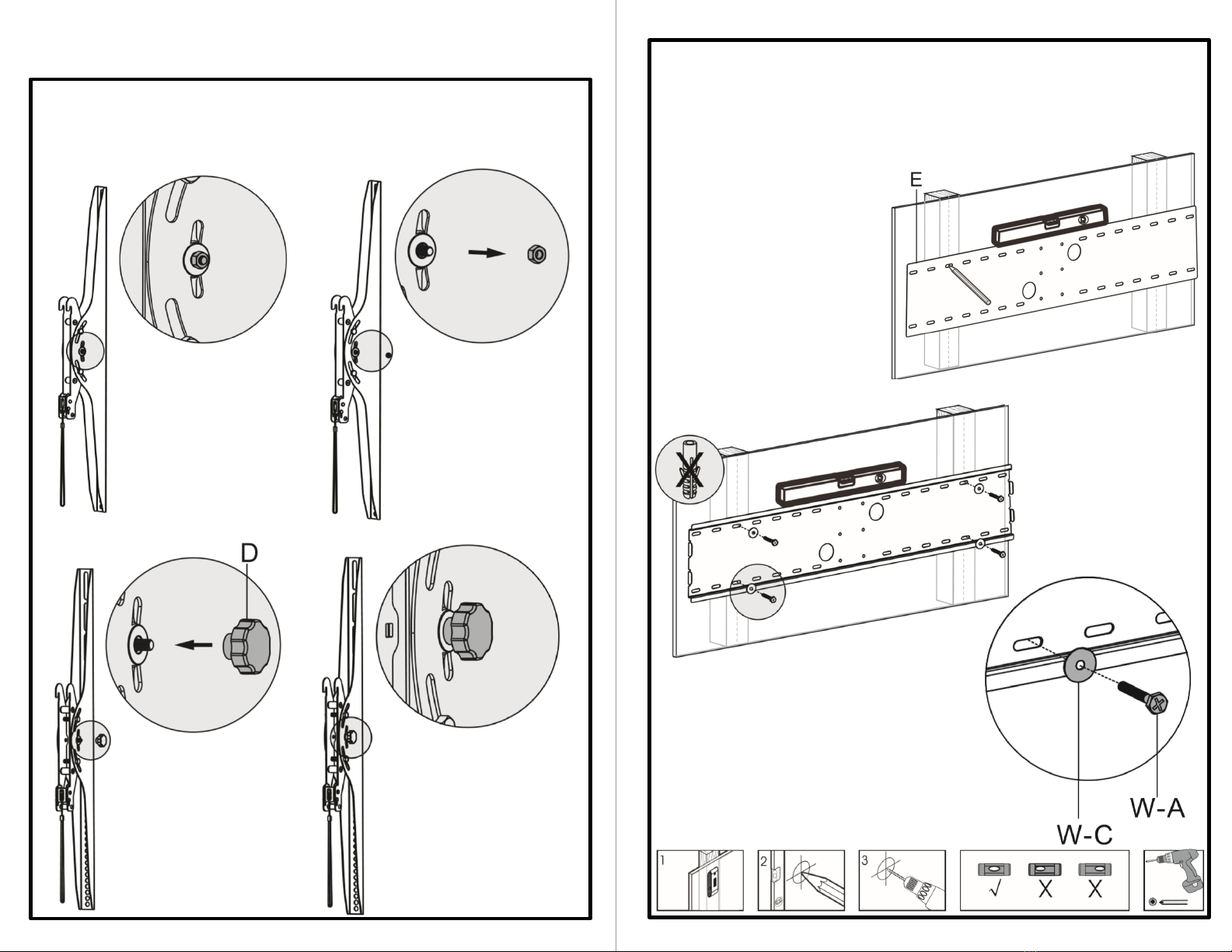

Step 1

Remove nuts from brackets (B) and (C) and replace with

knobs (D).

Step 2

Use template (E) to mark mounting holes on wall where studs

are located. Using a 1/4” bit, drill approximately 3. ” into wall.

Use bolts (W-A) and washers (W-C) to secure mount (A) to the

wall.

Option A: Wood Wall

Step 3

Mount brackets (B) and (C) to back on TV using Bolts (M-A, M-

B, M-C) and metal spacer (M-F). Makes sure straps are

towards the bottom of television.

If bolts (M-A, M-B, M-C) are too long, spacers (M-G, M-H)

may be required.

Step 2 (Continued)

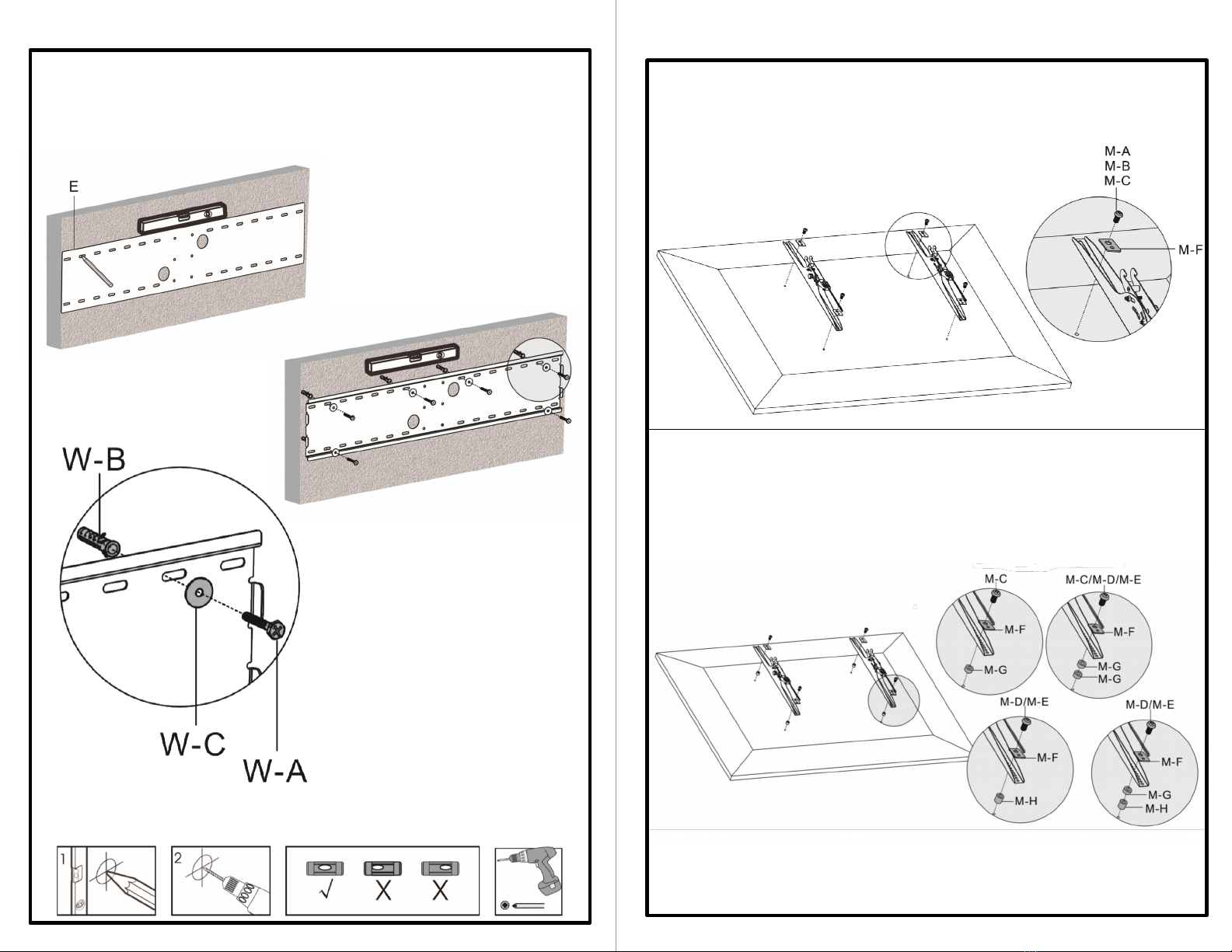

Option B: Concrete/Brick Wall

Use template (E) to mark mounting holes on wall. Using a ½”

bit, drill approximately 3.7” into wall. Insert anchors (W-B) into

holes and secure mount (A) to wall using bolts (W-A) and

washers (W-C).

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by improper

mounting, incorrect assembly, or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

Safety Warning

Last updated: 4/2 /2018

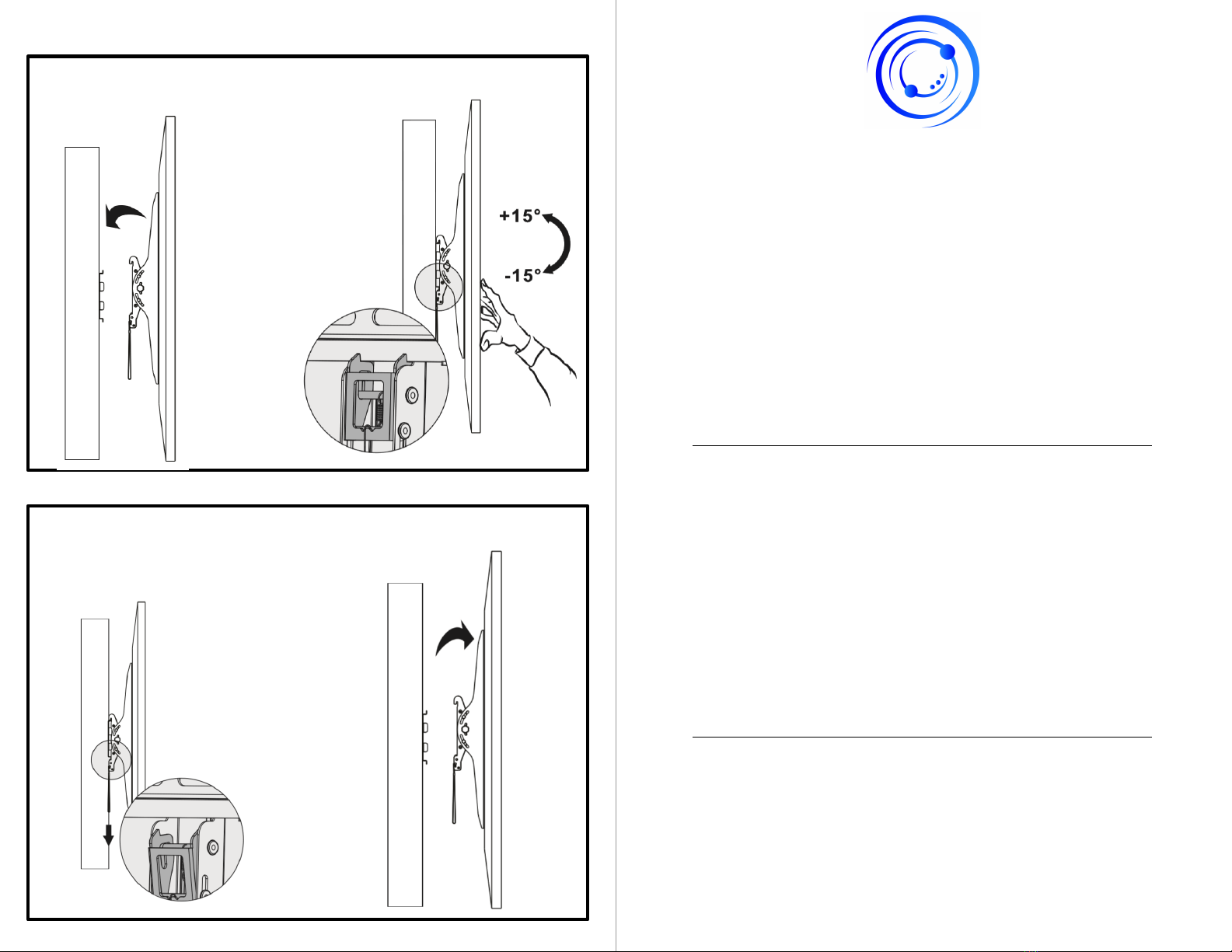

Step 4

Attach TV to mount (A) as shown in diagram. Make sure bottom

of brackets (B) and (C) are attached securely.

Step 5

To remove, pull both straps down and lift television off of

mount (A).
