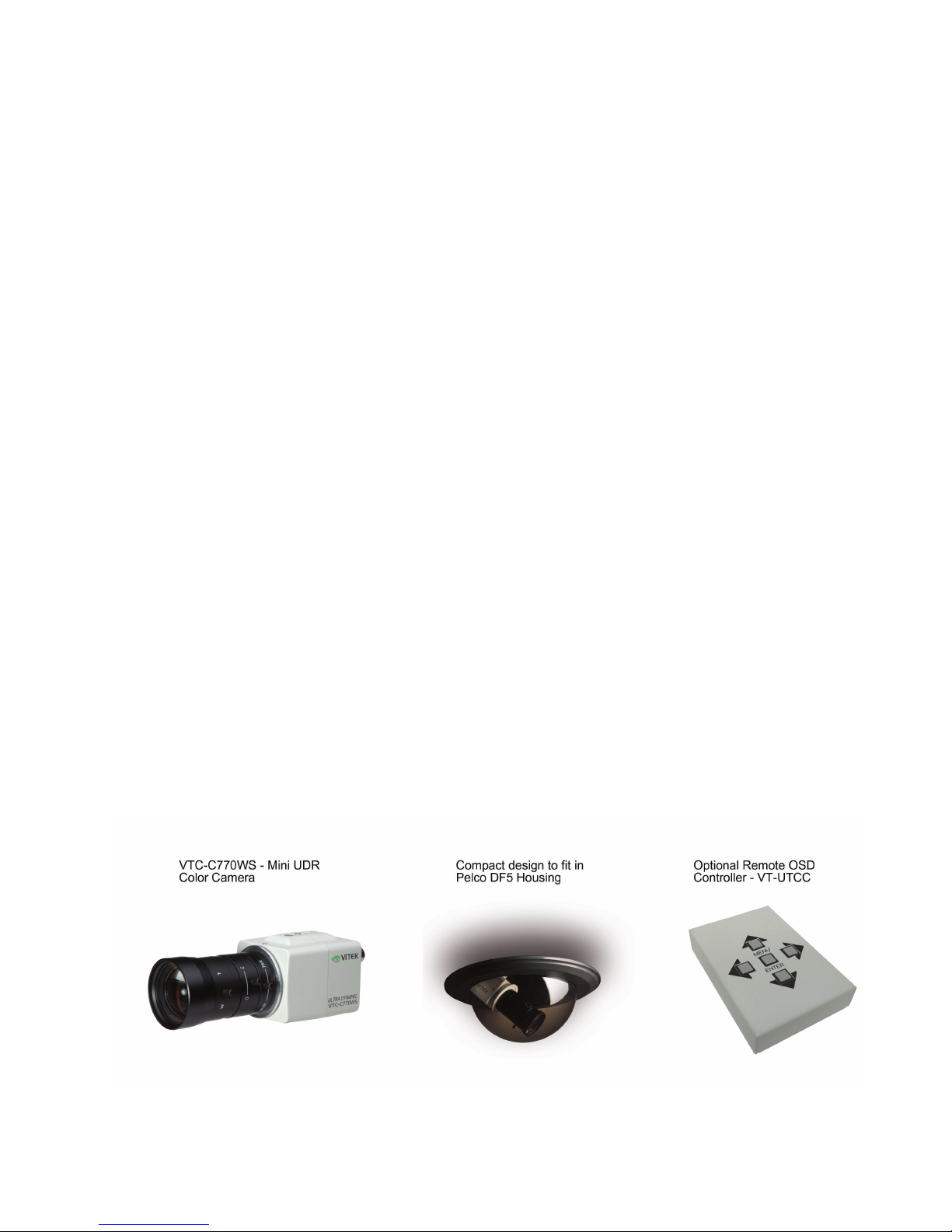

VITEK

VTC-C770WS

Pixim Powered Ultra Dynamic Range

Color CCD Camera with 700 TVL

Short Body

• 700 TVL High Resolution

• Pixim D8800C Seawolf Digital Imaging System CMOS

• 0.00008 Lux (F1.2@40IRE using sense-up)

• Designed to ﬁt in Pelco DF5 Housing

• Supports C/CS Mount DC Drive Lenses

• Supports NTSC & PAL Standards

• On Screen Display (OSD) w/optional remote

• 12VDC / 24VAC Dual Voltage Operation

(Lens not included)

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of un-insulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to the person.

Warning (NTSC version) -- This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his

own expense.

Caution -- Any changes or modifications in construction of this device that are not expressly

approved by the party responsible for compliance,could void the user's authority to operate the

equipment.

WARNING

Caution

To prevent electric shocks and

risk of fire hazards, do NOT

use anything other than

specified power source.

Table of contents

1. Safety Instructions and Notes….................................................................................................. 4

2. General Descriptions............................................................................……………………………... 5

3. Supplied Items......................................................................................…………………………….. 5

4. Part names…………………………….…...................................................…………………..……….. 6

5. Installation procedure………………………......................................................……………………... 7

6. Start up…………………............................................................................……………………...…... 8

7. Setup Menu………………………………………………..................................................................... 8

8. Specifications……………………………………………..................................................................... 16

9. Dimensional Drawings…............................................................................................................... 17

1. Safety Instructions and Notes

•Read instructions carefully before putting the camera into operation.

•Keep the operating instructions in a safe place for later use.

•The Standard Box Camera is designed for indoor use only and it must not be installed where

exposed to rain and moisture.

•Do not operate the cameras beyond their specified temperature, humidity or power ratings.

•Never open the case of the camera because there are precision parts inside. An accident

may result

•Do not put anything metallic or foreign through the vent. A fire or electric shock may result.

•Be sure to turn off the power before installing or making connection.

•Pay attention when laying the connection cable and observe that the cable is not subject to

heavy loads, kinks or damage and that no moisture can get in.

•Do not install the camera in places exposed to vibrations and shocks.

•Be very careful not to drop or shock the camera while carrying it.

•Do not angle the camera to the sun.

•Do not make any modification to the unit (neither to the software nor the hardware). Improper

modification voids the warranty and can cause malfunctions or damages.

The manufacturer accepts no liability for damages resulting from unauthorized or improper

modifications to the unit

•Some types of lenses may cause hunting, light amount drop or other problems. In such case,

readjust the lenses.

•Because of the digital image device characteristics, images may look rugged at high

temperatures. This does not mean the camera is malfunctioning.

•The warranty becomes void if repairs are undertaken by unauthorized persons.

•Contact the supplier if any functional problems arise.

Cleaning:

•Do not touch the surface of the imaging device.

•Keep front and rear lens surfaces clean.

Notice -- The images used in this manual are processed to help comprehension and

may differ from actual video of the camera.

2. General Descriptions

The VTC-C770WS camera is a superb ultra dynamic range camera that achieves 120dB max

(102dB typical) of dynamic range of the image by implementing PIXIM's Seawolf digital

imaging system.

Seawolf digital imaging system:

-Delivers high-resolution, crystal clear images that accurately capture every aspect of any

scene

- Offersthe highest resolution of 700TVL (horizontal)

-Ultra-wide dynamic range imaging accurately captures all of the critical details in a scene

including highlights, shadows and everything in between without compromising image

quality or color accuracy

- Enhanced low-light performance makes Seawolf the natural choice for both indoor and

outdoor cameras for all lighting conditions.

ICR mechanism:

-Enhances its sensitivity about 10x at night

-Accepts infrared light

24VAC/12VDC dual power design:

- Offers flexibility of installation

-Ensures reliability

Features:

•1/3" CMY Color DPS SENSOR (Pixim Seawolf D8800C series)

•Resolution of 700 Horizontal TV Lines

•10x sensitivity enhancement by removing the optical filter

•Switches to B/W and able to accept infrared spectrum at night mode

•Enhanced sharpness compensation

•Very low noise and superior picture quality

•0.0008Lux Class sensitivity (0.002Lux@ 2x Sense-up)

•Automatically removable IR Cut Filter

•Automatic White Balance (ATW)

•Support DC auto iris lens

•Supply voltage: 24VAC/12VDC Dual voltage

3. Supplied Items

1 x VTC-C770WS Ultra Dynamic Color Camera

1 x Dust protection cap

1 x L-Wrench (1.5mm)

1 x Power Connector

1 x Installation and Operating Instructions

3. Part Names

3.1 Perspective

1. Mount Hole (1/4” UNC)

2. Flange Lock Screw

3. Back Focus Adjusting Flange

4. Camera Body

•"

ⓐ

ⓑ

ⓒ

ⓓ

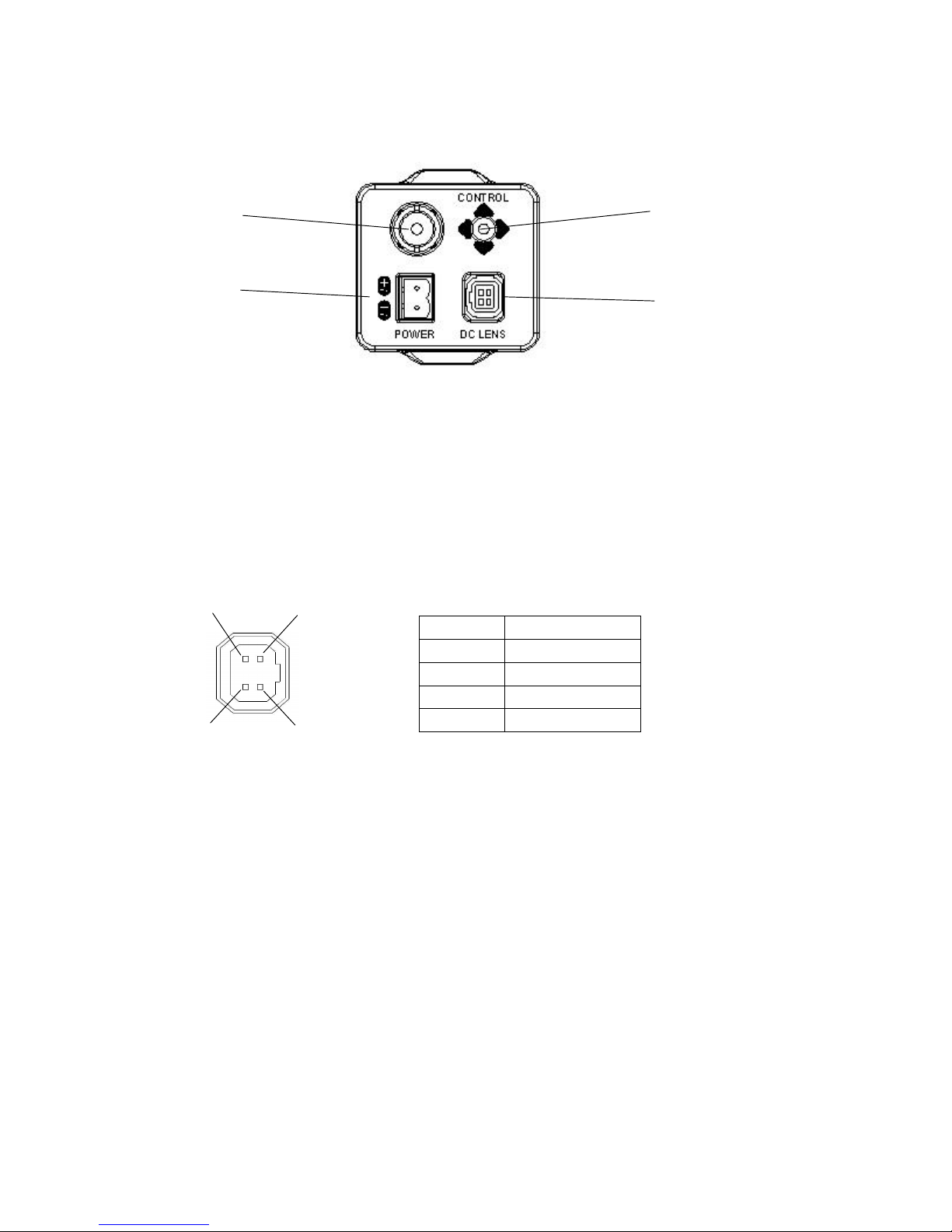

3.2 Rear Side view

- Lens Connector for Auto-iris lens (DC Drive)

4. Installation procedure

4.1 Installing the lens

Before installing the lens, make sure the power is not connected to the camera.

Do not touch the lens or filter surfaces.

4.2 Adjust back-focus (If required)

Adjust when the standard back-focus setting is not compatible with lens tolerance or

when the camera is employed at a distance closer than the minimum object distance

(MOD).

i. Loosen (2) FLANGE LOCK SCREW to adjust the back focus of lens

ii. Camera Focus can be adjusted by turning (3) BACK FOCUS ADJUSTING

FLANGE

iii. After adjustment, lock (2) FLANGE LOCK SCREW

PIN No

DC Iris

Damp(-)

Damp(+)

Drive(+)

GND

PIN 4 PIN 2

PIN 3 PIN 1

ⓐ Video Output Connector (BNC)

ⓑ OSD Control Joystick (Up/Down/Left/Right/Enter)

ⓓ AUTO IRIS LENS CONTROL (DC LENS ONLY)

4.3 Power Supply Connections

The VTC-C770WS camera works with 24VAC or 12VDC, dual voltage power. It does NOT

require matching polar connection for 12VDC supply. Primary and secondary grounds are

completely isolated to avoid possible ground-loop problems. Its wide operating voltage range

of 10.5V-30V for DC and 12-28.8V for AC gives extra flexibility during installation.

5. Start up

When the camera is powered properly, it initializes the internal parameters and the filter

switch mechanism. The filter switch unit repeats IN and OUT at each power up and just

after RESTORE FACTORY SETTINGS.

6. SETUP Menu

6.1 In the menu

Use up and down buttons to move through the menu page, and side to side buttons to change

the settings. Press the Circular button to select or enter.

Button stands for MENU or ENTER.

6.2 Entering menu

Press button for 2+ seconds on the back of the camera.

6.3 MAIN

Follow the chart for submenu settings.

6.4 EXPOSURE

To enter EXPOSURE menu, press button at MAIN>EXPOSURE.

Default

Descriptions

EXPOSURE

Sets COLOR ROLL COMP. AE PREFERENCE, WDR CONTROL and

SENSE-UP.

DAY/NIGHT

AUTO

Sets OFF, AUTO or NIGHT

OFF – Day/Night is disabled and camera works as a normal color camera.

AUTO – Camera switches DAY from/to NIGHT automatically.

N->D THRES, N<->D DELAY, BURST ON B/W can be set.

See DAY&NIGHT AUTO SETUP for detail.

NIGHT – Forced to remove IR cut filter and switch to B/W.

LENS SELELT

Selects the lens type, DC or MANUAL.

In sub-menu, Accurate Focus can be set by function of FOCUS ADJ…


CONTROL

Sets WHITE BALANCE, COLOR SELECT, SHARPNESS, SATURATION,

GAMMA.

SPECIAL

Sets MOTION, PRIVACY MASK, 3D NR, D-EFFECT, SYNC, LANGUAGE,

VIDEO STANDARD, RS485 CONTROL.

SAVE AND

EXIT

Exits menu after saving the parameters.

EXIT

Exits menu with discarding any changes.

6.5 DAY/NIGHT

To enter DAY/NIGHT menu, press button at MAIN>DAY/NIGHT>AUTO.

EXPOSURE

Descriptions

Medium level of the dynamic range control for each PRESETs.

WDR HIGH

Increases the dynamic range control. Some highlight area may washed out.

CUSTOM...

Provides more flexible compensation other than WDR MID, WDR LOW, WDR

HIGH

BLC...

Compensates the brightness of main object against the bright back light.

A zone out of CTR SPOT, UPPER1/3, MIDDLE1/3, LOWER1/3 can be set.

Dynamic range control is inoperative if EXPOSURE is set to BLC.

WDR LOW

Decreases the dynamic range control.

EXPOSURE

Default

Descriptions

COLOR ROLL

COMP.

OFF

In NTSC system, the color tone on the monitor may show a red or green

hue.

COLOR ROLL COMP. - Reduces the color rolling under the fluorescent

lighting. (NTSC system only)

OFF – Does not compensate the color rolling.

MODE-M - Compensates the color rolling when a manual lens is used.

MODE-A - Compensates the color rolling when an auto iris lens is used.

PREFRENCE

HIGHLIGHTS

Sets HIGHLIGHTS or SHADOWS

HIGHLIGHTS - Provides the best detail in bright areas. The darker aspects

of the scene may under-expose.

SHADOWS - Provides the best detail in dark areas. It will reduce the

dynamic range and the brighter aspects may overexpose.

WDR

CONTROL

MEDIUM

LOW - Produces an image that has better contrast but less dynamic range

and is suitable for indoor or low-contrast outdoor scenes.

NORMAL - Produces an image that has average contrast and is suitable

for indoor or low-contrast outdoor scenes.

MEDIUM - Produces an image that has better dynamic range and is

suitable for a lobby or high-contrast outdoor scenes.

HIGH - Produces an image that has superior dynamic range but less

contrast and is suitable for high-contrast outdoor scenes.

CUSTOM - Provides more flexible compensation by ZONE, RANGE and

BIAS.

When COLOR ROLLCOMP is set to MODE-A, WDR CONTROL will be

fixed as LOW.

SENSE-UP

AUTO

If E-UP is set to AUTO, the maximum sense-up rate can be limio 2X-

30FPS, 4X15FPS, 8X-18FPS, 16X-4FPS, 32X-2FPS or 64X-2FPS in

SENSE-UP SETUP.

Thetion frames vary automatically within the max. rate according to

the light level when light becomes low and DSS is operating. The

higher sense-up rate, the higher sensitivity but the slower refresh rate.

Some white dots may appear by sense-u due to the image sensor’s long

accumulation by a long shutter period.

IMPORTANT!!!

Otros manuales para VTC-C770WS

Tabla de contenidos

Otros manuales de Cámara de seguridad de Vitek

Vitek

Vitek VTC-IRLED30HD Manual de usuario

Vitek

Vitek VT-PTZ36W Manual

Vitek

Vitek Transcendent VTD-TND8RMA3 Manual de usuario

Vitek

Vitek VTC-TNT8RMEA Manual de usuario

Vitek

Vitek TRANSCENDENT VTC-THT10R2F Manual de usuario

Vitek

Vitek VTD-C410 Manual de usuario

Vitek

Vitek VTC-IRH70 Manual de usuario

Vitek

Vitek VTC-PIR4CN-4 Manual de usuario

Vitek

Vitek Mighty VTD-MP2810WDR Manual de usuario

Vitek

Vitek Transcendent VT-TPTZ25HRAN-4PNL Manual de usuario

Vitek

Vitek VTC-C680/DN Manual de usuario

Vitek

Vitek VTC-TNB4MADW Manual de usuario

Vitek

Vitek VTD-AR2812/I Manual de usuario

Vitek

Vitek VTD-MVHD2812 Manual de usuario

Vitek

Vitek TRANSCENDENT VT-TPTZ4AD-4M Manual de usuario

Vitek

Vitek VTC-C770WS Manual de usuario

Vitek

Vitek VTC-C2B-HS Manual de usuario

Vitek

Vitek TRANSCENDENT VTD-TND5RME Manual de usuario

Vitek

Vitek VT-TPTZ10HRC-5N Manual de usuario

Vitek

Vitek Transcendent VTD-TND6FPN Manual de usuario

Vitek

Vitek Transcendent VT-TPTZ-B10X2A Manual de usuario

Vitek

Vitek VTD-TND4RFS Manual de usuario

Vitek

Vitek VT-IR1C/24 Manual de usuario

Vitek

Vitek VTC-IRLED24A Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
