Vitek VTC-C2BMS2 Manual de usuario

FEATURES:

• 1/2.8” Sony® STARVIS 2.1 MegaPixel CMOS Sensor

• 2.1 MegaPixel with Full 1080p/720p HD/EX-SDI 1.0, 2.0 / TVI / AHD / CVI

/ CVBS Output

• Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light

Producing Color Images in Very Dark & Night Scenes

• CS Mount Lens Support (Lens Not Included)

• 3D-DNR Digital Noise Reduction

• True Day/Night by ICR - Dual Filter Switch

• Fully programmable True WDR (Dual Scan)

• ROI (Region of Interest) WDR achieves superior exposure compensation

specifically in exact areas of interest while reducing HDD storage space

• Advanced OSD Functions: Motion Detection, Privacy Mask, Defog, Sens-

up(~x32), Sharpness, Mirror/Flip, BLC/HLC, Deblur, Anti-Saturation, Title

Set, D-WDR

• 12VDC / 24VAC Dual Voltage Operation

VTC-C2BMS2

Premium 2.1 Megapixel 6-in-1 HD/

EX-SDI / TVI / AHD / CVI / CVBS

Box Type Camera

VITEK

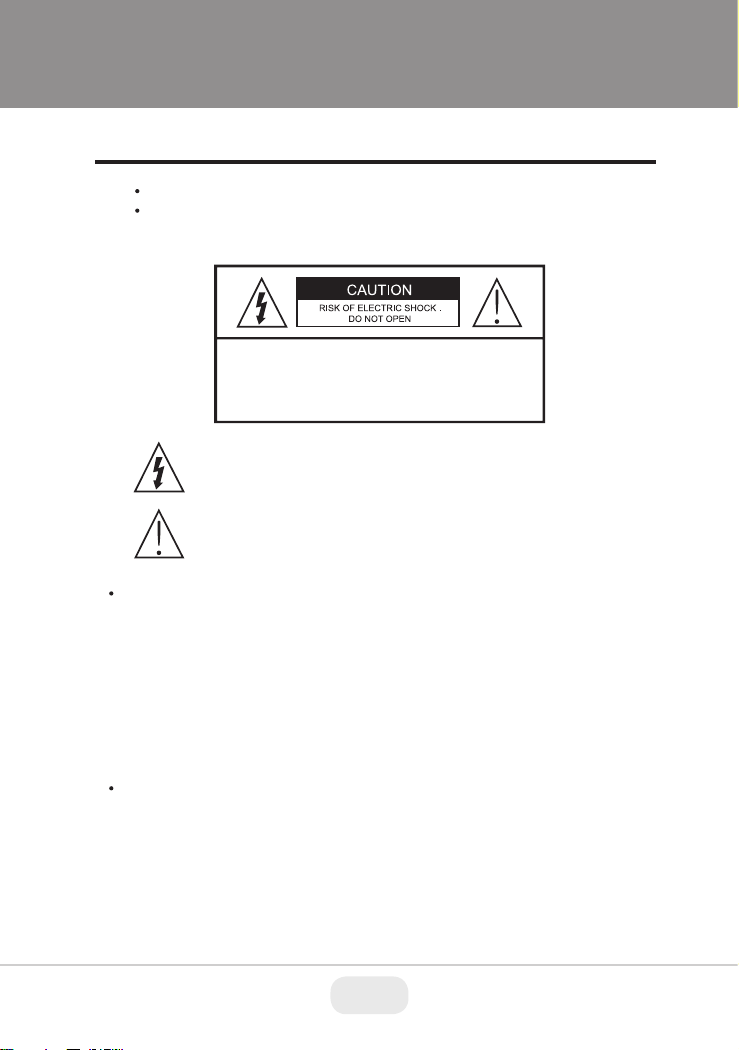

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power main interruption, it is

recommended that the model be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

2 3

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when running the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to damage and void the warranty.

The camera should never be operated in water.

Contents

Safety Precaution

p.02~03

Contents

p.04

Composition

p.05

Dimensions

p.05

Installation Instructions

p.06~07

p.08~23

Operating Instructions

p.24

Specifications

4 5

Dimensions

Composition

Torque Wrench:

3mm (1pc)

Dust Protection

Cap (1pc)

Operating

Instruction

Box Camera

C-mount

adaptor (Option)

2.99”

2.83”

2.99”

1.38”

3.50”

Part Names

Torque

Wrench

Dust

Protection Cap

No.

DC Iris

Damp(-)

Damp(+)

Drive(+)

GND

Body Case

Back focus

adjustment

Mount Holes

(Top / Bottom)

SIDE VIEW

Lens Connector

for Auto Iris lenses

PIN 1PIN 3

PIN 2PIN 4

REAR VIEW

④

① OSD Control Joy stick

② Power input terminal

(AC24V/DC12V)

③Video format selection Switch

④CVBS/HD-Analog output connector

⑤ Power LED

⑥ HD-SDI/EX-SDI output connector

③

①

⑤

⑥

②

HD-ACVBS

CONTROL

POWER

6 7

Installation Instructions

1. Remove the dust protection cap from the lens mount.

2. Screw the lens onto the camera firmly.

3. Plug the lens plug into the lens connector on the side of camera case.

4. Mount the camera to the wall or ceilling with a corresponding mounting bracket

through the camera mount holes (1/4” thread insert) on its top or bottom.

Installation and commissioning Instructions

• Make sure power is removed before installation.

• Follow this order for powering camera:

Connect the power leads to the camera (observe polarity for DC power) then

plug-in power. This will avoid damage to the camera from power surges and

improper reseting

• Care should be taken that the cable is not damaged, kinked or exposed in

hazardous areas.

• Do not expose the camera directly to a strong light source such as the sun or

spotlight.

CAUTION

• The camera has a built-in 1/2.8” sensor so using a qualified 1/2.8” C/CS mount

lens is recommended.

• Some unqualified lenses may have a smaller image circle even if the specification

is 1/2.8” so it may cause vignetting on the video.

Setting the back focus adjustment

1. Set the lens for the zoom position to WIDE and the focus position to INFINITE(∞).

2. Adjust ’Back focus’ with 3mm L-wrench until the optimum focus is

achieved.

3. Set the lens for zoom position to TELE and adjust the lens focus for best focus

4. Set the lens for zoom position to WIDE again, check if the focus adjustment

was the best. If not, re-adjust ‘Back focus’ slightly.

Operating Instructions

Power Supply Connections

OSD Control

Joystick

Using OSD Controller

Setup menu can be accessed and controlled by the OSD control joystick on the

rear of the camera unit. Five commands are available with the joystick.

The design of the OSD could be different according to the Model.

Camera can work with either 12VDC or 24VAC, dual voltage power.

Primary and secondary grounds are completely isolated to avoid possible

ground-loop problems.

1) SET (●) : Access to the menu or enter the setting.

To enter the main menu, press the Set Key down.

2) UP/DOWN (▲/▼) : Choose the desired sub-menu and to move the

cursor up or down.

3) LEFT/RIGHT (◄/►) : Set the value of the selected menu. Used to

adjust the desired menu selection and to move the cursor left or right.

Description of the OSD control operation

4) ‘ ’denotes long press down for about 2 seconds

HD-ACVBS

CONTROL

POWER

Please set the Video format selection Switch to “HD-A” when CVBS is

no longer used after finalizing camera installation.

This will allow th e WDR and 3D-NR to function when using

HD-SDI/EX-SDI.

8 9

Operating Instructions

OSD menu Table

MENU SUB MENU CONFIGURATION

LENS

EXPOSURE

BACKLIGHT

MANUAL

MODE (INDOOOR, OUTDOOR, DEBLUR)

0~20

WEIGHT

MODE ROI WINDOW ZONE/USE,

H/V-POS, H/V-SIZE

NORMAL

OFF

HLC LEVEL, COLOR

H/V-POS, H/V-SIZE

BLC

WDR

TARGET-BRT LOW, MIDDLE, HIGH

LOW, MIDDLE, HIGH

COLOR

DAY & NIGHT

AWB

COLOR GAIN

EXTERN

AUTO

COLOR

B&W

SMART IR, ANTI-SAT., DELAY, IR LED CTL (AUTO, OFF)

SMART IR, ANTI-SAT., AGC THRES, AGC MARGIN, DELAY

SMART IR, ANTI-SAT.

AUTO, AUTOext, PRESET, MANUAL (C-TEMP, R/B-GAIN)

BRIGHTNESS

SHUTTER

SENS-UP

AGC

0~20

AUTO

MANUAL

(SPEED)

FLICKERLESS

0~10

OFF, x2, x4, x8, x16, x32

1/30(1/25), 1/60(1/50), 1/120(100), 1/250(200),

1/500(400), 1/1000(800), 1/2000(1600), 1/4000

(3200), 1/8000(6400), 1/15000(12800), 1/30000

(25600)

FOCUS Ast. ON, OFF

ANALOG OUT0 should be set to TVI MODE, AHD MODE or CVI MODE

to get CVBS video in sub-out. If it is set to CVBS, there is no CVBS video

in sub-out port. (SYSTEM> OUTPUT> ANALOG OUTPUT0)

If CVBS video is enabled through ANALOG OUT or Sub-out port, WDR

and 3D-NR functions are disabled in all video outputs.

It should be considered when installer adjusts the video with installation

monitor via CVBS video signal.

Operating Instructions

SHARPNESS

OFF, LOW, MIDDLE, HIGH

MAIN

OUTPUT

ANALOG

OUT0

ANALOG OUT0

TVI MODE 0~10

AHD MODE 0~10

TVI MODE, AHD MODE,

CVBS, CVI MODE

CVI MODE 0~10

GAMMA 0.45, 0.55, 0.65, 0.75

OFF, ON

MIRROR

DEFOG

D-WDR

MODE (AUTO, MANUAL)

LEVEL (LOW, MIDDLE, HIGH)

OFF, LOW, MIDDLE, HIGH

OFF, ON

FLIP

MOTION OSD

TEXT ALARM

SYSTEM

EXIT

OUTPUT

RESOLUTION

TV SYSTEM

SAVE, CANCEL

CAM TITLE

RESET

LANGUAGE ENG, CHN(S), CHN, JPN, KOR, GER

OFF, ON

SDI OUTPUT

ANALOG OUT0

HD-SDI, EX-SDI 1.0, EX-SDI 2.0, OFF

TVI MODE, AHD MODE, CVBS, CVI MODE

1080 30P(25P), 720 30P(25P), 720 60P(50P)

US(NTSC), EU(PAL)

DET WINDOW

DET TONE

MDRECT FILL

SENSITIVITY

OFF, ON

0~10

0~4

WINDOW ZONE, WINDOW USE, DET

H/V-POS, DET H/V-SIZE

MOTION

OFF, RIGHT UP, LEFT DOWN

PRIVACY ZONE NUM, ZONE DISP, H/V-POS, H/V-

SIZE, Y LEVEL, CB/CR LEVEL, TRANS

OFF, ON


ANALOG

OUT1

SDI

OUTPUT

ANALOG OUT1

SDI&CVBS

0~10

SDI OUT HD-SDI, EX-SDI 1.0,

EX-SDI 2.0, OFF

CVBS

0~10

3D-NR

10 11

Tabla de contenidos

Otros manuales de Cámara de seguridad de Vitek

Vitek

Vitek VTC-C770DN/IP2 Manual de usuario

Vitek

Vitek VTC-C770/WDR Manual de usuario

Vitek

Vitek VTC-C750/DN Manual de usuario

Vitek

Vitek VTC-LED667CB Manual de usuario

Vitek

Vitek VTC-IRLED24A Manual de usuario

Vitek

Vitek Transcendent VTC-TNT4FLN-2 Manual de usuario

Vitek

Vitek VTC-IRE70 Manual de usuario

Vitek

Vitek VT-IR1B/24 Manual de usuario

Vitek

Vitek Transcendent Series Manual de usuario

Vitek

Vitek VTC-TNB4MADW Manual de usuario

Vitek

Vitek VTC-BHOCR2812 Manual de usuario

Vitek

Vitek TRANSCENDENT VTC-THT10R2F Manual de usuario

Vitek

Vitek VTC-IRLED30A Manual de usuario

Vitek

Vitek Transcendent VTC-TNB8RMA4 Manual de usuario

Vitek

Vitek VTD-A4F/IWM Manual de usuario

Vitek

Vitek VTD-TNMD4RFS Manual de usuario

Vitek

Vitek Virtuoso Series Manual de usuario

Vitek

Vitek VTC-THT5R3 Manual de usuario

Vitek

Vitek VTD-A2812 Manual de usuario

Vitek

Vitek VTC-TNT8RMA4 Manual de usuario

Vitek

Vitek VTC-HOCRBD4F Manual de usuario

Vitek

Vitek VTC-TNT5RFEB-2 Manual de usuario

Vitek

Vitek VTD-A4F Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
