VitBest SQ-04014K Manual de usuario

SQ-04014K

4K 4X1 Seamless Switcher with Multi-view

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

Table of Contents

Specification ................................................................................................................ 1

Panel Description ........................................................................................................ 3

Front Panel ......................................................................................................... 3

Rear Panel ......................................................................................................... 4

System Connection ..................................................................................................... 5

Usage Precaution ............................................................................................... 5

System Diagram ................................................................................................. 5

Front Panel Control ..................................................................................................... 6

Multi-views Selection .......................................................................................... 6

Video Signal Switching ....................................................................................... 6

Video Switching Status Inquiry ........................................................................... 7

Audio Select ....................................................................................................... 7

Config Button ...................................................................................................... 7

IR Remote ................................................................................................................... 8

GUI Control .................................................................................................................. 9

Multiview Tab .................................................................................................... 10

Audio Tab .......................................................................................................... 12

Resolution Tab .................................................................................................. 13

RS232 Tab ........................................................................................................ 13

CEC Tab ........................................................................................................... 14

EDID Tab .......................................................................................................... 16

Network Tab ..................................................................................................... 17

Tags Ta b ........................................................................................................... 17

Security Tab ...................................................................................................... 18

GUI Update .................................................................................................... 18

RS232 Control ........................................................................................................... 19

RS232 Control Software ................................................................................... 19

RS232 Command ............................................................................................. 21

7.2.1 System Control ....................................................................................... 21

7.2.2 Signal Switching ..................................................................................... 22

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

7.2.3 Audio Switching ...................................................................................... 23

7.2.4 Function Setting ..................................................................................... 24

7.2.5 CEC Command ...................................................................................... 30

7.2.6 Special Commands ................................................................................ 35

Firmware Upgrade ..................................................................................................... 37

Panel Drawing ........................................................................................................... 37

Troubleshooting & Maintenance .............................................................................. 38

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

www.vitbest.com – Page 1

Specification

Video

Video Input

(4) HDMI IN (1~4)

Video Input Connector

(4) Type-A female HDMI

HDMI Input Resolution

Up to 4K@30Hz 4:4:4

Video Output

(1) HDMI

Video Output Connector

(1) Type-A female HDMI

HDMI Output Resolution

Up to 4K@30Hz RGB

HDMI Standard

HDMI 1.4b

HDCP Version

Up to HDCP 2.2

Audio IN

Audio In

(1) LINE IN, (1) MIX IN.

Audio In Connector

(2) 3-pin terminal connectors

Frequency Response

20Hz to 20KHz, ±3dB

Max Input Level

2.0 Vrms ± 0.5 dB.  2 V = 16 dB headroom

above -10 dBV (316 mV) nominal consumer line

level signal.

L-R level deviation

< 0.3 dB, 1 kHz sine at 0 dBFS level (or max level

before clipping)

Input Impedance

> 10kohm

Audio Format

PCM 2CH

SPDIF OUT

SPDIF Out

(1) SPDIF

Audio Out Connector

(1) Toslink

Max Output level

±0.05dBFS

Frequency Response

20 Hz to 20 kHz, ±1dB

THD+N

< 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at

0 dBFS level (or max level)

Signal-to-Noise Ratio

> 90dB, 20Hz-20 kHz bandwidth

Crosstalk isolation

< -70 dB, 10 kHz sine at 0 dBFS level (or max

level before clipping)

Noise

-90dB

Audio Format

PCM 2CH

AUDIO OUT

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

www.vitbest.com – Page 1

Audio Out

(1) AUDIO

Audio Out Connector

(1) 3.5mm mini jack

Frequency Response

20 Hz to 20 kHz, ±1dB

Max Output Level

2.0 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -

10 dBV (316 mV) nominal consumer line level

signal

THD+N

< 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at

0 dBFS level (or max level)

Signal-to-Noise Ratio

> 80dB, 20Hz-20 kHz bandwidth

Crosstalk Isolation

< -80 dB, 10 kHz sine at 0 dBFS level (or max

level before clipping)

L-R Level Deviation

< 0.05 dB, 1 kHz sine at 0 dBFS level (or max

level before clipping)

Output Load Capability

1k ohm and higher (supports 10x paralleled 10k

ohm loads)

Noise

-80dB

Control

Control port

(1)RS232, (1)TCP/IP

Control Connector

(1) 3-pin terminal connector, (1) RJ45.

General

Operation Temperature

-5℃ ~ +55℃

Storage Temperature

-25℃ ~ +70℃

Relative Humidity

10% ~ 90%

External Power Supply

Input: AC 100~240V, 50/60Hz; Output: 24V DC

1.25A.

Power Consumption

13w(Max)

Dimension (W*H*D)

285mm x 27mm x 172.5mm

Net Weight

1.24kg

Note: The resolution 1080i 60Hz and HDR are not supported

Panel Description

Front Panel

①

POWER LED: The LED illuminates green when it is working, and the LED

illuminates red when it is standby.

②

IR LED: Built-in IR sensor, receive IR signal sent from IR remote.

③

FOUR INPUT LEDS/AUDIO SELECTS: Press the buttons to selected

corresponding HDMI input, its LED illuminates yellow when there is a video signal,

it will illuminates blue when the video signal is chosen as input source.

AUTO LED: Press the button to Auto Switching or Manual Switching exchange

mode, its LED illuminates blue in auto-switching mode, and it will be off when exit

the auto-switching mode.

④

FOUR SELECT/FULL SCREENS: Press the buttons to select corresponding input

source as Full Screen, its LED illuminates blue when it is selected.

⑤

CONFIG: Press SWAP button to select window display screen anti-clockwise

direction. its LED illuminates blue when it is selected. Press the RESIZE button to

readjust the windows size, its LED illuminates blue when it is pressed.

⑥

THREE MULTI-VIEWS: Press the buttons to choose different available Multi-view

modes, its LED illuminates blue when it is selected.

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

www.vitbest.com - Page 4

Rear Panel

①

HDMI IN: Four type-A female HDMI input ports to connect HDMI source devices.

②

LINE IN: 3-pin terminal block to connect audio source device like mobile phone or

computer to embed in HDMI audio sources.

MIX IN: 3-pin terminal block to connect audio source device like mobile phone or

computer to mix HDMI audio sources.

③

HDMI OUTPUT: Type-A female HDMI output port to connect display device.

SPDIF OUTPUT: Tosl i nk f or aud io d e -embedding from HDMI output.

AUDIO OUTPUT: 3.5mm mini jack for audio de-embedding from HDMI output.

④

RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a

third-party device to be controlled by RS232 commands.

⑤

TCP/IP: RJ45 port to connect the control device (e.g. PC) to control the switcher

by GUI.

⑥

FIREWARE: Type-A USB port for firmware upgrade.

⑦

DC 24V: DC connector for power adapter connection.

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

www.vitbest.com - Page 5

System Connection

Usage Precaution

l Make sure all components and accessories included before installation.

l System should be installed in a clean environment with proper temperature and

humidity.

l All of the power switches, plugs, sockets, and power cords should be insulated and

safe.

l All devices should be connected before power on.

System Diagram

FIRMWARE

HDMI IN

OUTPUT

HDMI SPDIF AUDIO

LINE IN / MIX IN

Tx Rx

RS2 32 1 2 3 4

RS232

TCP/IP

DC 24V

Laptop

Audio Player

Layout

4K TV

HDMI:

Audio:

RS232:

Ethernet:

Laptop

Central Cont rol Sy stem

Amplifier

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

www.vitbest.com - Page 6

Front Panel Control

Multi-views Selection

Factory default is four quarter views, and factory default input and output corresponding

relation is input1 -> window A, input2 -> window B, input3 -> window C, input 4->

window D. Press one of the other two multi-view buttons to change layout. And its

multi-view mode and corresponding windows LEDs illuminate blue.

Full Screen mode: Press Windows A~D button to select the corresponding window to

display in full-screen. Meanwhile, the corresponding input source button LED and

window button A LED illuminate blue, other window buttons and previous multi-view

mode button LED goes out.

Video Signal Switching

l In the Multi-view mode

Operation: Inputs# + Windows#

Example: Switch Input 1 to Windows B:

Press INPUT 1(The input 1 LED illuminates blue, the windows A-D LEDs flash.)

Press Windows B (The windows A, C and D LEDs go out, then input 1 and windows B

LED flash three times, last, input 1 LED goes out and windows A-D LEDs illuminate

blue.)

l In the Full Screen mode

1) Manual Switching

Operation: Inputs# + Windows#

Example: Switch Input 2 to Windows A:

Press INPUT 2 (The input 2 LED illuminates blue.) Press Windows A (The input

2 and windows A LEDs illuminate blue).

2) Auto Switching

Press AUTO button to enter auto-switching mode, and the corresponding LED

illuminate blue.

When in the AUTO mode, signal switching complies with the following principles:

1) Four input sources priority: HDMI 1 > HDMI 2 > HDMI 3 > HDMI 4. When input

source and output window are connected, the corresponding LEDs illuminate blue.

2) Once detecting a new input signal, the switcher will switch to this new signal

automatically.

3) The switcher will memorize last input source when power off

4) Manual switching is enabled in the auto switching mode and does not exit it.

SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view

www.vitbest.com - Page 7

5) When full screen mode changes into multi-view mode, the AUTO mode will not exit.

Video Switching Status Inquiry

In the Multi-view mode (Window A, B, C or D LED illuminate blue).

Operation: Windows#

Example: Long press Windows B button for more than 3s (Window A, C and D LEDs

go out, and then corresponding input source LED will illuminate blue). After 3 seconds,

Window A, B, C and D LEDs illuminate blue.

Audio Select

Factory default is HDMI IN1 audio source. In the Multi-view mode, long press any

INPUT buttons for more than 3s to replace all output audios with corresponding input

audio source, meanwhile, the input LED illuminates blue. No operation within 3s, the

input LED will go out.

Long press AUTO button for 3s to replace all output audios with LINE IN audio source.

Config Button

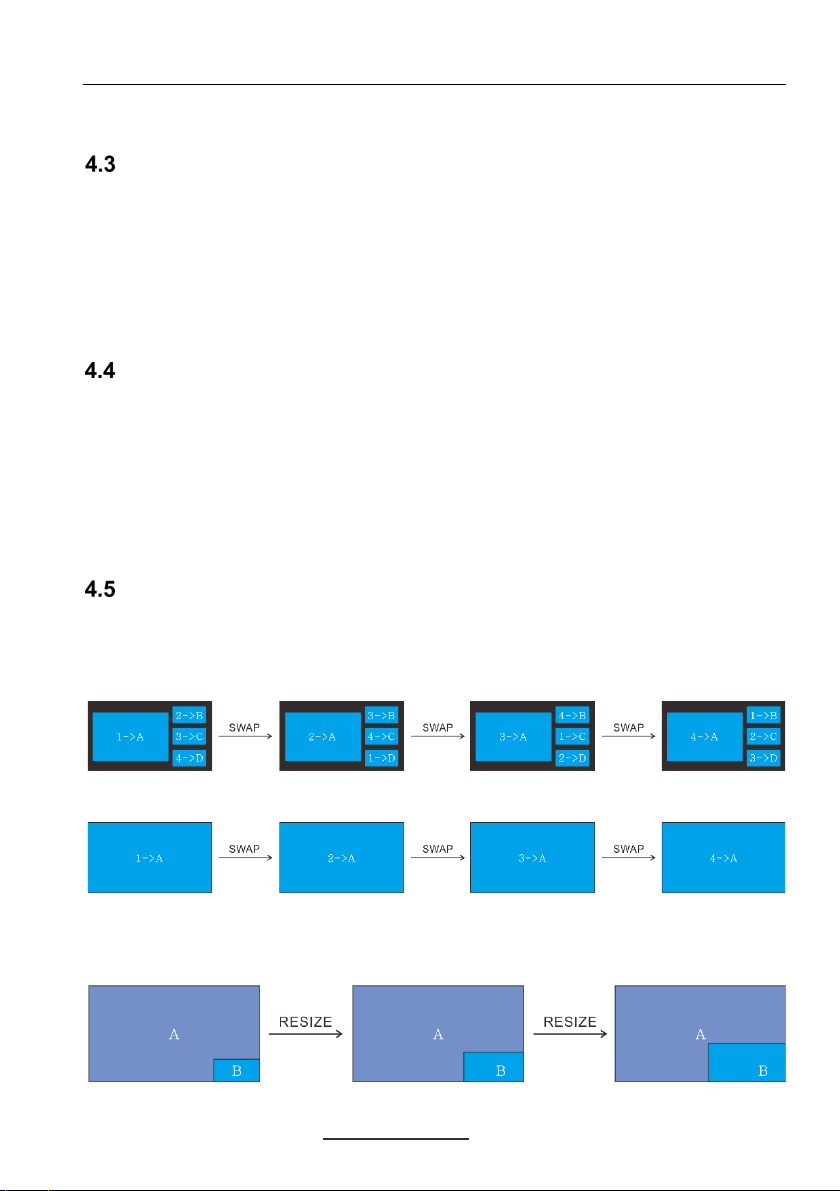

SWAP: Press Swap button to select window display screen anti-clockwise direction,

the SWAP LED lights once when press its button once.

Example: In the Multi-view mode

Example: In the Full Screen mode

RESIZE: Press RESIZE button to readjust the windows size. Please refer the GUI

Multi-view Tab on page 12 for more details.

Example: In the PIP mode

Tabla de contenidos

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
