Vinten Vision 6 Manual

Vinten

Camera Control Solutions

Operators Guide

Vision 6

Pan & Tilt Head

Vision 6

Pan and Tilt Head

Publication Part No. 3449-8 Issue 4

or reproduced in any way including, but not limited to, photocopy, photograph, magnetic or other record without the prior

agreement and permission in writing of

Vinten Broadcast Limited.

Vinten, QuickFit and Vision are registered trademarks of Vinten Broadcast Limited.

Safety - read this first

Warning Symbols in this Operators Guide

Where there is a risk of personal injury, injury to others, or damage to the pan

and tilt head or associated equipment, comments appear, highlighted by the

word WARNING! and supported by the warning triangle symbol.

Technical data

Weight

Head 2.3 kg (5.0 lb)

Pan bar 0.2 kg (0.4 lb)

Bowl clamp 0.14 kg (0.3 lb)

Height to mounting face 12.1 cm (4.76 in.)

Length 12.9 cm (5.08 in.)

Width 14.8 cm (5.83 in.)

Typical payload 7 kg (15.4 lb) - See balance graph (Fig 3)

Tilt range ±90°

Pan range 360°

Tripod fixing 75 mm ball

Further information

For further information or advice regarding this pan and tilt head, please contact Vinten Broadcast

Limited, your local Vinten distributor (see back cover) or visit our website.

For full details on maintenance and spare parts, please refer to the Vision 6 Pan and Tilt Head

Maintenance Manual and Illustrated Parts List (Publication Part No. 3449-9) This is obtainable

from Vinten Broadcast Limited or your local Vinten distributor. For information on-line, visit our

website at

www.vinten.com.

Contents

Page

Safety - read this first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Further information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operation

Installing the head on a tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mounting the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Balancing the head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Pan and tilt brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Pan and tilt drag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Servicing

Routine maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Brake knob and drag control knob adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Parts list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Associated publication

Vision 6 Pan and Tilt Head

Maintenance Manual

Publication Part No. 3449-9

(1) Pan bar

(2) Balance knob

(3) Pan drag adjustment knob

(4) Illuminated level bubble

(5) Pan brake knob

(6) Pan bar mounting

(7) Tilt brake knob

(8) Slide lock release

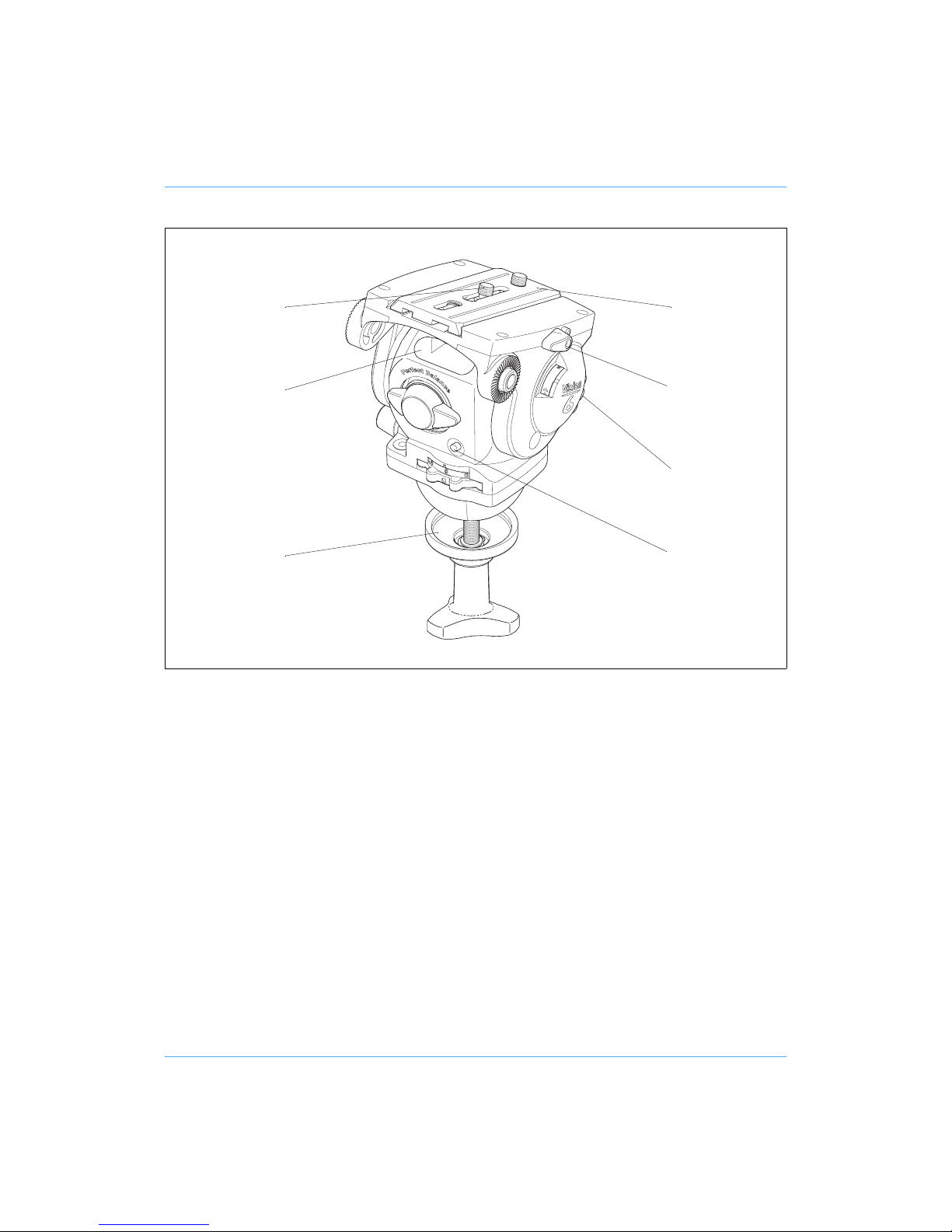

Vision 6 (Left-Hand Side)

(8) (1)

(2)

(3)

(4)

(7)

(6)

(5)

(9) Slide plate

(10) Slide plate clamp

(11) Tilt drag adjustment knob

(12) Switch for illuminated level bubble

(13) Bowl clamp

(14) Battery compartment

(15) Camera mounting screws

Vision 6 (Right-Hand Side)

(9)

(10)

(11)

(13)

(15)

(14)

(12)

Introduction

The Vision 6 pan and tilt head embodies an adjustable spring counterbalancing mechanism, LF

drag assemblies for pan and tilt motions and an adjustable camera mounting plate.

The balance system is easily adjusted by a knob (2) on the rear of the head. Maximum and mini-

mum payloads that can be balanced, and tilt ranges, are dependent on the weight of the camera

and accessories and on the centre of gravity (C of G) height.

The graph shows the range of load and C of G height that can be maintained in balance. The shad-

ed area of graph corresponds to those load/C of G combinations that can be balanced over the

full tilt range. The areas to the right indicate the progressively reducing tilt range with greater load

and higher C of G.

Where a load/C of G combination falls outside of the graph it will be necessary to increase or de-

crease the weight or the C of G height - if possible - to enable the head to balance the load.

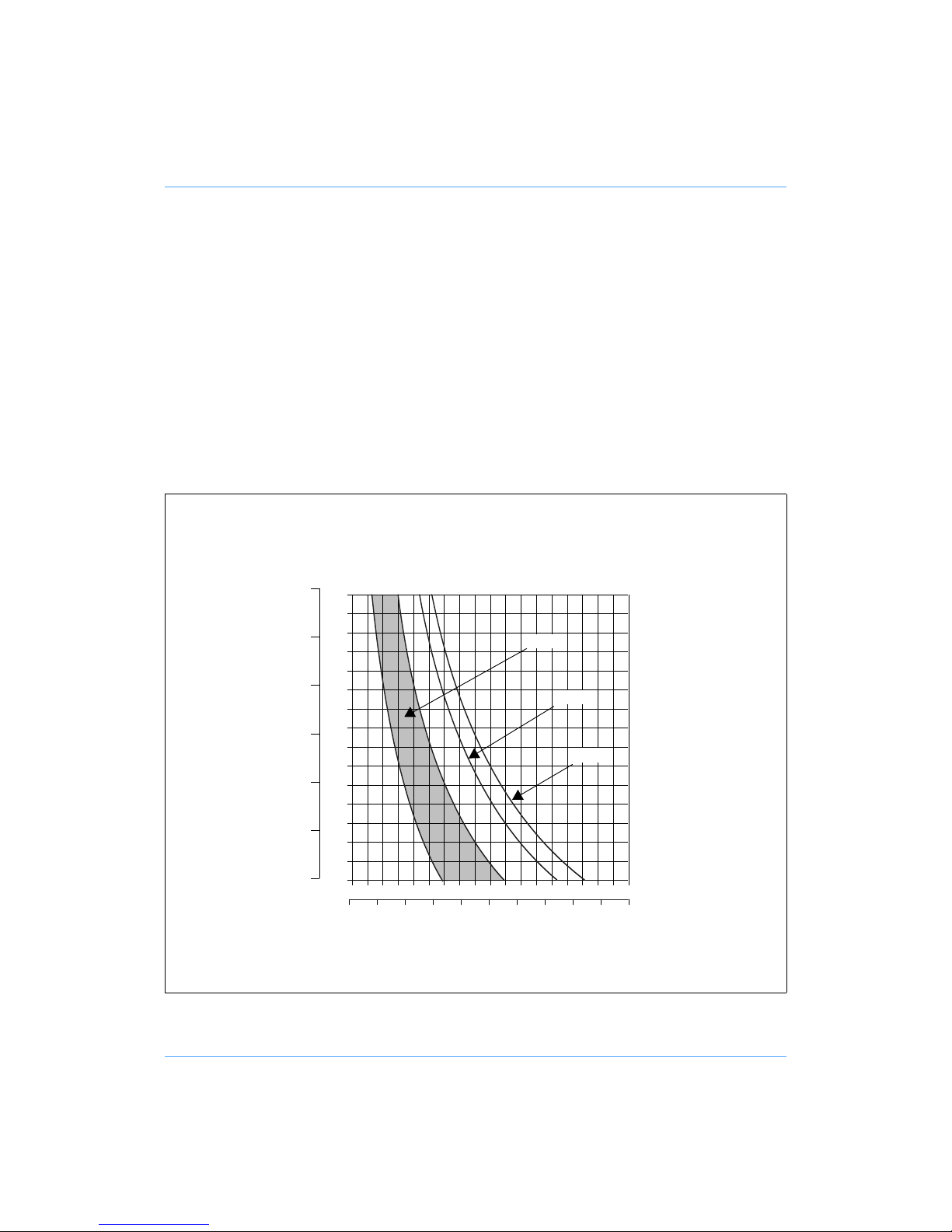

Balance graph

14 16 18 kg

32 36 40 lb444

410 12

812 16 20 24 28

2 6 8

100

130

110

120

140

150

160

170

180

190

200

in. mm

±90°

±60°

±40°

Both the pan and tilt mechanisms incorporate the patented Vinten lubricated friction (LF) system

to ensure smooth movement of the camera about these axes and are fitted with control knobs

(3)(11) to adjust the drag setting.

The whip-pan facility is unaffected by the pan drag setting.

Friction brakes on each axis allow the head to be locked at any chosen position. The operating

knobs for both brakes (5)(7) are fitted at the left-hand side of the head.

An illuminated level bubble (4) is fitted to the rear of the head. When the switch (12) is pressed,

the bubble will be illuminated for 15 seconds. The battery for the illuminated bubble is contained

in a battery compartment (14).

Pan bar mounting points (6) are located at the rear of the head, on either side of the camera

mounting platform. The pan bar is attached using a pan bar clamp, with angular adjustment avail-

able on the mount serrations. A fixed pan bar (1) is supplied. A second pan bar may be fitted.

The camera is attached to the head by means of a slide plate (9) or by using the optional Quickfit®

adapter (see Mounting the camera). A clamp (10) is provided to hold the slide plate in position

and a lock (8) prevents its inadvertent removal from the head

Operation

Installing the head on a tripod

The Vision 6 pan and tilt head is supplied with an integral 75 mm ball mount, designed for instal-

lation on a compatible Vinten Vision tripod.

Adaptors are available which enable the head to be installed on tripods or pedestals fitted with

other mountings. These are listed under Optional accessories - tripod and pedestal adaptors.

To install the head, remove the bowl clamp assembly (13) from the head, position the head on the

tripod and refit the bowl clamp assembly from below. Level the head with the aid of the level bub-

ble (4) and tighten the bowl clamp. The level bubble may be illuminated by pressing the switch

(12). The light will extinguish after approximately 15 seconds.

Mounting the camera

Mounting the camera (3/8 in. mounting screws)

Remove the slide plate (9) from the head by releasing the slide plate clamp (10), pressing the slide

lock release (8) and pulling the plate out to the rear.

Attach the slide plate to the camera or camera mounting plate under the approximate centre of

the camera's weight using both mounting screws (15).

Set the platform level and apply both the pan and tilt brakes (5)(7).

Push the slide plate and camera into the track in the platform, ensuring the slide lock release (8)

snaps into position.

Balance the head (see Balancing the head).

Mounting the camera (VHS adaptor)

The optional VHS adaptor (21) consists of a VHS pin and a 1/4 in. BSW camera mounting screw

connected by a plastic link.

To mount the camera using the VHS adaptor, proceed as follows:

Remove the slide plate (9) from the head by releasing the slide plate clamp (10), pressing

the slide lock release (8) and pulling the plate out to the rear.

Remove the two 3/8 in. BSW camera mounting screws (15) from the slide plate.

Position the VHS adaptor (21) in the longer slot in the slide plate, with the pin facing for-

wards. Screw the pin securely into the slide plate.

Secure the slide plate to the camera with the 1/4 in. BSW camera mounting screw, ensuring

the pin engages in the hole in the camera.

Set the platform level and apply both the pan and tilt brakes.

Push the slide plate and camera into the track in the platform, ensuring the slide lock re-

lease (8) snaps into position.

Balance the head (see Balancing the head).

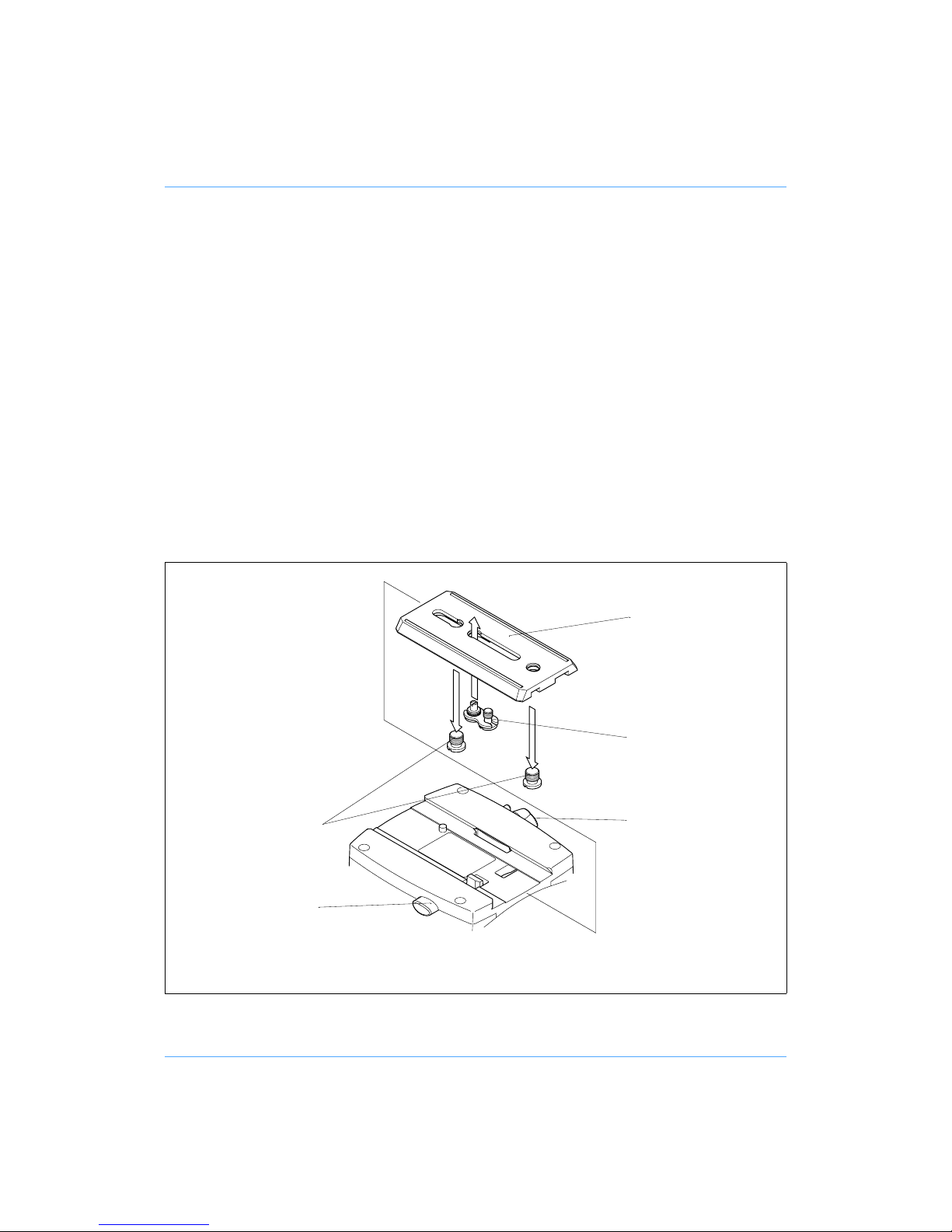

Mounting the camera (VHS adaptor)

(9)

(21)

(10)

(15)

(8)
