Vinotemp VT - DRAW2WBC Manual de usuario

W W W . V I N O T E M P . C O M

A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y

O W N E R ’S M A N U A L

2 D r a w e r W i n e &

B e v e r a g e C o o l e r

VT- D R A W 2 W B C

W W W . V I N O T E M P . C O M

General Operating Instructions

Remove all external and internal packaging from your wine and beverage

cooler. Be sure that all parts have been included before discarding any

packaging materials. You may want to keep the box and packing

materials for use at a later date.

Upon receipt and inspection of unit, the supply cord must be replaced if it

is damaged. Contact our customer service at 1-800-777-8466 or

[email protected].

Let the unit rest UNPLUGGED for 24 hours once you have it placed

in your home.

Please fully read the instruction manual.

Save these instructions.

Please read and follow all safety rules

and operating instructions before using.

17621 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1

i n f o @ v i n o t e m p . c o m

TABLE OF CONTENTS

PARTS AND SPECIFICATIONS ............................................... 4

IMPORTANT SAFETY INSTRUCTIONS ..................................... 5

CORD INSTRUCTIONS ......................................................... 6

BEVERAGE COOLER INSTALLATION ....................................... 6

DISPLAY PANEL .................................................................. 7

TEMPERATURE CONTROL ..................................................... 8

CARE AND MAINTENANCE .................................................... 9

MOVING YOUR BEVERAGE COOLER ....................................... 9

CIRCUIT DIAGRAM .............................................................. 9

TERMS OF SALE AND WARRANTY .........................................11

SERVICE & IMPORTANT NOTICE...........................................12

W W W . V I N O T E M P . C O M

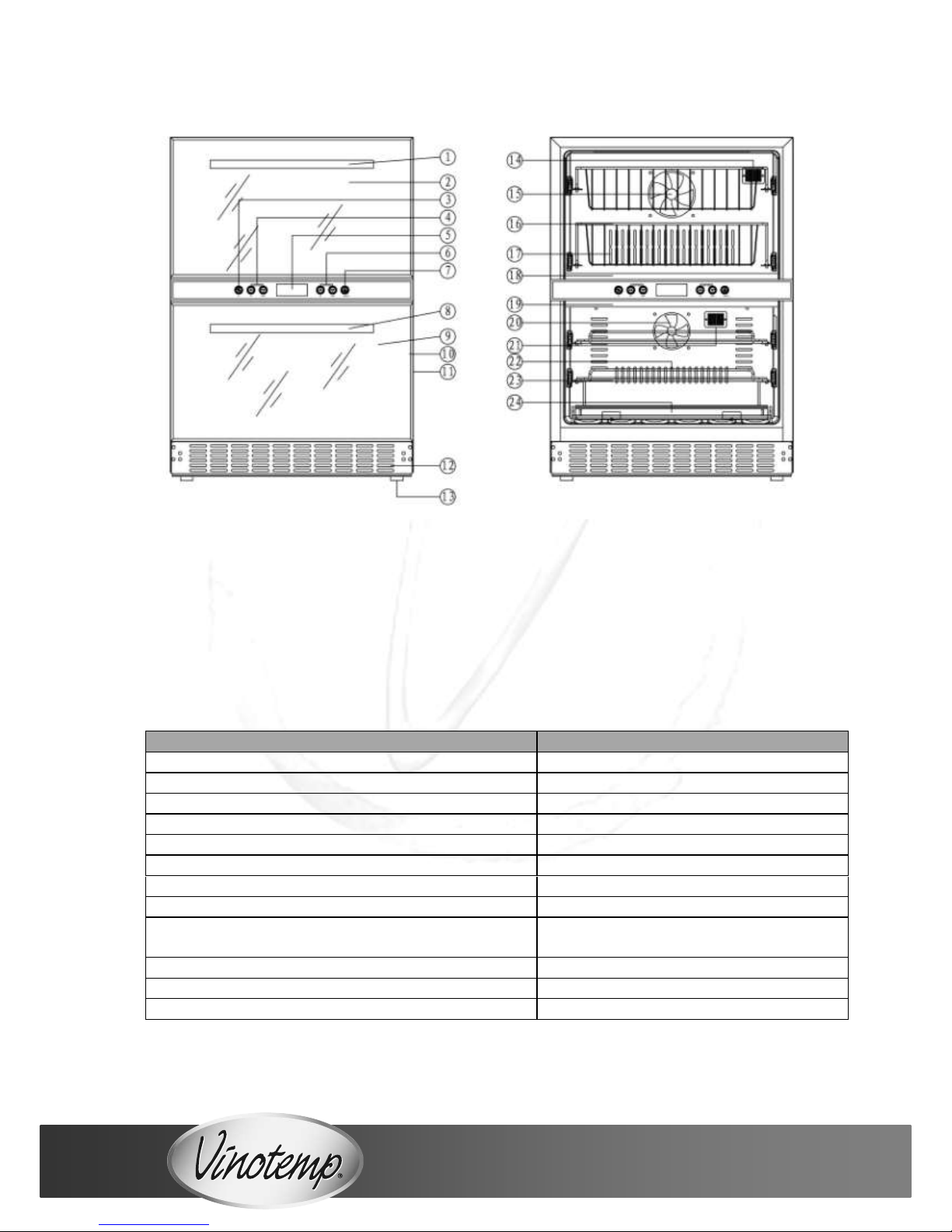

PARTS AND SPECIFICATIONS

1. Upper door handle

2. Upper door

3. Temperature switch

4. Upper zone

temperature control

5. Temperature display

6. Lower zone

temperature control

7. Light On/Off switch

8. Lower door handle

9. Lower door

10. Panel

11. Body

12. Front exhaust grille

13. Foot

14. Upper zone NTC

15. Upper zone fan

16. Upper zone shelf

17. Rear exhaust window

18. Upper zone seal

19. Lower zone seal

20. Lower zone fan

21. Lower zone NTC

22. Rear exhaust window

23. Lower zone shelf

24. Right and Left slide

shelf

Product Number

VT-DRAW2WBC

Type

2 Temp.

Capacity

150L

Voltage

110V

Current

2.0A

Frequency

60Hz

Protection class

Climate class

T/ST/N/SN

Input power

140W

Temperature control range

Upper zone: 40-50°F

Lower zone: 50-66°F

Net weight

108 Lbs

Product dimensions (WxDxH)

23.5” x 22.375” x 33”

Package dimensions (WxDxH)

27.75” x 29.25” x 38.5”

17621 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1

i n f o @ v i n o t e m p . c o m

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be followed

to reduce the risk of fire, electric shock, and personal injury.

1. Use this appliance only as described in this manual. Other uses are

not recommended and may cause fire, electric shock or injury.

2. This product is intended for indoor, household use.

3. To protect against electric shock, do not immerse unit, plug or

cord in water or other liquids. Avoid locating the unit in moist

areas.

4. Never allow children to operate, play with, or crawl inside the unit.

5. Unplug from the outlet when not in use, when moving from one

location to another, or before cleaning.

6. To disconnect the appliance, grip the plug and pull it from the wall

outlet. Never pull by the cord.

7. Do not operate the appliance in the presence of explosive and/or

flammable fumes.

8. Do not place the appliance or any of its parts near an open flame,

cooking or other heating appliance.

9. Do not operate the appliance with a damaged cord or plug. If the

product malfunctions, or if it is dropped or damaged in any

manner, do not use.

10. The use of attachments is not recommended and may be

hazardous.

11. Do not operate if the housing is removed or damaged.

12. A loose fit plug may cause overheating and a distortion of the plug.

Contact a qualified electrician to replace loose or worn outlet.

13. The appliance is intended for use in a controlled ambient location

such that the ambient temperature does not exceed 110°F.

14. Locate the unit away from direct sunlight and sources of heat

(stove, heater, radiator, etc.). Direct sunlight may affect/alter the

outside color of the appliance.

WARNING: To reduce the risk of fire, electric shock or personal injury,

unplug the appliance from the power supply before servicing.

WARNING: Risk of child entrapment. Before you throw away your old

cooler, remove the door and leave the shelves in place so that children

may not easily climb inside.

W W W . V I N O T E M P . C O M

CORD INSTRUCTIONS

For your protection, this unit should be properly

grounded. Unit is equipped with a 3-conductor

cord set that has a molded 3-prong grounding-

type plug, and should be used in combination

with a properly connected grounding-type outlet

as shown in figure A.

It is not recommended to use this beverage

cooler with an extension cord or power board. Please ensure that the

appliance is plugged directly into the electrical outlet.

BEVERAGE COOLER INSTALLATION

Remove the exterior and interior packaging before use.

Check to be sure you have all of the parts and 1 owner’s manual.

Place your beverage cooler on a flat, dry surface that is strong enough

to support the unit when fully loaded.

Do not place heavy objects on top of the unit.

Unit is not designed for installation in a garage, basement, or any

other location where a controlled ambient environment between 60°

and 90°F cannot be maintained.

Do not place the unit in direct sunlight or near sources of heat.

Extreme hot and cold ambient temperatures may cause the unit not to

perform properly or increase electrical consumption.

Do not place the unit next to a major appliance that emits large

amounts of heat, such as a dishwasher, microwave, oven, etc.

Do not plug unit into the same outlet as a refrigerator or microwave.

Before connecting the appliance to the power source, let it stand

upright for approximately 2 hours. This will reduce the possibility of a

malfunction in the cooling system from handling during transportation.

Clean the interior surface with lukewarm water using a soft cloth

before first use.

Do not lift unit by door handle

Be sure front grill is free of obstruction. Obstructing free airflow can

cause the unit to malfunction and will void the warranty.

Failure to clean the condenser every six months can cause the unit to

malfunction.

Allow unit temperature to stabilize for 24 hours before use.

To level your appliance, adjust the front legs at the bottom of the

appliance.

17621 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1

i n f o @ v i n o t e m p . c o m

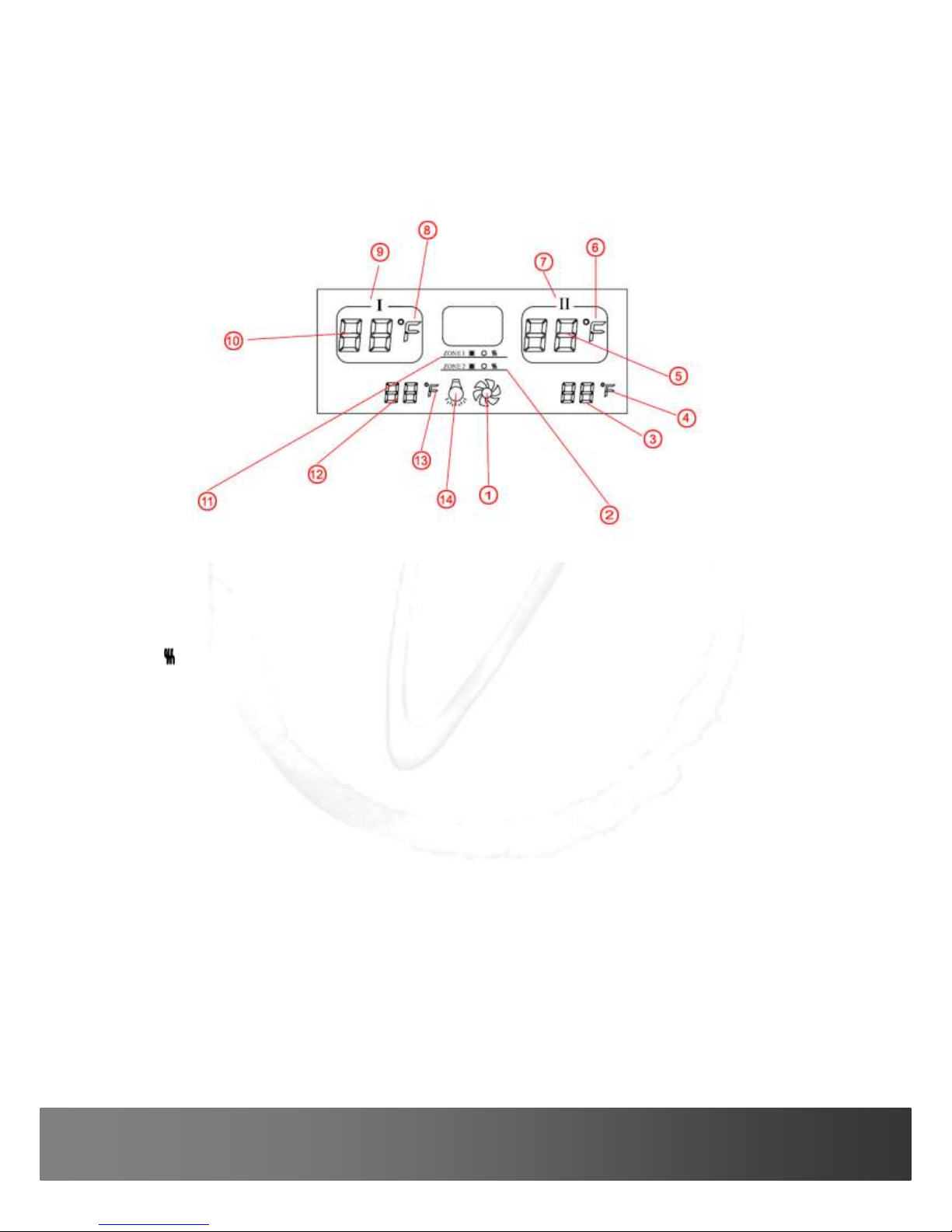

DISPLAY PANEL

On the display panel in middle of the control panel, you can read the

following information and adjust the temperature setting according to

your condition:

1. Indicator of the whole unit’s working status.

2. Indicator of the lower zone’s working status:

※: Refrigerating.

○: Maintaining the current temperature.

: Heating.

3. Setting temperature of lower zone.

4. Celsius or Fahrenheit degree.

5. The current temperature of the lower zone.

6. Celsius or Fahrenheit degree.

7. Lower zone.

8. Celsius or Fahrenheit degree.

9. Upper zone.

10. The current temperature of the upper zone.

11. Indicator of the upper zone’s working status:

※: Refrigerating.

○: Maintaining the current temperature.

12. Setting temperature of upper zone.

13. Celsius or Fahrenheit degree.

14. Internal light (on/off) indicator.

W W W . V I N O T E M P . C O M

TEMPERATURE CONTROL

To control the upper zone temperature, use the UP and DOWN buttons

on the left side to adjust the temperature by 1° increments

To control the lower zone temperature, press UP and DOWN button on

the right side to adjust the temperature by 1° increments.

To turn on or off the internal LED lighting, press LIGHT button on the

right side.

To switch the temperature display from Celsius Degree to Fahrenheit

Degree or vice versa, press C/F button.

INSTALLING THE HANDLE

The stainless steel handle should be installed according to the following

diagram:

17621 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1

i n f o @ v i n o t e m p . c o m

CARE AND MAINTENANCE

Always unplug the cooler and remove any beverage containers before

cleaning.

Do not use benzene, scrubbing brushes or chemical cleaners as these

will damage the unit.

Use only a mild, nonabrasive cleanser to clean the exterior of the

cabinet.

Wash the inside with a warm water and baking soda solution. The

solution should be about 2 tablespoons of baking soda to a quart of

water.

The exterior of the cooler should be cleaned with mild detergent and

warm water.

Draw out the water box at the bottom and wash.

MOVING YOUR BEVERAGE COOLER

Always unplug the cooler before moving.

Always remove all beverages before moving the cooler.

Securely tape down all loose items (shelves) inside your appliance.

Tape the door.

Be careful of cabinet legs to avoid damage when moving.

Be sure the cooler stays in the upright position during transportation

Protect the exterior of the appliance with a blanket or similar item

when moving, as needed.

CIRCUIT DIAGRAM

W W W . V I N O T E M P . C O M

TROUBLESHOOTING GUIDE

You can solve many common cooler problems easily, saving you the cost

of a service call. Try the suggestions below to see if you can solve the

problem before contacting Vinotemp at [email protected].

PROBLEM

POSSIBLE CAUSE

Unit does not

operate

Unit is not plugged in or you may be using a different

voltage.

The circuit breaker may be tripped or a fuse may be

blown.

Unit is not cold

enough

Check the temperature control setting.

External environment may require a higher setting.

The door is opened too often.

The door is not closed completely.

The door seal does not seal properly.

The unit does not have the correct clearance.

The light does not

work.

Check the light bulb.

Vibrations

Check to make sure the unit is level.

Unit makes too

much noise.

The unit is not level.

Check the fan.

The door will not

close properly.

The wine cooler is not level.

The doors were reversed and not properly installed.

The seal is weak.

The shelves are out of position.

LCD does not

display.

Main control board does not work.

There is a problem with the PCB.

There is a problem with the plug.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enfriador de vino de Vinotemp

Vinotemp

Vinotemp Wine-Mate WM-2500SSDWC Manual de usuario

Vinotemp

Vinotemp VT-34-2Z Manual de usuario

Vinotemp

Vinotemp 1500SS Manual de usuario

Vinotemp

Vinotemp VT-52SN Manual de usuario

Vinotemp

Vinotemp WINE-MATE VINO3500HZD Manual de usuario

Vinotemp

Vinotemp VC7S Manual de usuario

Vinotemp

Vinotemp WINE-MATE WM-1500HZD Instrucciones de uso

Vinotemp

Vinotemp VT-12TEDS-2Z Manual de usuario

Vinotemp

Vinotemp Wine-Mate WM-2520SSW Guía de instalación

Vinotemp

Vinotemp Wine-Mate WM-2520SSR Guía de instalación

Vinotemp

Vinotemp VT24 Manual de usuario

Vinotemp

Vinotemp cavanova Romanzo IL-OW006 - 2Z Manual de usuario

Vinotemp

Vinotemp WINE-MATE WM-1500HTD Instrucciones de uso

Vinotemp

Vinotemp VT-32SN Manual de usuario

Vinotemp

Vinotemp VT-155VCM-GR Manual de usuario

Vinotemp

Vinotemp VT-32 Manual de usuario

Vinotemp

Vinotemp VT- 36 Manual de usuario

Vinotemp

Vinotemp VT-45 Manual de usuario

Vinotemp

Vinotemp VT-46TS-2Z Manual de usuario

Vinotemp

Vinotemp element EL-46WCST Manual de usuario

Vinotemp

Vinotemp small VinoCellier Manual de usuario

Vinotemp

Vinotemp Wine-Mate WM-2500SSD Manual de usuario

Vinotemp

Vinotemp VT-140 TS Manual de usuario

Vinotemp

Vinotemp VT-12TSMD-2Z Manual de usuario

Manuales populares de Enfriador de vino de otras marcas

U-Line

U-Line Echelon Wine Captain 2075WC Manual del propietario

Haier

Haier WS50GA Manual de usuario

Cavist

Cavist 62 Manual de usuario

Kenmore

Kenmore 461.99130 Manual de usuario

Miele

Miele KWT 6422 iG Manual de usuario

Danby

Danby DWC113BLSDB Manual de usuario

Caple

Caple Wi6128 Manual de usuario

Avanti

Avanti WC1001 Manual de usuario

Frigidaire

Frigidaire FFWC38F6LS Manual de usuario

Titan

Titan TT-W2454SZ Manual de instalación

Klarstein

Klarstein Botella 166 Uno Manual de usuario

Costway

Costway FP10130WL Manual de usuario

Lemair

Lemair LWC59 Manual de usuario

Haier

Haier JC-125GEA Manual de usuario

Caple

Caple WCi46B Manual de usuario

Climadiff

Climadiff CLI24 Guía rápida

Viking

Viking VCWB301LSS Manual de usuario

Caple

Caple WC6511 Manual de usuario
