Initiate Dialin
g
from a Contact Closure
VIKING©

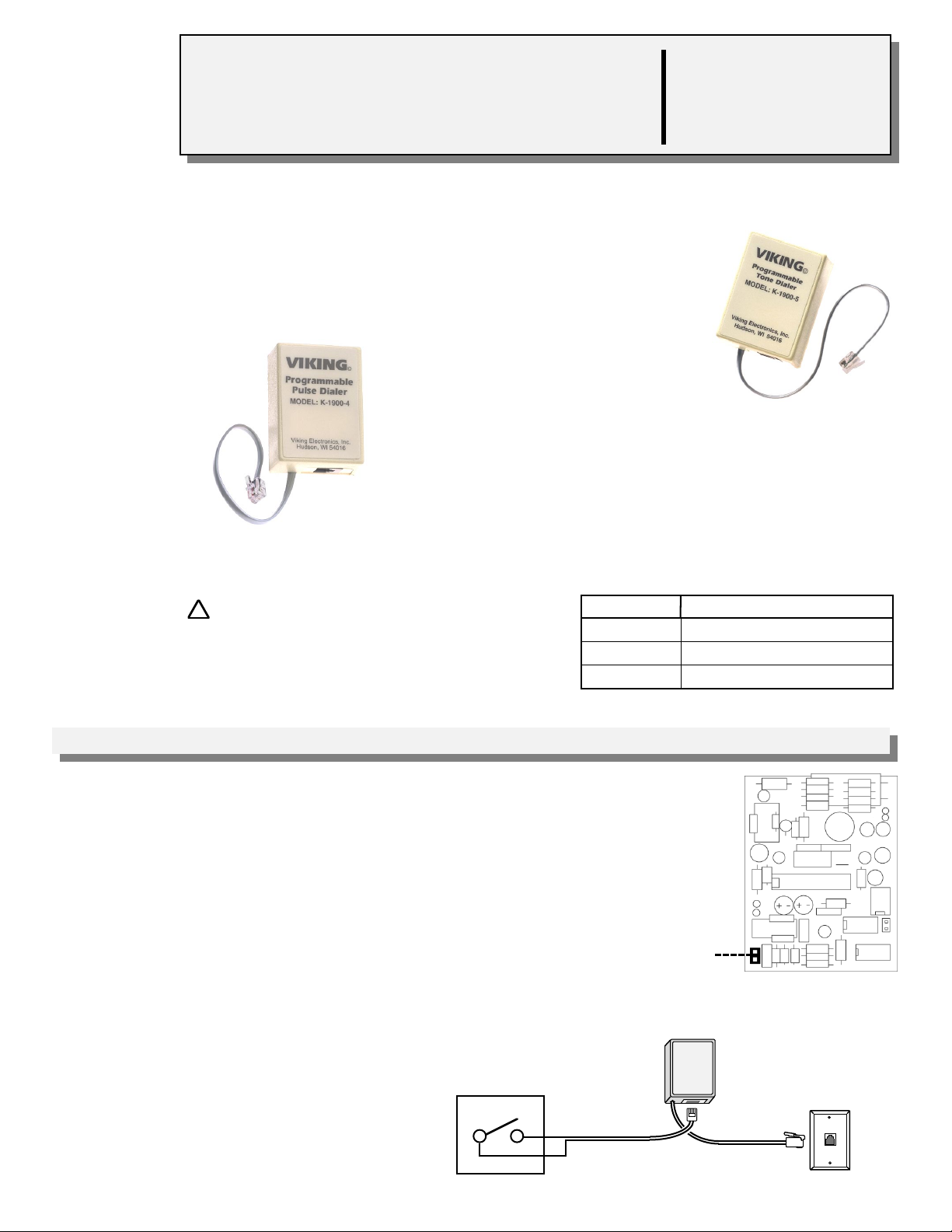

Application Note
Telecommunication Peripheral Products Contact Closure
Dialing with Hot-Line
Dialers
October 8, 2003
K-1900-5
All of Viking’s Hot-Line dialers, both exisiting and
discontinued, may be configured to dial when triggered by a
contact closure. This is ideal for applications where a piece
of equipment provides the closure, allowing the dialer to dial a
phone number or pager number for alarm notification.
This document must be used in
combination with the product’s Technical
Practice.
!
K-1900-4
K-1900-5
Important: Electronic components are sensitive to static electricity. Personnel and the work area
should be grounded before handling.
1. Remove the cover of the K-1900-5 with your hands.
2. Locate JP1.
Note: There are (2) two pin headers on the circuit board. Use the diagram (right) to find JP1.
3. Short the two pins on JP1 together. Wrapping a bare telephone wire around both pins is suggested.
4. When finished, replace the cover.
Important: Be sure whatever is used to short the jumper is not touching any other components.
JP1
B. Installation
A. Converting the K-1900-5 to Contact Closure Dialing
C.O. line or analog
PABX/KSU station
RJ-11
Contact Closure or switch
(2 second minimum)
Modular
phone plug
K-1900-5
VIKING©
Programmable
Tone Dialer
MODEL: K-1900-5
Viking Electronics, Inc.
Hudson, WI 54016
Red/Green
Various contact closures are
required depending on the
dialer.
http://www.VikingElectronics.com
Sales...(715) 386-8861
Note: The K-1900-5 will drop the line as
soon as it is done dialing, so it is important
to add several pauses to the end of the
dialing string to allow time for the call to go
through. If the contact or switch is
continuous, the K-1900-5 will drop the line
when closure is released.
Model
K-1900-4
K-1900-5
K-2000-DVA
Fax Back Document Number
315
317
303
Important: Different revisions of products may require different programming and/or setup.
Please read your serial label to find the proper section.
Printed in the U.S.A. ZF301090 Rev 20Fax Back Doc # 818
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking
Electronics, its affiliates and/or subsidiaries assume no responsibility for errors and/or omissions contained in this information. Revisions of
this document or new editions of it may be issued to incorporate such changes.
Product Support Line...(715) 386-8666 Fax Back Line...(715) 386-4345

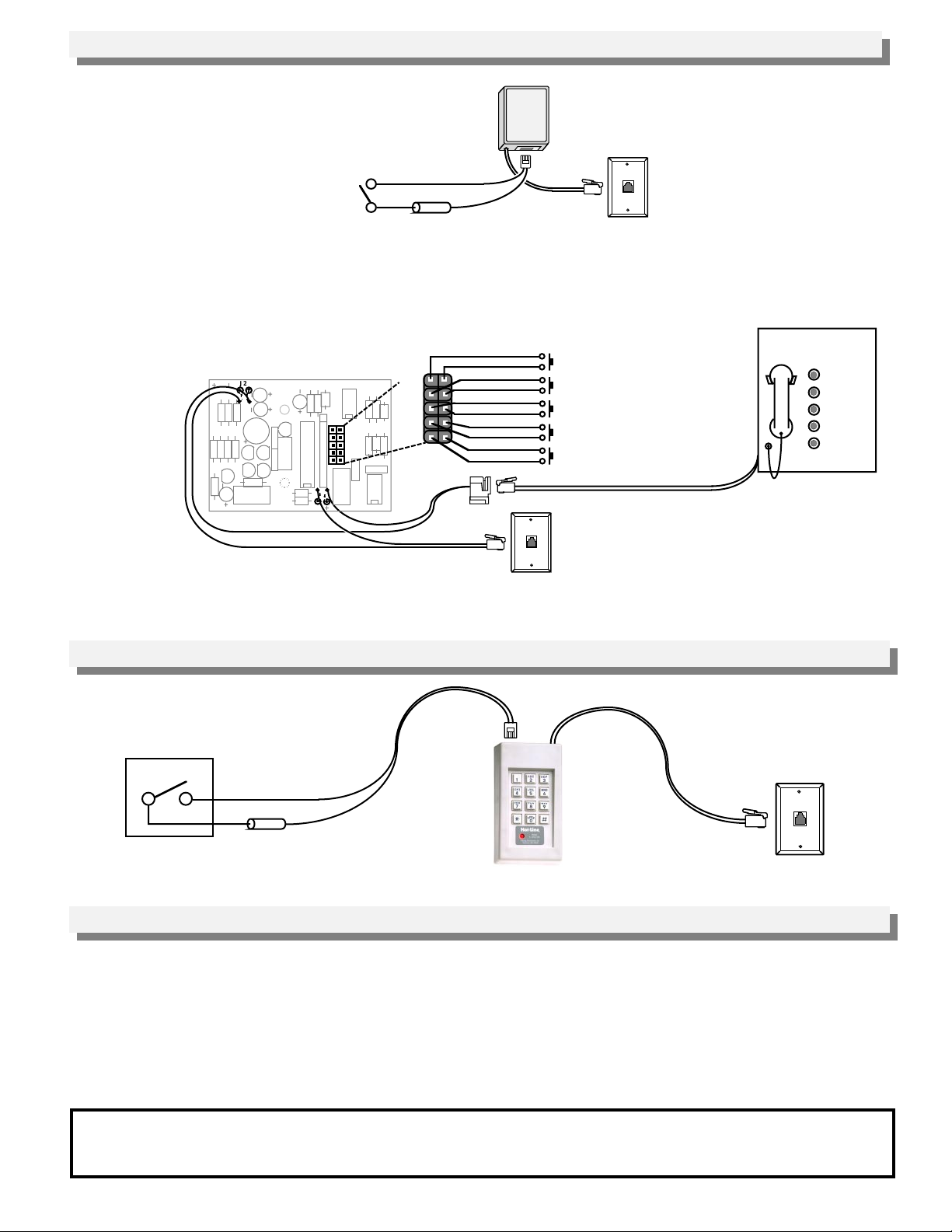

B. Dialing up to 5 Numbers from Multiple Contact Closures
A. Single Number Dialing
K-1500-5KB (discontinued)
C.O. Line or analog
PABX/KSU extension
Note: The contact closure must be maintained
for the duration of the call.
Contact Closure
Modular phone
plug
R/G
150 Ohm 1/2 watt
resistor
The K-1900-4 may be used in OEM applications to
create a multi-number dialer with push button
selections.
Note: Contact Viking Technical support for configurations of up to 31 speed dial numbers.
JP1
JP2
JP3
JP5
JP4
Green Wires
OEM front panel with
telephone balance
network, hook switch
and momentary push
buttons
K-1900-4 used in FCC
Registered phone assembly
C.O. line or analog
PABX/KSU station
Red Wires J2
J3
J1
Momentary
Push Buttons Speed Dial
Memory Positions
JP1 ..................
JP2 ..................
JP3 ..................
JP4 ..................
JP5 ..................
00 .......................
01 .......................
02 .......................
03 .......................
04 .......................
Hotel
Car Rental
Airline
Information
Security
Take handset off hook then press button
Courtesy Phone
K-1900-4
C.O. line or analog
PABX/KSU station
RJ-11
Contact
Closure
Modular
phone plug
K-1900-4
VIKING©
Programmable
Pulse Dialer
MODEL: K-1900-4
Viking Electronics, Inc.
Hudson, WI 54016
R/G
150 Ohm 1/2 watt
resistor
Note: The contact closure must be
maintained for the duration of the call.
K-2000-DVA
The K-2000-DVA combines multi-number dialing from multiple contact closures combined with a built-in digital voice
announcer for emergency and non-emergency applications. The K-2000-DVA can store multiple phone numbers and
can record and play a user recorded alarm message.
For more information regarding the K-2000-DVA, retrieve Fax Back Document 303.
