PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1- -VIKING1
All models include
• Agency certified for outdoor use
• Electronic controls with digital
temperature readout
oInside temperature can be adjusted
from 33 – 39ºF
oFactory set at 34ºF
oSabbath mode
oTemperature can be displayed in
either Fahrenheit or Celsius
• Capacity—5.3 cu. ft. (150.0 L)
• 200 lb. capacity full-extension drawer
glides
• LED display lighting
• Forced air cooling system with
powerful 700 BTU compressor
• Tru-Flush™design allows unit to fit
flush in 24” deep cutout
• Energy Star qualified
• Undercounter or freestanding
installation
• Self-closing door with keyed lock
• Super quiet 32-39 db sound rating
• Stainless steel kickplate
• Adjustable leveling legs
VRDO1240D
Pr fessi nal
FINISH DETAILS FOR VRDO MODEL
• Solid door—Stainless Steel (SS)
• Finish code designates drawer fronts.
Stainless steel handle with chrome-
plated brackets, stainless steel exterior
cabinet, and stainless steel interior.
Standard Features & Accessories
Model Options
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1- -VIKING1
✪
Please see
Installati n N tes &
Access ries
for important
information,
including pan sets
and dividers.
Dimensions & Specifications
VRDO1240D
Overall width 23-7/8" (60.6 cm)
Overall height 34-1/4” (87.0 cm) min. to 3 ” (89.0 cm) max.
Overall depth (from rear)
To front edge of handle 26-9/16” (67.5 cm
With drawer fully extended 40” (102.0 cm)
Approx. ship wt. 21 lbs. (98.0 kg)
VRDO1240D
Pr fessi nal

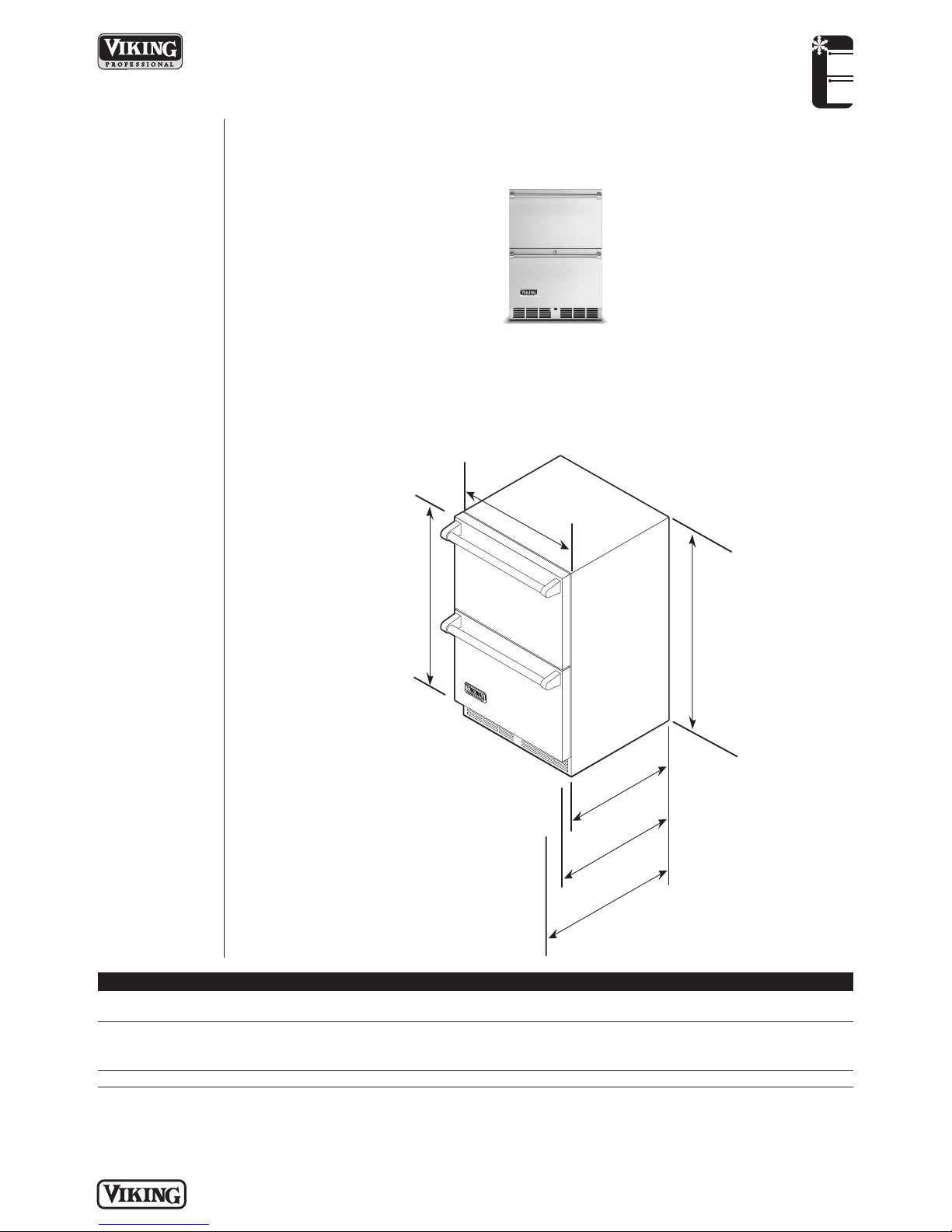

PRODUCT DIMENSIONS
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
30-1/8”
(76.5cm)
22-1/6”
(56.0cm)
24-1/16”
(61.1cm)
26-9/16”
(67.5cm)
23-7/8”
23-7/8”
(60.6cm)
(60.6 cm)
23-7/8”
(60.6cm)
34-1/4”
(87.0cm)
min.
to
35”
(89.0cm)
max.
PROFESSIONAL
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1- -VIKING1
Dimensions & Specifications

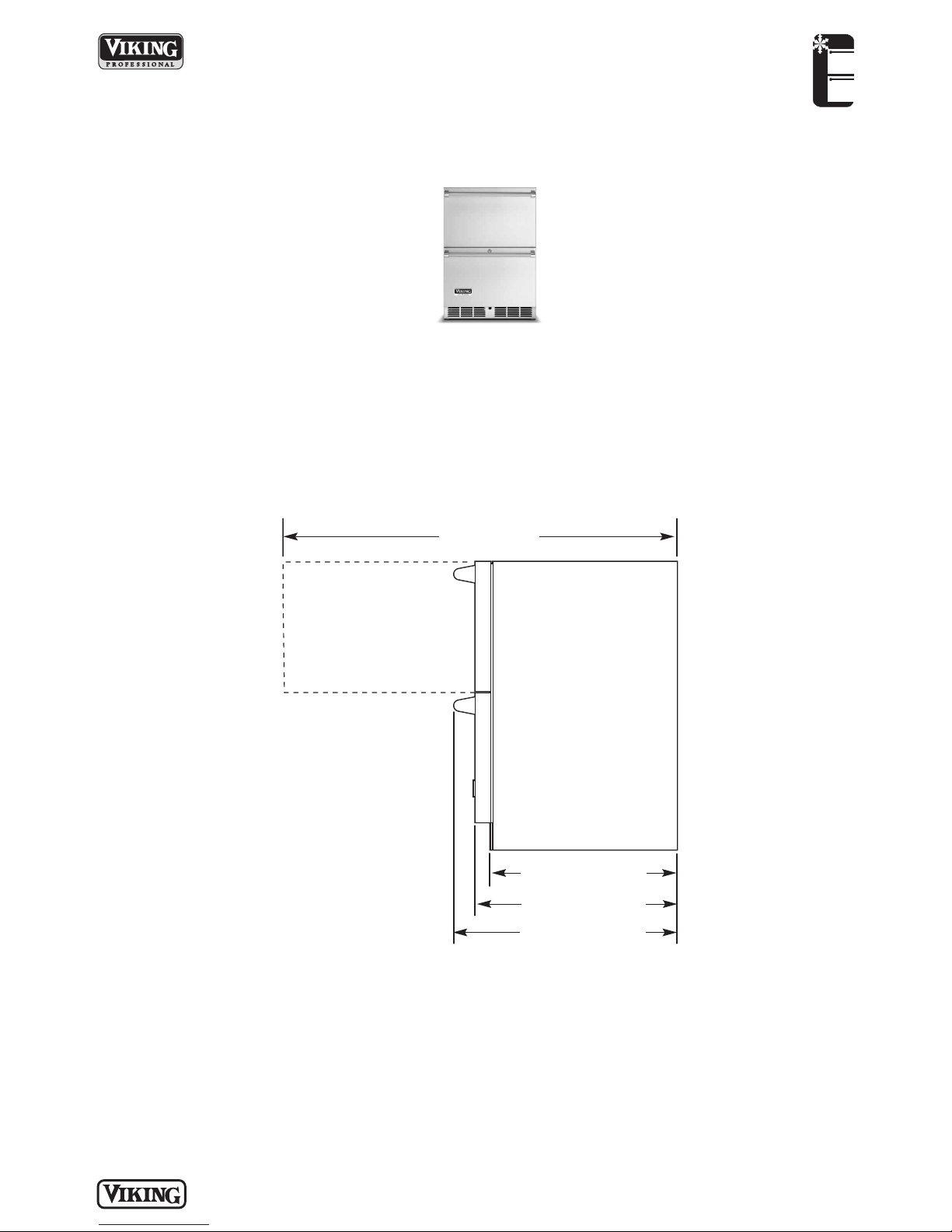

DRAWER EXTENSION
VRDO1240D
Pr fessi nal
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
40” (102.0 cm)
22-1/16” (56.0 cm)
24-1/16” (61.1 cm)
26-9/16” (67.5 cm)
PROFESSIONAL
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product
• 115V/60 Hz; 15
amp dedicated
circuit
• Maximum amp
usage—3.0
PLUMBING
Not applicable
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1- -VIKING1
UTILITY
REQUIREMENTS
Installation Requirements
24” (61.0 cm)
34-1/2” (87.6 cm) min.
35-1/2” (90.2 cm) max.
24”
(61.0cm)
ACCESS REQUIREMENTS
All models
Cutout width 24” (61.0 cm)
Cutout height 34-1/2” (87.6 cm) min. to 3 -1/2” (90.2 cm) max.
Cutout depth 24” (61.0 cm)
VRDO1240D
Pr fessi nal
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1- -VIKING1
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—complete unit
• Five-year limited warranty—sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator
and connecting tubing)
• Ninety-day limited—cosmetic parts such as glass, painted, and decorative items
*For complete warranty, see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
Stainless Steel Cabinetry-Bases
• Stainless Steel (SS)
• For use with 24”W. Viking outdoor refrigeration products
•See individual product pages (storage section) for more information and additional specifications
Stainless Steel Cabinetry-Oven Towers
• Stainless Steel (SS)
• For installation of 24” refrigerated drawer with oven
• See individual product pages (storage section) for more information and additional specifications
✪Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
VURO3200 Base for 24”W outdoor refrigerated drawer 125 (56.7
Model Description Approx. ship wt. lbs. (kg)
VERO3200 32”W. tower (for 24”W. refrigerated drawer + smoker oven 271 (122.9
VGRO3200 32”W. tower (for 24”W. refrigerated drawer + gas oven 271 (122.9
