PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
All models include
• Hidden touchpad electronic controls
with digital temperature readout
oInside temperature can be adjusted
from 32 – 45ºF
oTruProtect™system signals if door is
left open or if temperature is out of
set range
oSabbath mode disables audible
tones, LED display and lights
oTemperature can be displayed in
either Fahrenheit or Celsius
• Capacity—5.8 cu. ft. (164.1 L)
• Full-extension drawer glides
• Vertical storage of wine bottles or two-
liter drink bottles in bottom drawer
• Automatic cycle defrost
• Interior LED lighting
• Install as undercounter or freestanding
unit
VURD144D
Professional
FINISH DETAILS FOR DFRI MODEL
• Handle not included—opt for custom
handle, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
• Accepts 3/4”-thick custom wood panel
• See Custom Panels section for more
information and additional
specifications.
FINISH DETAILS FOR DURD MODEL
• Solid door—Stainless Steel (SS)
• Finish code designates drawer fronts.
Stainless steel handle with chrome-
plated brackets, black exterior cabinet,
and stainless steel interior.
FINISH DETAILS FOR VURD MODEL
• Solid door—Stainless Steel (SS)
• Finish code designates drawer fronts.
Stainless steel handle with chrome-
plated brackets, black exterior
cabinet, and stainless steel interior.
DURD144D
Designer
DFRD144D
Custom Front
Standard Features & Accessories
Model Options
REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
R E L E A S E D 6 / 1 0 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
!
Please see
Installation Notes &
Accessories
for important
information,
including pan sets
and dividers.
Dimensions & Specifications
30-3/4”
(78.1 cm)
22”
(55.9cm)
24-3/8”
(61.9cm)
26-7/8”
(68.3cm)
23-7/8”
(60.6cm)
34-1/4”
(87.0cm)
min.
to
35”
(88.9cm)
max.
30-3/4”
(78.1 cm)
22”
(55.9cm)
23-7/8”
(60.6cm)
34-1/4”
(87.0cm)
min.
to
35”
(88.9cm)
max.
24-3/8”
(61.9 cm)
24-3/16”
(61.4cm)
25-3/8”
(64.5cm)Varies
PROFESSIONAL DESIGNER/
CUSTOM FRONT
VURD144D DURD144D DFRD144D
Overall width 23-7/8" (60.6 cm)
Overall height 34-1/4” (87.0 cm) min. to 35” (88.9 cm) max.
Overall depth (from rear)
To front edge of lower vent 22” (55.9 cm)
To front edge of door 24-3/8” (61.9 cm) 24-3/8” (61.9 cm) Varies
To front edge of handle 26-7/8” (68.3 cm) 25-3/8” (64.5 cm)
With drawer fully extended 47-1/4” (120.0 cm)
Approx. ship wt. 180 lbs. (81.8 kg)
VURD144D
Professional
DURD144D
Designer
DFRD144D
Custom Front
PRODUCT DIMENSIONS
See Custom Panels for more
information and additional
specifications.
R E L E A S E D 6 / 1 0 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
47-1/4” (120.0 cm)
22” (55.9 cm)
24-3/8” (61.9 cm)
25-3/8” ( 64.5 cm)
22” (55.9 cm)
24-3/8” (61.9 cm)
26-7/8” (68.3 cm)
47-1/4” (120.0 cm)
PROFESSIONAL
DESIGNER
Dimensions & Specifications
DRAWER EXTENSION
See Custom Panels section for
more information and additional
specifications.
VURD144D
Professional
DURD144D
Designer
DFRD144D
Custom Front
R E L E A S E D 6 / 1 0 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product
• 115 VAC/60 Hz;
15 amp dedicated
circuit
• Maximum amp
usage—3.3
PLUMBING
Not applicable
REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1

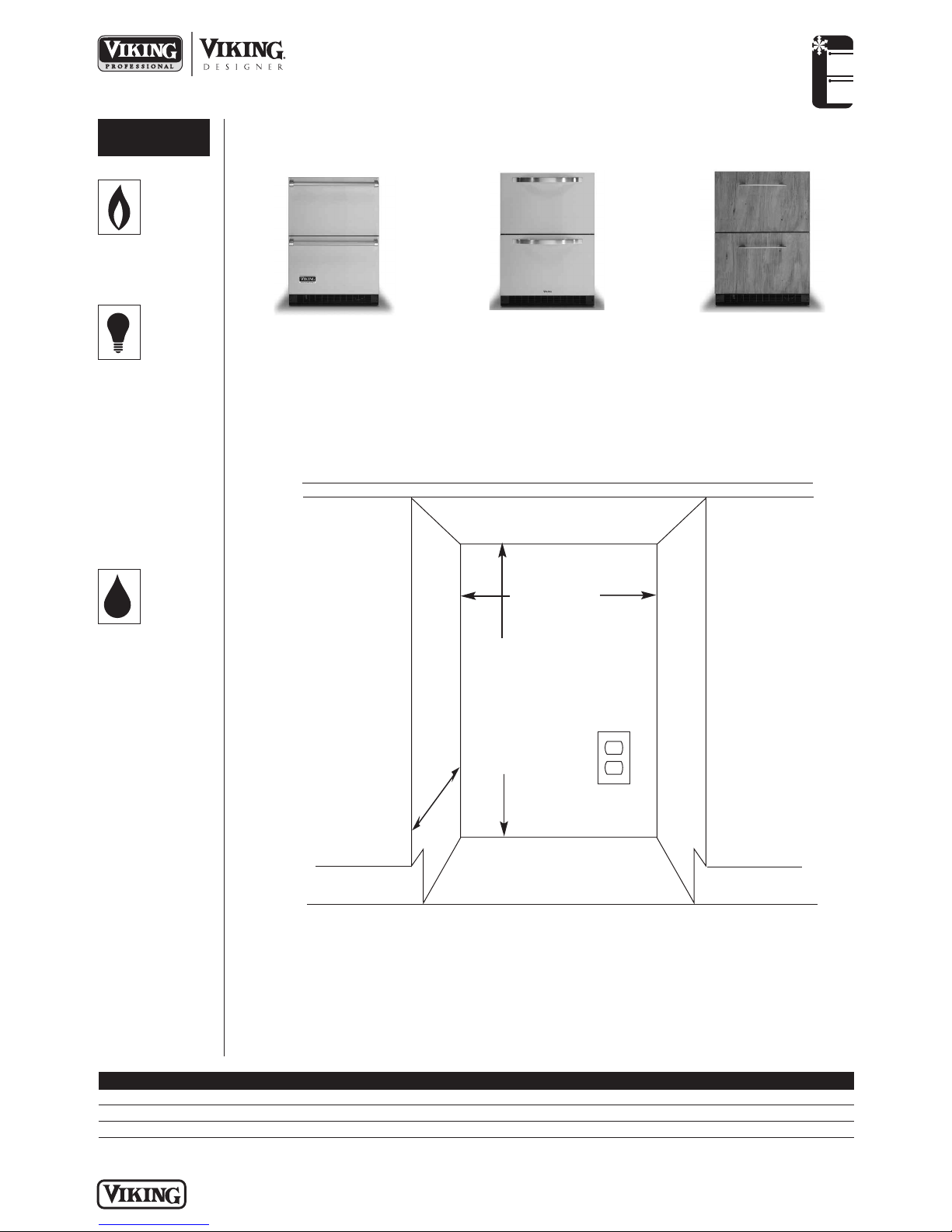

UTILITY
REQUIREMENTS
Installation Requirements
24” (61.0 cm)*
34-1/2” (87.6 cm) min.
35-1/8” (89.2 cm) max.
24”
(61.0cm)
ACCESS REQUIREMENTS
All models
Cutout width 24” (61.0 cm)*
Cutout height 34-1/2” (87.6 cm) min. to 35-1/8” (89.2 cm) max.
Cutout depth 24” (61.0 cm)
VURD144D
Professional
DURD144D
Designer
DFRD144D
Custom Front
*Optional: Cutout for electrical outlet can be placed in adjacent cabinetry.
See Custom Panels section for
more information and additional
specifications.
R E L E A S E D 6 / 1 0 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Pan Set
•
Stainless Steel (SS)
•
Four commercial restaurant-style pans with clear lids
o
Two 6”D. x 6-15/16”L. x 6-3/8”W.—2.3 qt. (2.2 lit.) capacity
o
One 6”D. x 12-13/16”L. x 6-15/16”W.—5.8 qt. (5.5 lit.) capacity
o
One 8”D. x 12-13/16”L. x 10-7/16”W.—11.6 qt. (11.0 lit.) capacity
• Stainless Steel (SS) pan support rail
Dividers
•
Adjustable dividers allow customized placement of items within drawer
!Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
RDPS Pan set 12 (5.4)
Model Description Approx. ship wt. lbs. (kg)
RDUD Upper dividers 4 (1.8)
RDLD Lower dividers 4 (1.8)
R E L E A S E D 6 / 1 0 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
Model Description Approx. ship wt. lb. (kg)
PURHK23-BR Professional brass handle kit and logo for VURD 5 (2.3)
PHK23-SS Professional stainless steel handle kit for DFRD 5 (2.3)
PHK23-BR Professional brass handle kit for DFRD 5 (2.3)
DHK18-SS Designer stainless steel handle kit for DFRD 5 (2.3)
DHK18-BR Designer brass handle kit for DFRD 5 (2.3)
Handle Kits
•
For use with Professional and Designer 24”W. refrigerated drawer
Compliance Information
WARRANTY SUMMARY*
• Two-year full warranty—complete unit
• Six-year full warranty—sealed refrigeration system
• Twelve-year limited warranty—sealed refrigeration system
• Ninety-day limited—cosmetic parts such as glass, painted, and decorative items
*For complete warranty, see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
