Viking VCFF136D Manual de usuario

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 55-1200

For product information,

call 1-888-VIKING1 (8 5- 6 1)

or visit the Viking Web site at

vikingrange.com

F2075 EN (060910)

Viking Ins alla ion Guide

Professional & Designer Frees anding

Refrigera ion Side Trim, Side Panel,

Top Panel & Grille Ins alla ion-

French Door Bo om Moun wi h Dispenser

Apply adhesive tape to grille assembly.

Remove and discard screw. Remove edge and top of corner cover.

Installation - Side Trim and Grille

(Built-In Installation)

Attach brackets and spacers, included in the kit, to the

grille assembly with four B screws.

Remove adhesive backing. Firmly press the grille

assembly down so the adhesive adheres to the cabinet.

Align grille assembly to front door and position grille

on top of unit.

Professional & Designer Freestanding Refrigerators

Description VCFF/DDFF136D with side panels/tops/grilles

Overall width with side panels 35-7/8” (91.1 cm)

Overall height with tops/grilles 71-7/8” (182.6 cm)

Cutout width with side panels 36” (91. cm)

Cutout height with tops/grilles 72” (182.9 cm)

Specifications

Required Components - Built-In Installation

Left Shim

Trim

Left Side

Trim

Right Shim

Trim

Right Side

Trim

Front Grille

Adhesive

Tape

Screws

Spacers

L-Bracket

Right

L-Bracket

Left

Spacer

Bushing

Secure the grille brackets to the holes in the hinge

plate with two A screws.

Installation - Side Trim and Grille

(Built-In Installation) (cont.)

Raise the unit up until the measurement from the floor

to the top of the grille assembly is 72 inches or 6 feet.

72”

Shim trim has adhesive backing on both sides. Remove

adhesive backing on refrigerator side only. Fit the shim

trim to the front of the unit first. With center hinge, the

shim trim will have a cutout. Use the cutout to locate

the height of the shim trim.

Remove adhesive backing for the side trim. Locate the

top of the side trim with the top of the grille assembly.

Press the side trim into the refrigerator cabinet at the

center location.

complete

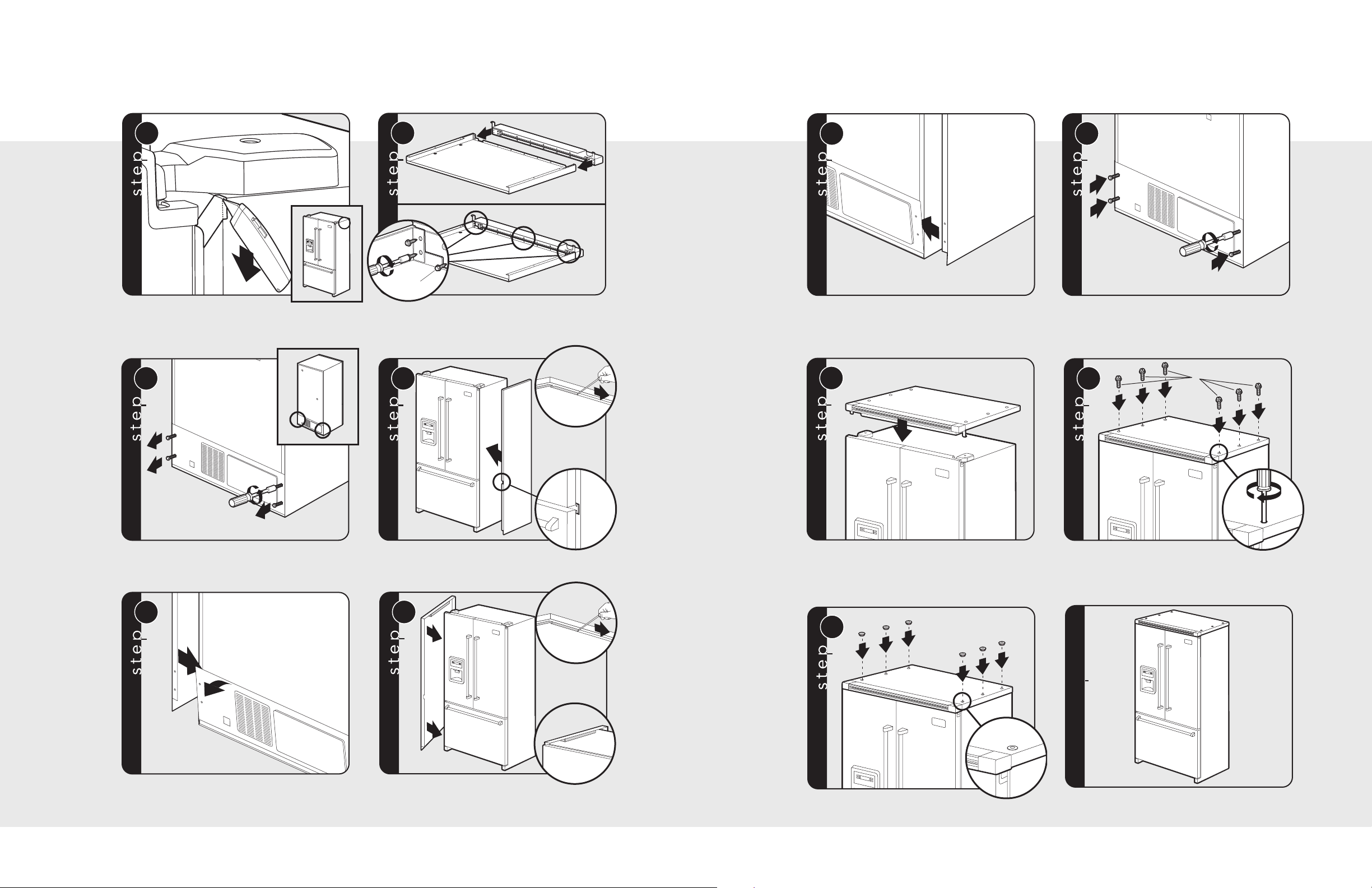

Installation - Side Panel, Top Panel and Grille

(Wrapped Installation)

Required Components - Wrapped Installation

Front Grille

Cap Cover

Left Side

Panel

Right Side

Panel Top

Panel

Screws

Installation - Side Panel, Top Panel and Grille

(Wrapped Installation) (cont.)

Remove adhesive backing from other side panel. Fit the

side panel to the front of the unit first. Spacer on top of

side panel needs to sit on top of refrigerator cabinet.

Pull the machine cover and slip back of side panel

between refrigerator cabinet and machine cover. Install

machine cover screws back into refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Install machine cover screws back into

refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Insert six A screws through holes of top panel into side

panel.

Insert cap covers into holes.

complete

Align top panel and grille assembly to front door and

position top panel and grille on top of unit.

Pull the machine cover off and slip back of side panel

between refrigerator cabinet and machine cover. Install

machine cover screws back into refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Remove adhesive backing from the side panel. Fit the

side panel to the front of the unit first. With a center

hinge, the side panel will have a cutout.

Remove screws on lower back machine cover.

Hold for replacement.

A - Designer Series

B - Pro Series

With top panel and grille upside down, position grille

assembly in front of top panel. Secure top panel to grille

assembly via four outer holes (A screws) and three inner

holes (A screw for Designer and B for Professional).

Remove edge and top of corner cover.
