Viking DFSB542 Series Manual de usuario

CUSTOM PANEL–REFRIGERATION

Built-In 42”W. Side-By-Side Refri erator/Freezer &

Refri erator/Freezer with Dispenser—DFSB542/542D

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

22-13/16”

(57.9cm)

75-1/2”

(191.8cm)

3/4”

(1.9 cm)

3/4”

(1.9 cm)

18-3/16”

(46.2cm)

22-13/16”

(57.9cm)

75-1/2”

(191.8cm)

3/4”

(1.9cm)

18-3/16”

(46.2cm)

31-5/8”

(80.3cm)

10-11/16”

(27.1cm)

12-3/8”

(31.4cm)

3-5/32”

(8.0cm)

3/4”

(1.9cm)

DFSB542 DFSB542D

DFSB542

Note: Panel overlays must be dry, solid, straight one piece panels. The use of multiple panel pieces to achieve the dimensions is not

recommended.

Dimensions & Specifications

DFSB542/542D

Overall panel width

Refrigerator front 22-13/16” (57.9 cm)

Freezer front 18-3/16” (46.2 cm)

Overall panel height 75-1/2” (191.8 cm)

Overall panel depth 3/4” (1.9 cm)*

Maximum panel weight

Refrigerator front 40 lbs. (18.1 k )

Freezer front 35 lbs. (15.9 k )

*Panel thickne mu t not exceed 1” (2.5 cm) on hinge ide. Thicker panel will interfere with door wing and clearance.

CUSTOM PANEL DIMENSIONS

DFSB542D

CUSTOM PANEL–REFRIGERATION

Built-In 42”W. Side-By-Side Refri erator/Freezer &

Refri erator/Freezer with Dispenser—DFSB542/542D

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

Dimensions & Specifications

DFSB542 DFSB542D

CUSTOM SIDE PANEL DIMENSIONS

Note: Adding a 3/4” (1.9 cm) side panel adds an additional 3/4” (1.9 cm) to the overall width of the product for each side panel.

Re uires side panel hardware kit (Kit model number – SPHKDS)

DFSB542/DFSB542D

Overall panel width 3/4” (1.9 cm)

Overall panel height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.*

Overall panel depth 24” (61.0 cm)

*Depending on how high leveling feet are rai ed and cabinet enclo ure height.

3/4”

(1.9 cm)

End panel

1”

(2.5 cm) 1/4”

(0.6 cm)

Z-Bracket

21-3/4”

(55.2 cm)

21-3/4”

(55.2cm)

24”

(61.0cm)

Optional kickplate notch

Dimensions determined by cabinets

24”

(61.0 cm)

82-7/8”

(210.5cm)min.

84-1/16”

(213.5cm)max.*

82-7/8”

(210.5cm) min.

84-1/16”

(213.5cm)max.*

CUSTOM PANEL–REFRIGERATION

Built-In 42”W. Side-By-Side Refri erator/Freezer &

Refri erator/Freezer with Dispenser—DFSB542/542D

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

Dimensions & Specifications

DFSB542/542D

Overall grille width 41-1/2” (108.0 cm)

Overall grille height 3” (7.6 cm)

Overall grille depth 3-3/4” (9.5 cm)

1/2”

(1.27cm)

1-1/2”

(3.81cm)

1/4” Radius

(.64 cm)

2-3/4”

(6.98cm)

1/2”

(1.27cm)

3/4”

(1.90cm)

1/2”

(1.27cm)

1/8”

(.31cm)

1/2”

(1.27 cm)

1/4” Radius

(1.2cm)

(1.2 cm)

1/4” Radius

(.64cm)

Reverse dimensions

for other end.

7/8”

(2.22cm)

1/2”

(1.27 cm)

2-1/8”

(5.39 cm)

3-1/8”

(7.94 cm)

3-5/8”

(9.20cm)

1-3/8”

(3.49cm)

3/8”

(.95cm)

3/8” Radius

(.95cm)

(.95 cm)

3/8” Radius

(.95cm)

41-1/2”

(105.41cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

40”

(101.60cm)

40”

(101.60 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-1/4”

(9.52cm)

3-3/4”

(9.52 cm)

1/2”

(1.27 cm)

3-5/8”

(9.20cm)

39-15/16”

(101.44cm)

3”

(7.62 cm)

3”

(7.62cm)

3/4”

(1.90cm)

24-27/32”

(63.10 cm)

26-3/16”

(66.51 cm)

5-17/32”

(14.04cm)

4-11/64”

(10.60cm)

2-1/8”

(5.4cm)

DFSB542 DFSB542D

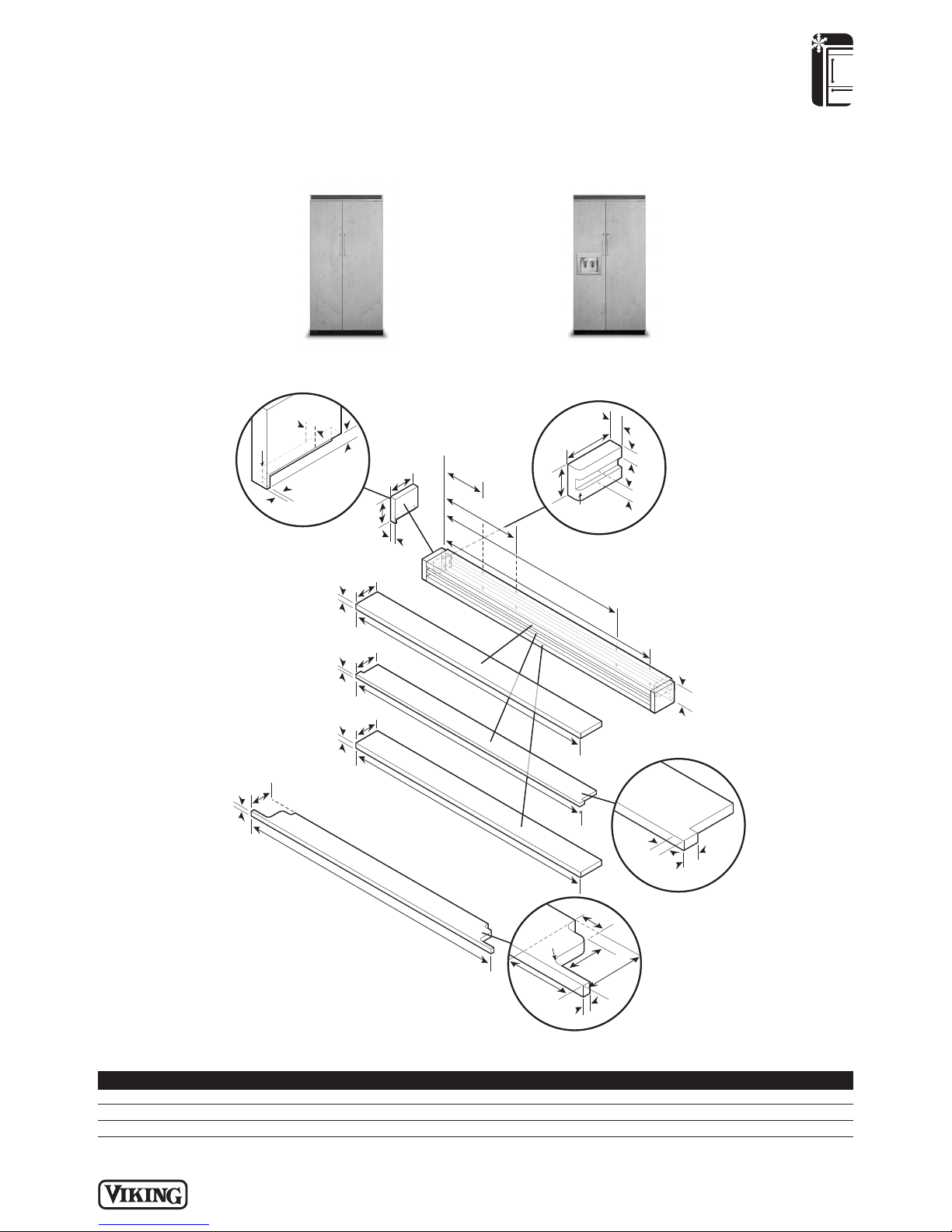

CUSTOM GRILLE DIMENSIONS
