PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

CUSTOM PANEL–REFRIGERATION

Built-In 30”/36”W. All Refrigerator/All Freezer—DFRB304/364, DFFB304/364

29-1/4”

(74.3 cm)

75-1/2”

(191.8 cm)

3/4”

(1.9 cm)

DFRB304 DFRB364 DFFB304 DFFB364

Dimensions & Specifications

DFRB304 DFRB364 DFFB304 DFFB364

Overall panel width 29-1/4” (74.3 cm) 35-1/4” (89.5 cm) 29-1/4” (74.3 cm) 35-1/4” (89.5 cm)

Overall panel height 75-1/2” (191.8 cm)

Overall panel depth 3/4” (1.9 cm)*

Maximum panel weight 50 lbs. (22.7 kg) 60 lbs. (27.2 kg) 50 lbs. (22.7 kg) 60 lbs. (27.2 kg)

*Panel thickness must not exceed 1” (2.5 cm) on hinge side. Thicker panels will interfere with door swing and clearance.

DFRB/DFFB304

CUSTOM PANEL DIMENSIONS

35-1/4”

(89.5 cm)

75-1/2”

(191.8 cm)

3/4”

(1.9 cm)

DFRB/DFFB364

Note: Panel overlays must be dry, solid, straight one piece panels. The use of multiple panel pieces to achieve the dimensions is not

recommended.

Note: A 1/4” wood filler or insulation filler must be used between the door and 3/4” wood panel to prevent condensation from form-

ing. The dimensions of the wood filler are 1/4” smaller than the dimensions shown.

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

CUSTOM PANEL–REFRIGERATION

Built-In 30”/36”W. All Refrigerator/All Freezer—DFRB304/364, DFFB304/364

DFRB304 DFRB364 DFFB304 DFFB364

Dimensions & Specifications

CUSTOM SIDE PANEL DIMENSIONS

Note: Adding a 3/4” (1.9 cm) side panel adds an additional 3/4” (1.9 cm) to the overall width of the product for each side panel.

Requires side panel hardware kit (Kit model number – SPHKDS)

DFRB304/DFRB364/DFFB304/DFRB364

Overall panel width 3/4” (1.9 cm)

Overall panel height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.*

Overall panel depth 24” (61.0 cm)

*Depending on how high leveling feet are raised and cabinet enclosure height.

3/4”

(1.9 cm)

End panel

1”

(2.5 cm)

1/4”

(0.6 cm)

Z-Bracket

21-3/4”

(55.2 cm)

21-3/4”

(55.2 cm)

24”

(61.0 cm)

Optional kickplate notch

Dimensions determined by cabinets

24”

(61.0 cm)

82-7/8”

(210.5 cm) min.

84-1/16”

(213.5 cm) max.*

82-7/8”

(210.5 cm) min.

84-1/16”

(213.5 cm) max.*

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

CUSTOM PANEL–REFRIGERATION

Built-In 30”W. All Refrigerator/All Freezer—DFRB304, DFFB304

DFRB304 DFFB304

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS

DFRB/DFFB304

Overall grille width 29-1/2” (74.9 cm)

Overall grille height 3” (7.6 cm)

Overall grille depth 3-3/4” (9.5 cm)

1/2”

(1.27 cm)

1-1/2”

(3.81 cm)

1/4” Radius

(.64 cm)

2-3/4”

(6.98 cm)

1/2”

(1.27 cm)

3/4”

(1.90 cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27 cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64 cm)

Reverse dimensions

for other end.

7/8”

(2.22 cm)

1/2”

(1.27 cm)

2-1/8”

(5.39 cm)

3-1/8”

(7.94 cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95 cm)

3/8” Radius

(.95 cm)

3/8” Radius

(.95 cm)

29-1/2”

(74.93 cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

27-15/16”

(70.96 cm)

28”

(71.12 cm)

28”

(71.12 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52 cm)

3”

(7.62 cm)

3”

(7.62 cm)

3/4”

(1.90 cm)

26-3/16”

(66.51 cm)

5-17/32”

(14.10 cm)

4-11/64”

(10.59 cm)

24-27/32”

(63.10 cm)

2-1/8”

(5.4 cm)

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

CUSTOM PANEL–REFRIGERATION

Built-In 30”W. All Refrigerator/All Freezer—DFRB304, DFFB304

DFRB304 DFFB304

Dimensions & Specifications

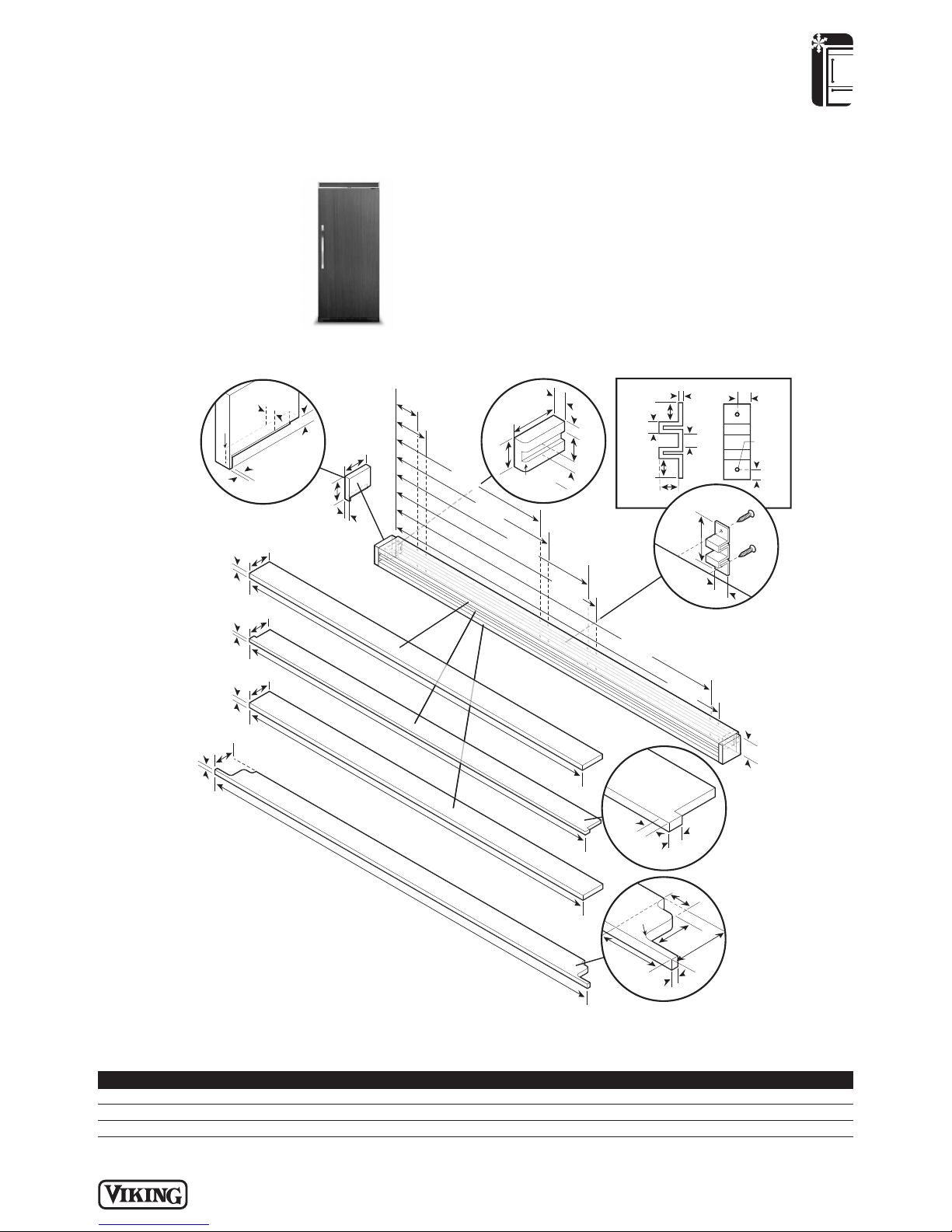

CUSTOM GRILLE DIMENSIONS – DUAL 30”W. ALL REFRIGERATOR/ALL FREEZER INSTALLATION

Note: Dual units can only be made in a left and right hand configuration. To use a custom 60”W. grille, you must purchase the center

trim kit FCTKSS.

Note: This part should be

located at the center of the

grille. If desired, two per grille

can be used by dividing the

length of the grille into thirds.

1/2”

(1.27 cm)

1-1/2”

(3.81 cm)

1/4” Radius

(.64 cm)

2-3/4”

(6.98 cm)

1/2”

(1.27 cm)

3/4”

(1.90 cm)

3/8”

(0.38 cm)

1/2”

(1.27 cm)

R 3/32”

(0.09 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

13/32”

(1.03 cm)

9/16”

(1.43 cm)

1/8”

(.32 cm)

Grille support

2-7/8”

(7.30 cm)

1”

(2.54 cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27 cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64 cm)

Reverse dimensions

for other end.

7/8”

(2.22 cm)

1/2”

(1.27 cm)

2-1/8”

(5.39 cm)

3-1/8”

(7.94 cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95 cm)

3/8” Radius

(.95 cm)

3/8” Radius

(.95 cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52 cm)

3”

(7.62 cm)

3”

(7.62 cm)

3/4”

(1.90 cm)

59-1/2”

(151.13 cm)

58”

(147.32 cm)

57-15/16”

(147.16 cm)

58”

(147.32 cm)

56-3/64”

(142.36 cm)

54-27/32”

(139.30 cm)

4-11/64”

(11.27 cm)

5-17/32”

(14.04 cm)

24-27/32”

(63.01 cm)

26-3/16”

(66.80 cm)

34-11/64”

(86.80 cm)

35-25/64”

(89.90 cm)

2-1/8”

(5.4 cm)

Dual 30”W. Grille

DFRB304/DFFB304

Overall grille width 59-1/2” (151.1 cm)

Overall grille height 3” (7.6 cm)

Overall grille depth 3-3/4” (9.5 cm)

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

CUSTOM PANEL–REFRIGERATION

Built-In 36”W. All Refrigerator/All Freezer—DFRB364, DFFB364

DFRB364 DFFB364

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS

DFRB/DFFB364

Overall grille width 35-1/2” (90.1 cm)

Overall grille height 3” (7.6 cm)

Overall grille depth 3-3/4” (9.5 cm)

2-1/8”

(5.39 cm)

3-1/8”

(7.94 cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95 cm)

3/8”Radius

3/8” Radius

(.95 cm)

3/8”Radius

(.95 cm)

Reverse dimensions

for other end.

1/2”

(1.27 cm)

1-1/2”

(3.81 cm)

1/4” Radius

(.64 cm)

2-3/4”

(6.98 cm)

1/2”

(1.27 cm)

3/4”

(1.90 cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27 cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64 cm)

7/8”

(2.22 cm)

1/2”

(1.27 cm)

34”

(86.36 cm)

34”

(86.36 cm)

3/4”

(1.90 cm)

1/2”

(1.27 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52 cm)

3-5/8”

(9.20 cm)

33-15/16”

(86.20 cm)

3”

(7.62 cm)

3”

(7.62 cm)

3/4”

(1.90 cm)

35-1/2”

(90.17 cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

32-3/16”

(81.75 cm)

5-17/32”

(14.10 cm)

4-11/64”

(10.59 cm)

30-27/32”

(78.34 cm)

2-1/8”

(5.4 cm)

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

CUSTOM PANEL–REFRIGERATION

Built-In 30”/36”W. All Refrigerator/All Freezer—DFRB304/364, DFFB304/364

(1) 30” Unit & (1) 36” Unit

DFRB364DFRB304 DFFB364DFFB304

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS – DUAL ALL REFRIGERATOR/ALL FREEZER INSTALLATION

Note: Dual units can only be made in a left and right hand configuration. To use a custom 66”W. grille, you must purchase the center

trim kit FCTKSS.

Note: This part should be

located at the center of the

grille. If desired, two per grille

can be used by dividing the

length of the grille into thirds.

1/2”

(1.27 cm)

1-1/2”

(3.81 cm)

1/4” Radius

(.64 cm)

2-3/4”

(6.98 cm)

1/2”

(1.27 cm)

3/4”

(1.90 cm)

3/8”

(0.38 cm)

1/2”

(1.27 cm)

R 3/32”

(0.09 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

13/32”

(1.03 cm)

9/16”

(1.43 cm)

1/8”

(.32 cm)

Grille support

2-7/8”

(7.30 cm)

1”

(2.54 cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27 cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64 cm)

Reverse dimensions

for other end.

7/8”

(2.22 cm)

1/2”

(1.27 cm)

2-1/8”

(5.39 cm)

3-1/8”

(7.94 cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95 cm)

3/8”Radius

3/8” Radius

(.95 cm)

3/8”Radius

(.95 cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52 cm)

3”

(7.62 cm)

3”

(7.62 cm)

3/4”

(1.90 cm)

65-1/2”

(166.37 cm)

64”

(162.56 cm)

63-15/16”

(167.48 cm)

64”

(162.56 cm)

62-3/64”

(157.60 cm)

60-27/32”

(154.54 cm)

4-11/64”

(11.27 cm)

5-17/32”

(14.04 cm)

24-27/32”

(63.10 cm)

26-3/16”

(66.51 cm)

34-11/64”

(86.80 cm)

35-25/64”

(89.90 cm)

2-1/8”

(5.4 cm)

Dual 30”/36”W. Combination Grille

DFRB304 DFRB364 DFFB304 DFFB364

Overall grille width 65-1/2” (166.4 cm)

Overall grille height 3” (7.6 cm)

Overall grille depth 3-3/4” (9.5 cm)

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

CUSTOM PANEL–REFRIGERATION

Built-In 36”W. All Refrigerator/All Freezer—DFRB364, DFFB364

DFRB364

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS – DUAL 36”W. ALL REFRIGERATOR/ALL FREEZER INSTALLATION

DFRB364/DFFB364

Overall grille width 71-1/2” (181.6 cm)

Overall grille height 3” (7.6 cm)

Overall grille depth 3-3/4” (9.5 cm)

Note: This part should be

located at the center of the

grille. If desired, two per grille

can be used by dividing the

length of the grille into thirds.

1/2”

(1.27 cm)

1-1/2”

(3.81 cm)

1/4” Radius

(.64 cm)

2-3/4”

(6.98 cm)

1/2”

(1.27 cm)

3/4”

(1.90 cm)

3/8”

(0.38 cm)

1/2”

(1.27 cm)

R 3/32”

(0.09 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

13/32”

(1.03 cm)

9/16”

(1.43 cm)

1/8”

(.32 cm)

Grille support

2-7/8”

(7.30 cm)

1”

(2.54 cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27 cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64 cm)

Reverse dimensions

for other end.

7/8”

(2.22 cm)

1/2”

(1.27 cm)

2-1/8”

(5.39 cm)

3-1/8”

(7.94 cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95 cm)

3/8” Radius

(.95 cm)

3/8” Radius

(.95 cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52 cm)

3”

(7.62 cm)

3”

(7.62 cm)

3/4”

(1.90 cm)

71-1/2”

(181.61 cm)

70”

(177.80 cm

69-15/16”

(177.64 cm)

70”

(177.80 cm)

68-3/64”

(172.84 cm)

66-27/32”

169.78 cm)

4-11/64”

(11.27 cm)

5-17/32”

(14.04 cm)

30-27/32”

(78.34 cm)

32-3/16”

(81.75 cm)

40-11/64”

(102.04 cm)

41-25/64”

(105.13 cm)

2-1/8”

(5.4 cm)

Note: Dual units can only be made in a left and right hand configuration. To use a custom 72”W. grille, you must purchase the center

trim kit FCTKSS.

Dual 36”W. Grille

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Viking

Viking

Viking DDFB530 Series Manual de usuario

Viking

Viking VCSB5481 Series Manual

Viking

Viking DDSF036D Manual de usuario

Viking

Viking Designer DDFF136SS Manual de usuario

Viking

Viking DFRB364L Manual de usuario

Viking

Viking DDBB536RSS Manual de usuario

Viking

Viking FDBB5361 Series Manual de usuario

Viking

Viking FBCI1150GR Manual de usuario

Viking

Viking Designer DFBB363 Manual de usuario

Viking

Viking DDFB530 Series Manual de usuario

Viking

Viking High-Performance Kitchen Manual de usuario

Viking

Viking F20497 Manual técnico

Viking

Viking Professional VCFF136DSS Manual de usuario

Viking

Viking Designer DDSF136DSS Manual de usuario

Viking

Viking DDSB483D Manual de usuario

Viking

Viking Designer DFBB363 Manual de usuario

Viking

Viking VRCO1240DRSS Manual de usuario

Viking

Viking VRUO5241 Manual de usuario

Viking

Viking Professional DFFB530 Manual de usuario

Viking

Viking Designer DFBB536 Manual de usuario

Viking

Viking VBI7360 Manual de usuario

Viking

Viking Designer DDFF136DSS Instrucciones de montaje

Viking

Viking VCFF236%20with%20grill Manual de usuario

Viking

Viking VCBF136RSS Instrucciones de montaje

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
