Viking Designer DMOR205SS Manual de usuario

FINISH DETAILS FOR BOTH MODELS

• Stainless Steel (SS)

R E V I S E D 9 / 1 6 / 1 0

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

Both ovens include

• Capacity—1.1 cu. ft. (31.2 lit.)

o 29-15/16”W. x 15-1/2”H. x

15-5/16”D.

o 13” (33.0 cm) diameter turntable

• Commercial-type styling and design

• Instant sensor settings for cooking,

reheating, and popcorn

• Four convection settings use high-

speed fan that circulates air past the

heat source and around the food;

allows multiple-rack baking

o ConvecBroil

o ConvecRoast

o ConvecBake

o Manual convection

• Low Mix Bake and High Mix Roast set-

tings offer use of convection heat to

seal and brown outside of foods while

using microwave energy to ensure the

interior is cooked

• Add-A-Minute allows you to add a

minute of extra cooking time with the

touch of one button

• Child Lock safety feature locks the

control panel to prevent unwanted

operation

• Interior light

• Cookbook included

• Built-in exhaust system

o 300 CFM blower

o Shipped assembled to recirculate;

may also be converted to vent out

the rear or vertically

• Suitable for use over 24”W. and 30”W.

Viking surface cooking products (non-

grill)

Standard Features & Accessories

Model Options

COOKING

Professional & Designer Convection

Microwave Hood

ORDERING INSTRUCTIONS

First specify model number, and then color code (VMOR205SS).

DMOR205

Designe

Mic owave Hood

VMOR205

P ofessional

Mic owave Hood

COOKING

Professional & Designer Convection

Microwave Hood

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E V I S E D 9 / 1 6 / 1 0



Please see

Installation Notes

and Accesso ies for

important information,

including filters.

All Models

Overall width 29-1 /16” (6 .9 cm)

Overall height (from bottom) 1 -1/2” (39.4 cm)

Overall depth (from rear) 1 - /16” (38.9 cm)

Approx. ship weight 8 lbs. (38.6 kg)

Dimensions & Specifications

PRODUCT DIMENSIONS

15-5/16”

(38.9cm)

29-15/16”

(65.9 cm)

15-1/2”

(39.4cm)

15-5/16”

(38.9 cm)

29-15/16”

(65.9 cm)

15-1/2”

(39.4cm)

VMOR205

P ofessional

Mic owave Hood

DMOR205

Designe

Mic owave Hood

PROFESSIONAL DESIGNER

R E V I S E D 9 / 1 6 / 1 0

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

COOKING

Professional & Designer Convection

Microwave Hood

VMOR205

P ofessional

Mic owave Hood

DMOR205

Designe

Mic owave Hood

30”

(76.2 cm)

2”

(5.1 cm) min.

36” min.

(91.4 cm) or more

from cooking

surface

15.5”

(39.4 cm)

12”

(30.5 cm)

12”

(30.5 cm)

72”

(182.9 cm) min.

72”

(182.9 cm) min.

Dimensions & Specifications

CLEARANCE DIMENSIONS

DMOR205

Designe

Mic owave Hood

VMOR205

P ofessional

Mic owave Hood

COOKING

Professional & Designer Convection

Microwave Hood

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E V I S E D 9 / 1 6 / 1 0

30”

(76.2 cm)

Ground

receptacle

Opening for

power cord

15-1/2”

(39.4 cm)

12”

(30.5 cm)

12”

(30.5 cm)

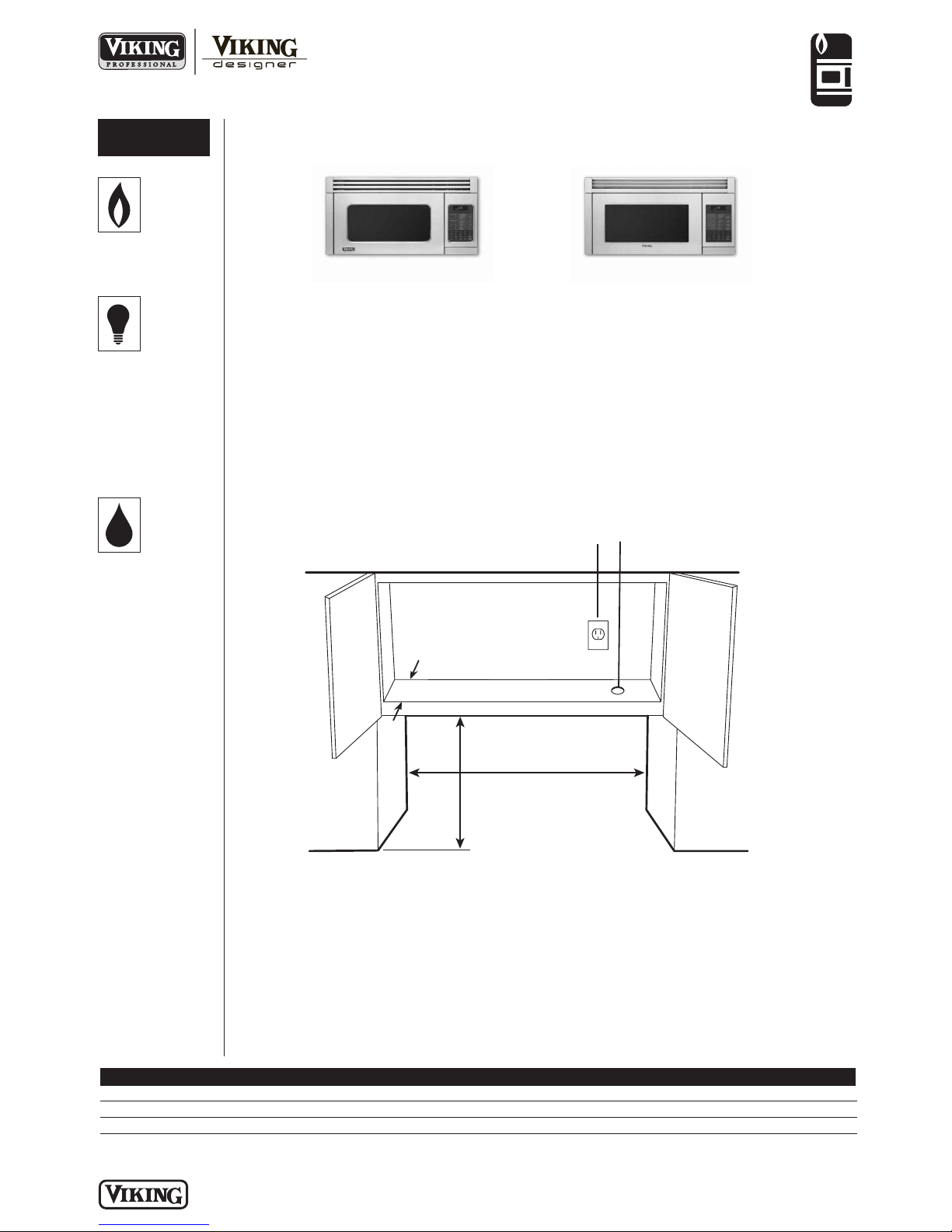

All models

Cutout width 30” (76.2 cm) min.

Cutout height 1 -1/2” (39.4 cm) min.

Cutout depth 12” (30. cm) min.

UTILITY

REQUIREMENTS

GAS

•Not applicable

ELECTRICAL

•3.5-foot power cord

included

• 120 VAC/60 Hz

•Maximum amp

usage—

13.2 (1.6 kW)

PLUMBING

Not applicable

Installation Requirements

ACCESS REQUIREMENTS

COOKING

Professional & Designer Convection

Microwave Hood

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E V I S E D 9 / 1 6 / 1 0

Replacement Air Filter

• Recommended replacement every 6 – 12 months

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Five-year limited warranty—magnetron tube

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

Installation Notes & Accessories

Model Description Approx. ship wt. lbs. (kg)

CFOR1 Air filter for 30”W. microwave hood lbs (.91)
