Viking Flush Mount Trim Guía de solución de problemas
F20701A EN
®
(040711)
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
ca 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
Viking Installation Guide
Professional & Designer Oven Accessory
Flush Mount Kit
2 3
Removing Existing Trim Removing Existing Trim
Remove the existing side trim pieces from the oven. There shou d be one trim piece on each
side of the oven.
For Professiona ovens, there wi be a trim piece at the top and bottom of the oven that wi
need to be removed. A so, on the Professiona ovens, the door wi need to be removed prior
to removing the ower vent trim and putting on the new trim.
NOTE: Keep the screws that are left after removing the existing side trim pieces. These
screws will be used to install the flush mount accessor trim pieces.
DDOE
Double Oven
VESO
Single Oven
54

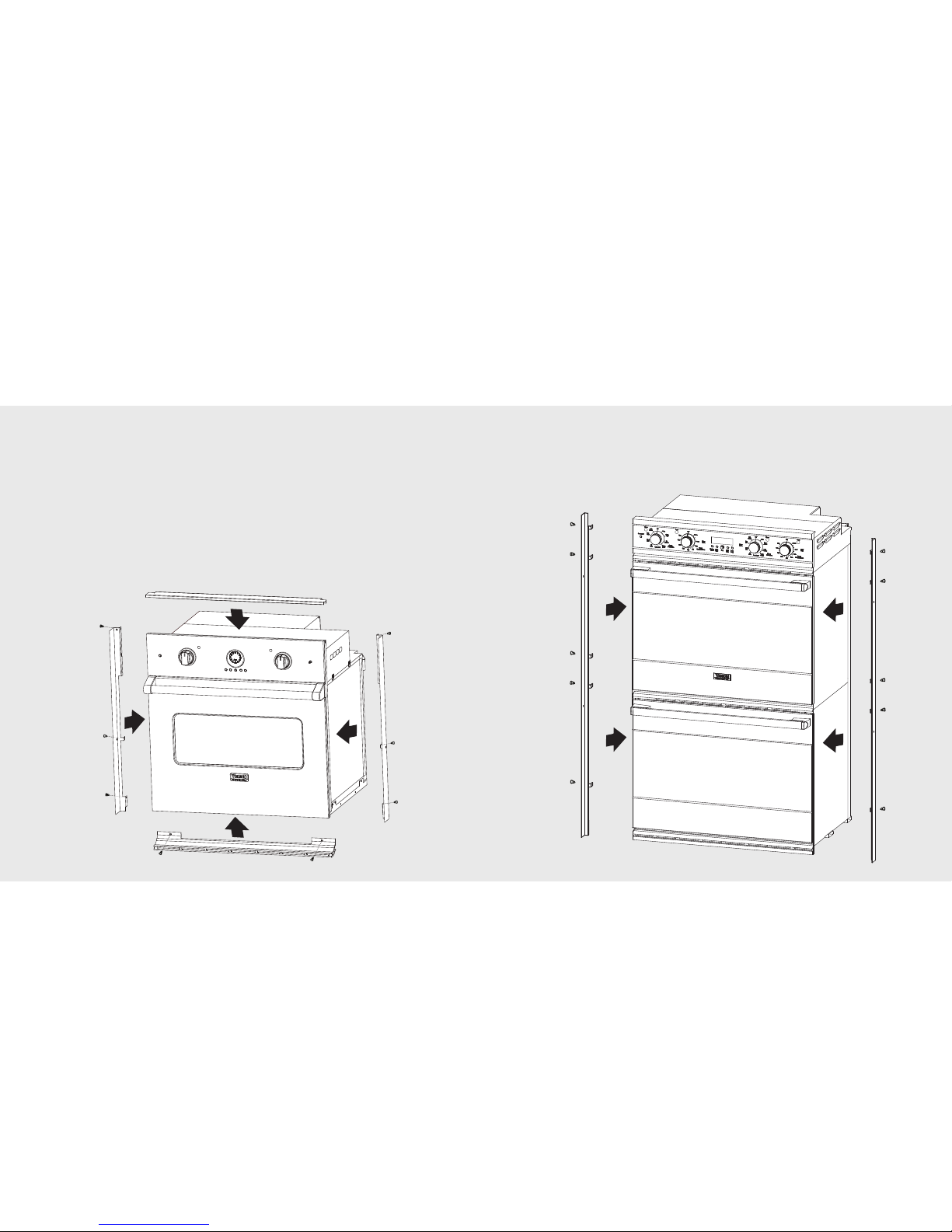

Insta ing F ush Mount Trim Insta ing F ush Mount Trim
After removing the existing side pieces, insta the f ush mount trim pieces to the oven.
1. Remove the protective p astic from the f ush mount trim pieces.
2. Insta the two f ush mount trim pieces to the oven (see diagram).
3. For Professiona ovens, insta the top and bottom trim pieces (see diagram).
NOTE: Onl Professional model ovens will require a top and bottom flush mount trim
piece.
NOTE: There will be a designated right and left hand side flush mount trim piece. Install
the corresponding trim piece on the correct side, as the are not interchangeable.
4. After insta ing the f ush mount trim pieces, the oven can be insta ed in the cutout.
DDOE
Double Oven
VESO
Single Oven
76
