PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E L E A S E D 3 / 1 1 / 0 9

All models include

• Strong, wear-resistant glass ceramic

top

• QuickCook™ surface elements utilize

ribbon technology—elements reach

full power in about three seconds

• High infrared transmission for fast

cooking, regardless of the type of

cookware used

30”W. 4B model includes

• Left front element—6-1/2” 1,500 watts

• Left rear (dual element)—9” – 6”

2,500 – 1,000 watts

• Right front element—7” 1, 00 watts

• Right rear element—7” 1, 00 watts

• Bridge element between right front

and right rear elements; creates a

continuous heated surface— 00 watts

36”W. 4B model includes

• Left front (dual element)—9”– 6”

2,500 – 1,000 watts

• Left rear—6-1/2” 1,200 watts

• Center front/rear—7” 1, 00 watts/7”

1, 00 watts

• Bridge element between center front

and center rear elements; creates a

continuous heated surface— 00 watts

• Right front element—6-1/2” 1,500

watts

• Right rear element— -1/4”- 4-3/4”

2,200 – 750 watts

FINISH DETAILS FOR VERT MODELS ONLY

• Stainless Steel (SB)

o Stainless steel control panel

o Black glass ceramic top

o Stainless steel knobs

• White (SW)

o Stainless steel control panel

o White glass ceramic top and white

knobs.

• Brass Trim Option (BR)—nameplate,

drip tray pull/trim, and knob bezels.

Brass components have a durable

protective coating for maintenance-free

normal use.

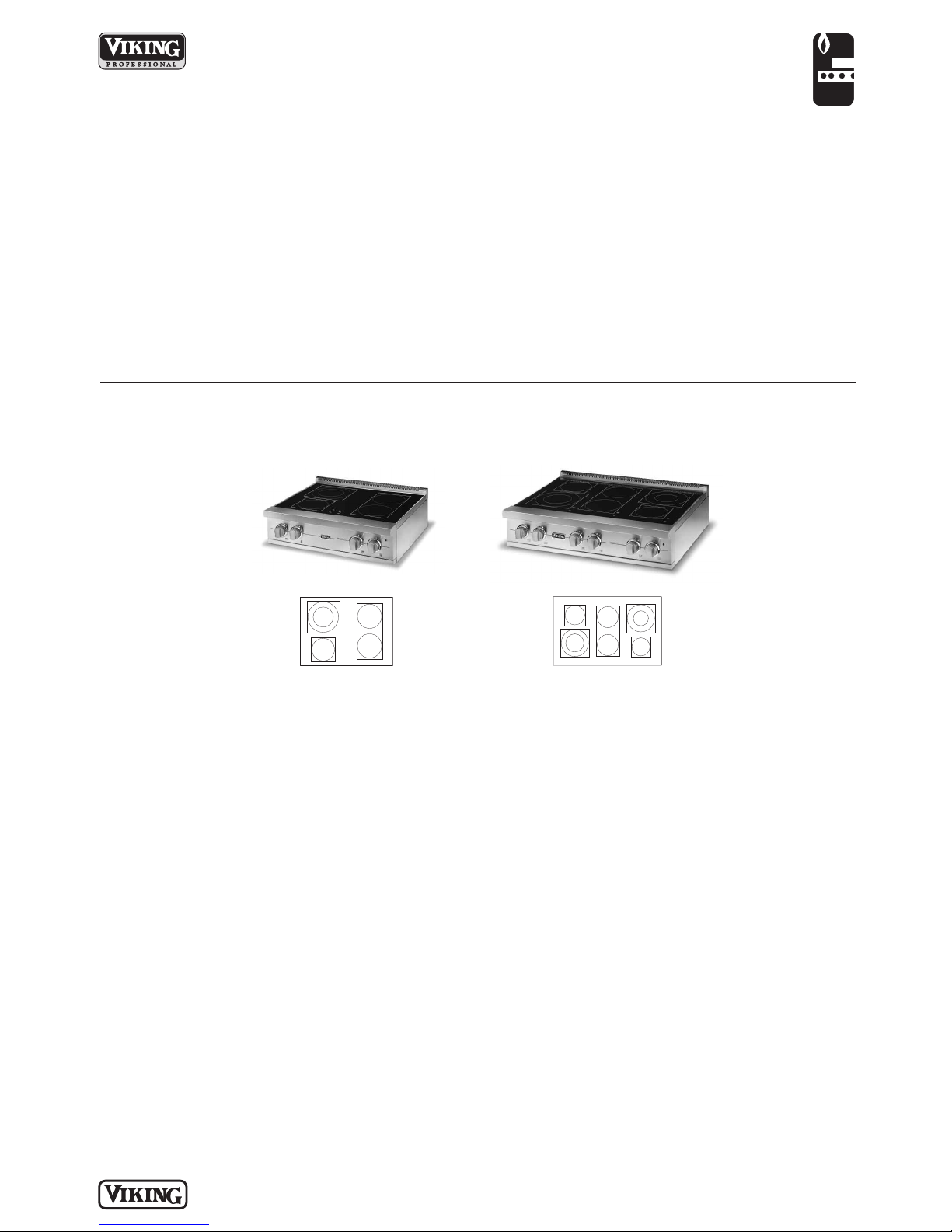

Standard Features & Accessories

Model Options

COOKING

Pro essional Custom Series Built-In

Electric 30”/36”W. Rangetop

VERT530- B*

30”W. Four-Burner

Rangetop

*Shown throughout with standard island trim. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VERT530-4BSB). If ordering optional brass trim, specify code at end (VERT530-4BSBBR).

VERT536-6B*

36”W. Six-Burner

Rangetop

COOKING

Pro essional Custom Series Built-In

Electric 30”/36”W. Rangetop

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E L E A S E D 3 / 1 1 / 0 9



Please see

Installation Notes &

Accessories

for important

installation

information,

including

backguard, high-

shelf, and island

trim.

VERT530-4B VERT536-6B

Overall width 29-7/8” (75.9 c ) 35-7/8” (91.1 c )

Overall height (fro botto )

To top of glass fra e 8-1/8” (20.6 cm)

To top of island tri Add 1” (2.5 cm)

To top of 8” backguard Add 8” (20.3 cm)

To top of high shelf Add 23-1/2” (59.7 cm)

Overall depth (fro rear)

To end of side panel 24-5/16” (61.8 cm)

To end of landing ledge 28-1/16” (71.3 cm)

To end of knobs 28-9/16” (72.6 cm)

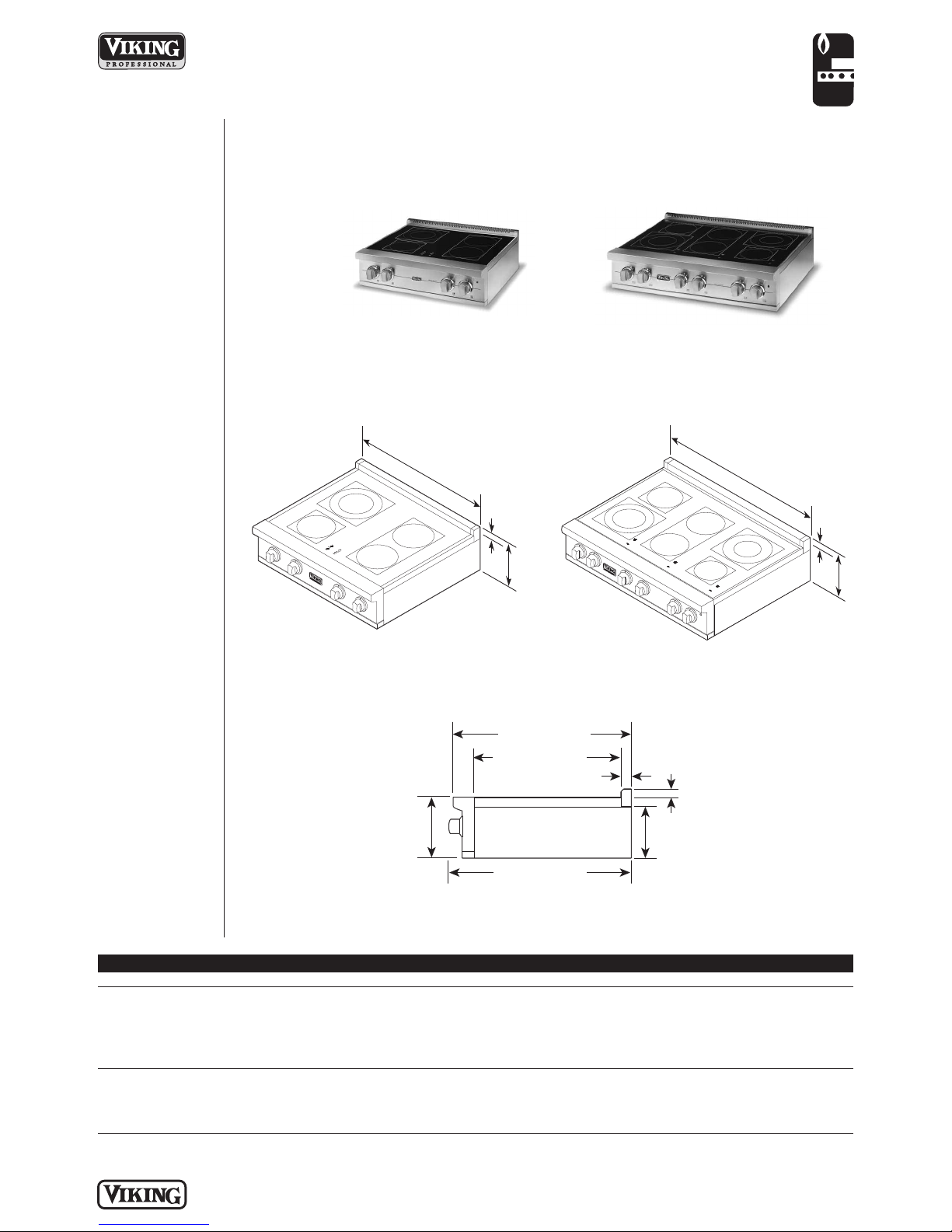

Dimensions & Speci ications

PRODUCT DIMENSIONS

VERT530- B

Professional 30”W.

Four-Burner Rangetop

VERT536-6B

Professional 36”W.

Six-Burner Rangetop

35-7/8”

(91.1cm)

9-1/16”

(23.0cm)

1”(2.5cm)

8-1/8”

(20.6 cm)

1-5/8”

(4.1 cm) 1” (2.5 cm)

24-5/16” (61.8 cm)

28-1/16” (71.3 cm)

7-7/8”

(20.0 cm)

28-9/16” (72.6 cm)

(from front of knob

to back of rangetop)

29-7/8”

(75.9cm)

9-1/16”

(23.0cm)

1”(2.5cm)

30”W. Model 36”W. Model

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E L E A S E D 3 / 1 1 / 0 9

COOKING

Pro essional Custom Series Built-In

Electric 30”/36”W. Rangetop

42”min.*

(106.7cm)

13”max.

(

33.0cm)

6”min.

(15.2cm)

18”min.

(45.7cm)

3/8”

(0.95cm)

36”

(91.4cm)

24”

(61.0cm)

7-1/2”

(19.1cm)

30”W. 30“ (76.2 cm)

36”W. 36“ (91.4 cm)

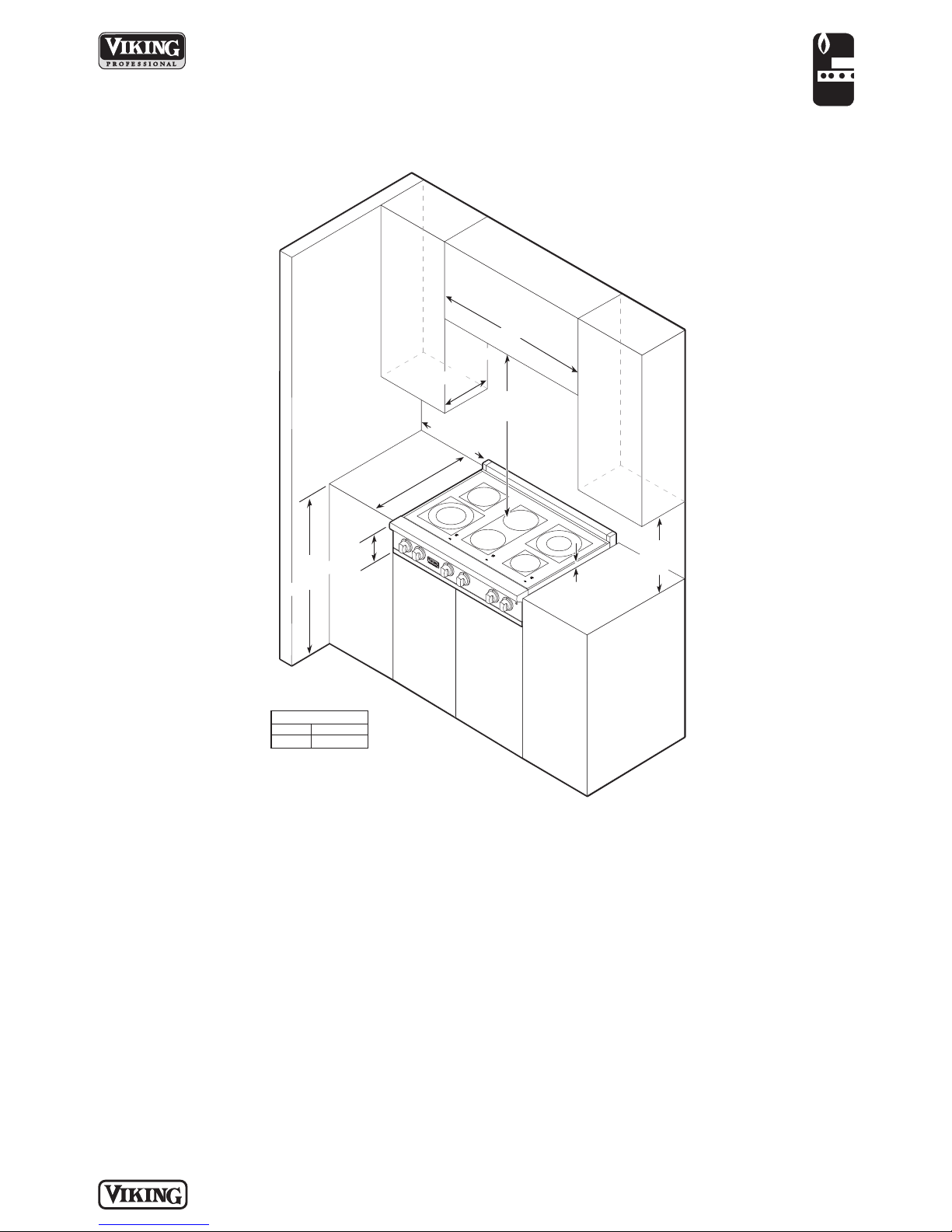

Minimum clearances from adjacent

combustible construction*

• Below cooking surface (36” (91.4 cm)

and below)

o Sides—0”

o Rear—0” with backguard or high-

shelf; 0” with island trim and non-

combustible rear wall; 6” (15.2 cm)

with island trim and combustible

rear wall.

• Above cooking surface, i.e., above

36” (91.4 cm)

o Sides—6” (15.2 cm)

o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”

(33.0 cm) must be minimum 1 ”

(45.7 cm) above cooking surface.

o Wall cabinets directly above

product must be minimum 36” (91.4

cm) for open top burners above

cooking surface.

1. This rangetop may be installed

directly adjacent to existing 36” (91.4

cm) high base cabinets. Important:

The top grate support must be 3/ ”

(0.95 cm) above the adjacent base

cabinet countertop.

2. The rangetop cannot be installed

directly adjacent to sidewalls, tall

cabinets, tall appliances, or other side

vertical surfaces above 36” (91.4 cm)

high. There must be a minimum of 6”

(15.2 cm) side clearance from the

rangetop to such combustible

surfaces above the 36” (91.4 cm)

counter height.

3. Within the 6” (15.2 cm) side

clearance to combustible vertical

surfaces above 36” (91.4 cm), the

maximum wall cabinet depth must be

13” (33.0 cm) and wall cabinets

within this 6” (15.2 cm) side clearance

must be 1 ” (45.7 cm) above the 36”

(91.4 cm) high countertop.

4. Wall cabinets above the rangetop

must be a minimum of 42” (106.7 cm)

above the rangetop cooking surface

for the full width of the rangetop.

* This minimum height requirement

does not apply if a rangehood is

installed over the cooking surface.

Do not install two or more units

side-by-side.

Dimensions & Speci ications

CLEARANCE DIMENSIONS

24”

(61.0cm)

3/4”

(1.9cm) min.

COOKING

Pro essional Custom Series Built-In

Electric 30”/36”W. Rangetop

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E L E A S E D 3 / 1 1 / 0 9

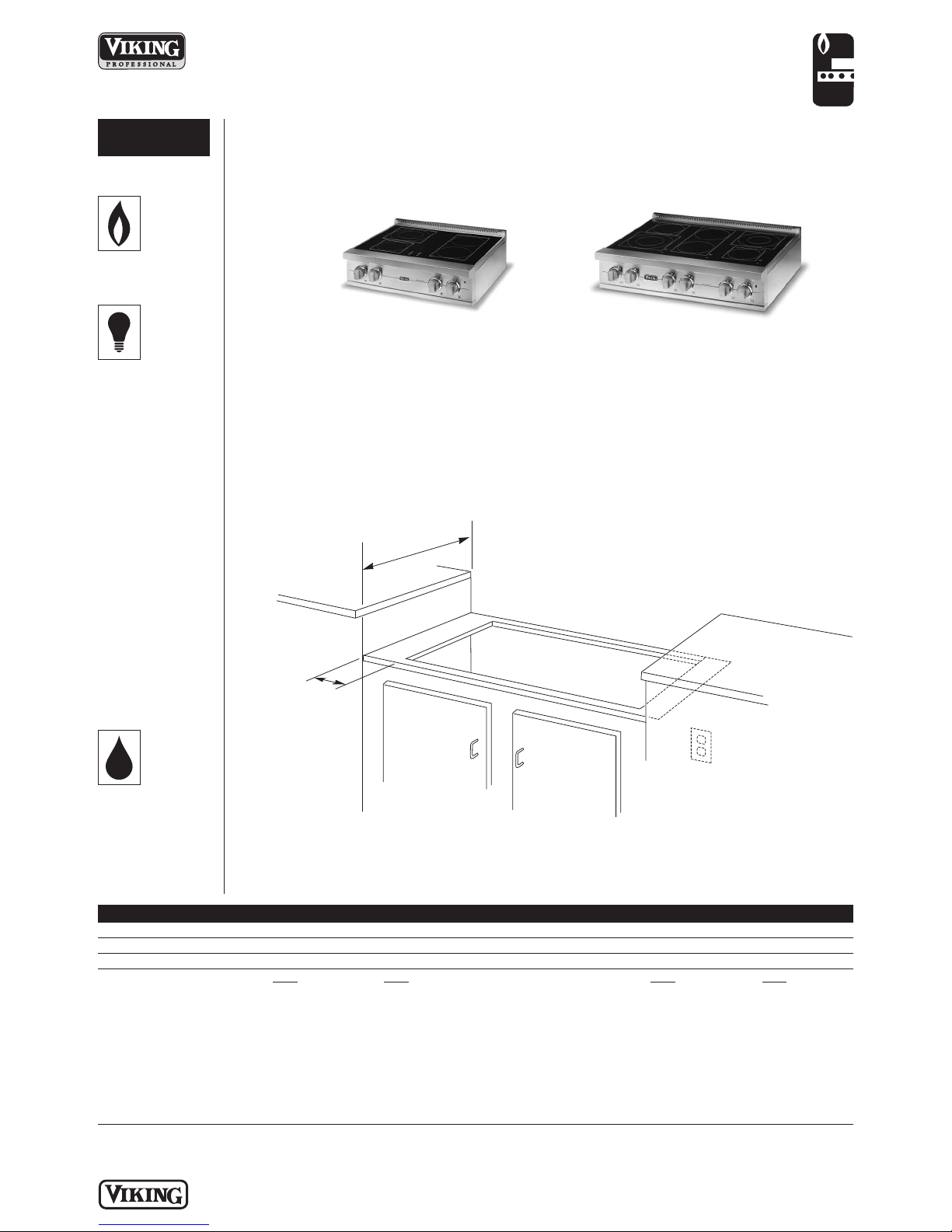

UTILITY

REQUIREMENTS

Installation Requirements

ACCESS REQUIREMENTS

GAS

•Not applicable

ELECTRICAL

•Electrical

connection—

o 40 amp—30”W.

o60 amp—36”W.

Three-wire, 240/20 V,

60Hz. Unit is equipped

with No. 10 ground

wire in conduit. Should

be fused separately.

• Check your national

and local codes

regarding this unit.

• Maximum amp

usage—

o VERT530

o 240V—34.6

o 20 V—29.

o VERT536

o 240V—49.2

o 20 V—42.6

PLUMBING

Not applicable

VERT530- B VERT536-6B

Cutout width 30” (76.2 c ) 36” (91.4 c )

Cutout height 7-1/2” (19.1 cm)

Cutout depth 24” (61.0 cm)

Surface ele ent rating 240V 208V 240V 208V

Left front (dual ele ent) N/A N/A 2,500/1,000 watts 1,875/750 watts

Left front (single ele ent) 1,500 watts 1,125 watts N/A N/A

Left rear (dual ele ent) 2,500/1,000 watts 1,875/750 watts N/A N/A

Left rear (single ele ent) N/A N/A 1,200 watts 900 watts

Center front/rear N/A N/A 1,800 watts 1,350 watts

Bridge 800 watts 600 watts 800 watts 600 watts

Right front 1,800 watts 1,350 watts 1,500 watts 1,125 watts

Right rear (dual ele ent) N/A N/A 2,200/750 watts 1,650/560 watts

Right rear (single ele ent) 1,800 watts 1,350 watts N/A N/A

VERT530- B

Professional 30”W.

Four-Burner Rangetop

VERT536-6B

Professional 36”W.

Six-Burner Rangetop

COOKING

Pro essional Custom Series Built-In

Electric 30”/36”W. Rangetop

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

R E L E A S E D 3 / 1 1 / 0 9

Installation Notes & Accessories

A backguard, high-shelf, or island trim must be used for all installations.

Island Trim

• Stainless Steel (SS)

•Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

• Included (and shipped) automatically with 30”W. ranges

High-shel

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

8”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• One pair of trim

• Installs on side of unit; overlaps countertop

Countertop Rear Trim

• Stainless Steel (SS)

• Coordinates with all finishes

Compliance In ormation

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Five-year limited warranty—all electric elements

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

• Lifetime limited warranty—stainless steel exterior

* For complete warranty see

Use & Care Guide

. Warranty valid on Viking products shipped within the United States and Canada.

Model Description Approx. ship wt. lbs. (kg)

P30BG8 30”W. backguard 14 (6.3)

P36BG8 36”W. backguard 14 (6.3)

Model Description Approx. ship wt. lbs. (kg)

B30HS24 30”W. high-shelf 45 (20.3)

B36HS24 36”W. high-shelf 45 (20.3)

Model Description Approx. ship wt. lbs. (kg)

P30TII 30”W. island tri 10 (4.5)

P36TII 36”W. island tri 10 (4.5)

Model Description Approx. ship wt. lbs. (kg)

P24CST Side tri 2 (0.9)

Model Description Approx. ship wt. lbs. (kg)

P30CRT 30”W. countertop rear tri 2 (0.9)

P36CRT 36”W. countertop rear tri 2 (0.9)
