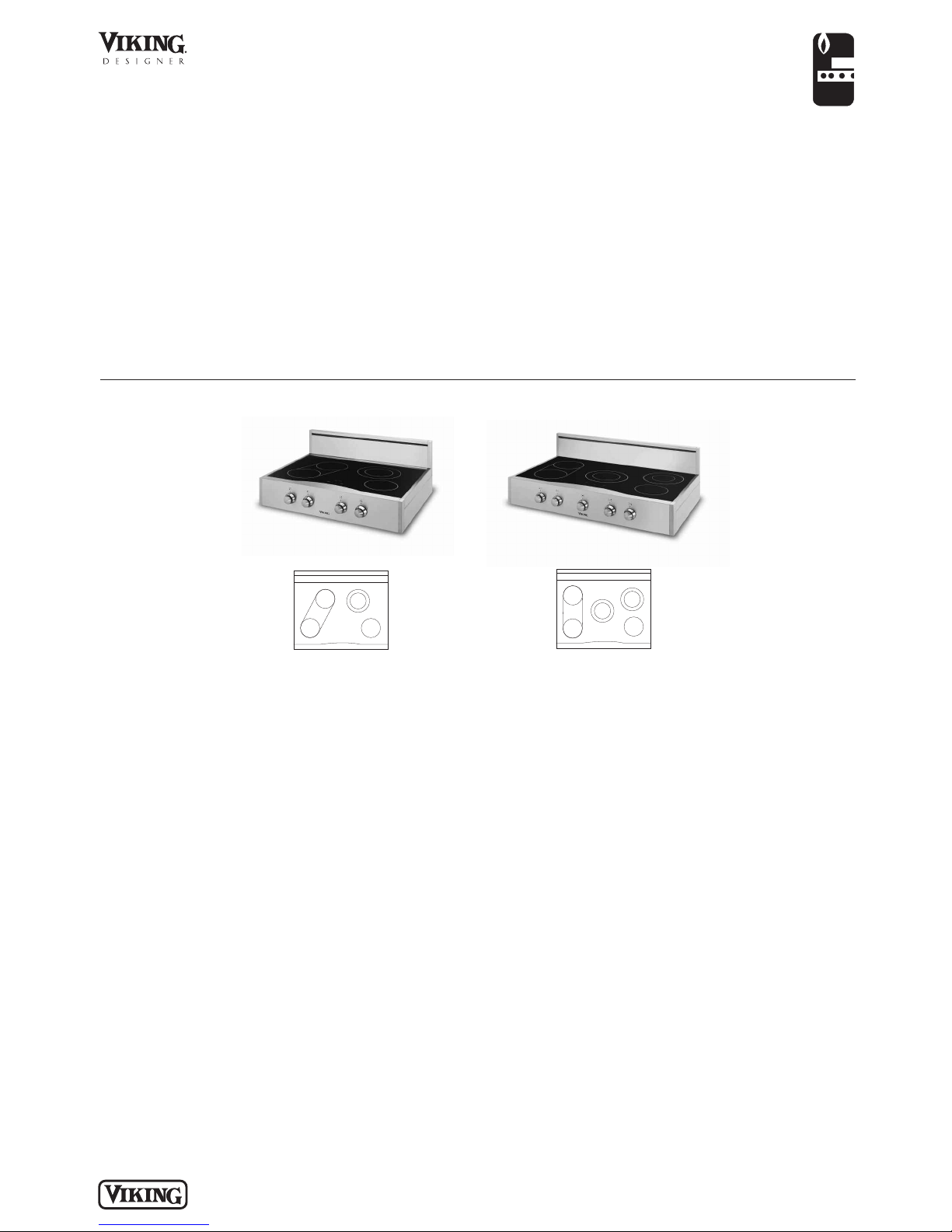

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 1 / 9 / 0 9

All models include

• QuickCook™ surface elements utilize

ribbon technology—elements reach

full power in about three seconds

• Strong, wear-resistant glass ceramic

top

• High infrared transmission for fast

cooking, regardless of the type of

cookware used

DERT301 model includes

• Left front element—7” 1,800 watts

• Left rear element—7” 1,800 watts

• Bridge element between left front and

left rear elements; creates a

continuous heated surface—800 watts

• Right front element—6-1/2” 1,500 watts

• Right rear (dual element)—9” 2,500

watts/6” 1,000 watts

DERT361 model includes

• Left front element—7” 1,800 watts

• Left rear element—7” 1,800 watts

• Bridge element between left front and

left rear elements; creates a

continuous heated surface—800 watts

• Center (dual element)—12” 2,700

watts/8-1/2” 1,700 watts

• Right front element—6-1/2” 1,500 watts

• Right rear (dual element)—8-1/4”

2,200 watts/4-3/4” 750 watts

DERT301-4B*

30”W. Four-Burner

Rangetop

FINISH DETAILS FOR DERT MODELS ONLY

• Stainless Steel/Black (SB)

o Black glass ceramic tops and knob

grips.

• Stainless Steel/White (SW)

o White glass cramic tops with gray

knob grips.

• Brass trim option (BR)—knobs. Brass

components have a durable protective

coating for maintenance-free normal

use.

Standard Features & Accessories

Model Options

COOKING

Designer Built-In Electric 30”/36”W. Rangetop

DERT361-5B*

36”W. Five-Burner

Rangetop

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (DERT301-4BSS). If ordering optional brass trim, specify code at end (DERT301-4BSSBR).

35-7/8”

(91.1cm)

12-1/8”

(30.8cm)

24-7/16”

(62.1cm)

6-1/8”

(15.6 cm)

COOKING

Designer Built-In Electric 30”/36”W. Rangetop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 1 / 9 / 0 9

Please see

Installation Notes &

Accessories

for important

installation

information,

including

backguard, high-

shelf, and island

trim.

DERT301-4B DERT361-5B

Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm)

Overall height (from bottom)

To top of glass frame 6-1/8” (15.6 cm)

To top of island trim 6-1/8” (15.6 cm)

To top of 6” backguard 12-1/8” (30.8 cm)

To top of high shelf 29-5/8” (75.2 cm)

Overall depth (from rear)

To end of side panel 24-7/16” (62.1 cm)

To end of control panels 26-1/8” (66.35 cm)

To end of knobs 27-5/8” (70.2 cm)

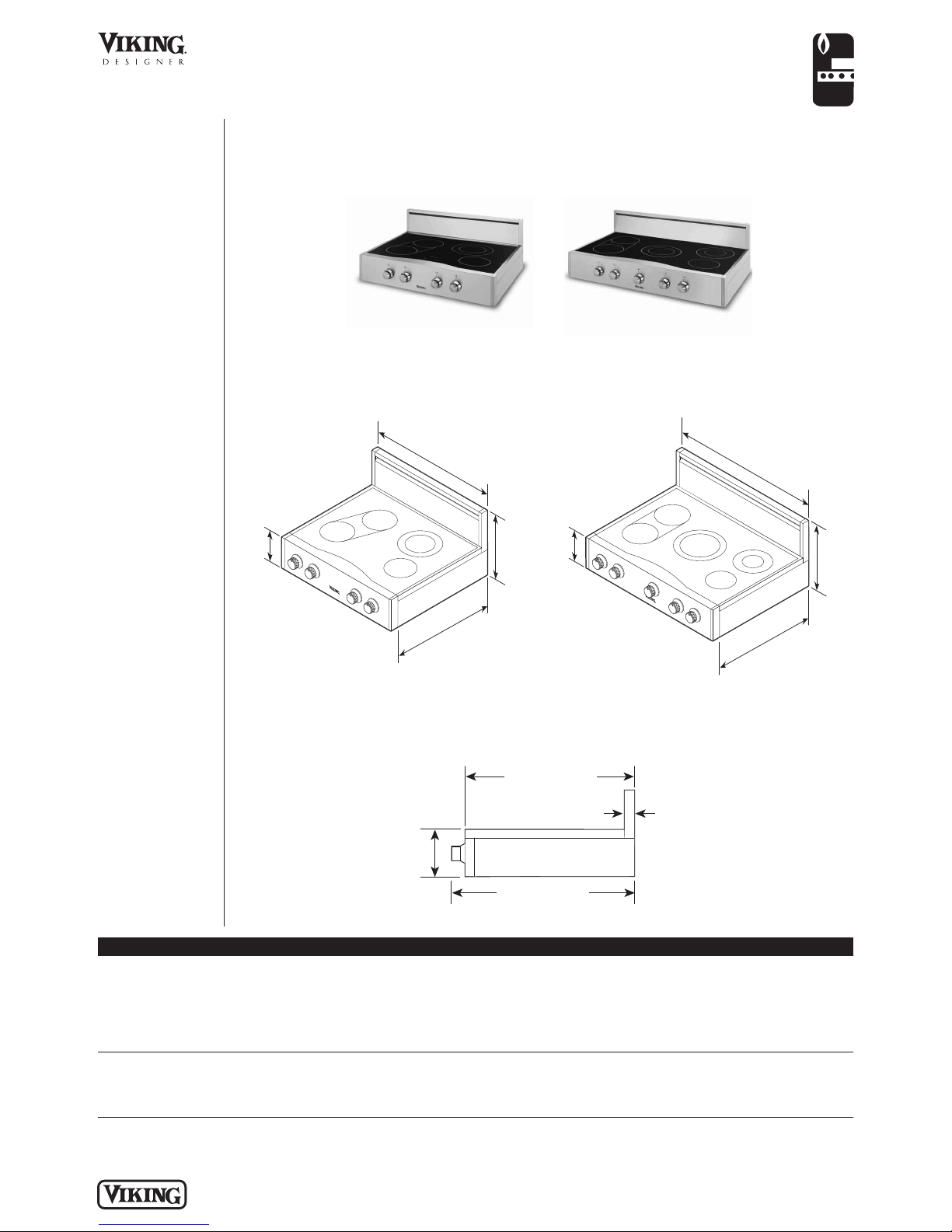

Dimensions & Specifications

PRODUCT DIMENSIONS

DERT301-4B

30”W. Four-Burner

Rangetop

DERT361-5B

36”W. Five-Burner

Rangetop

29-7/8”

(75.9cm)

24-7/16”

(62.1cm)

12-1/8”

(30.8cm)

6-1/8”

(15.6cm)

30”W. MODEL 36”W. MODEL

6-1/8”

(15.6 cm)

1-5/8”

(4.1 cm)

26-1/8” (66.4 cm)

27-5/8” (70.2 cm)

(from front of knob

to back of rangetop)

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 1 / 9 / 0 9

COOKING

Designer Built-In Electric 30”/36”W. Rangetop

30” 30” (76.2 cm)

36“ 36” (91.4 cm)

18”min.

(45.7cm)

36”

(91.4cm)

6”min.

(15.2cm)

24-7/16”

(62.1cm)

13” max.

(33.0cm)

42”min.

(106.7cm)

5-3/4”

(14.6cm)

Minimum clearances from adjacent

combustible construction*

• Cooking surface and below, i.e., 36”

(91.4 cm) and below

o Sides—0”

o Rear—0” with backguard or high-

shelf; 0” with island trim and non-

combustible rear wall; 6” (15.2 cm)

with island trim and combustible rear

wall.

o Top grate support—36” (91.4 cm)

• Above cooking surface, i.e., above 36”

(91.4 cm)

o Sides—6” (15.2 cm)

o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”

(33.0 cm) must be minimum 18”

(45.7 cm) above cooking surface.

o Wall cabinets directly above product

must be minimum 36” (91.4 cm) for

open top burners above cooking

surface.

Do not install two or more units

side-by-side.

1. This rangetop may be installed directly

adjacent to existing 36” (91.4 cm) high

base cabinets. Important: The top

grate support must be 3/8” (0.95 cm)

above the adjacent base cabinet

countertop.

2. The rangetop cannot be installed

directly adjacent to sidewalls, tall

cabinets, tall appliances, or other side

vertical surfaces above 36” (91.4 cm)

high. There must be a minimum of 6”

(15.2 cm) side clearance from the

rangetop to such combustible surfaces

above the 36” (91.4 cm) counter

height.

3. Within the 6” (15.2 cm) side clearance

to combustible vertical surfaces above

36” (91.4 cm), the maximum wall

cabinet depth must be 13” (33.0 cm)

and wall cabinets within this 6” 15.2

cm) side clearance must be 18” 45.7

cm) above the 36” (91.4 cm) high

countertop.

4. Wall cabinets above the rangetop

must be a minimum of 42” (106.7 cm)

above the rangetop cooking surface

for the full width of the rangetop. This

minimum height requirement does not

apply if a rangehood is installed over

the cooking surface.

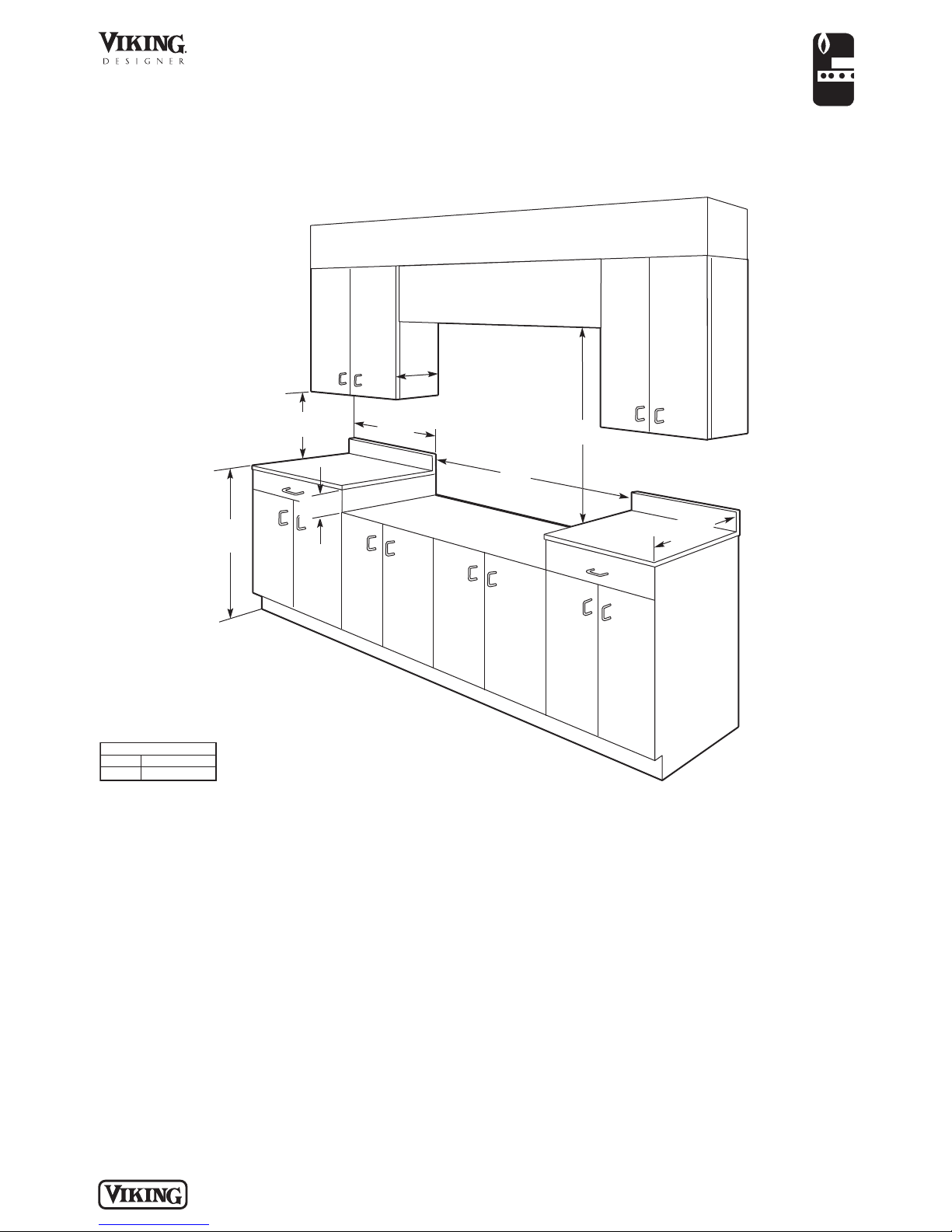

Dimensions & Specifications

CLEARANCE DIMENSIONS

3/4”

(1.9cm)min.

24-7/16”

(62.1cm)

COOKING

Designer Built-In Electric 30”/36”W. Rangetop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 1 / 9 / 0 9

UTILITY

REQUIREMENTS

GAS

• Not applicable

ELECTRICAL

• Electrical

connection—40

amp. Three-wire,

240/208V, 60Hz. Unit

is equipped with No.

10 ground wire in

conduit. Should be

fused separately.

• Check your national

and local codes

regarding this unit.

• Four-foot (121.9 cm)

cord included with

range; three-wire

with ground/three-

prong plug

• Maximum amp

usage—

o DERT 30"

o 240V—35.0

o 208V—30.3

o DERT 36”

o 240V—45.0

o 208V—40.0

PLUMBING

Not applicable

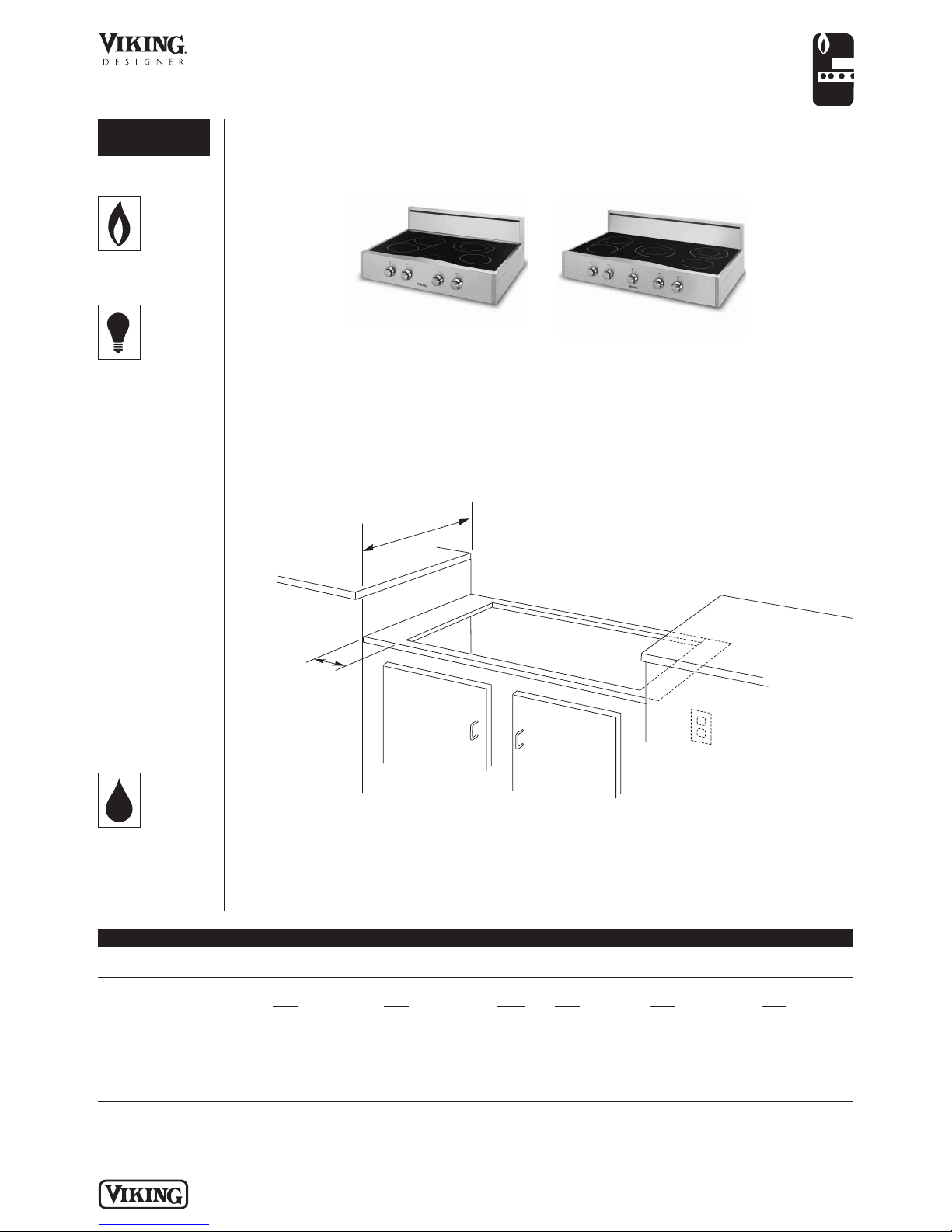

Installation Requirements

ACCESS REQUIREMENTS

DERT301-4B

30”W. Four-Burner

Rangetop

DERT361-5B

36”W. Five-Burner

Rangetop

DERT301-4B DERT361-5B

Cutout width 30” (76.2 cm) 36” (91.4 cm)

Cutout height 5-3/4” (14.6 cm) 5-3/4” (14.6 cm)

Cutout depth 24-7/16” (62.1 cm)

Surface element rating 240V 208V 240V 208V 240V 208V

Left front 1,800 watts 1,350 watts 1,800 watts 1,350 watts

Bridge 800 watts 600 watts

Left rear 1,800 watts 1,350 watts 1,800 watts 1,350 watts

Center (dual element) N/A 2,700/1,700 watts 2,025/1,275 watts

Right front 1,500 watts 1,125 watts 1,500 watts 1,125 watts

Right rear (dual element) 2,500/1,000 watts 1,875/750 watts 2,200/750 watts 1,650 watts

6”H. Backguard

• Stainless Steel (SS)

•Coordinates with all finishes

10”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• Installs on side of unit; overlaps countertop

• One pair of trim

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Ten-year limited warranty—all electric elements/oven elements

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

COOKING

Designer Built-In Electric 30”/36”W. Rangetop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 1 / 9 / 0 9

!Installation Notes & Accessories

A backguard, high-shelf, or island trim must be used for all installations.

Model Description Approx. ship wt. lbs. (kg)

D30BG6 30”W. backguard 14 (6.3)

D36BG6 36”W. backguard 14 (6.3)

Model Description Approx. ship wt. lbs. (kg)

D30HS24 30”W. high-shelf 45 (20.3)

D36HS24 36”W. high-shelf 50 (22.5)

Model Description Approx. ship wt. lbs. (kg)

D36BG10 36”W. backguard 17 (7.7)

Model Description Approx. ship wt. lbs. (kg)

D30TII 30”W. island trim 10 (4.5)

D36TII 36”W. island trim 11 (5.0)

Model Description Approx. ship wt. lbs. (kg)

TE24CST Side trim 2 (0.9)
